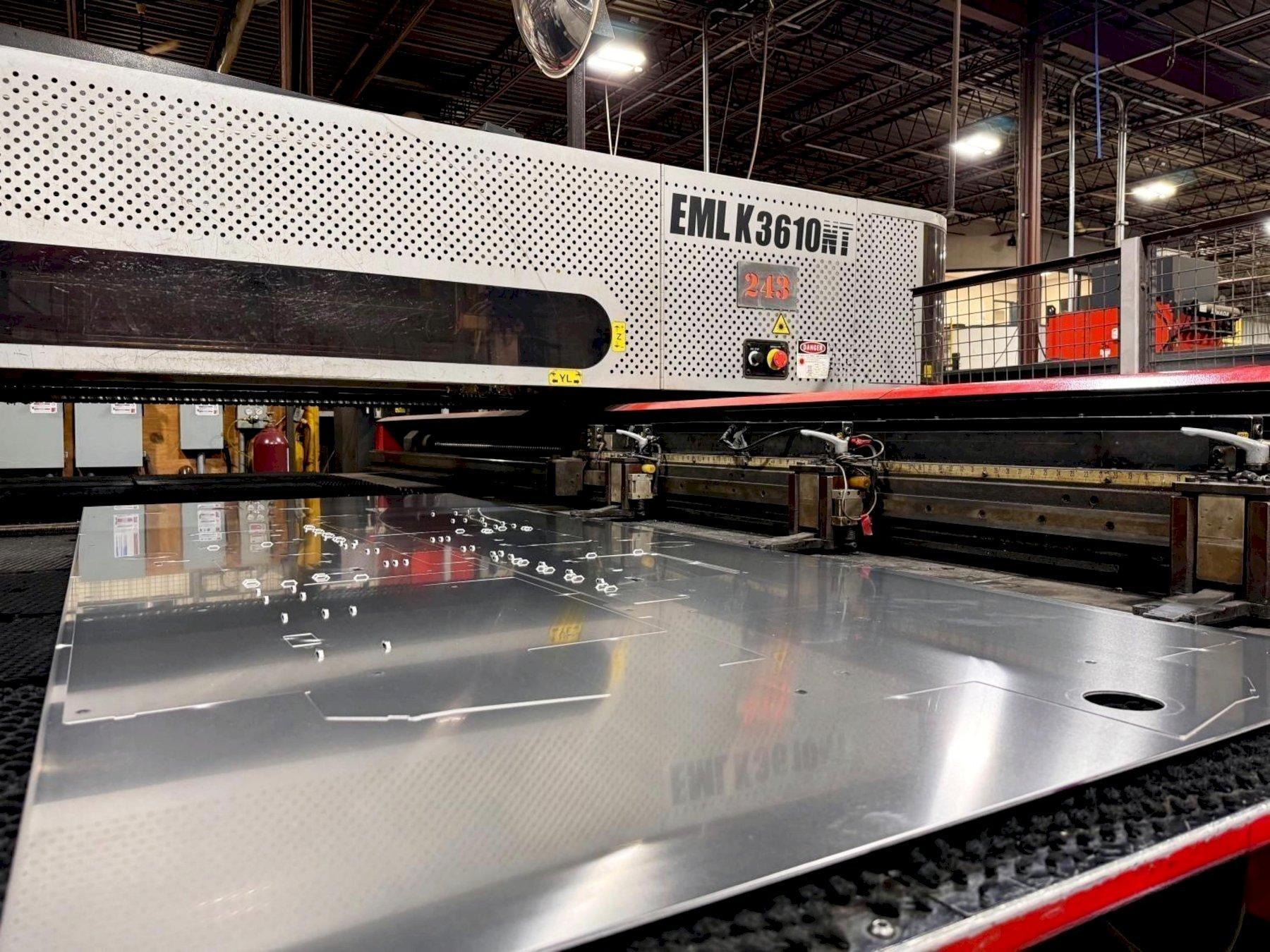

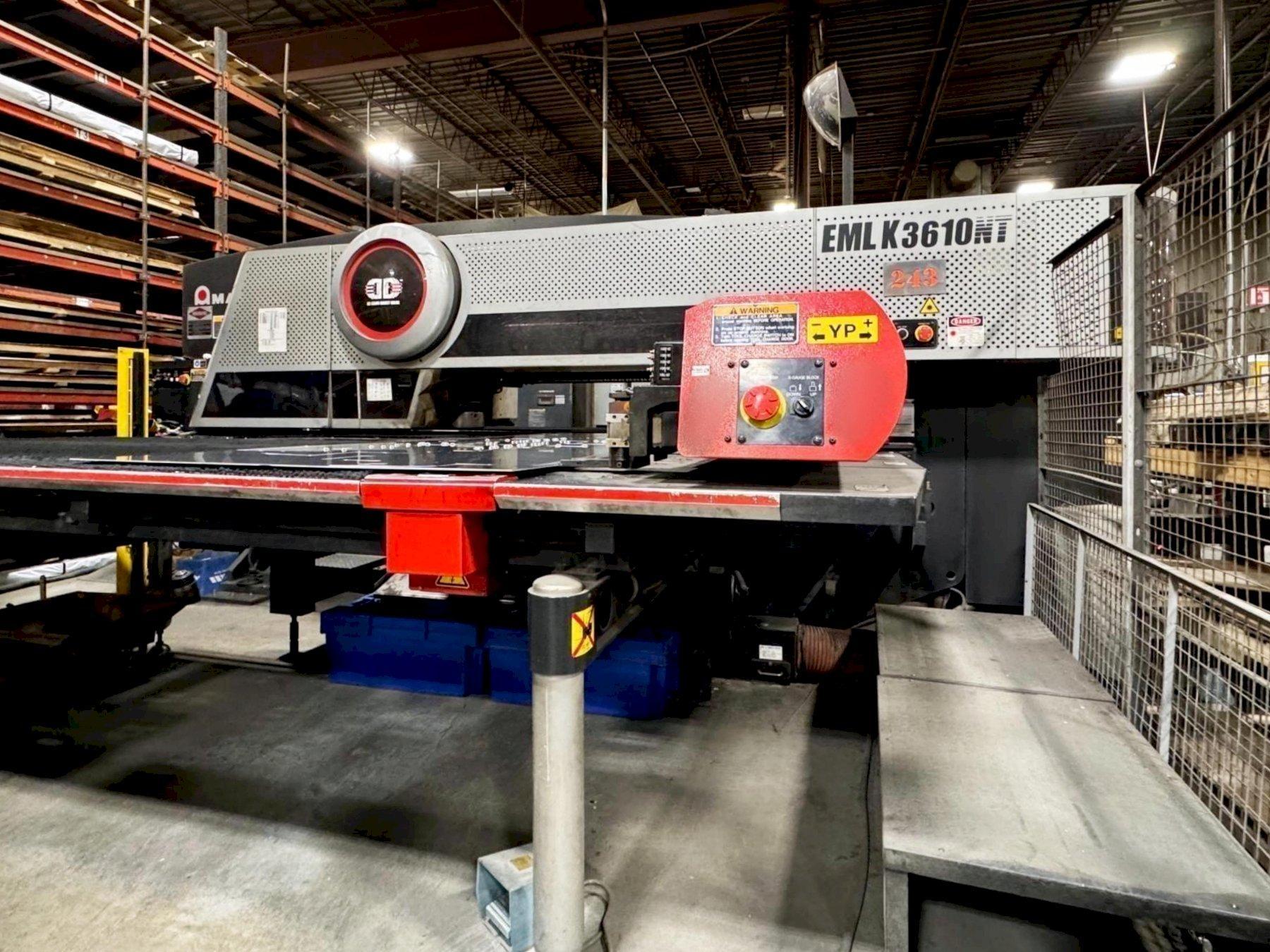

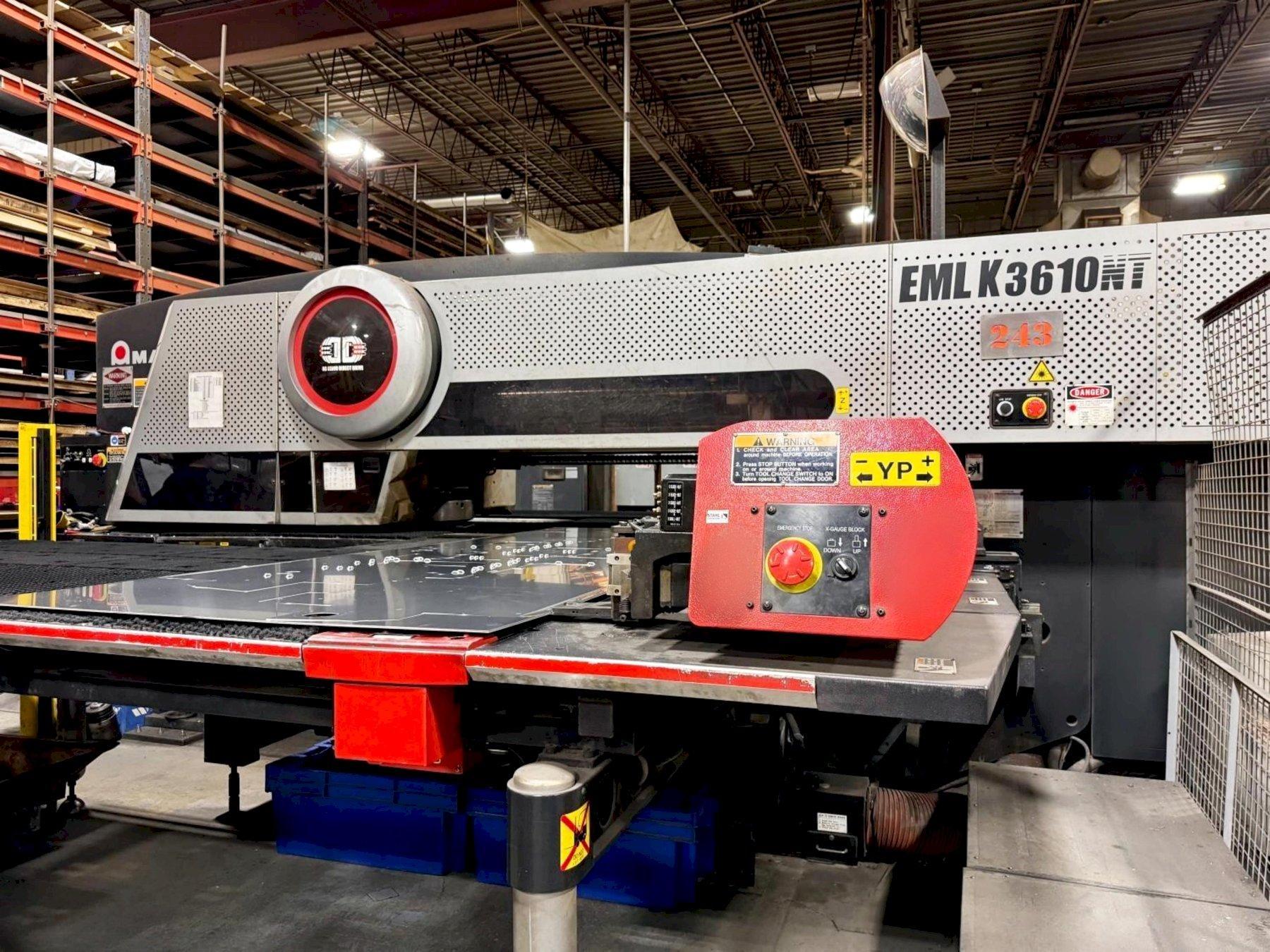

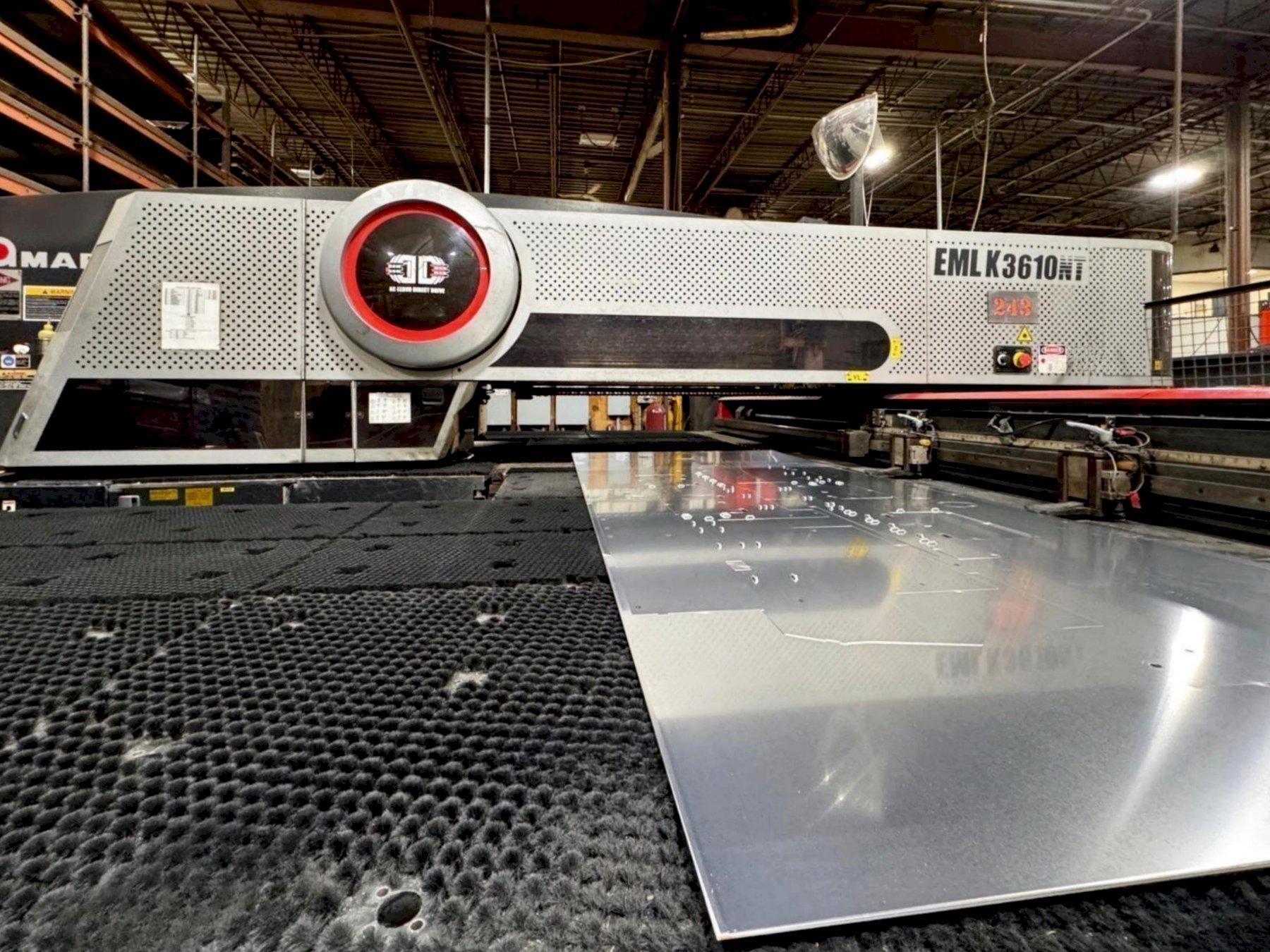

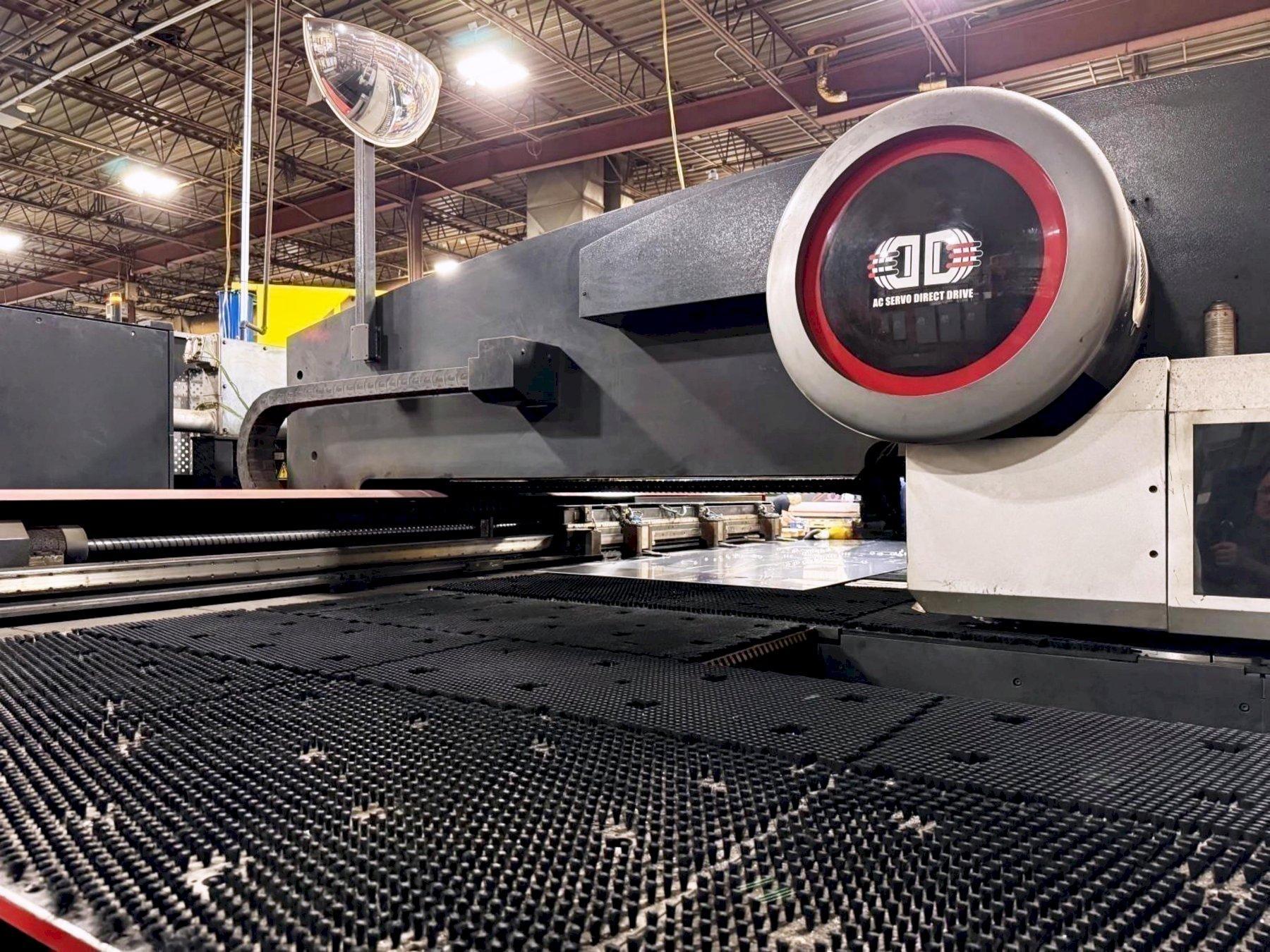

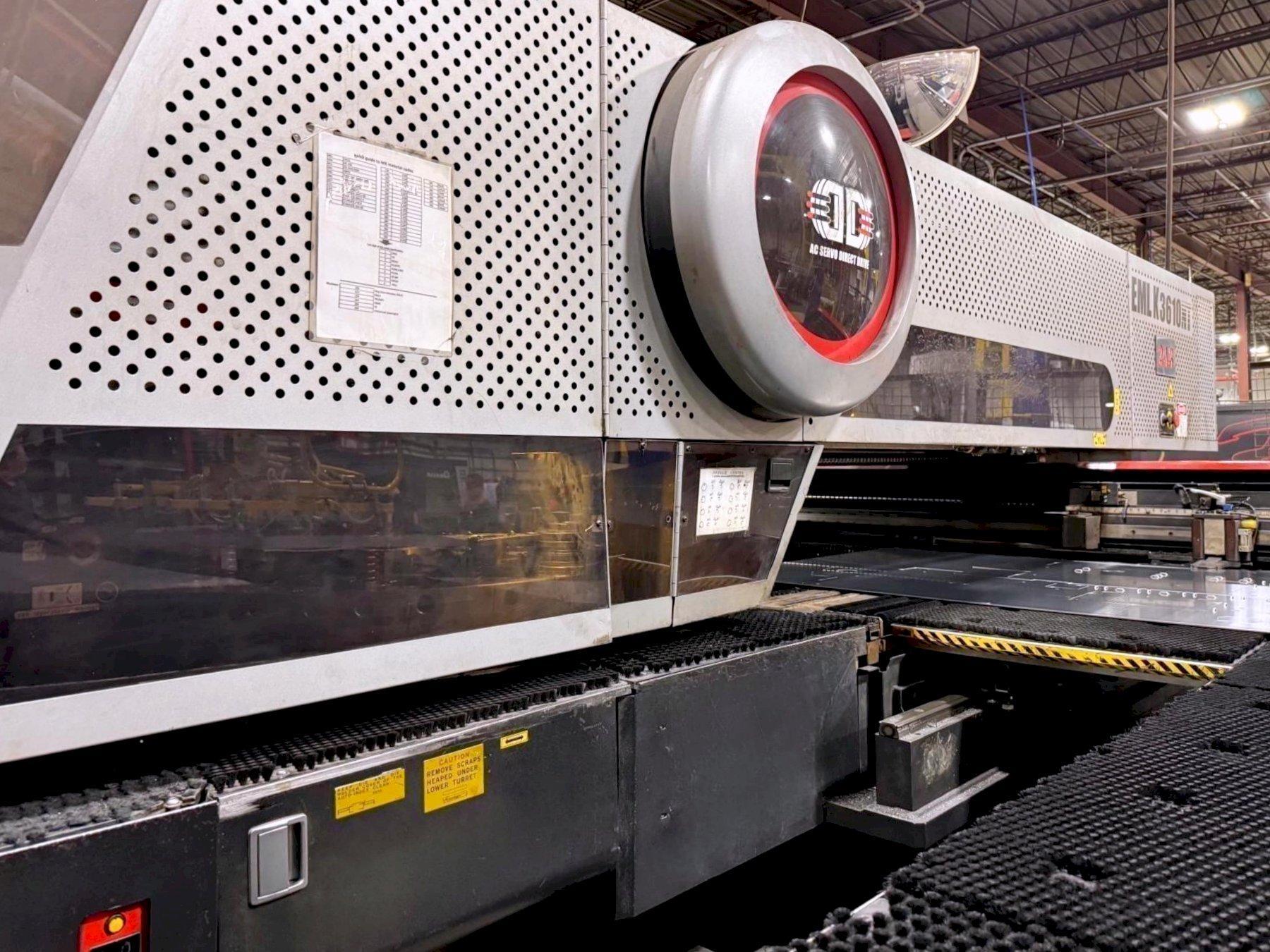

Amada EMLK 3610NT Laser/Punch Combo
Brand
Category
Type
Model
EMLK 3610NT
Stock #
100523
Year
2015
Condition
Very Good
Location
Not specified

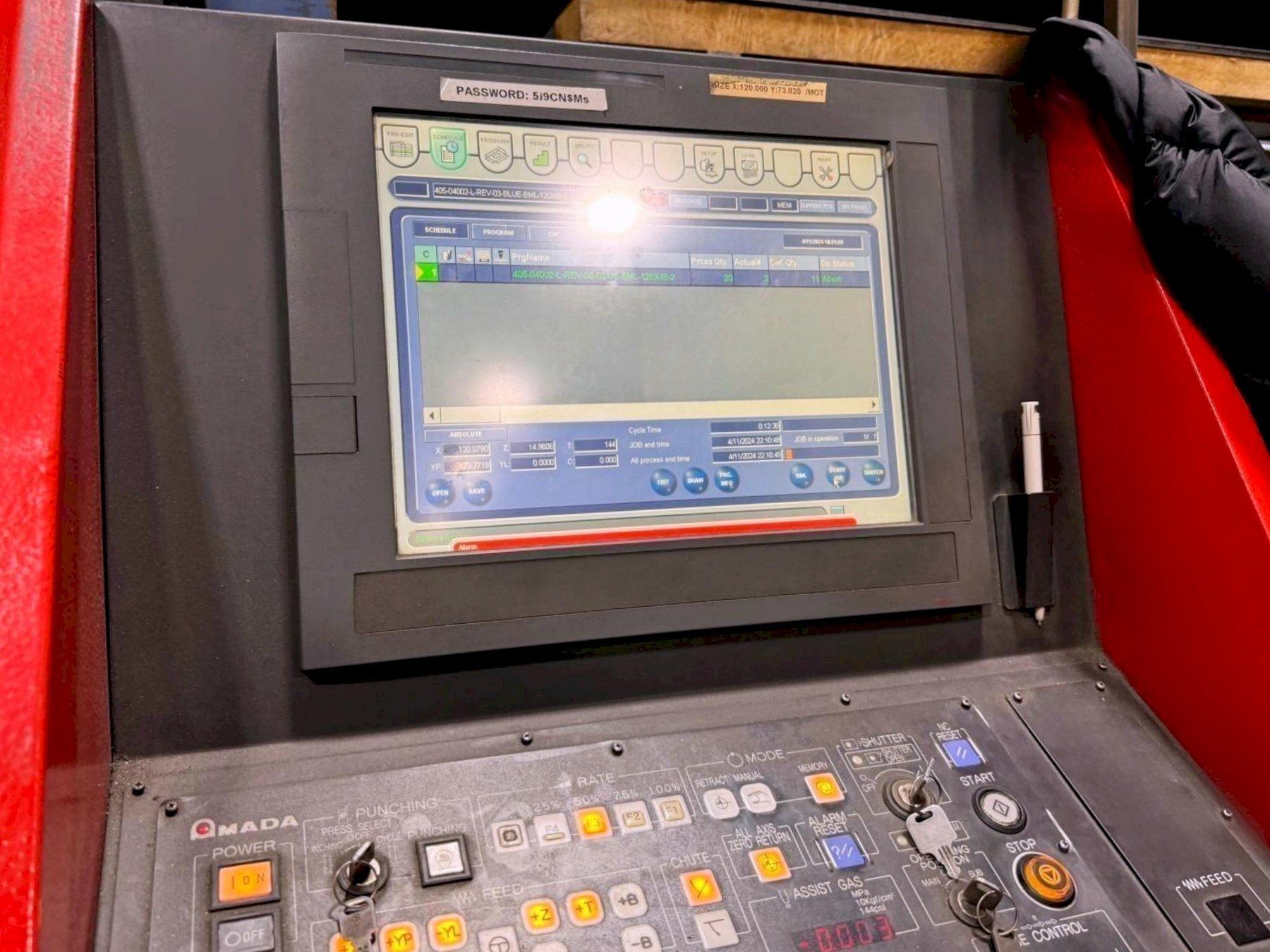

| Control | CNC AMNC-PC (Windows OS) |
| Capacity | 33 Ton |

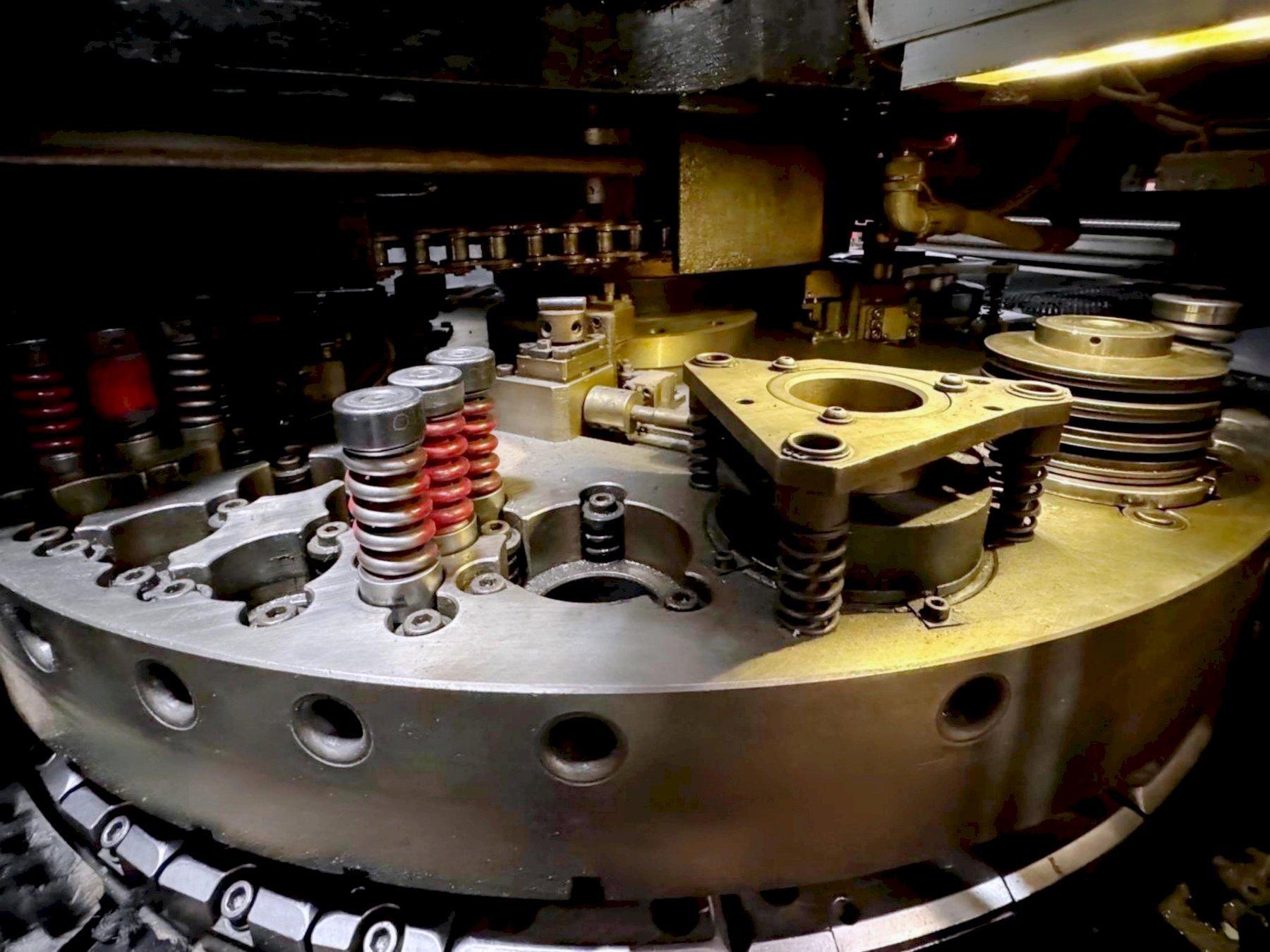

| Turret Configuration | 58-Station |
| Motion Axis | X, Y, TL, Z, B, T & C |
| Work Area X | 100˝ (Laser), 120˝ (Punching) |
| Work Area Y | 60˝ (Laser), 60˝ (Punching) |
| Work Area Z | 14.9˝ |
| Max. Thickness | .25˝ M.S., .25˝ S.S., .25˝ Alu. |
| Max. Work Weight | 330 lbs. |
| Rapid Traverse X | 3,937 IPM |
| Rapid Traverse Y | 3,149 IPM |
| Simultaneous | 5,051 IPM |
| Rapid Traverse Z | 2,362 IPM |
| Max. Cutting Speed X | 780 IPM |
| Max. Cutting Speed Y | 780 IPM |
| Hit Rate | 1800 HPM |
| Repeatability | ±0.00027˝ |
| Positioning Accuracy | ±0.0012˝/39.37˝ |
| Punching Accuracy | ±0.004˝ |

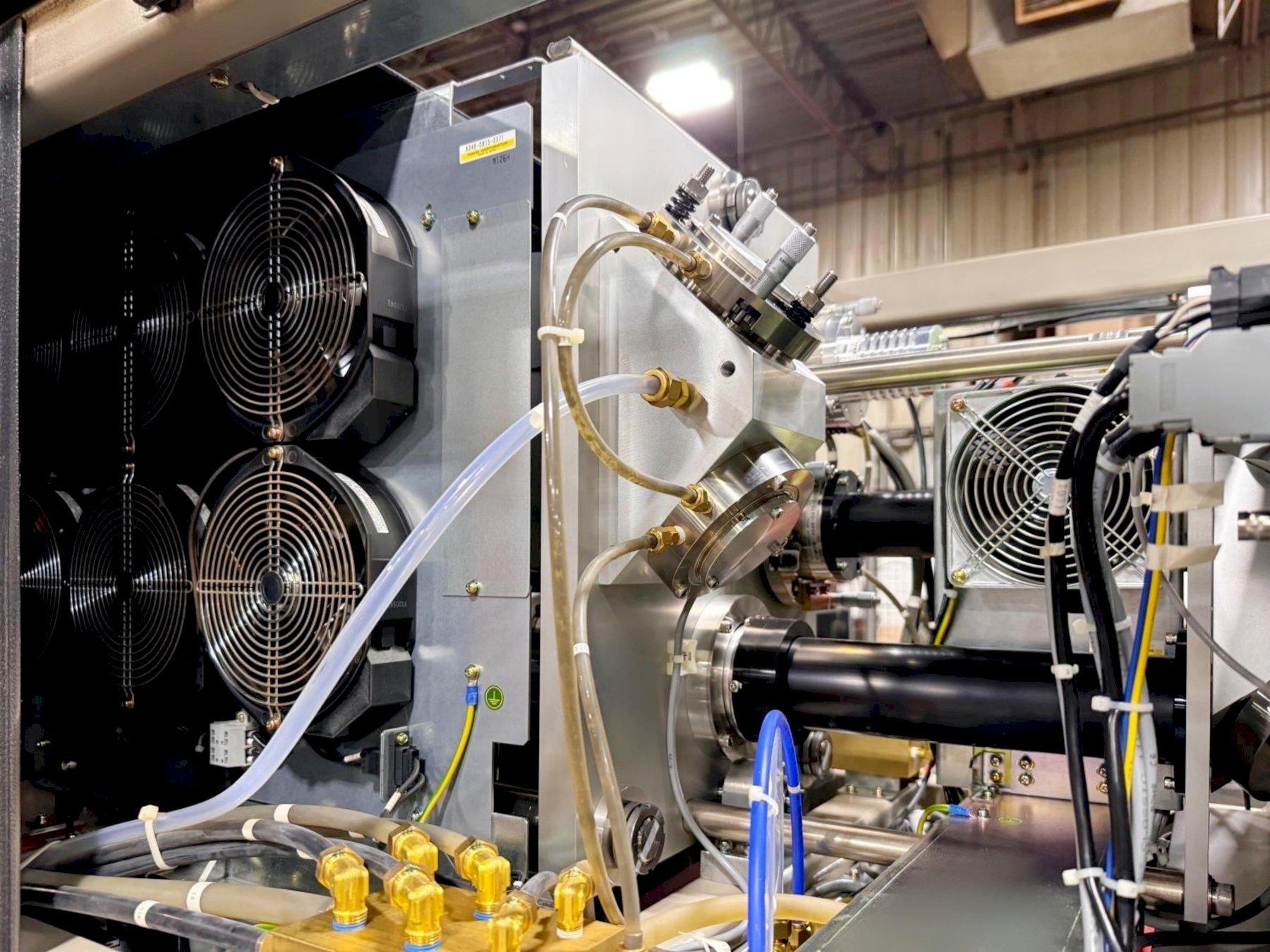

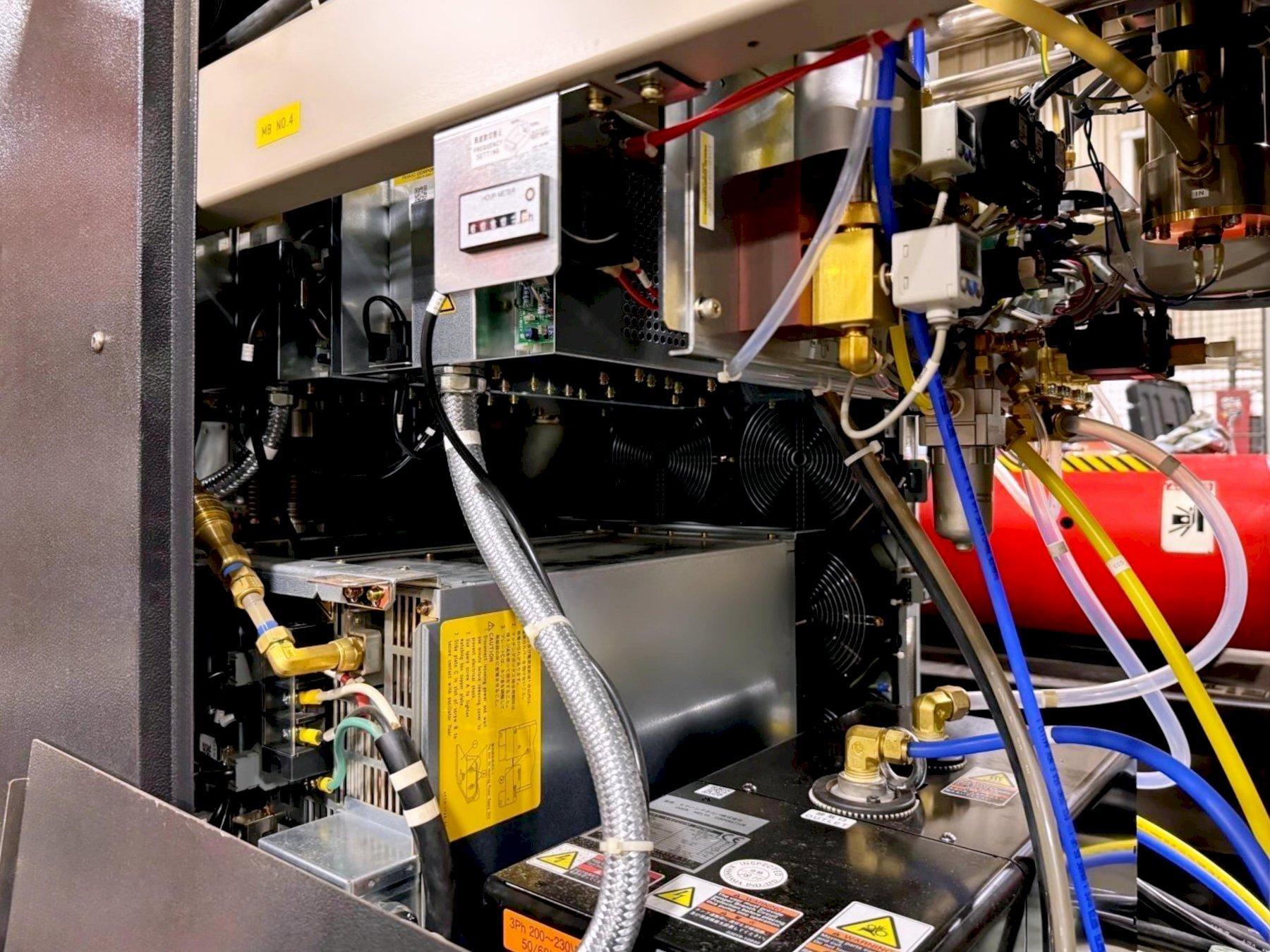

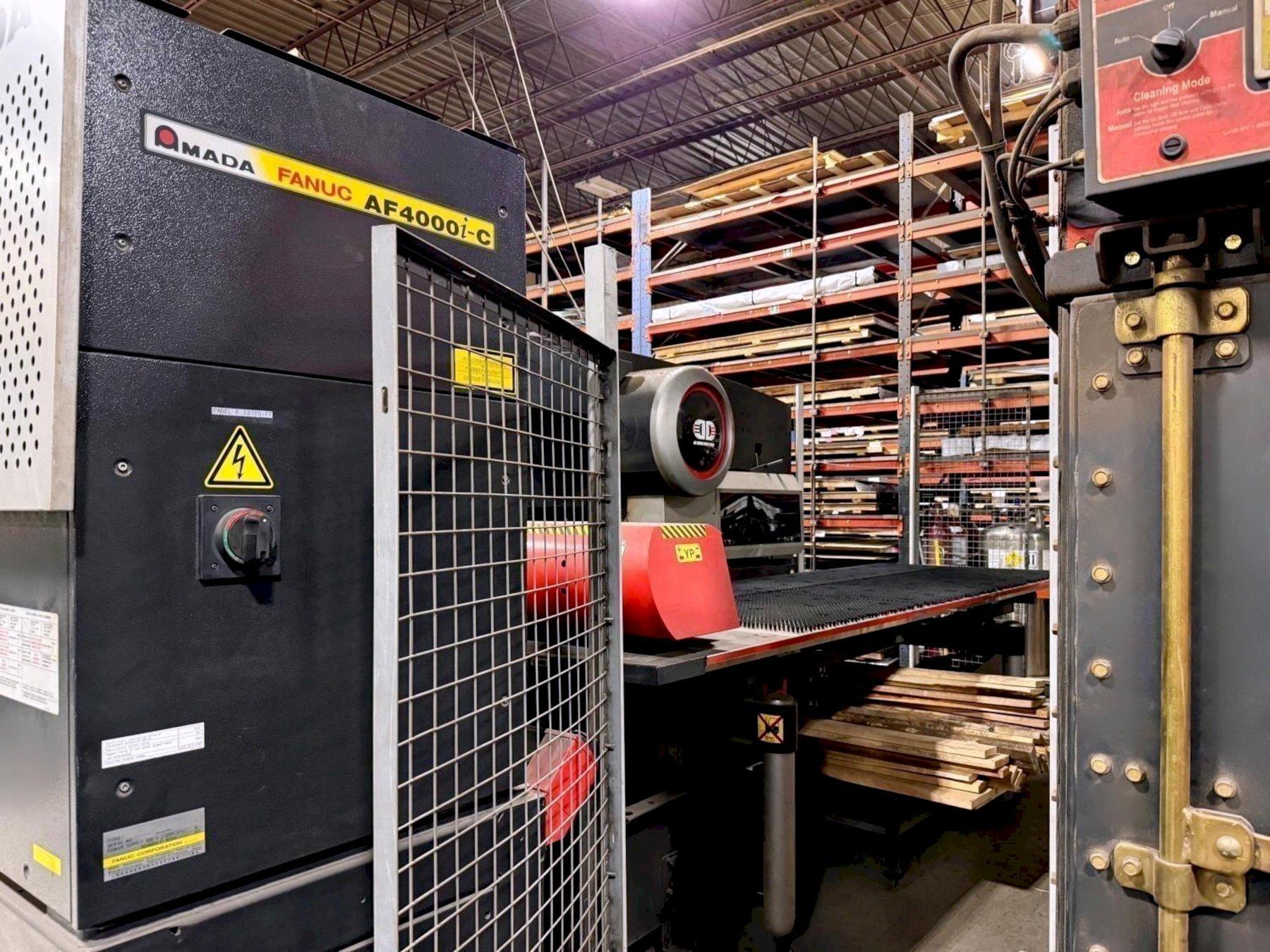

| Laser Power | AF-4000E 4kW (4,000 Watt) |
| Machine Weight | 66,139 lbs. |
|

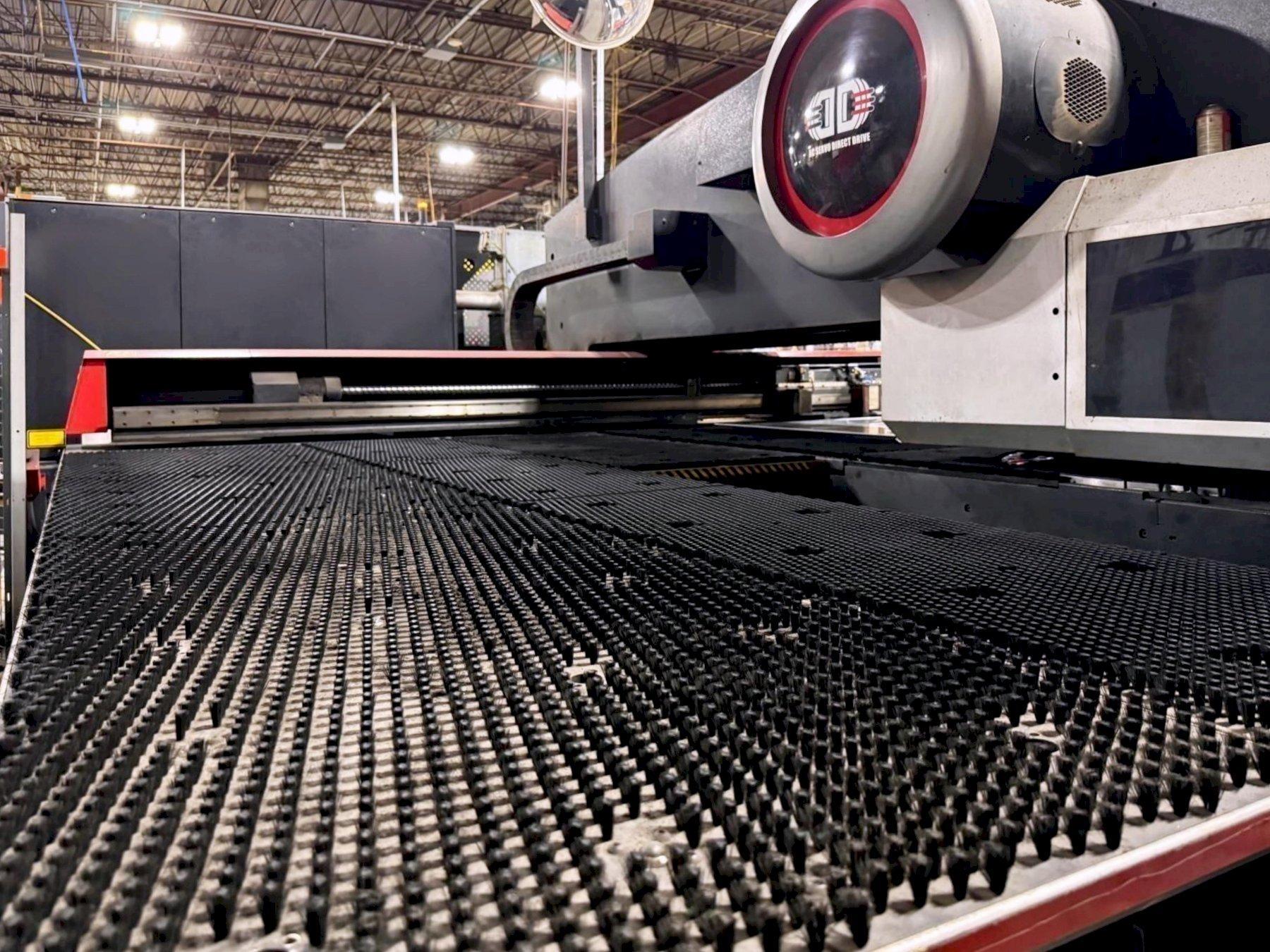

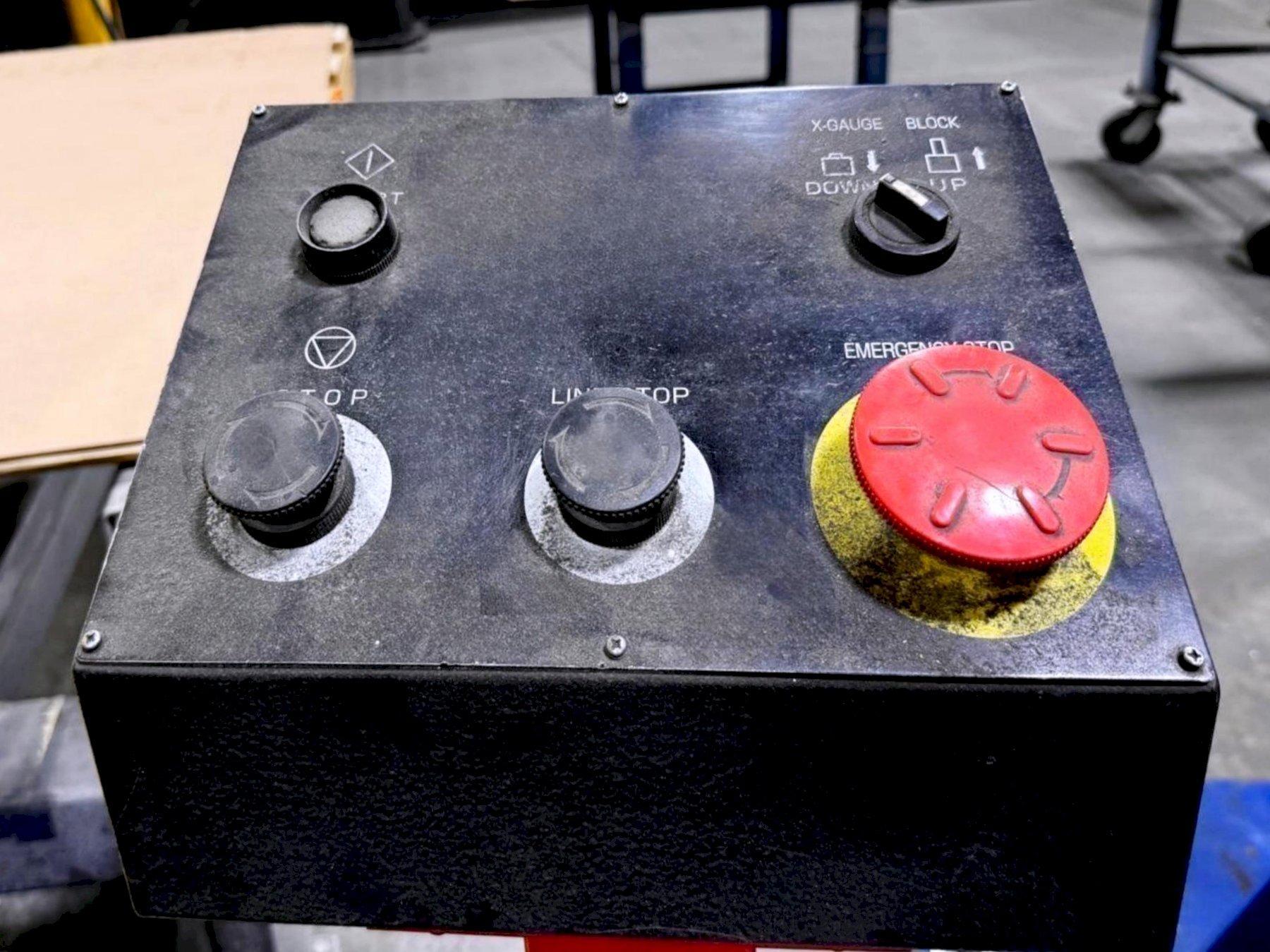

Equipped With: CNC AMNC-PC Control Windows Operating System 58 Station Thick Turret (4) Auto Index Stations Fanuc AF4000i-B 4000-Watt Resonator Brush Table Control Pedestal AlumiCut-Clean |
|
