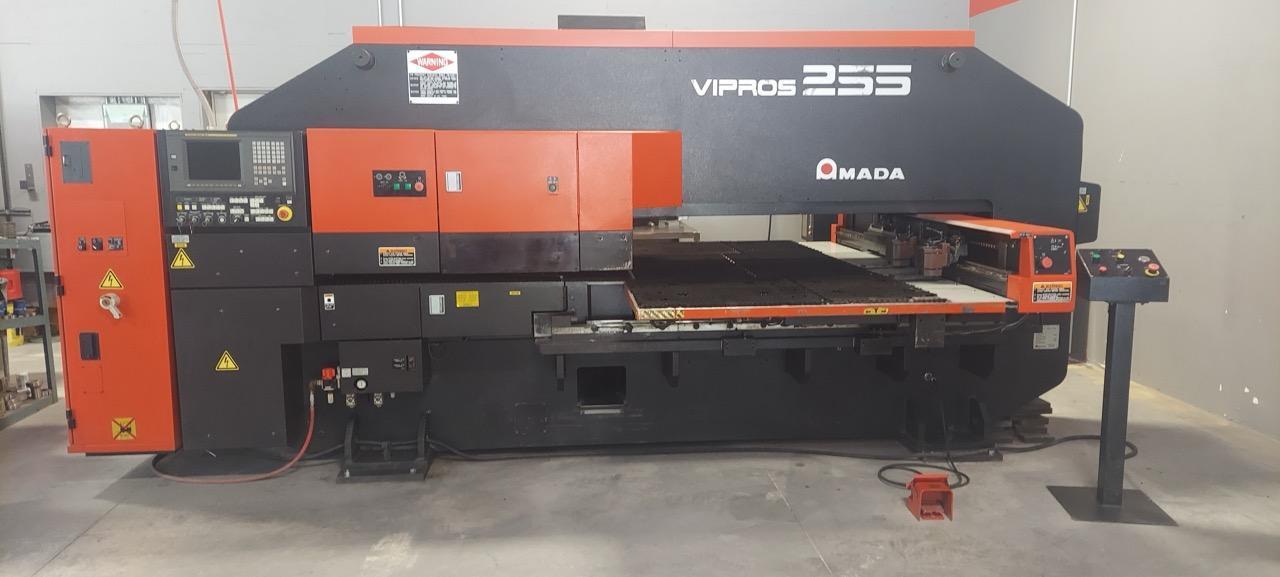

20 Ton Amada Vipros 255 Turret Puch, 2000

SPECIFICATIONS Tonnage Capacity: 20 US Tons Max Sheet Size (Without Repositioning): 50″ x 50″ Max Sheet Size (With Repositioning): 50″ x 100″ Max Material Thickness: 0.135″ (Mild Steel) Throat Depth: 50″ Table Type: Brush Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,TURRET & TOOLING Turret Stations: 31 Total (4) Auto Index Stations Tool Change Time: 1 Second Approx. Tool Holder Type: Amada-style Indexable Stations: Yes – up to 360°

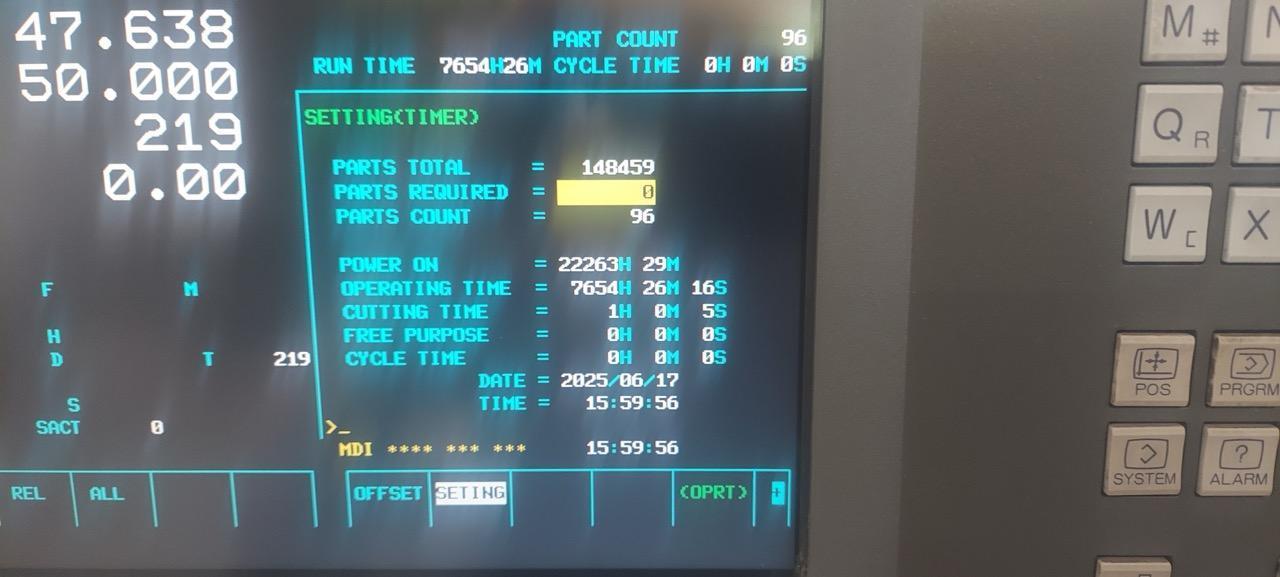

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CONTROL SYSTEM CNC Control: Fanuc 18-P Program Storage: Up to 1000 Programs Input Method: Floppy Disk or RS-232

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PERFORMANCE & POWER Hit Rate (1″ Centers): Up to 300 Hits Per Minute Hit Rate (Nibbling): Up to 900 Hits Per Minute Axis Speeds (X/Y): 80 M/min (3,150 in/min) Drive System: AC Servo Motors Main Drive Motor: 5 HP Electrical Requirements: 220V / 3 Phase / 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DIMENSIONS & WEIGHT Machine Footprint: Approx. 168″ x 128″ Height: Approx. 85″ Machine Weight: 22,000 lbs (approx.)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
