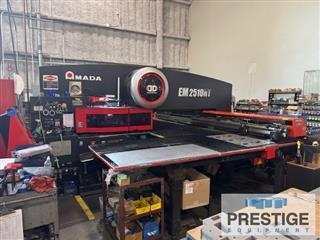

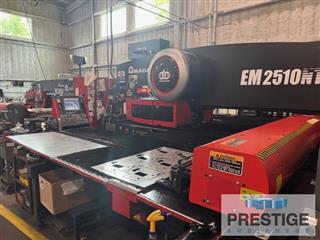

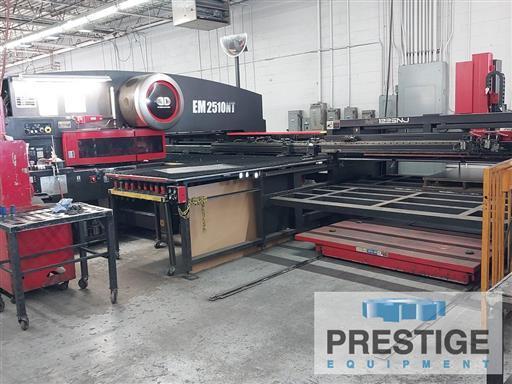

22 Ton Amada EM2510NT AC Servo Electric CNC Turret Punch Press

CAPACITY:
Tonnage Capacity 22 Tons
Table Travel 50" x 100"
Throat Depth 52"
Maximum Material Thickness 1/8"
Maximum Punch Diameter 4-1/2"
Hit Rate 1" Pitch, .197" Stroke 500 HPM (X-Axis)
Hit Rate 1" Pitch, .197" Stroke 330 HPM (Y-Axis)
Hit Rate .040" Pitch, .197" Stroke 780 HPM (X-Axis)
Hit Rate .040" Pitch, .197" Stroke 515 HPM (Y-Axis)
X-Axis Positioning Speed 3,950 IPM
Y-Axis Positioning Speed 3,150 IPM
Stroke Length 1.65"
Machine Weight 44,000 Lbs



Equipped With:
Fanuc AMNC-PC CNC Control
AC Servo Driven Punch Ram
Brush Table Design
45 Station Thick Turret (No Holders or tooling)
(2) 1-1/4" Auto Index Stations
(2) 2" Auto Index Stations
Auto Sheet Repositioning


NOTE: Inspect Under Power in Plant
