72" X 0.500" BUTECH LEVELER (14347)
Brand
Category
Type
Model
Not specified
Stock #
14347
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width Of Workpiece | 72 inches |
| Max Thickness Of Workpiece | 0.5 inches |
|

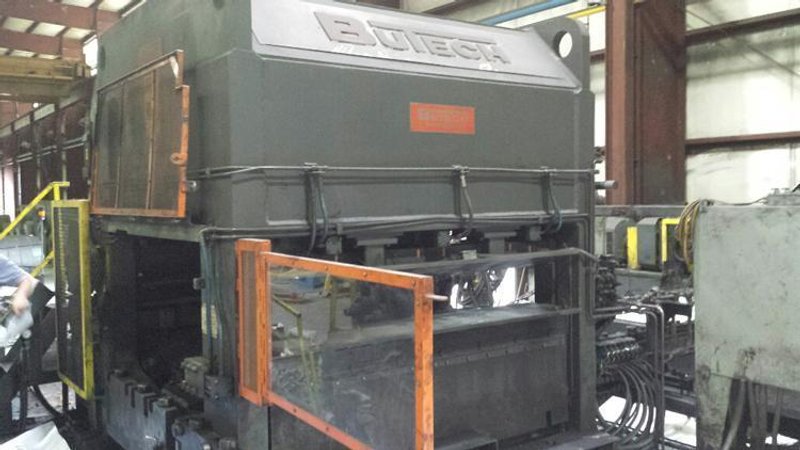

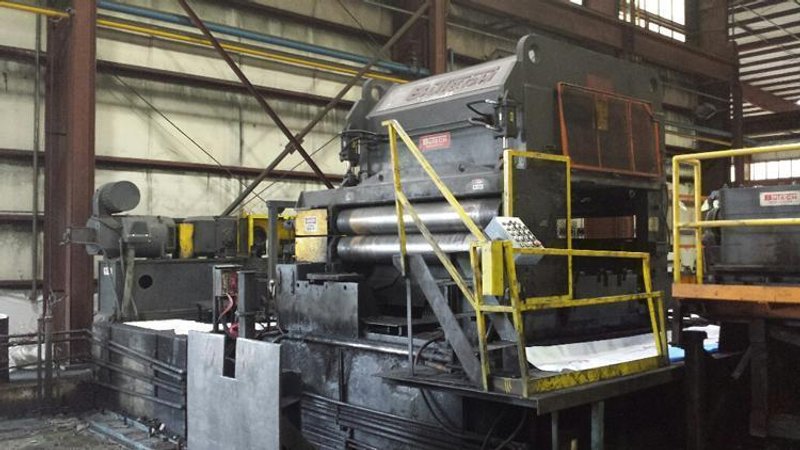

72" X .500" BUTECH LEVELER
Stock # 14347 General Specifications: Manufacturer: Butech Year of Manufacture: 2002 Material: HR, HRHS, HRPO Yield Strength: 85,000 PSI max. Strip Thickness: .500" maximum, .125" minimum Strip Width: 72" max., 24" min. Line Speed: 0 to 326 or 400 FPM max. as determined with customer Line Direction: Left to Right Guide Reference: Centerline (2) 250 HP DC Motors (11) Roll Heavy Gage Leveler Specifications: Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face Work Roll Quantity: 11, 5 up, 6 down Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face Back Up Flights: 7 top and bottom Strip Thickness Range: .500" maximum, .125" minimum Many spare parts including work rolls and back up rolls **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
