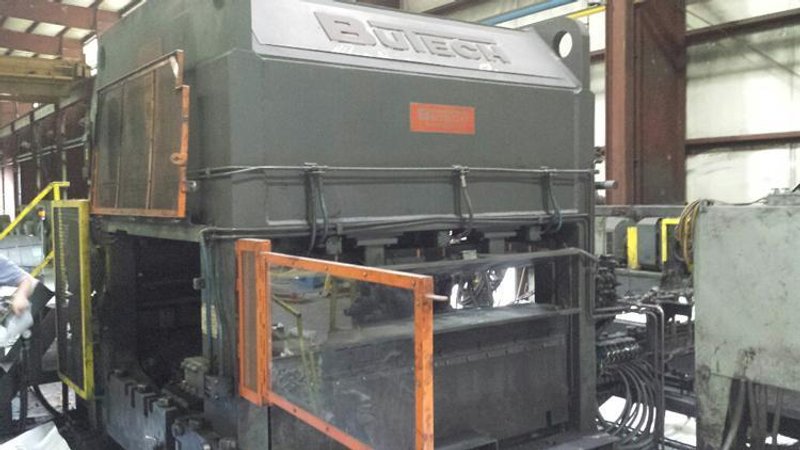

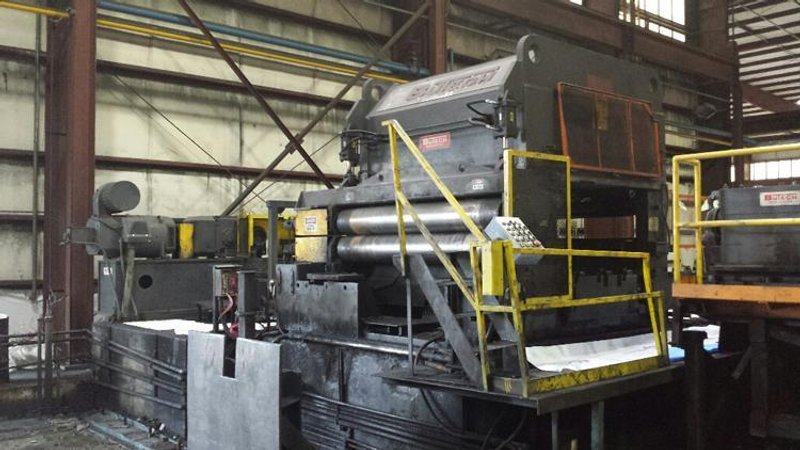

Title: 72" x .500" Butech Leveler
Type: Levelers
Brand: BUTECH
Model: No model specified
Year: 2002
Message
Information

72" x .500" Butech Leveler

Brand
Model
Not specified
Stock #
102096-2
Year
2002
Condition
Not specified
Location
South Carolina
Coil Width 72 inches
Thickness .500 inches
Work Roll Diameter 5.500 inches
Number of Work Rolls 11
General Specifications:
Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness Range: .125"-.500"
Strip Width Range: 24"-72"
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors

(11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .125"-.500"

Many spare parts including work rolls and back up rolls
No files or videos to display
