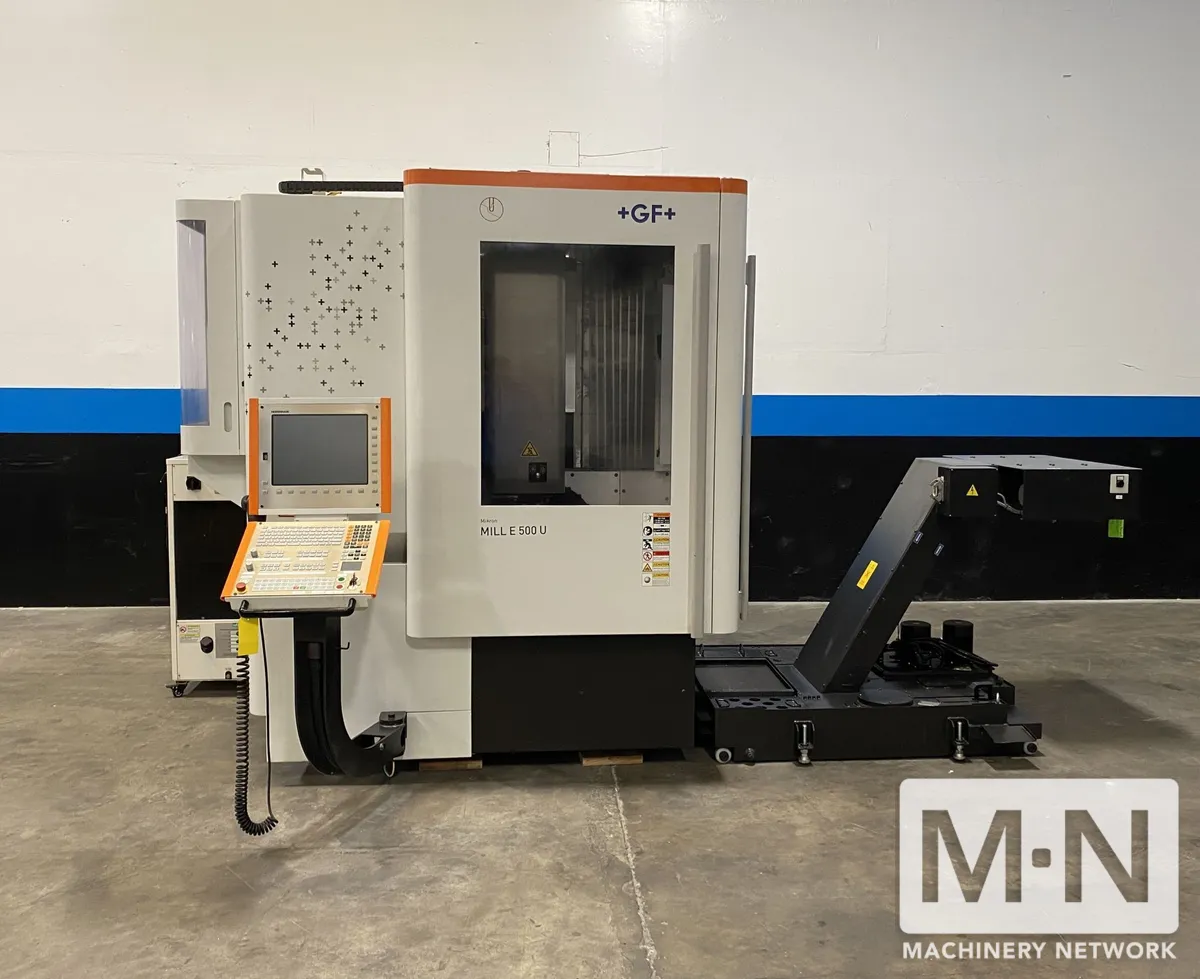

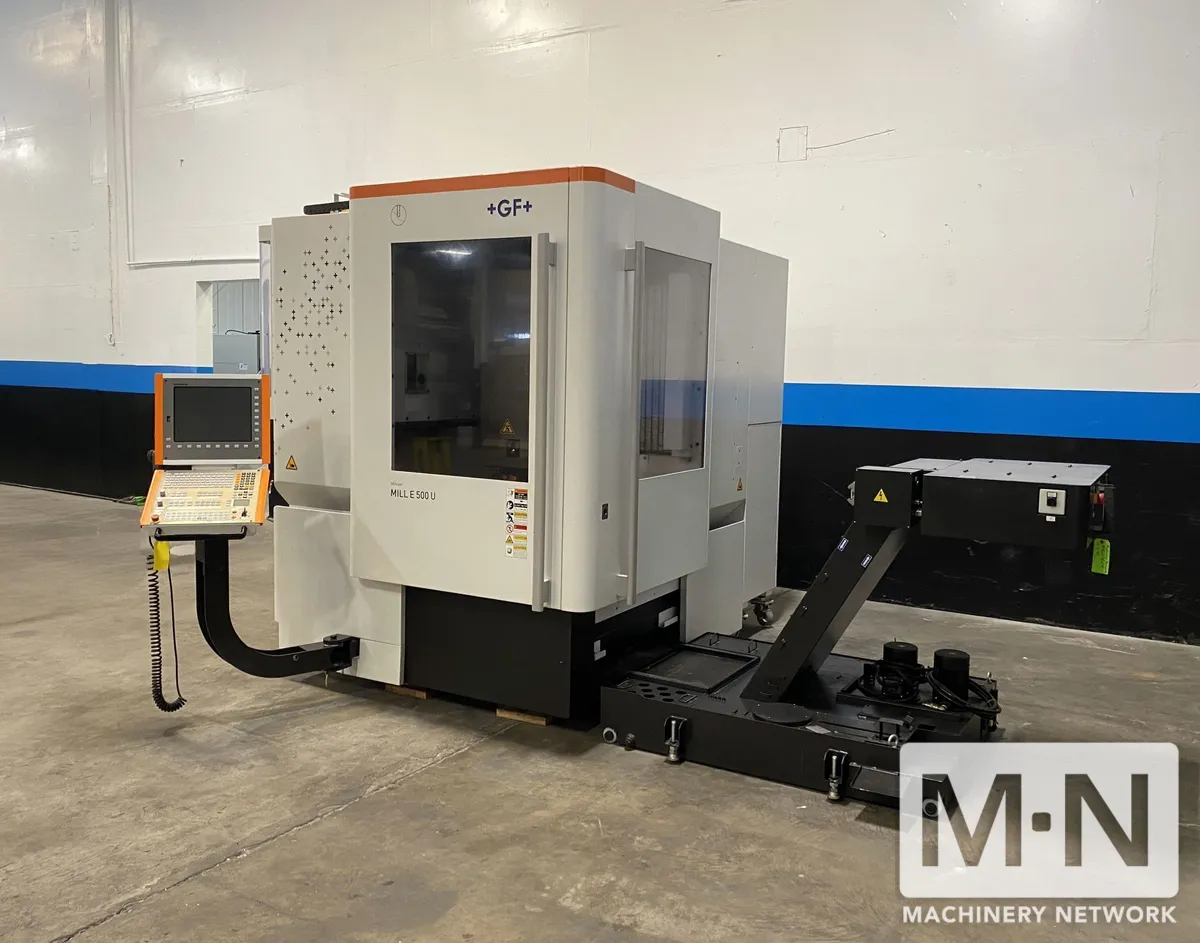

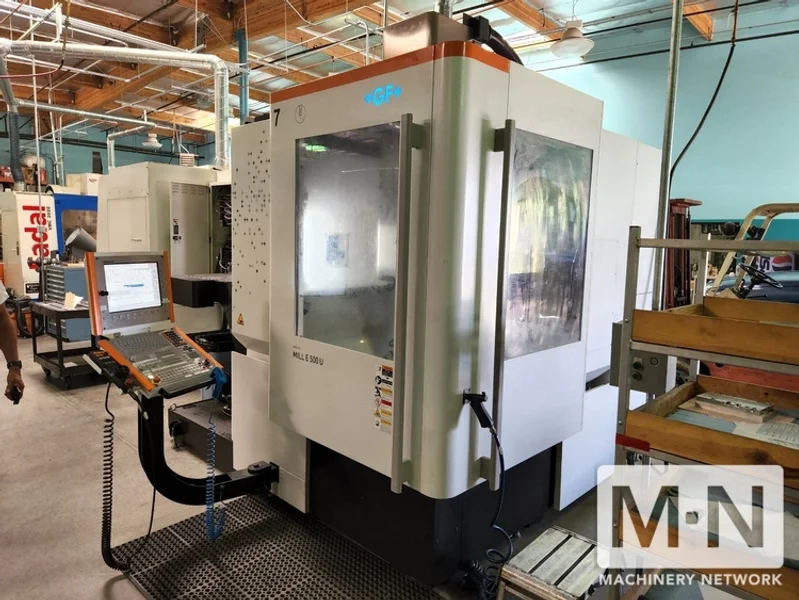

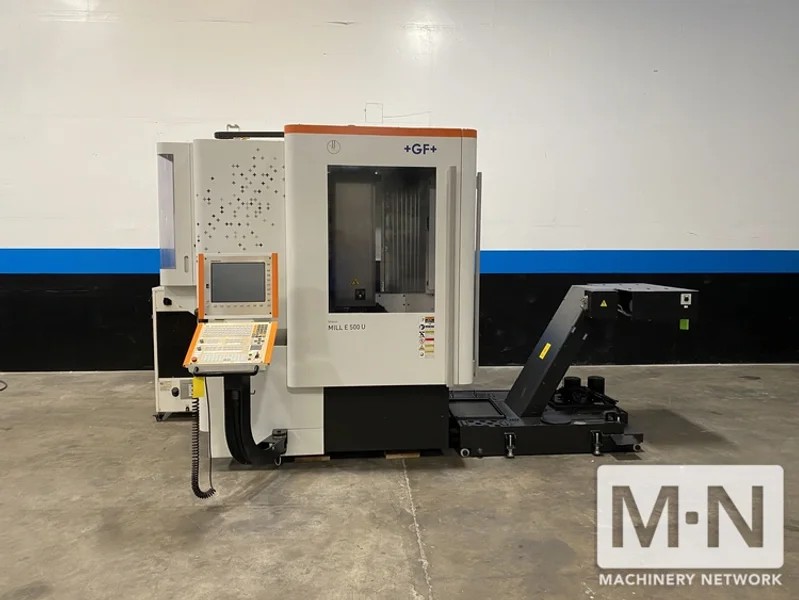

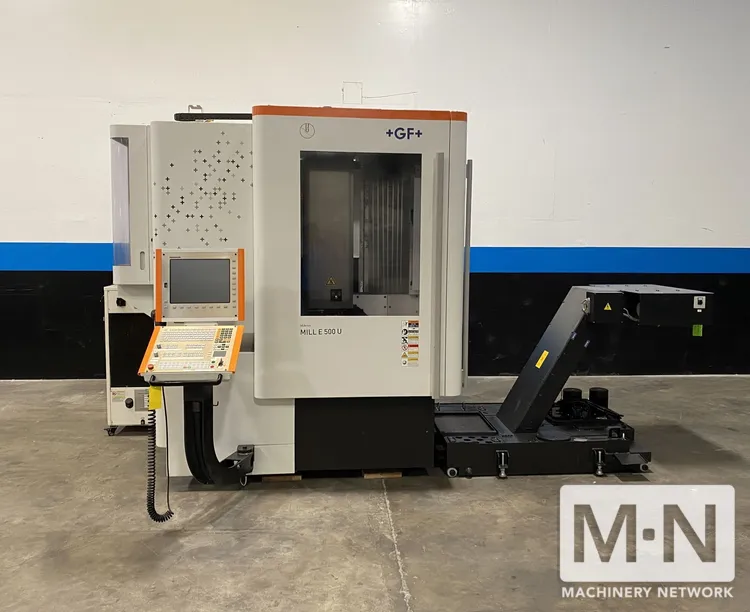

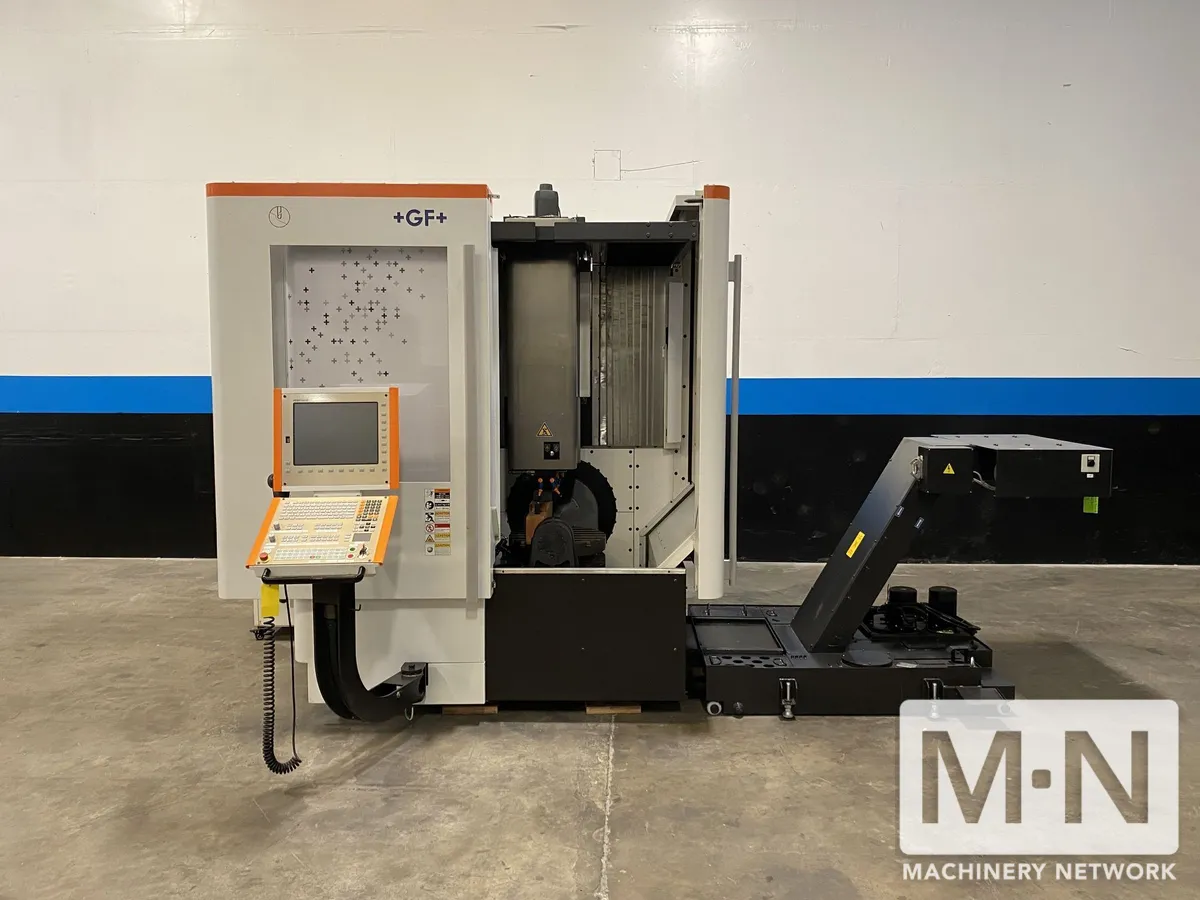

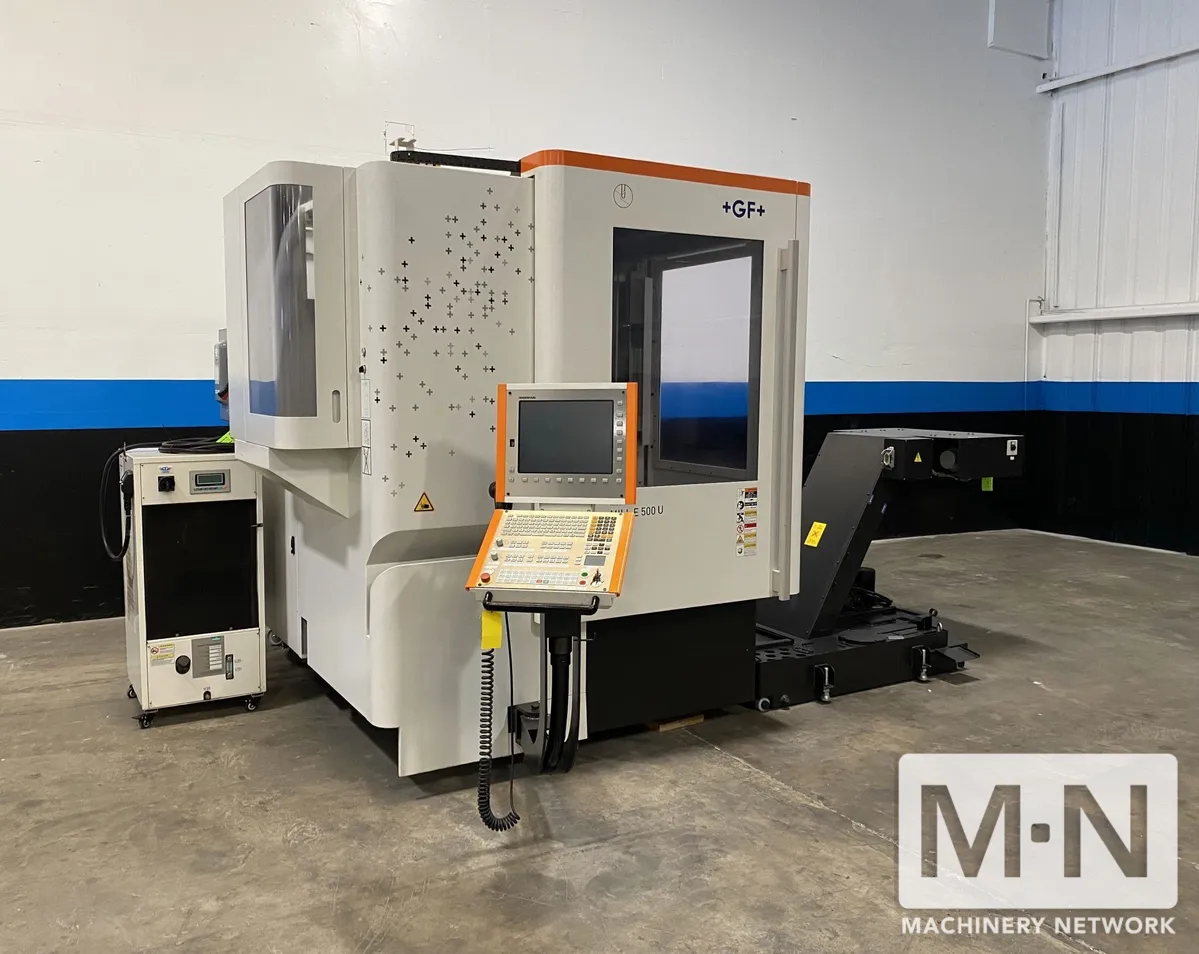

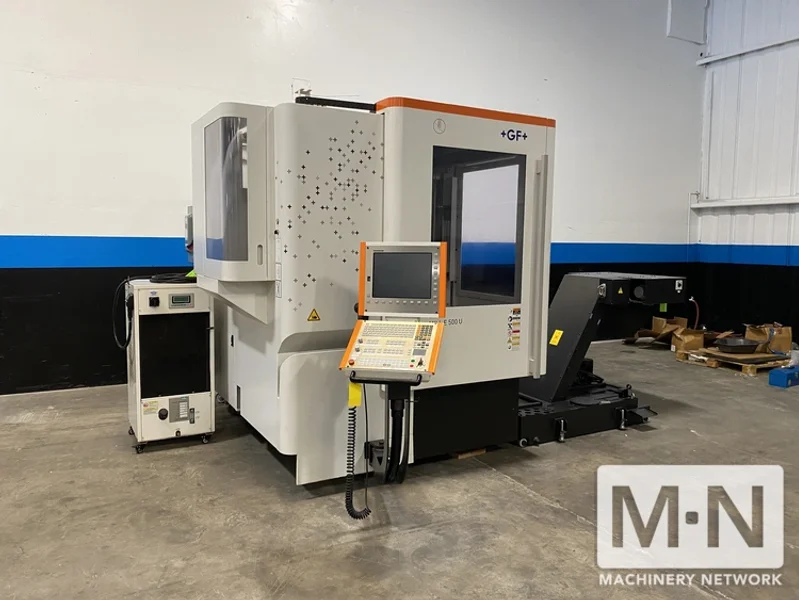

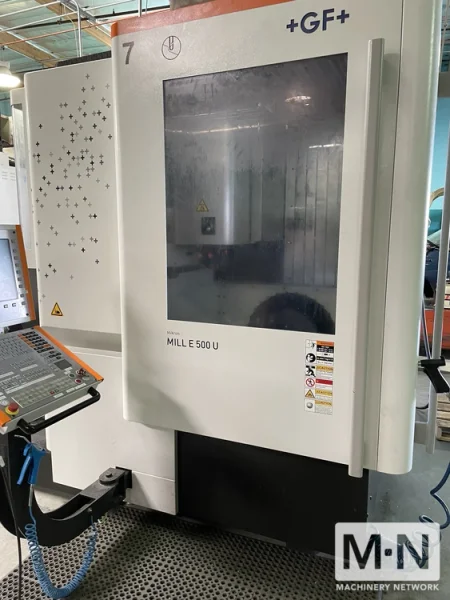

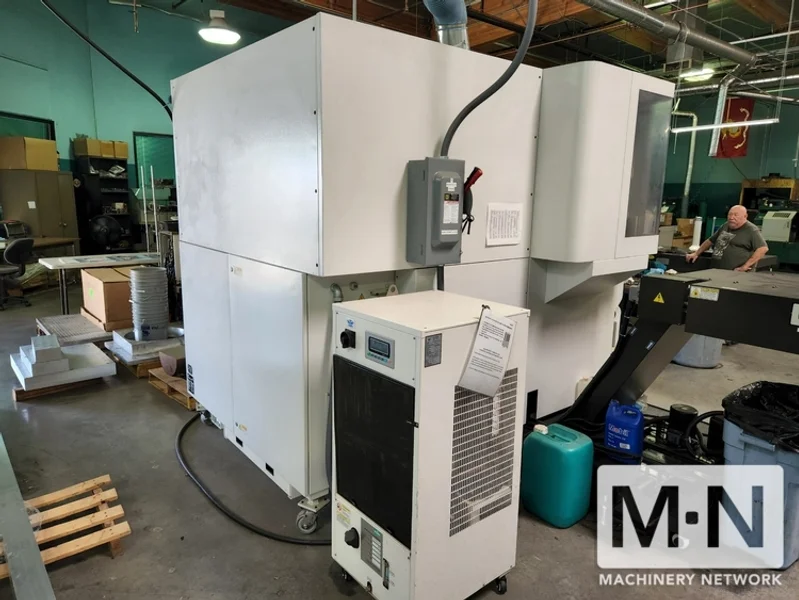

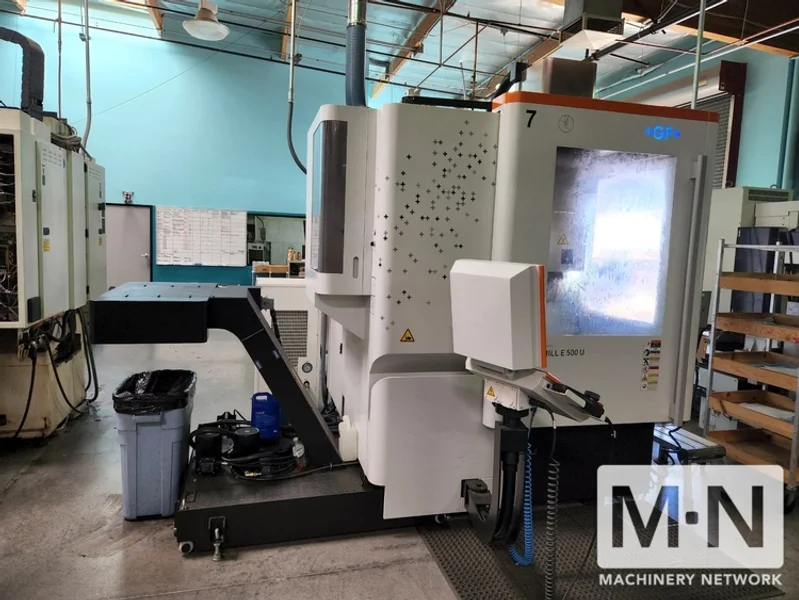

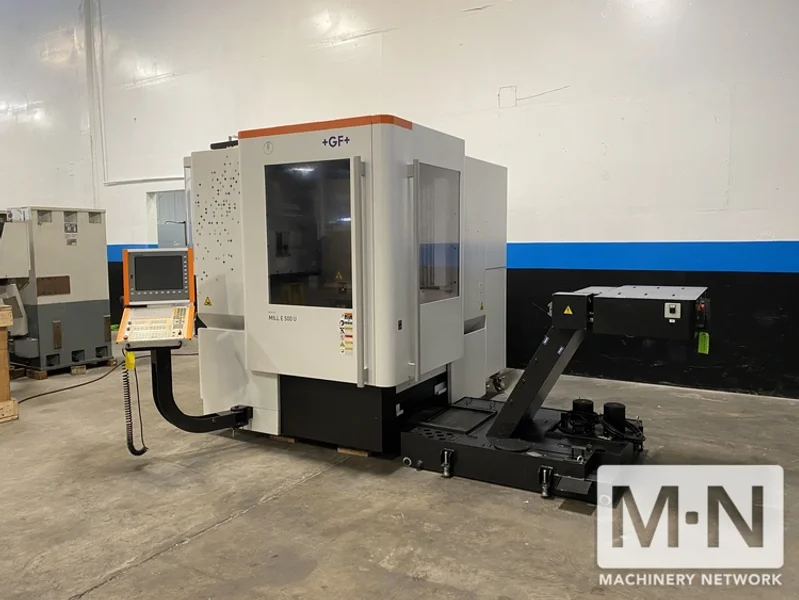

GF Mikron E 500 U 5-Axis CNC Vertical Machining Center, 2018 - 1k Cutting Hours

Brand
+GF+ MIKRON
Category
Machining Centers
Type
Machining Centers, Vertical, (5-Axis or More)
Model
MILL E 500U
Stock #
41288
Year
2018
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
+GF+ MIKRON
Model:
MILL E 500U
Year:
2018
Stock #:
41288
Status:
For Sale

Description

1k cutting hours, Heidenhain iTNC 530 CNC Control, 3+2, Renishaw TS-27R Probe, Touch Probe Infrared OMP40, Hem Rotary Tilting Table, Hem Linear Glass Scales 500U, Conveyor Lift Up Chip

X-Axis19.69"500.13 mm
Y-Axis17.71"449.83 mm
Z-Axis15.75"400.05 mm
A-axis+65° –120°+65° –120°
C-axis360°360°
# Axis55
Spindle Motor25 hp18.6 kW
Spindle Speed12,000 RPM12,000 RPM
ATC Capacity3030
TaperISO40ISO40
Table Size19.69" x 19.69"19.69" x 19.69"
Table Load Capacity661 lb
Dimensions105″ x 128″ x 132″105″ x 128″ x 132″
Weight13,294 Lbs13,294 Lbs

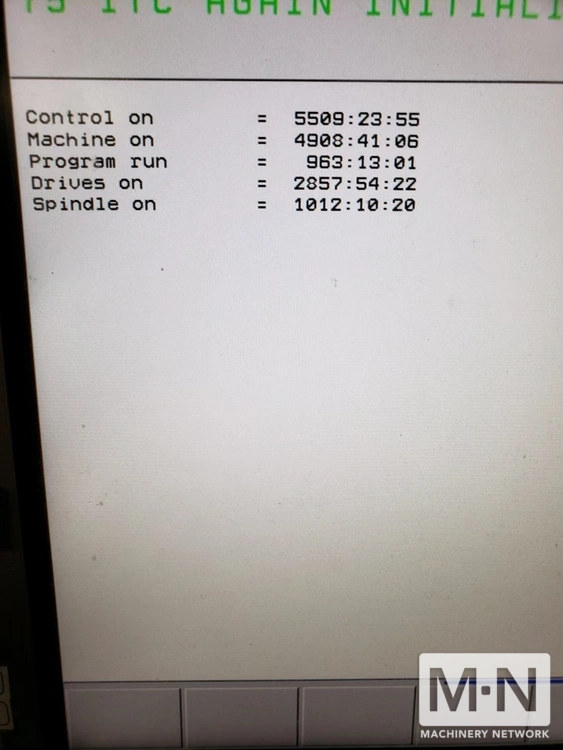

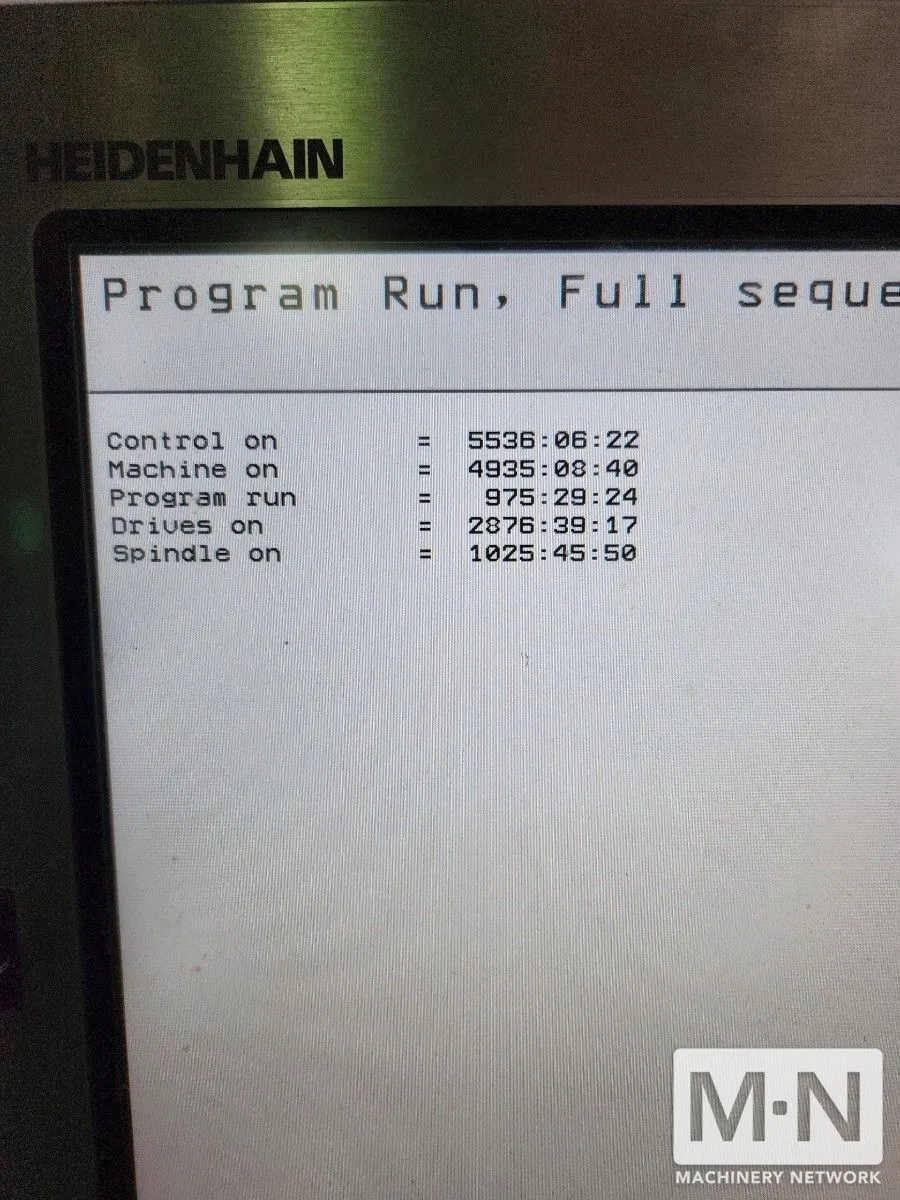

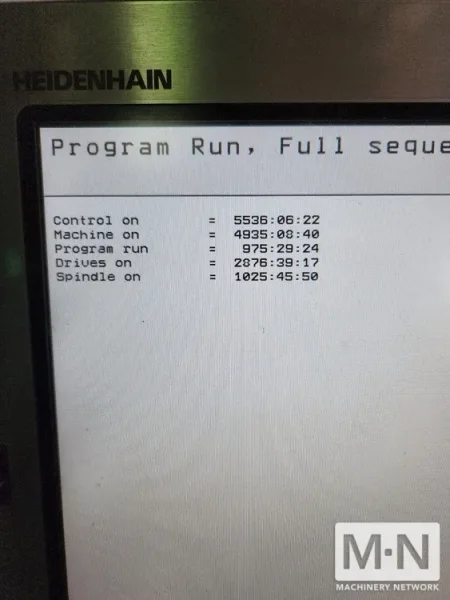

1k Cutting Hours

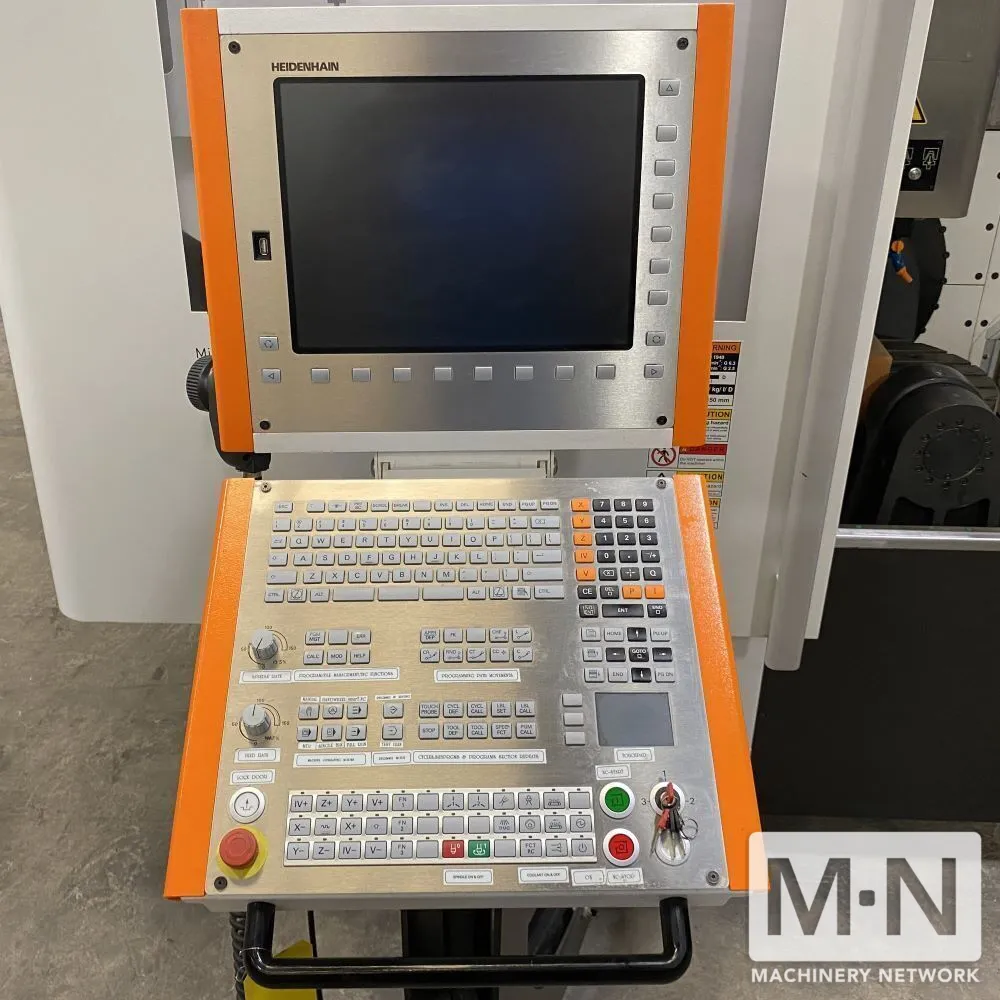

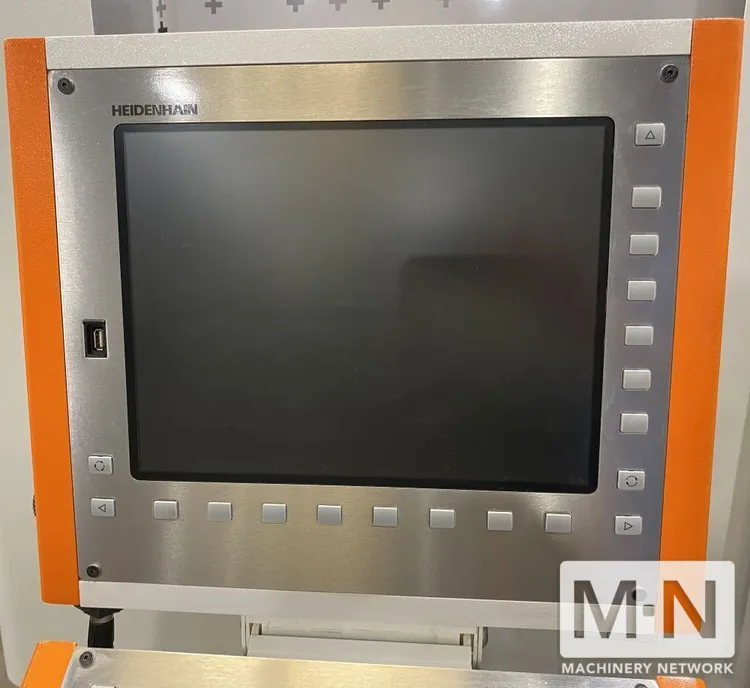

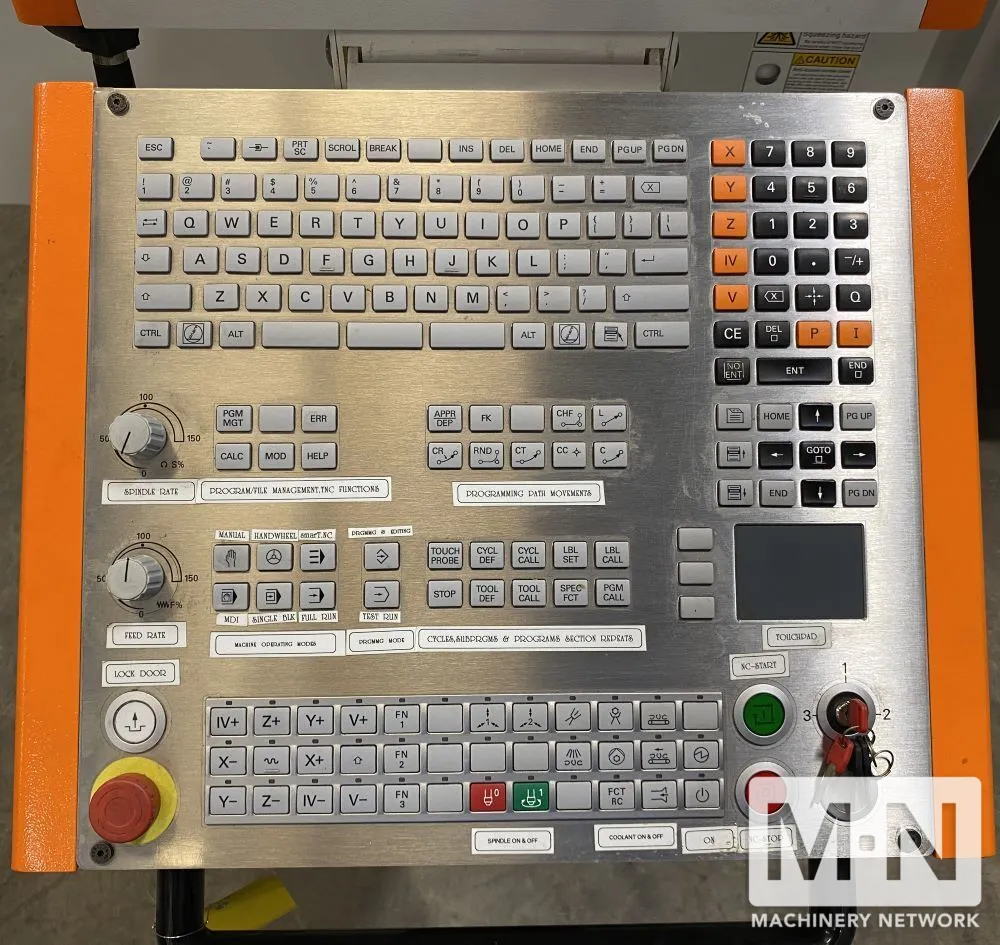

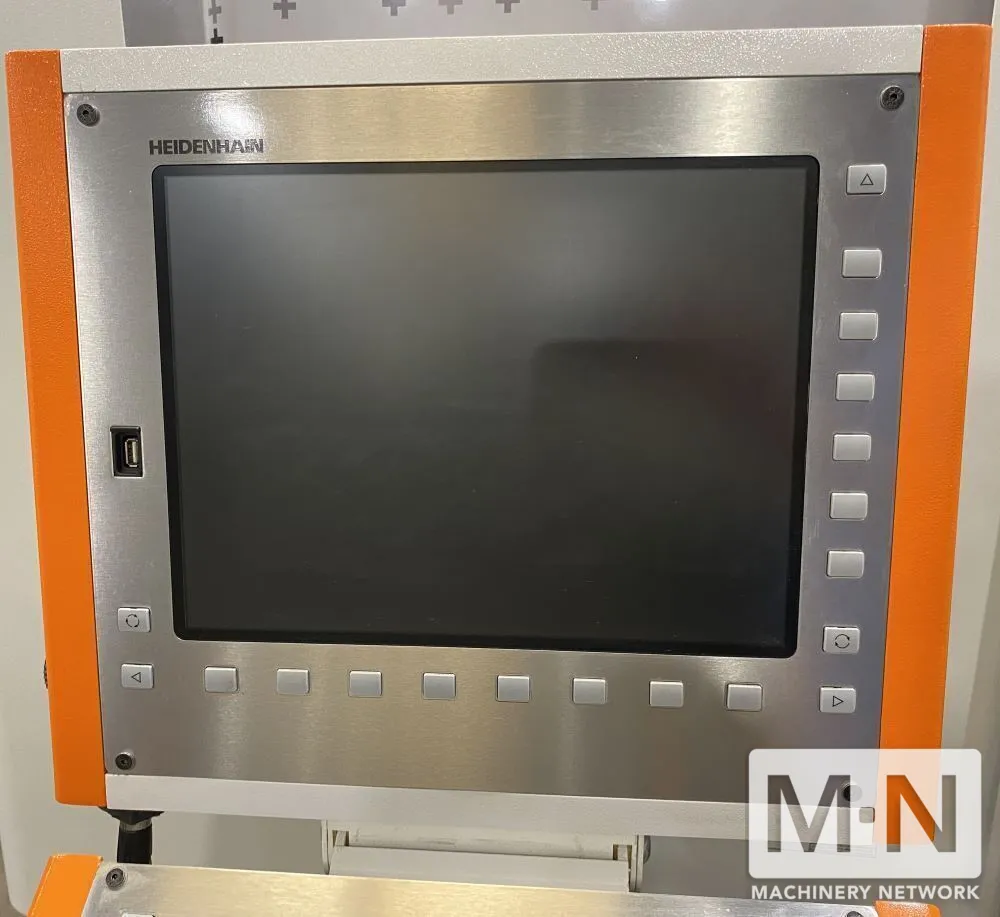

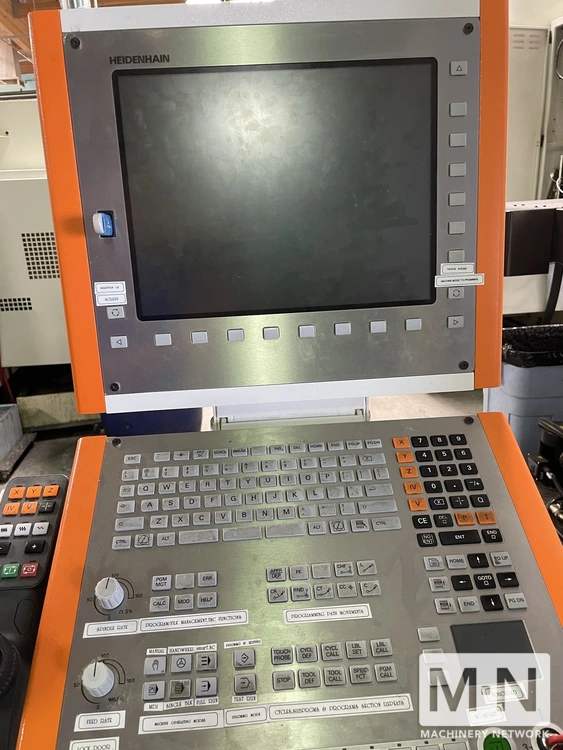

Heidenhain iTNC 530 CNC Control
5-Axis Machining

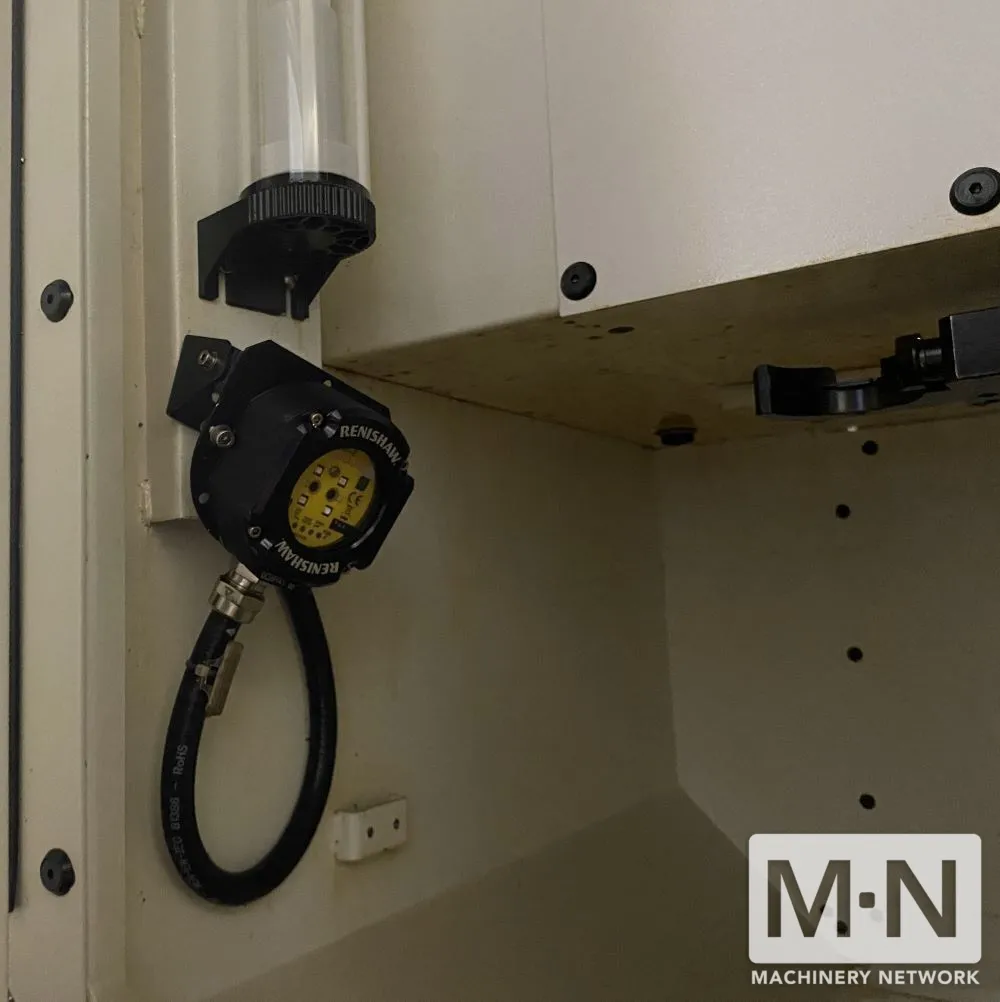

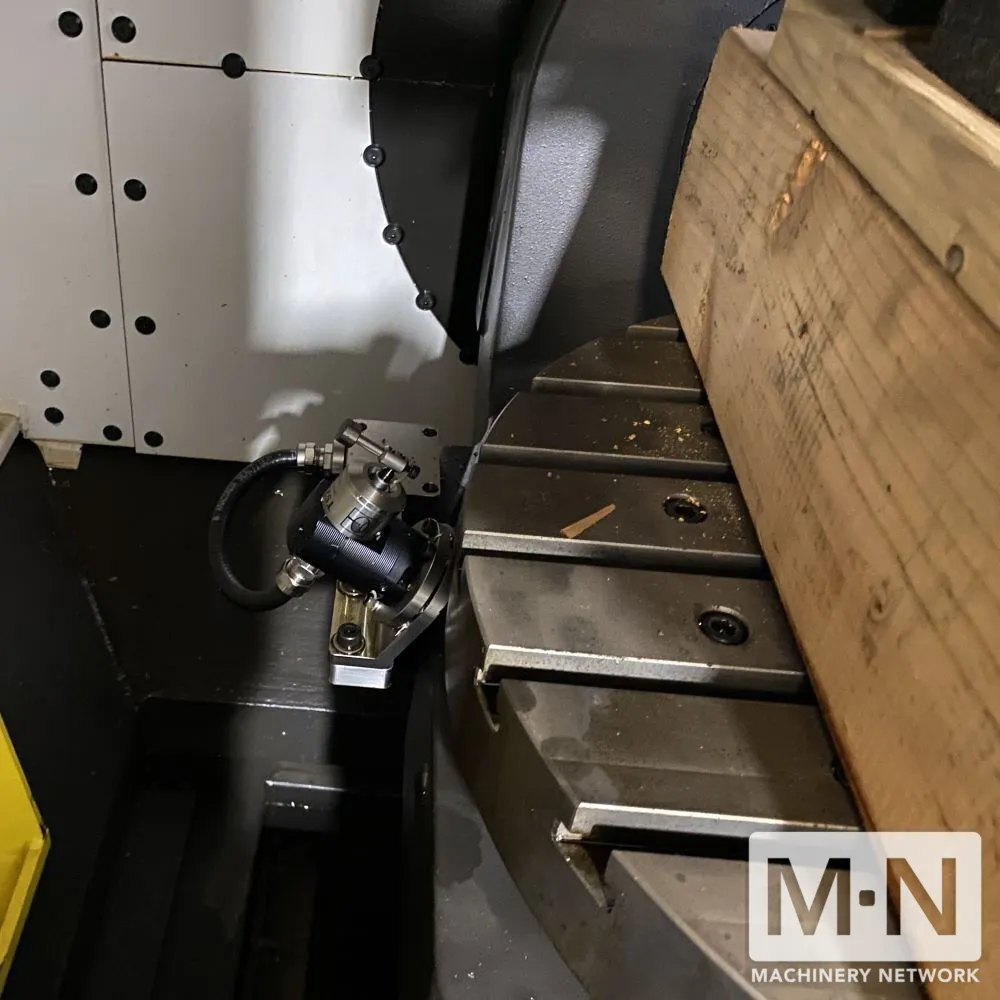

Renishaw TS-27R Probe
Touch Probe Infrared OMP40
Assortment of Tooling

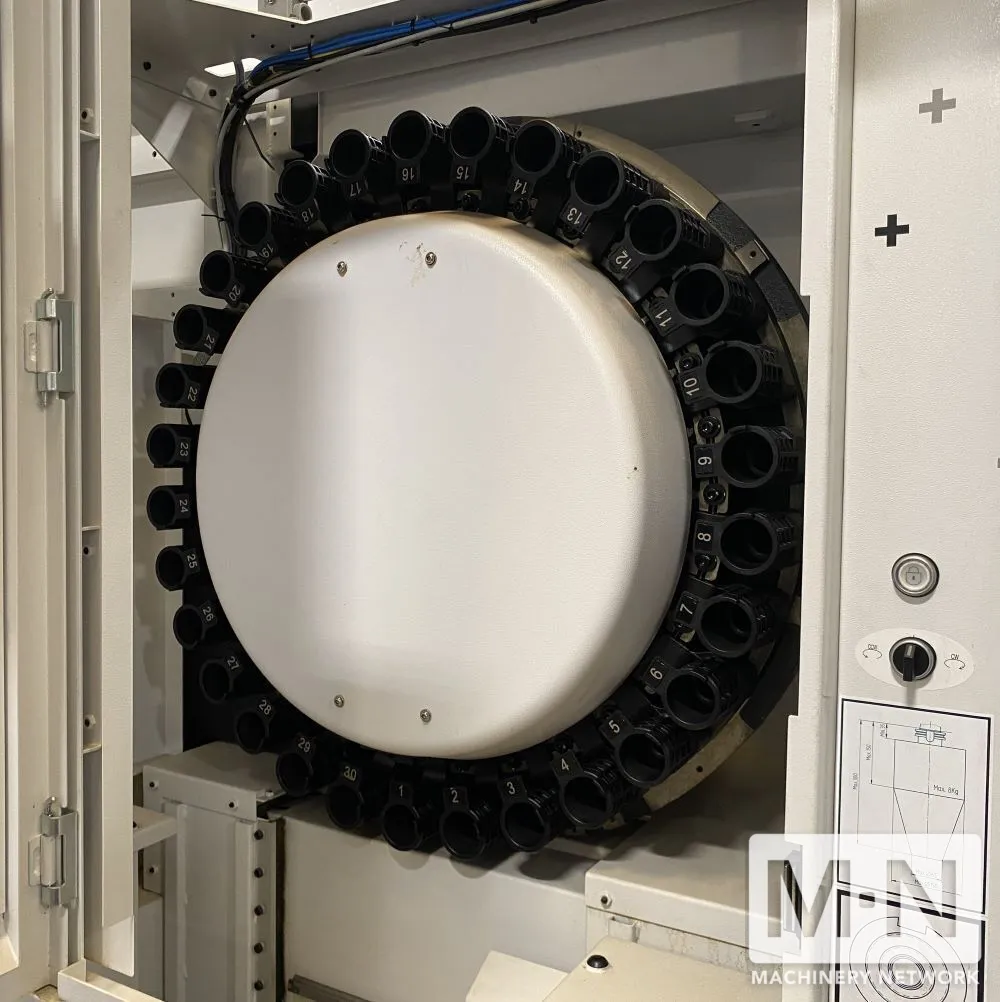

Tool Magazine DT40/BT40 & ISO4
TC Arm Holder For ISO 40
Kinematicsopt
(2) Compressed Air Through Spindle
Compressed Ball 30 with Base

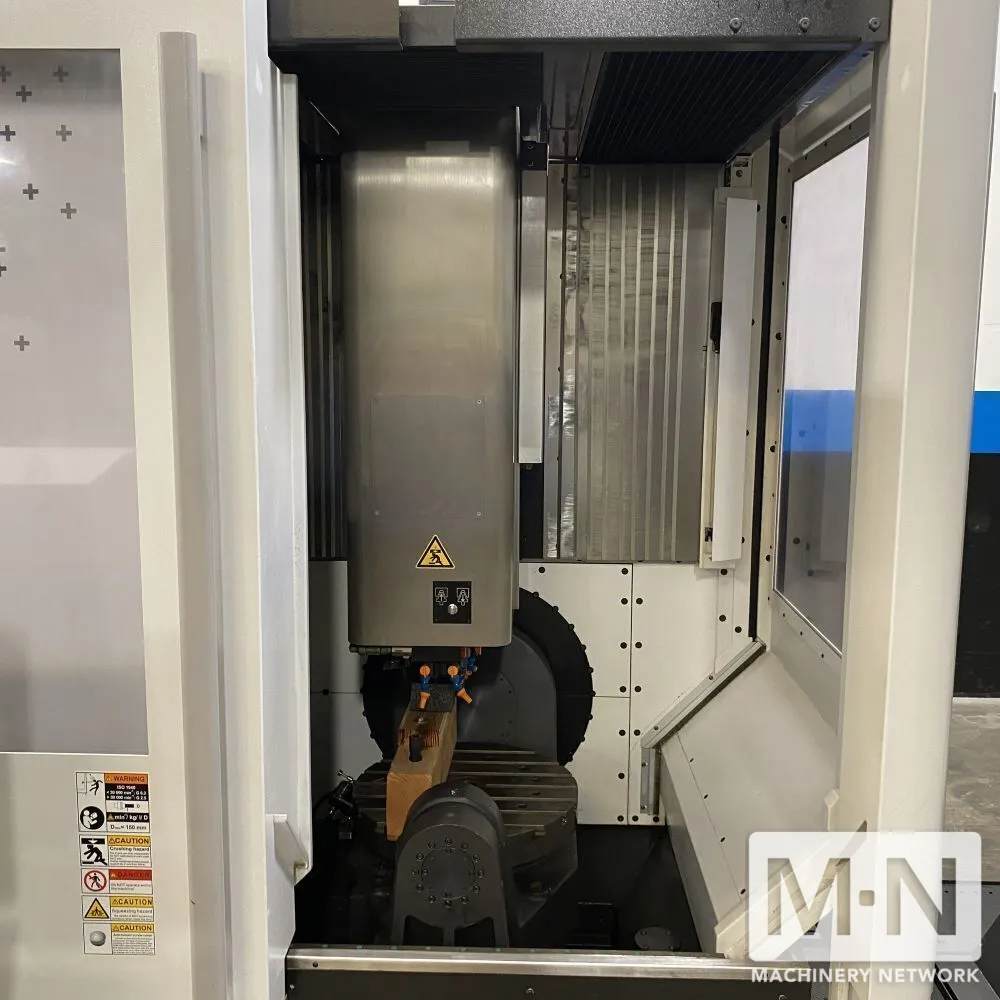

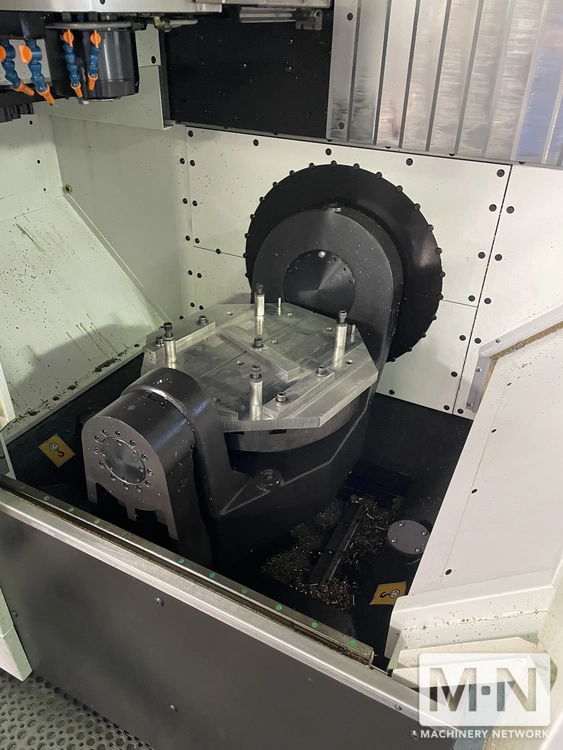

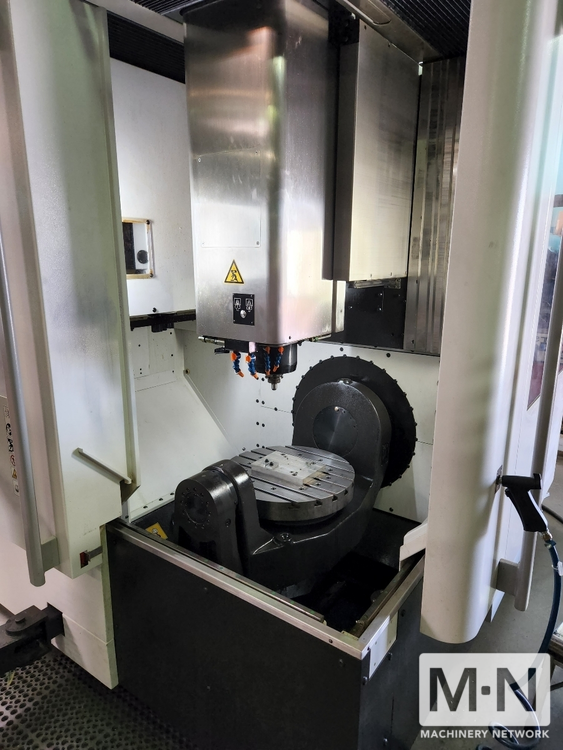

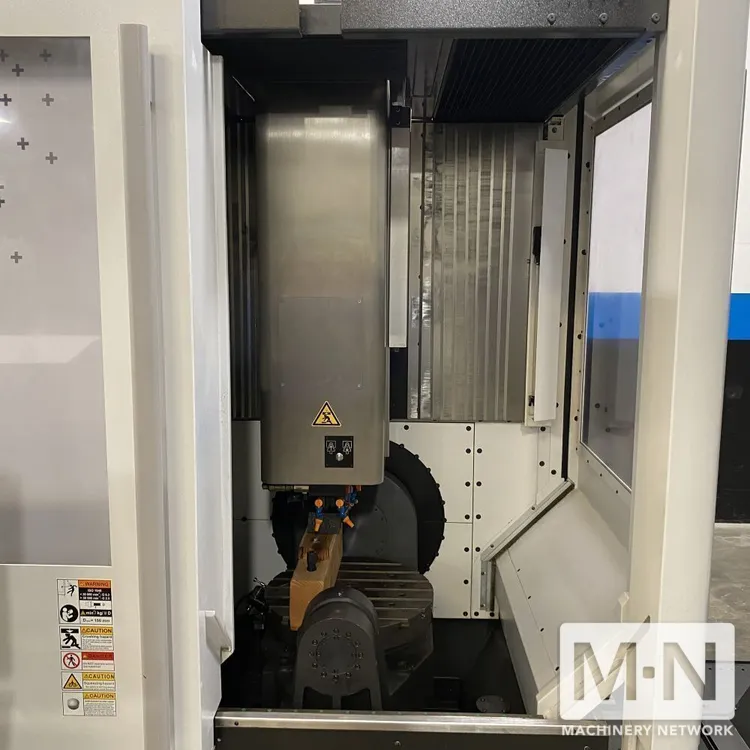

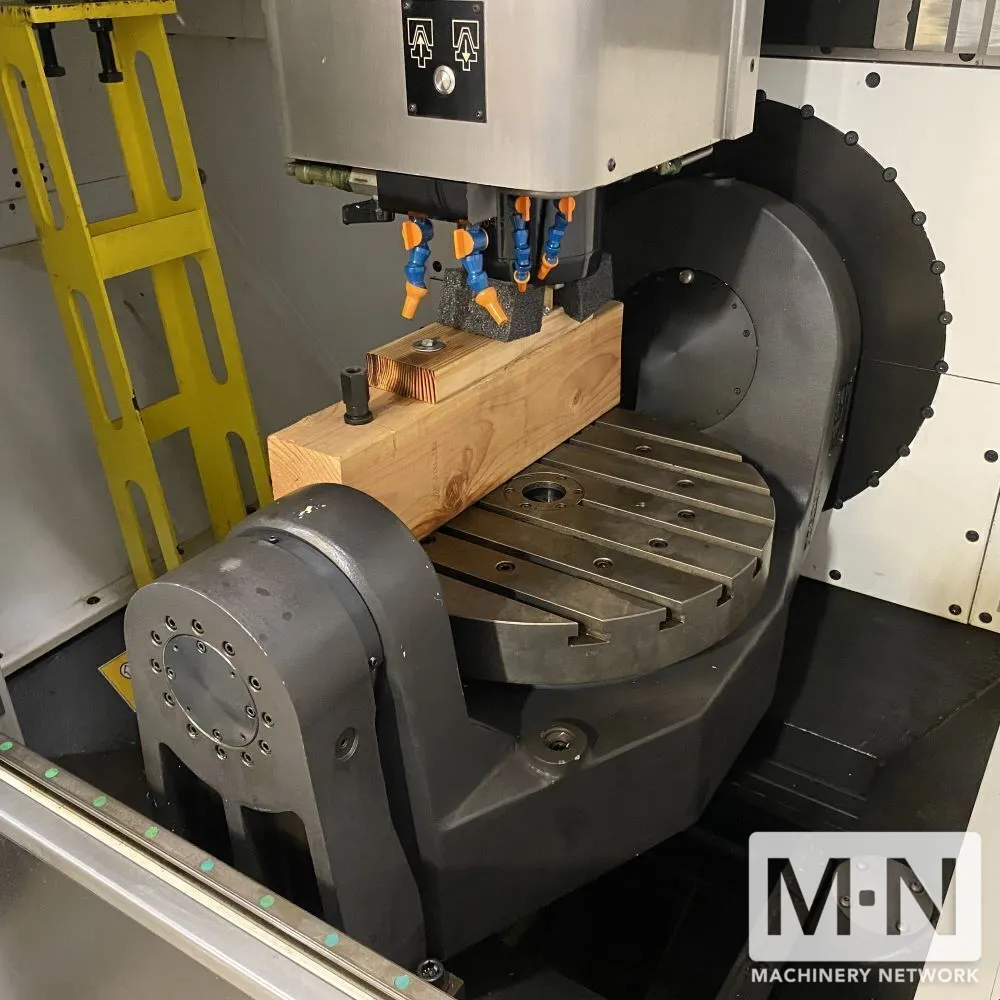

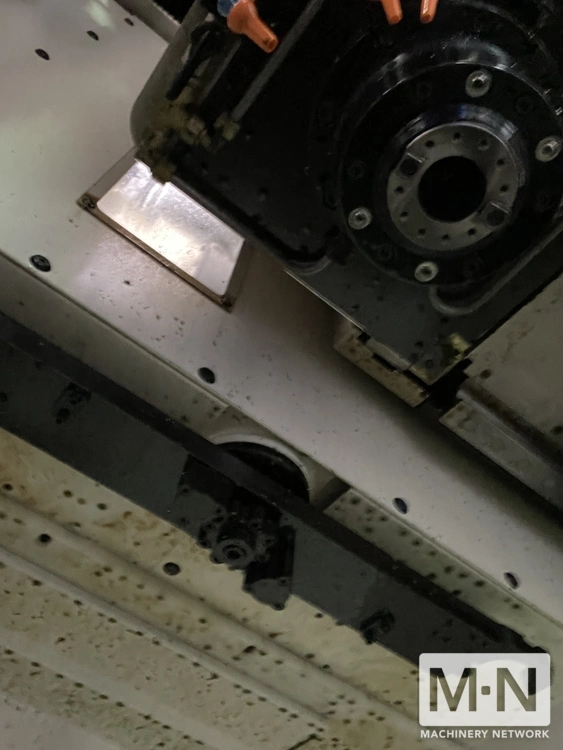

Hem Rotary Tilting Table
Hem Linear Glass Scales 500U
Conveyor Lift Up Chip
Movable Hand Wheel
Manual Touch Cycles Heidenhain
Manual Pilot Smart NC Heidenhain
Manual DIN/ISO Programming Heidenhain
Air Required: 100 psi, 4 scfm
Power: Kw / 400v / 3-Phase
