Name: +GF+ Mikron HPM 1350U CNC 5-Axis Vertical Machining Center, 2015
Brand: UNKNOWN
SKU: 53118
Availability: InStock

Brand

UNKNOWN

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers (5-Axis or More)

Manufacturer:

+GF+ MIKRON

Model:

HPM 1350U

Year:

2015

Stock #:

53118

Status:

For Sale

Description

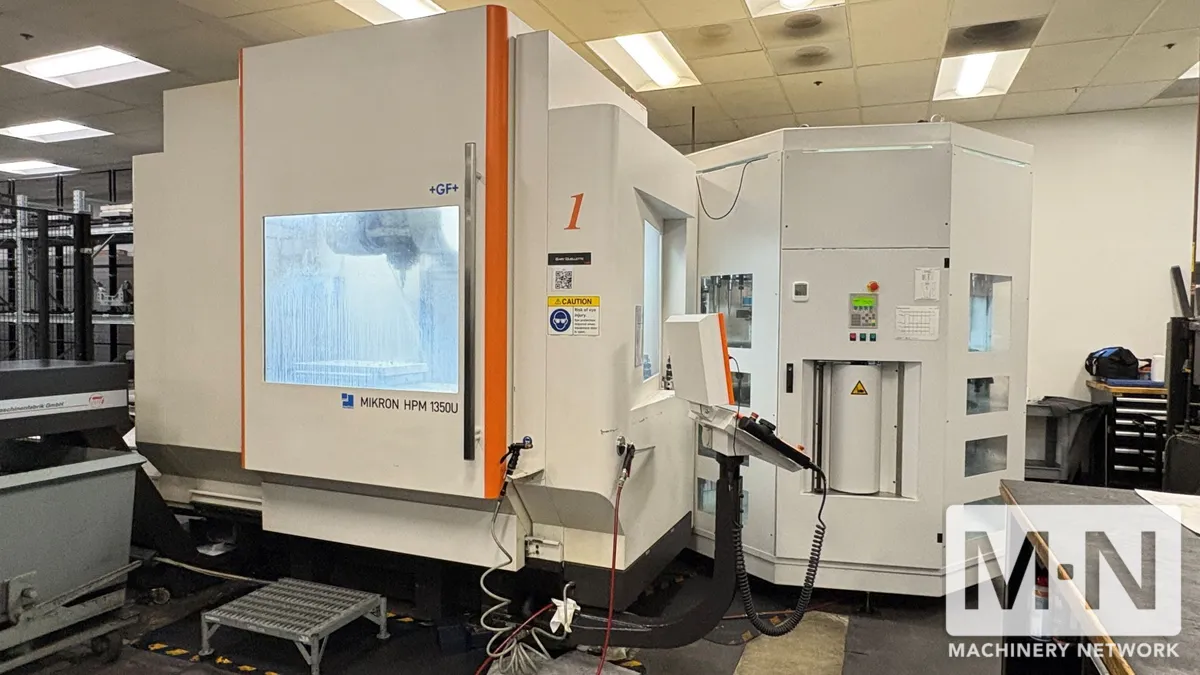

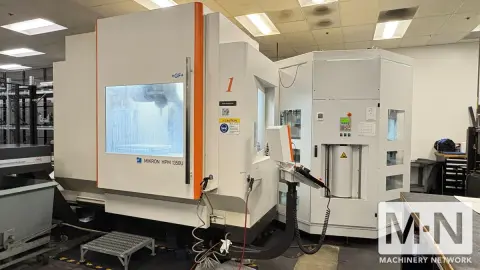

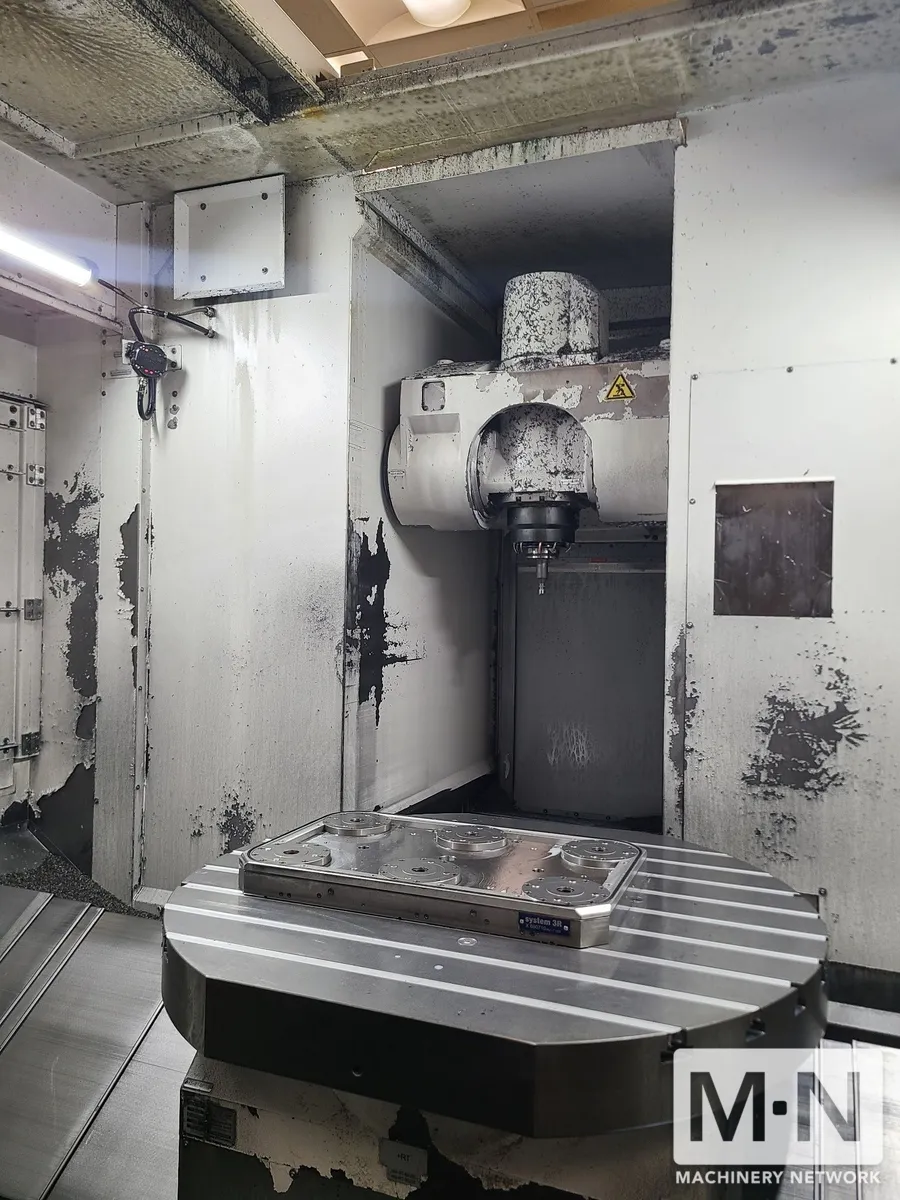

2015 +GF+ Mikron HPM 1350U 5-axis vertical machining center with 53.15" X, 45.28" Y and 27.56" Z travel, 10,000 RPM spindle, 170-tool ATC, iTNC 530 control, through-spindle coolant and chip conveyor. Used; 6,381 cut hours.

ImperialMetric

X-Axis	53.15"	1,350 mm
Y-Axis	45.28"	1,150.1 mm
Z-Axis	27.56"	700.02 mm
A-axis	+16° to -110°	+16° to -110°
# Axis	5	5
Spindle Motor	45.6 hp	34 kW
Spindle Speed	10,000 RPM	10,000 RPM

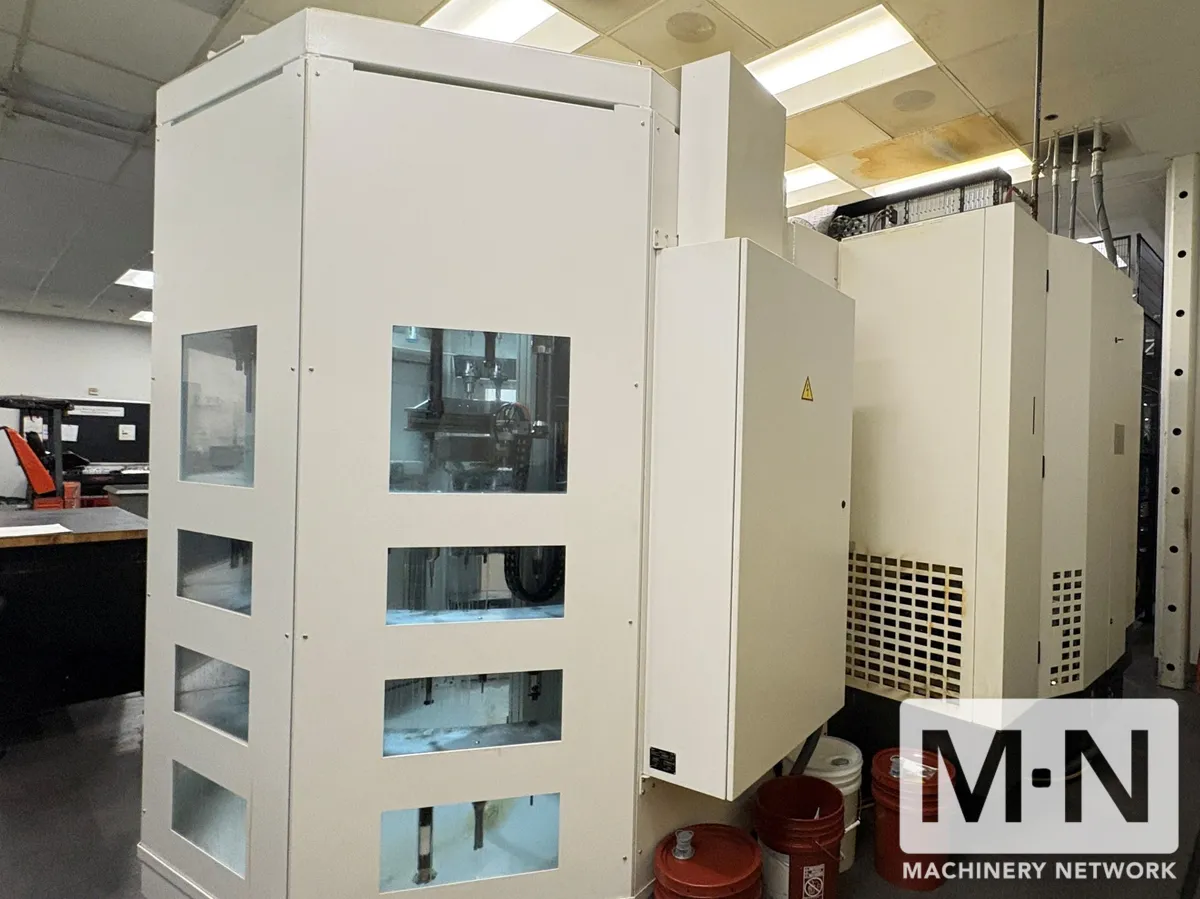

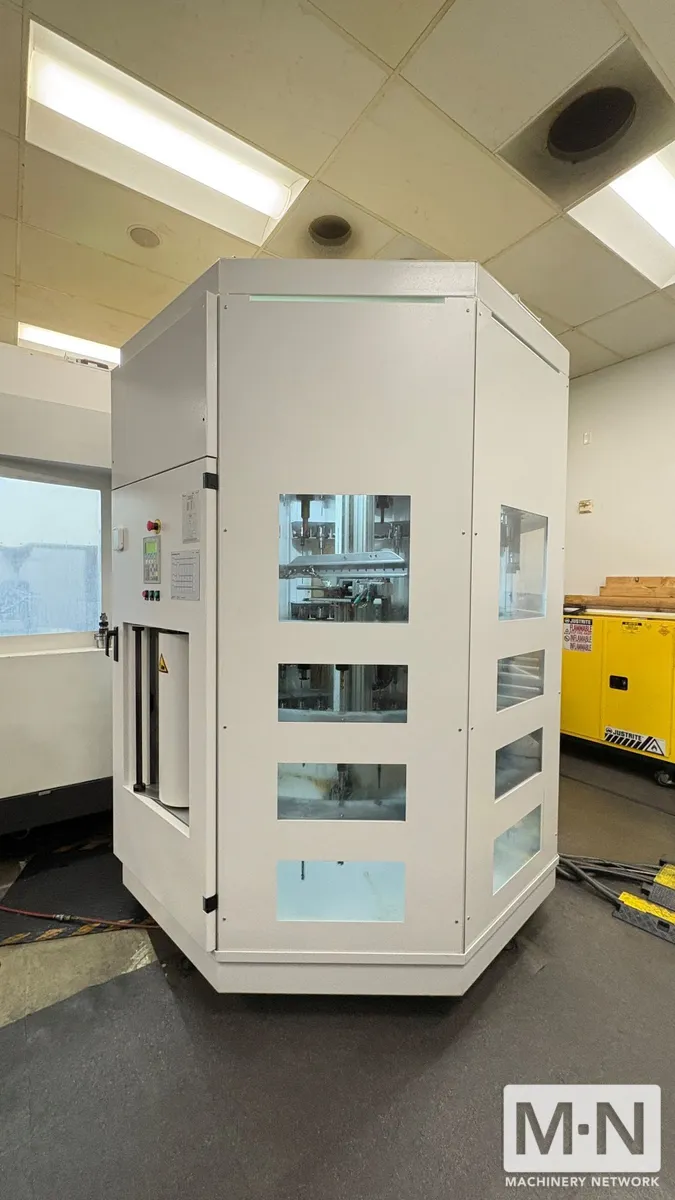

ATC Capacity	170	170
Taper	HSK-A100	HSK-A100
Table Load Capacity	3527.4 lb
Cut Hours	6,381 hr.	6,381 hr.
Weight	27,778 Lbs	27,778 Lbs

X-Axis Positioning Accuracy: 0.0003"
Repeatability X-Axis: 0.0002"
Y,Z-Axis Positioning Accuracy: 0.00023"
Repeatability Y,Z-Axis: 0.00016"
A-Axis Tilting Head Positioning Accuracy: 15°
Repeatability Tilting Head A-Axis: +/- 8°
C-Axis Tilting Head Positioning Accuracy: 10°
Repeatability Tilting Head C-Axis: +/- 4°

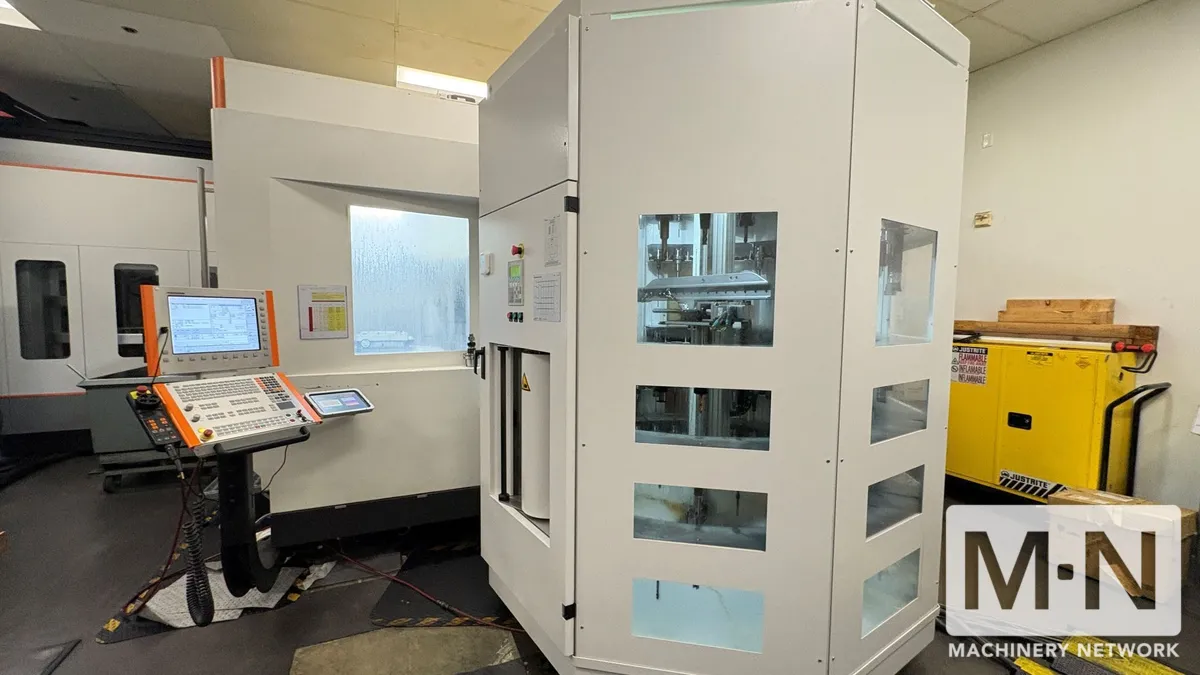

iTNC 530 CNC Control 15" Color
5+1 Axis Machining
Through Spindle Coolant
Advanced Processing System Extended
Dual Laser Measuring System
3D Touch Probe Renishaw RMP60 Repeatability 0.000039"
Kinematics Touch Prop Cycles for Inspection & Optimization
Oil Mist Extraction
Chip Conveyor
Rotating Window
Callibration Ball 30mm w/ Base Plate

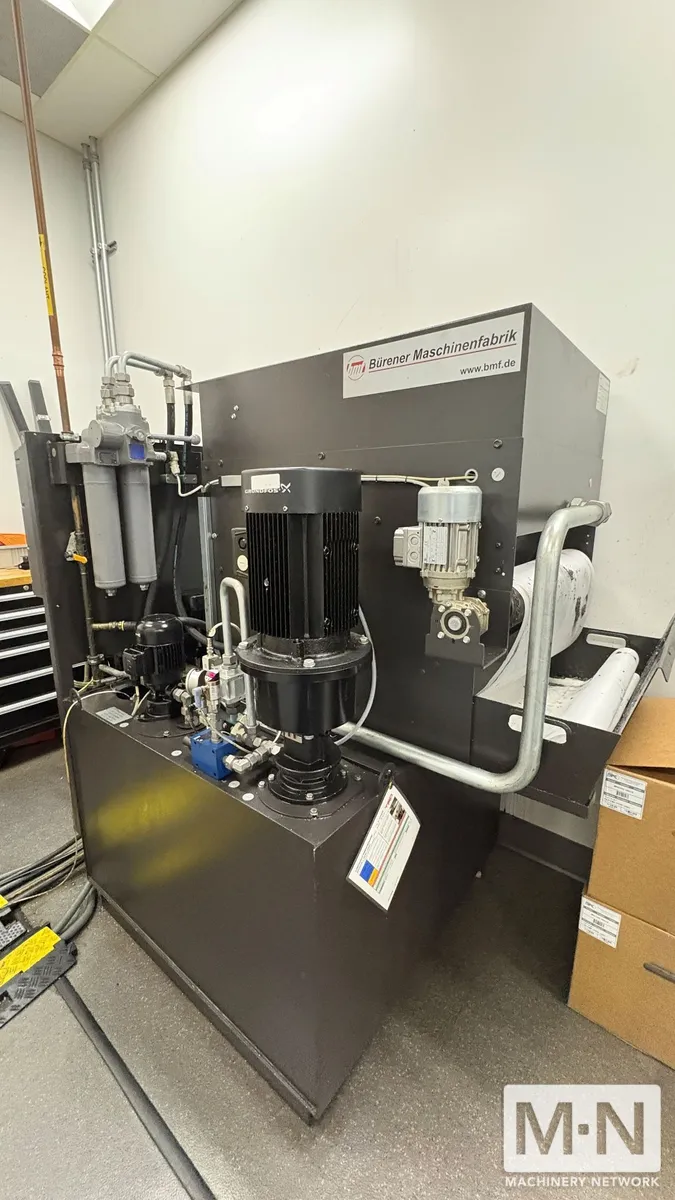

Band Filter Unit 950 Liter
Balluff Tool ID System

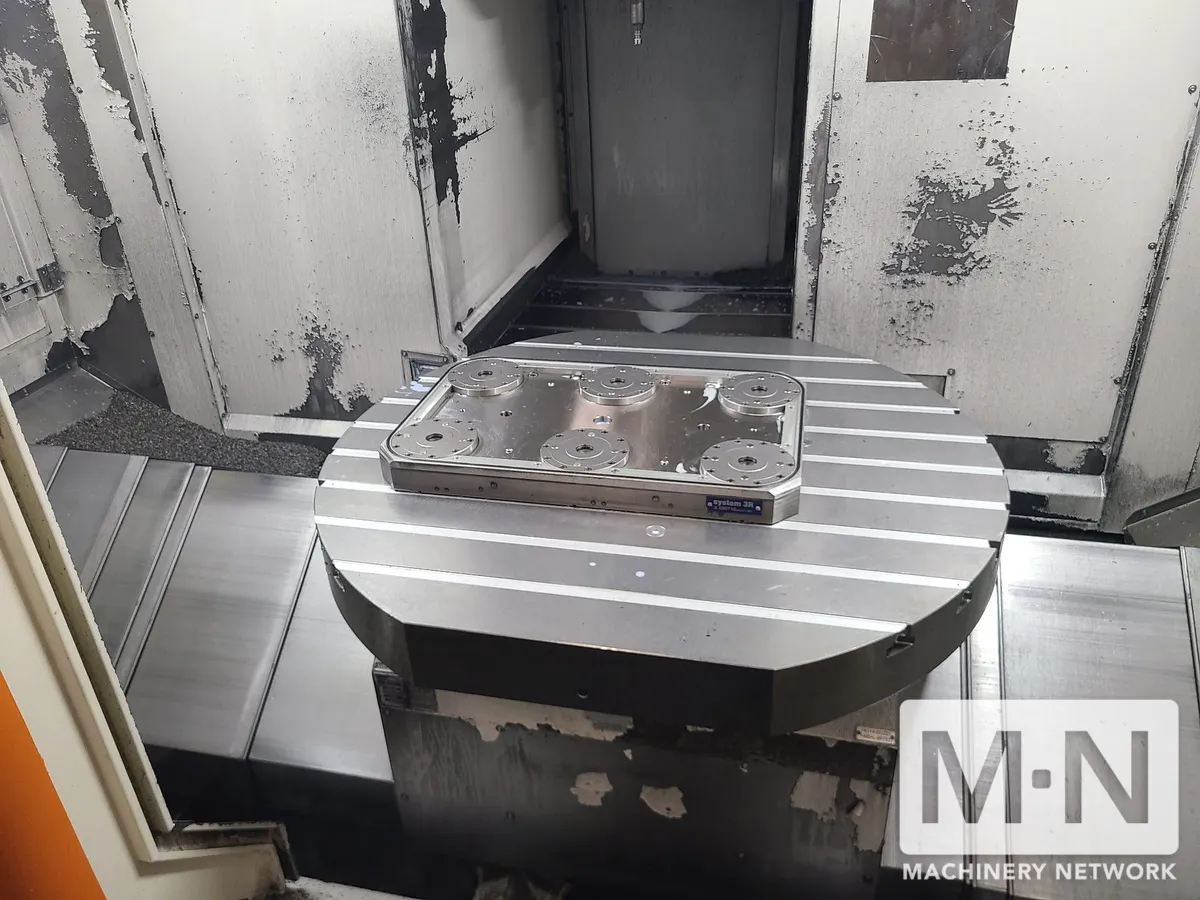

Delphine Base Plate 6 Chucks HHPA
Rotary Union 2 x Hyd, 1 x Air
Robot Interface on Left Side, Automated Door & Electrical Interface

***See Attached PDF for Additional Specs & Info***
