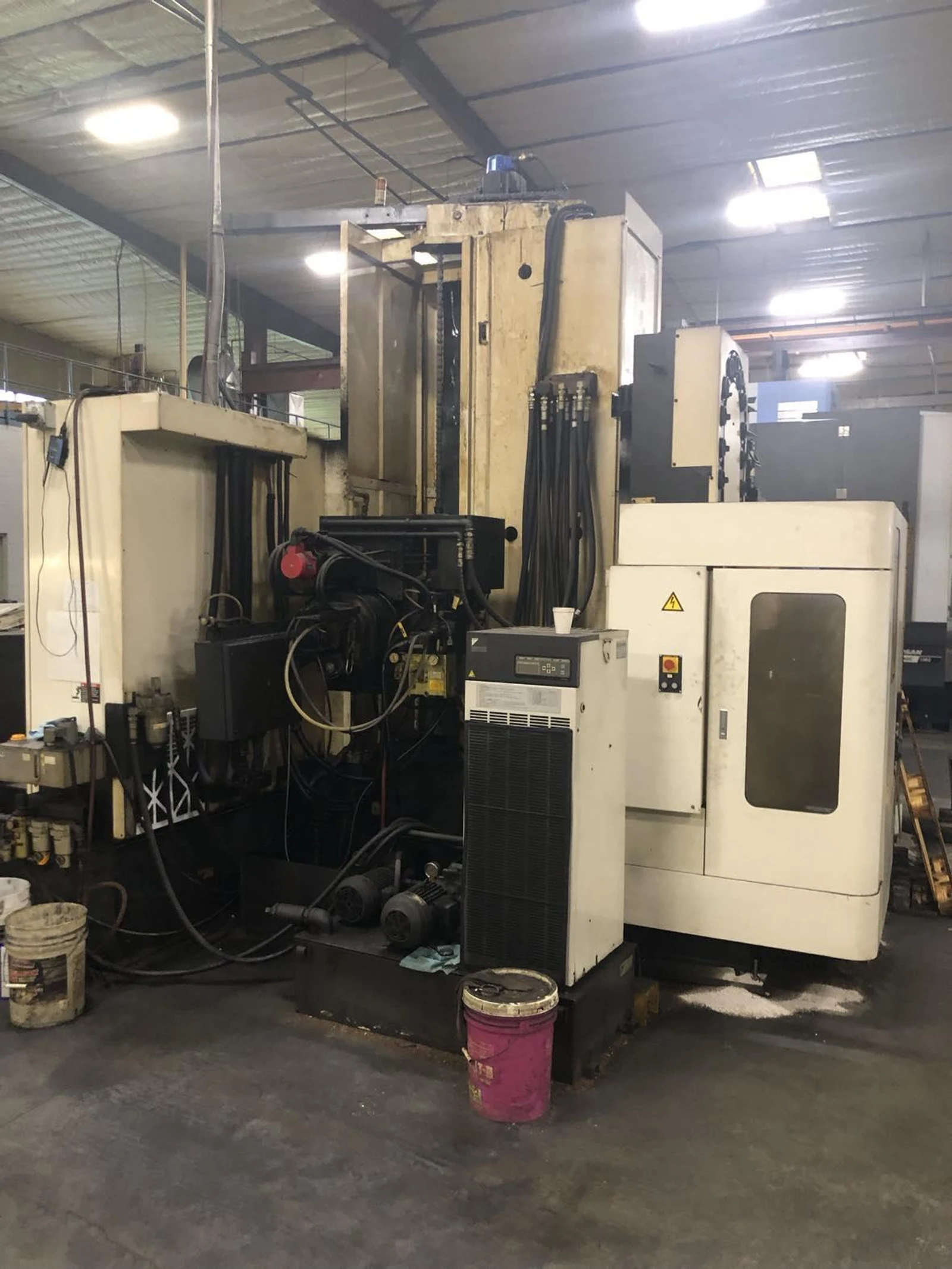

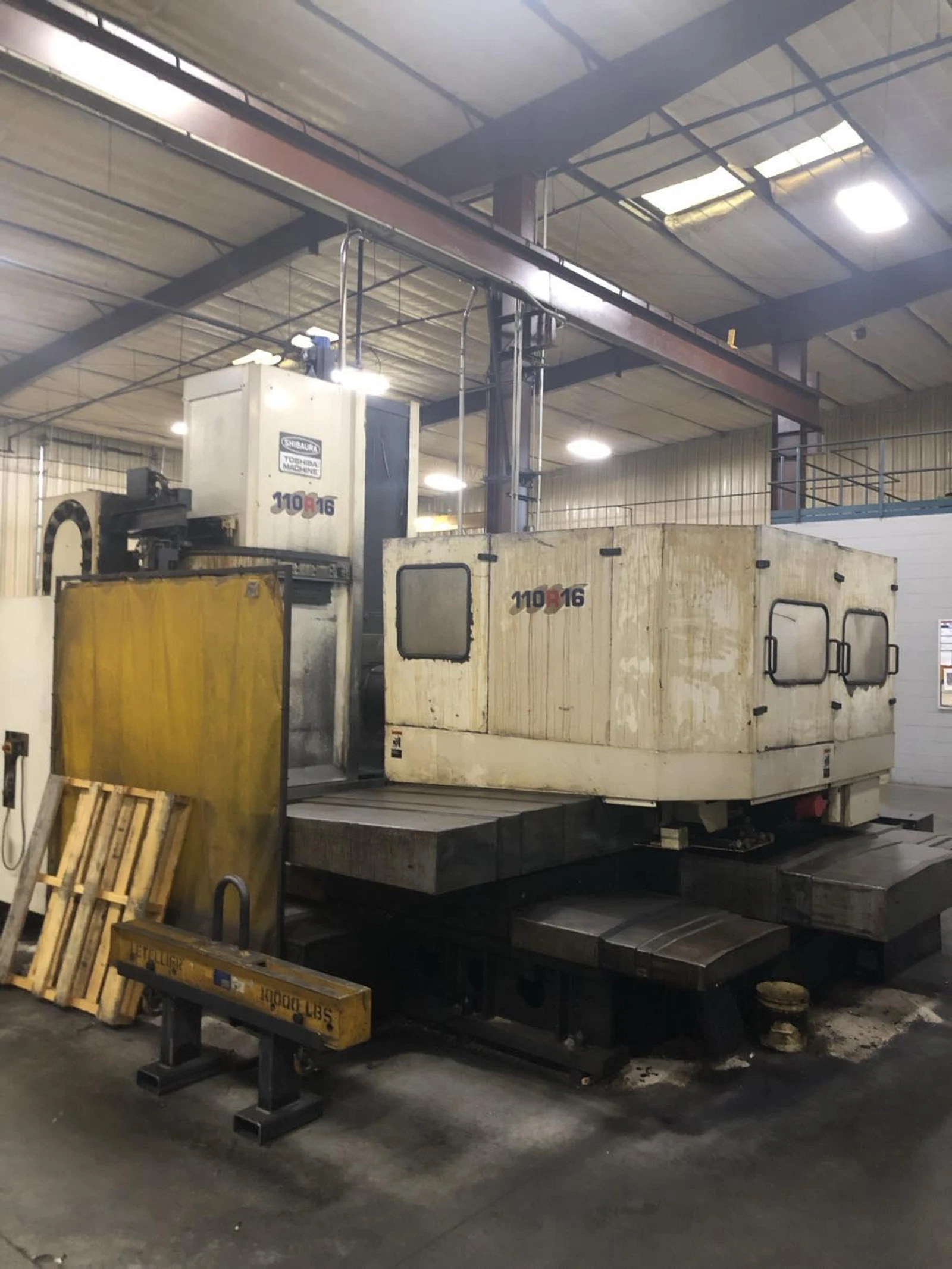

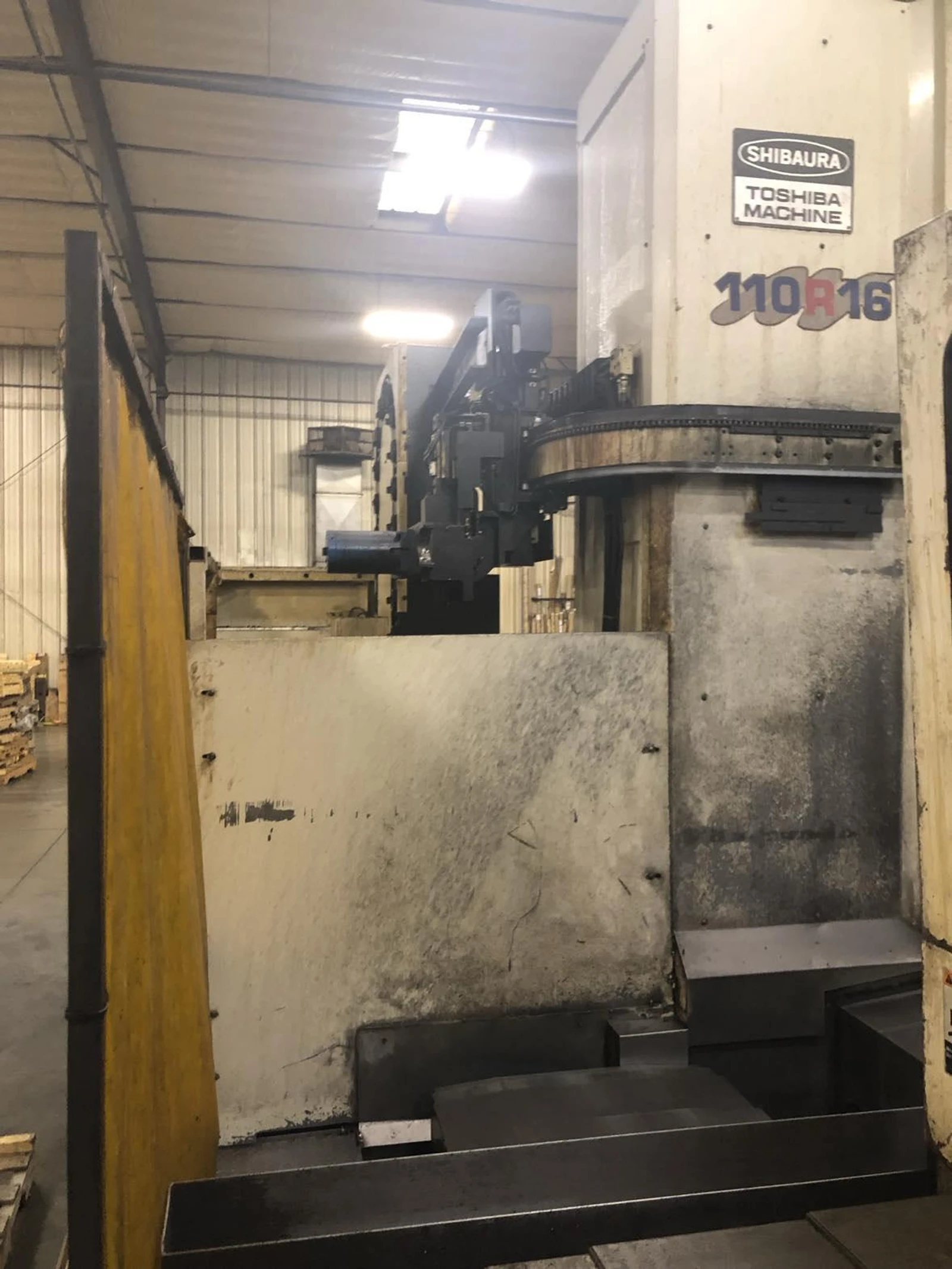

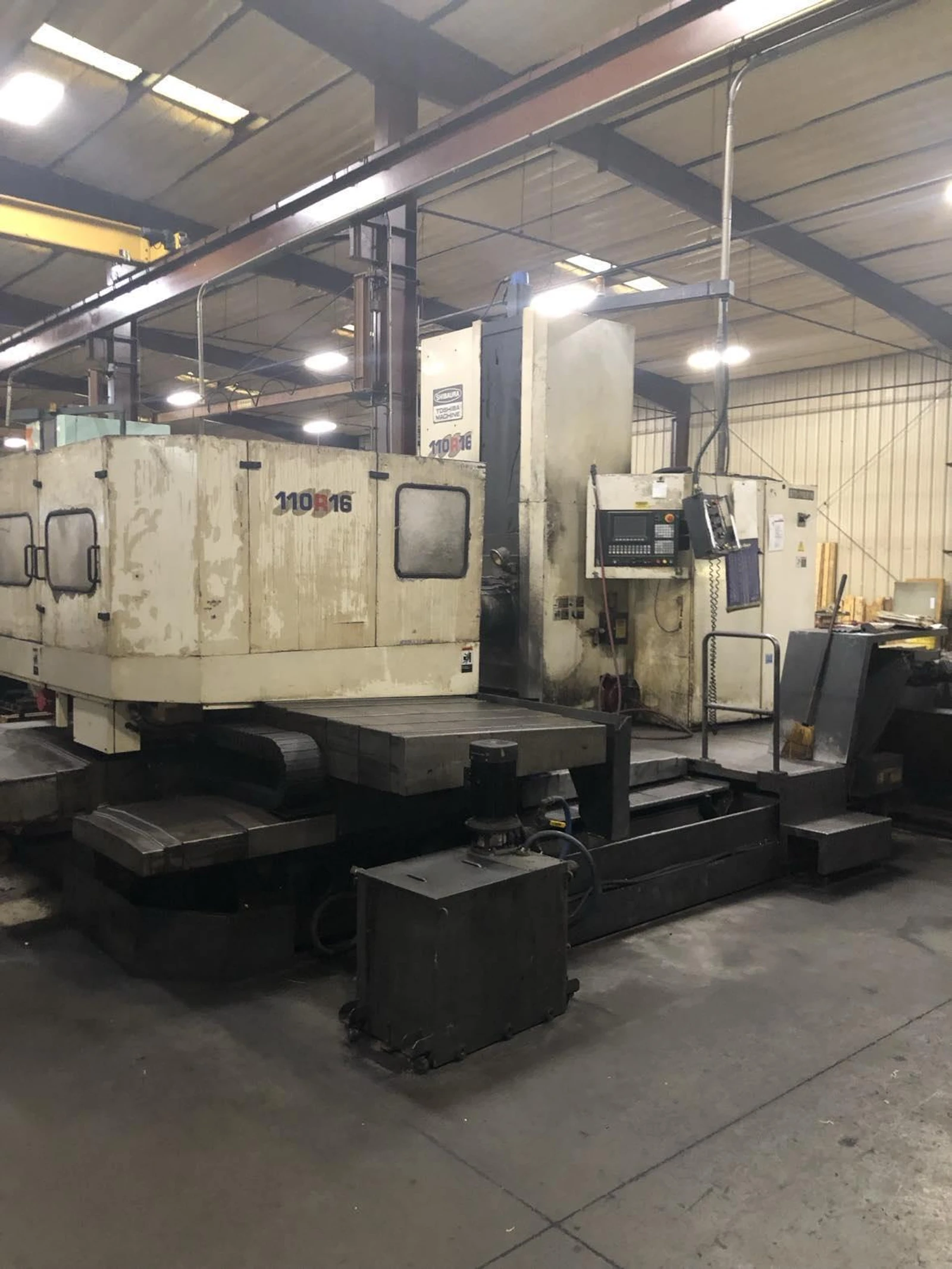

4.3" TOSHIBA BTD 110R16 CNC TALE TYPE BORING MILL

4.3" TOSHIBA BTD 110R16 CNC TALE TYPE BORING MILL

Brand

Not specified

Location

Missouri

REQUEST FINANCING

Specifications
Files & Videos

TOSHIBA BTD-110-R16 - FULL 4TH

NEW 1997
SPECIFICATIONS:
X-AXIS TRAVEL (TABLE CROSS)         78.74"
Y-AXIS TRAVEL (SPINDLE-HEAD VERT.)  70.9"
Z-AXIS TRAVEL                       57"
W-AXIS TRAVEL (SADDLE)              19.71"
TABLE SIZE                          63" X 55.1"
TABLE INDEXING INCREMENT            .001 DEGREE ROTARY
DIAMETER OF SPINDLE BAR             4.3"
MAXIMUM WEIGHT ON TABLE             13,860 LBS.
TAPER IN SPINDLE                    CAT #50 TAPER
SPINDLE SPEEDS - 3 RANGES           5 - 3,000 RPM
SPINDLE MOTOR                       30 HP
NUMBER OF TOOL POSITIONS            38 ATC
RAPID TRAVERSE X, Y, Z / W          394 / 197 IPM
MACHINE DIMENSIONS                  201"X237"X156"
MACHINE WEIGHT                      62,800 LBS.

Equipped With

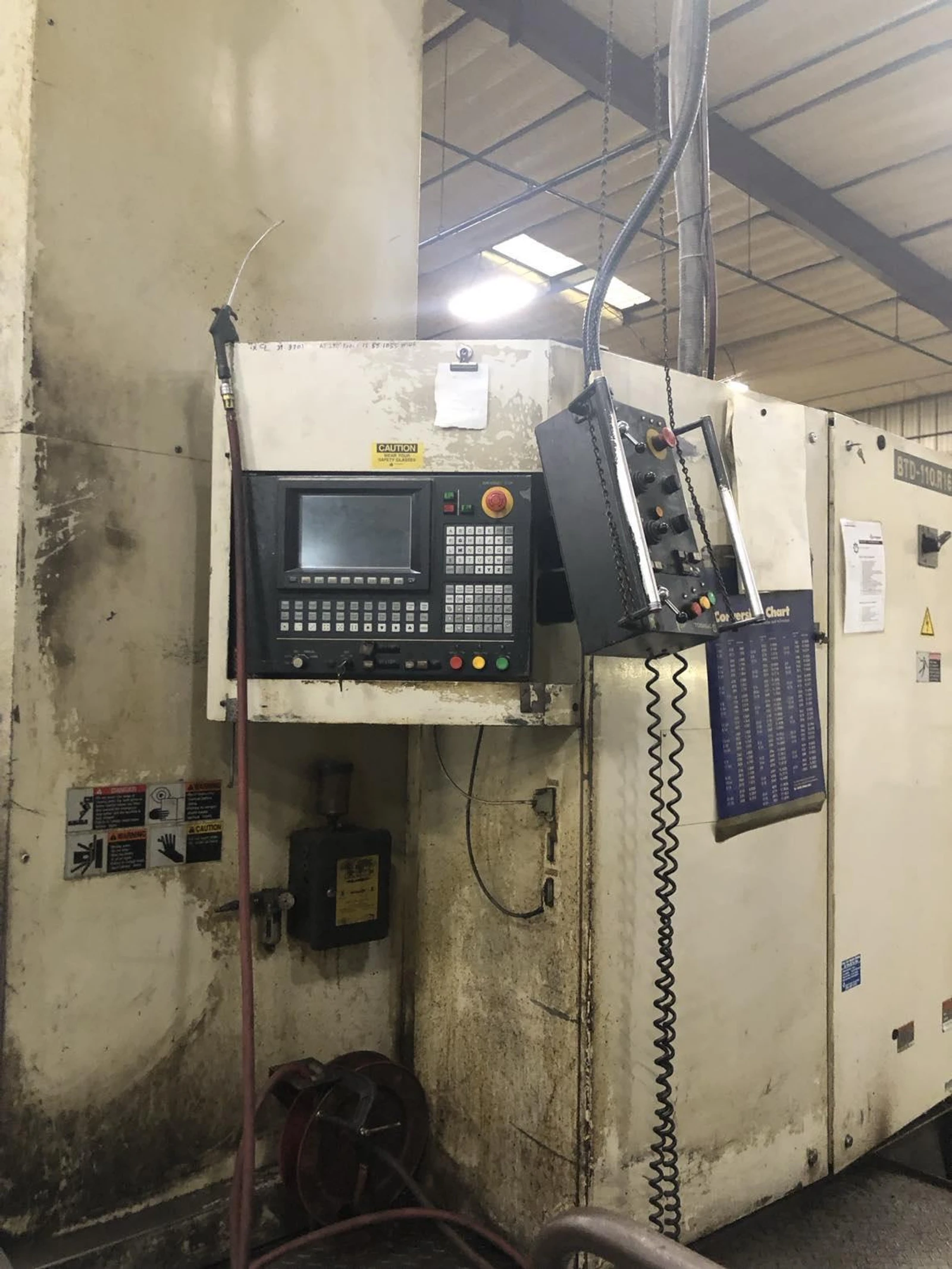

FANUC CONTROL
BUILT IN ROTARY TABLE 55.1" X 63" FULL 4TH AXIS
COOLANT THROUGH THE SPINDLE - 140 PSI
38 STATION TOOL CHANGER
CHIP CONVEYOR
RS 232 PORT INTERFACE
REMOVABLE CHIP/ SPLASH GUARDS AROUND TABLE
ALL AVAILABLE MANUALS
STEEL WAY GUARDS
