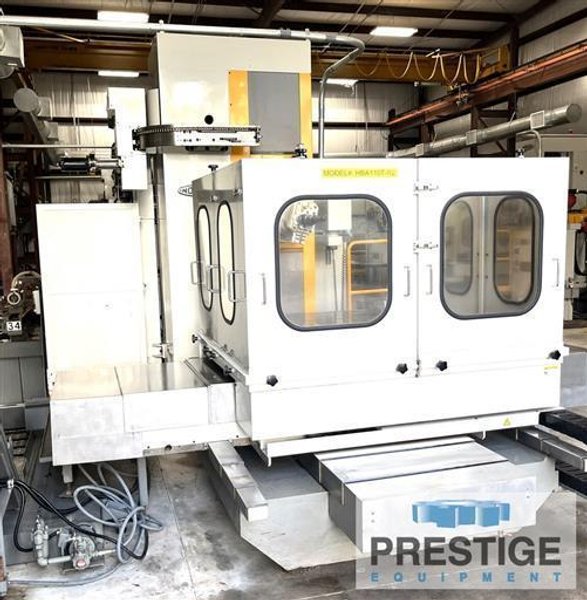

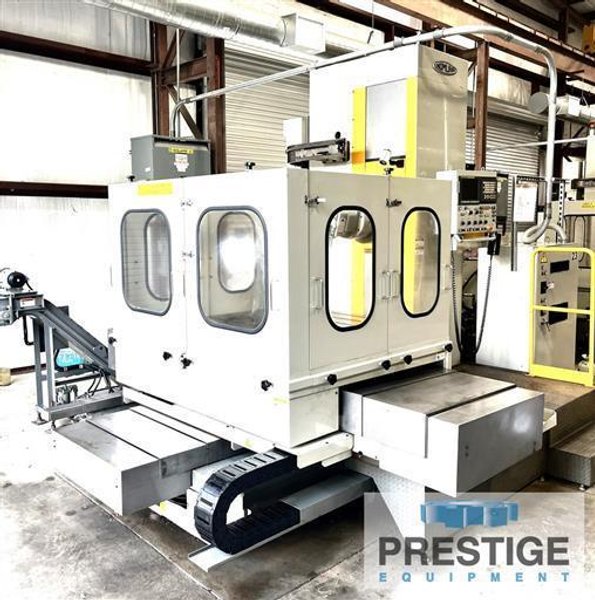

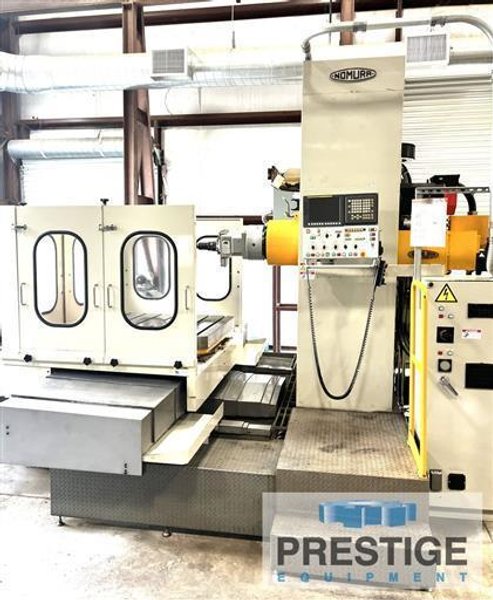

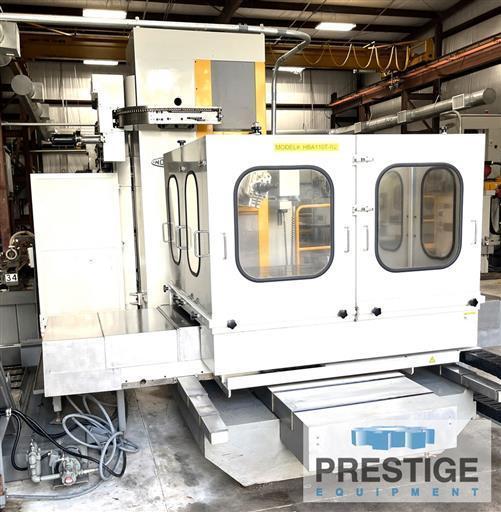

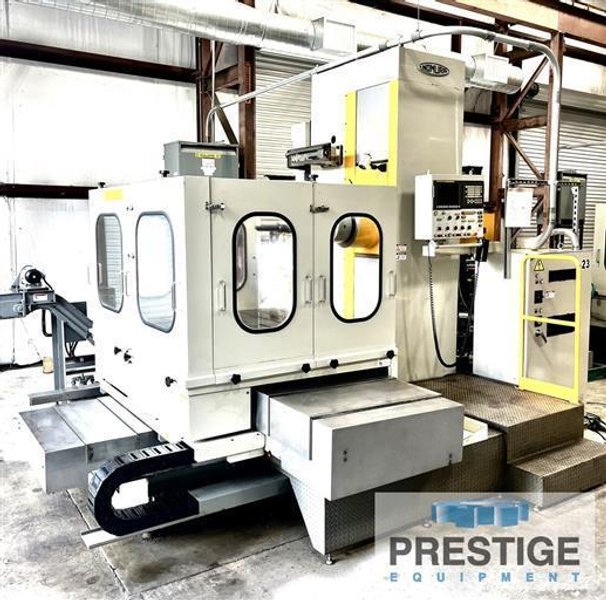

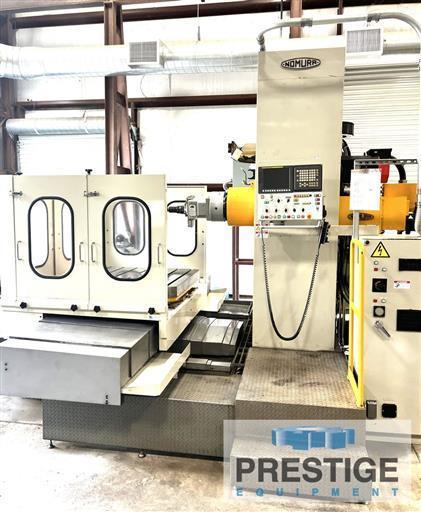

NOMURA 4.3" CNC TABLE-TYPE HORIZONTAL BORING MILL

SPECIFICATIONS:
SPINDLE DIAMETER 4.33"
SPINDLE TAPER #50
Table Cross Travel, X-AXIS 59.1"
Head Travel, Y-AXIS 46.3"
Saddle Travel, Z-AXIS 34.4"
Spindle Travel, W-AXIS 15.7"
MAX SPINDLE SPEEDS ,,,................. 3000 RPM 3000 RPM
SPINDLE MOTOR 30 HP

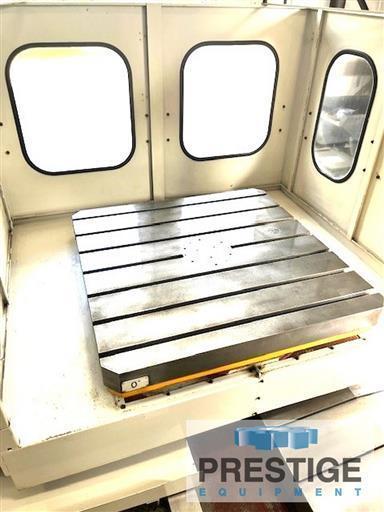

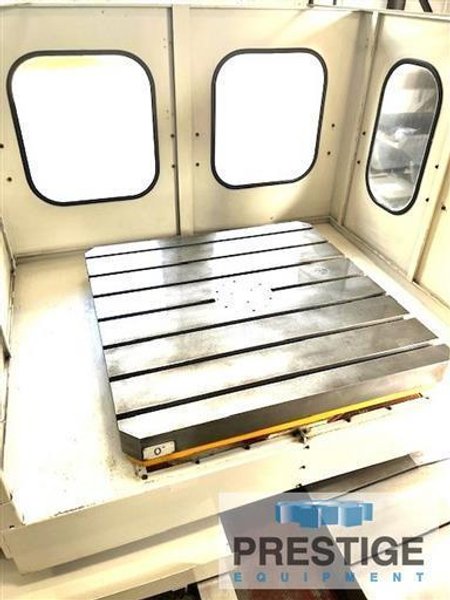

TABLE SIZE 45" X 45"
TABLE CAPACITY 6,600 LBS
ROTARY TABLE, C-Axis 0.001 Degrees
MAX. CUTTING FEEDRATE 236 IPM
RAPID TRAVERSE 472 IPM
TOOL CHANGER CAPACITY 30 TOOLS
FLOOR SPACE REQUIRED 145" X 223"
MACHINE HEIGHT 139"
APPROXIMATE MACHINE WEIGHT 31,000 LBS



Equipped With:
FANUC 0I-MD CNC CONTROL
30 TOOL AUTOMATIC CHANGER
COOLANT THROUGH SPINDLE
SPINDLE OIL COOLER
RIGID TAPPING
HELICAL INTERPOLATION

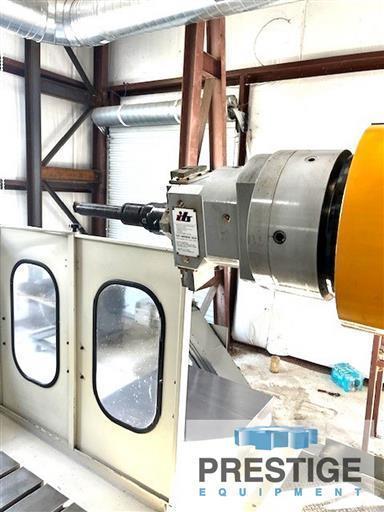

I.P.S MODEL CH-12 FACING AND CONTURING HEAD
CHIP CONVEYOR


NOTE: Used for Only One Project! Only 634 Hours!
