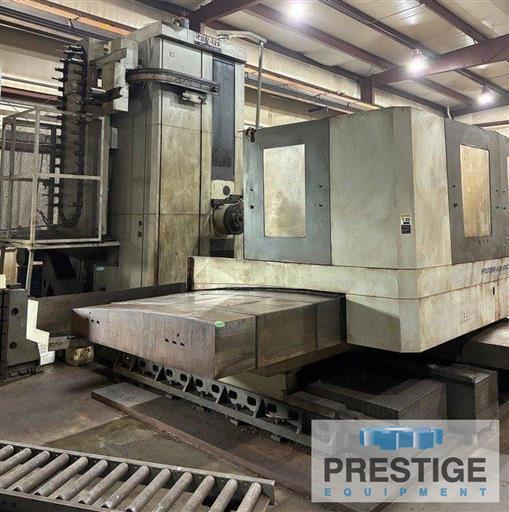

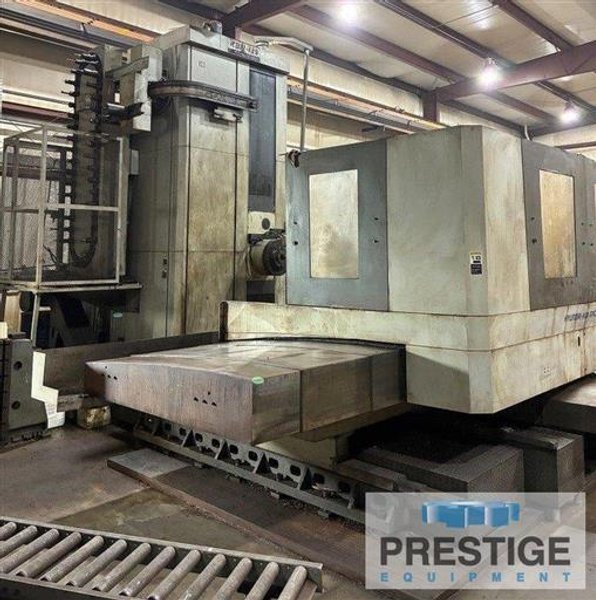

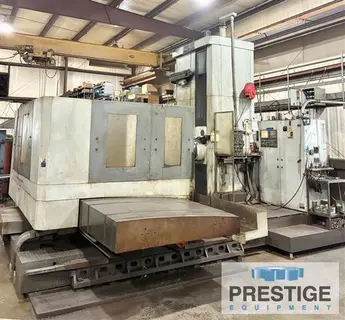

Hyundai Kia KBN-135 5.3" CNC Table Type Horizontal Boring Mill

SPECIFICATION:
Spindle Diameter 5.31"
Vertical Head Travel, Y-Axis 78.74"
Table Cross Travel, X-Axis 118.11"
Saddle Travel, W-Axis 62.99"
Spindle Travel, Z-Axis 27.56"
Table Size, Built in Rotary 78.74" x 70.86"
Table Load Capacity 22,000 Lbs.
Table Indexing, B-Axis 0.001 Degree
Spindle Speeds: Inf. Variable 5-2000 RPM
Spindle Taper CAT #50
Rapid Traverse 314.9 IPM
Cutting Feed Rate 0.0393"-157.48" IPM
Approximate Floor Space (L x W) 248.8" x 271.7"
Approximate Height 189"
Approximate Machine Weight 82,012 Lbs.



Equipped With:

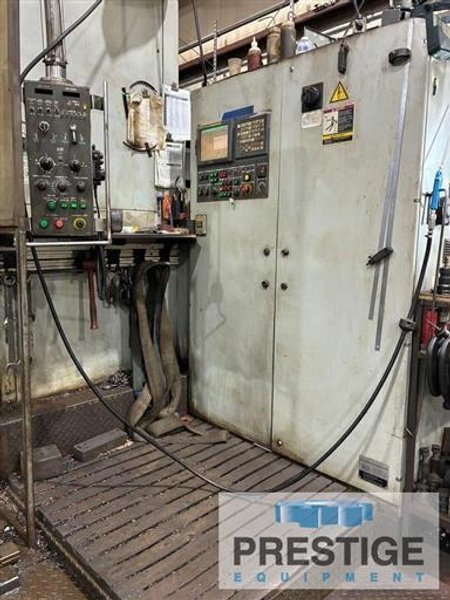

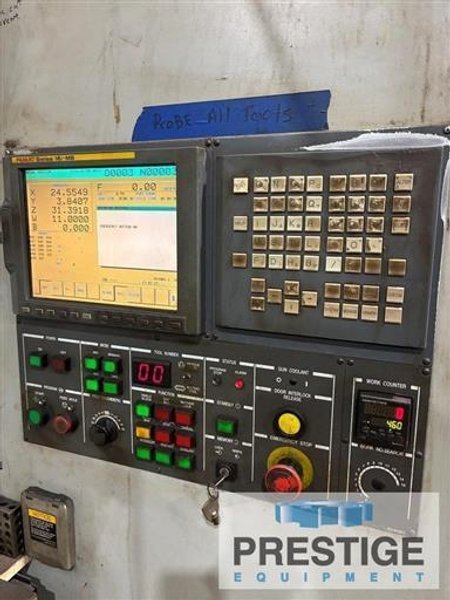

Fanuc 16i-MB 4-Axis CNC Control

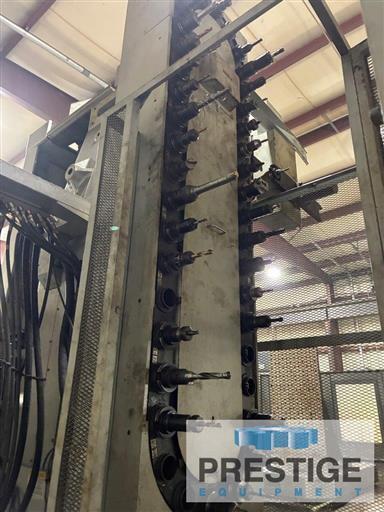

40-Position Automatic Tool Changer
78.74" x 70.86" B-Axis Rotary Table
Full Enclosure
Hardened Ways
Sliding Steel Telescoping Way Covers
Chip Conveyor
Coolant Thru Spindle
30 HP/ 25 HP Spindle Drive Motor
