Round Tubing Mild Steel | 1.65" x 0.118" |
Round Tubing Stainless Steel | 1.65" x 0.059" |
Power Bending Axis | Servo / Electric |
Number of CNC Axis | 11 |
Max Moment of Resistance | 3.4 cm3 (S235) |
Bending Angle up To | 180° +10° Spring Back |
Max Bending Time | 180°/Sec (Front Feed) |
Speed of Front Feed | 62.99 IPS |
Max Speed of Rotation | 450°/Second |
Repetition Tolerance Bending | +/-0.05° |
Repetition Tolerance Length | +/-0.0019" |
Repetition Tolerance Rotation | +/-0.05° |
Arbor Length/Usable Length | 120" |
Max Radii | 6.6" |
Bending Height | 45.27" |
Boosting Force Length Positioning | 2.5 kN |
Operating Voltage | 480 Volt / 60 Hz / 3 Ph / 30 KW 4 |
Approximate Dimensions | 296" x 63" x 63" |
Approximate Weight | 12,100 Lbs. |

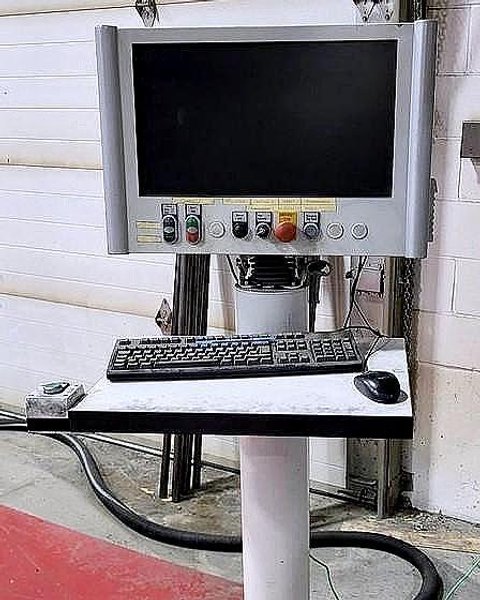

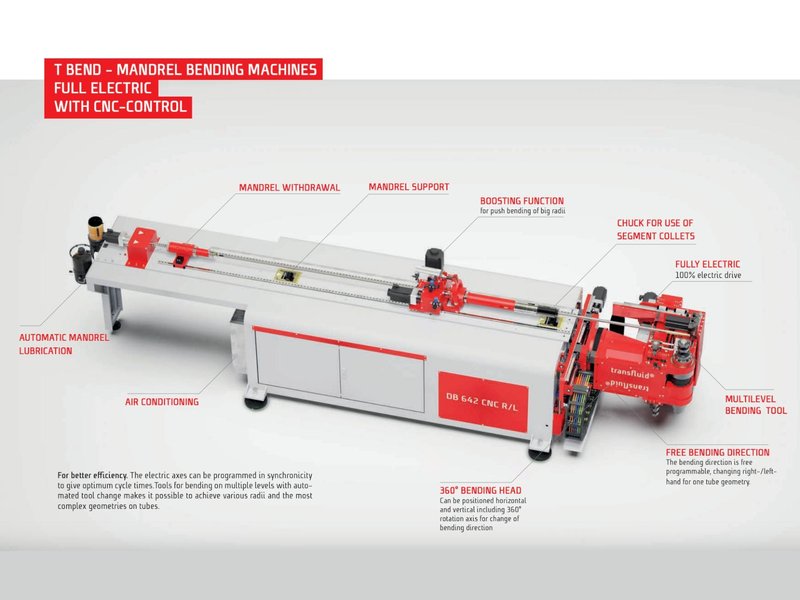

Equipped With: Transfluid CNC Control Windows 10 Operating System 22" Widescreen Monitor Servo Electric Power Bending Axis Servo Electric Positioning of the Rotation Length All Other Axis Servo Electric (Clamping/Mandrel/Pressure Die, Etc.) 360° Bending Head For Right Hand/Left Hand - One Off-Set Bend Device Horizontal And Vertical Bending Head Automatic Programmable Mandrel Withdrawal Carriage For Wiper Die Boosting Function Remote Diagnostics Option Automatic Mandrel Lubrication Air Conditioning for Electrical Cabinet Operator Footswitch |
