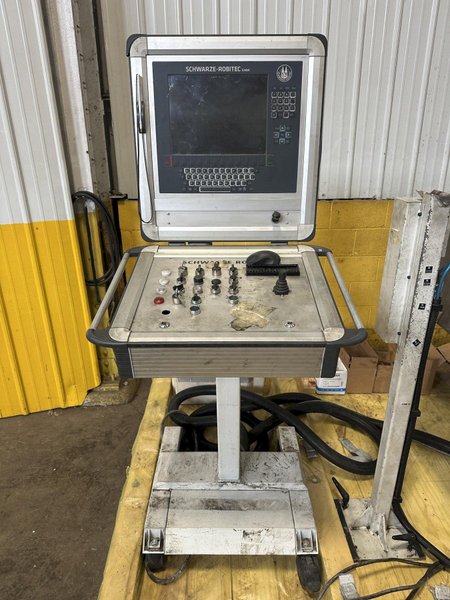

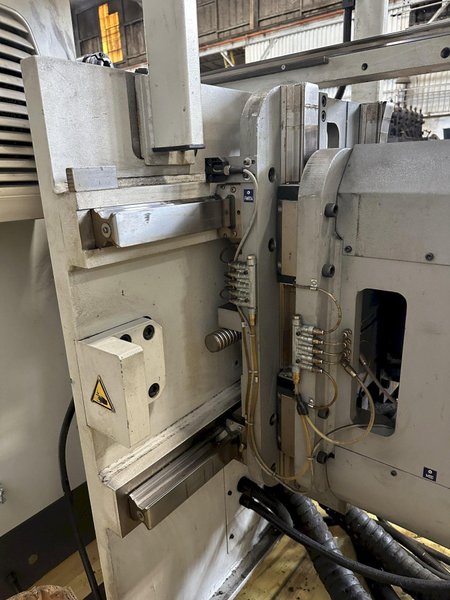

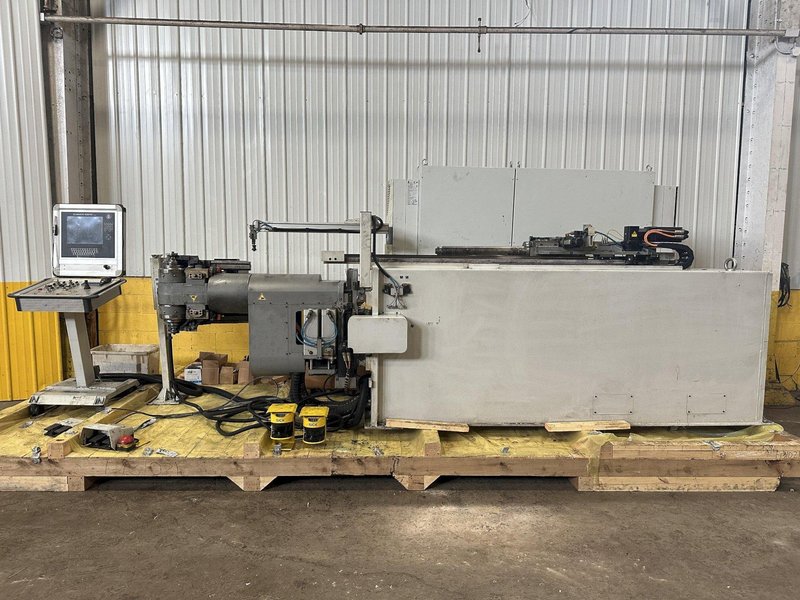

6-AXIS SCHWARZE ROBITEC CNC-40 CNC TUBE BENDER, NEW 2017: STOCK #23111

Brand
SCHWARZE ROBITEC
Category
Bending & Forming Equipment
Type
Benders, Tube, Electric
Model
Not specified
Stock #
23111
Year
2017
Condition
Good

Location

Ohio
REQUEST FINANCING

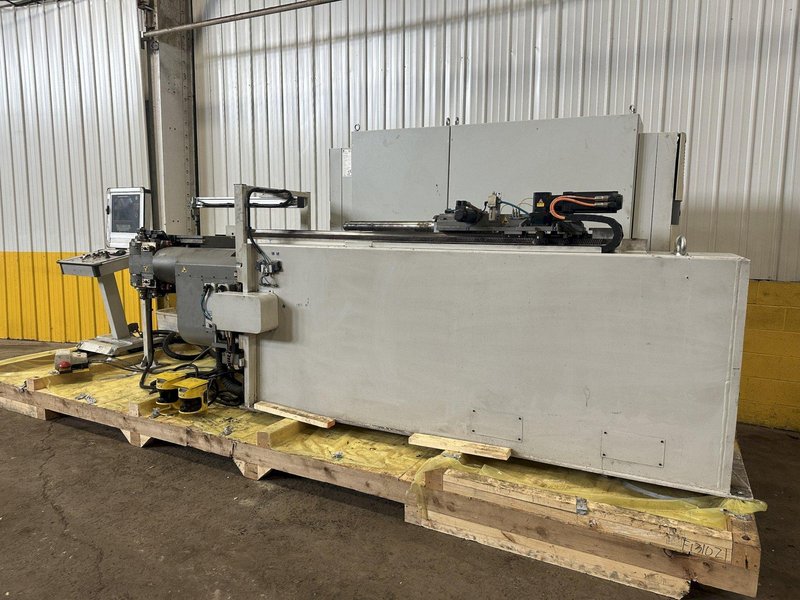

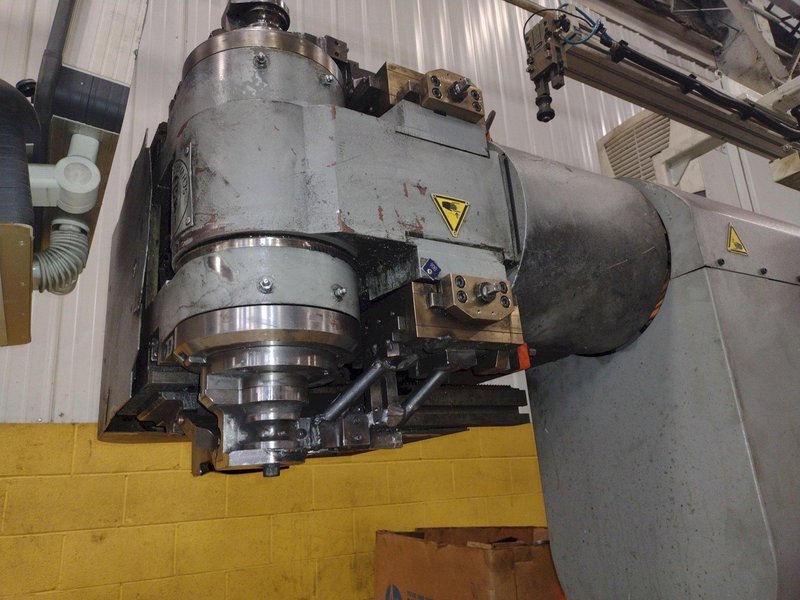

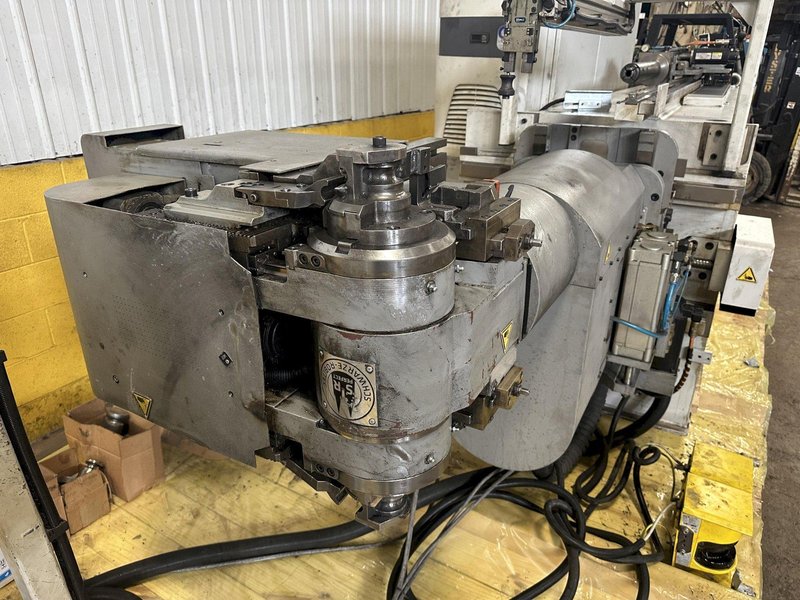

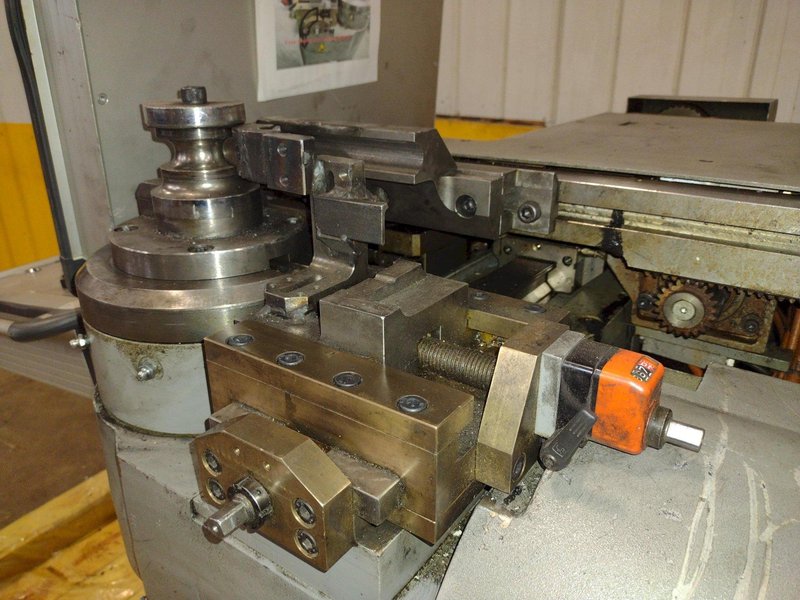

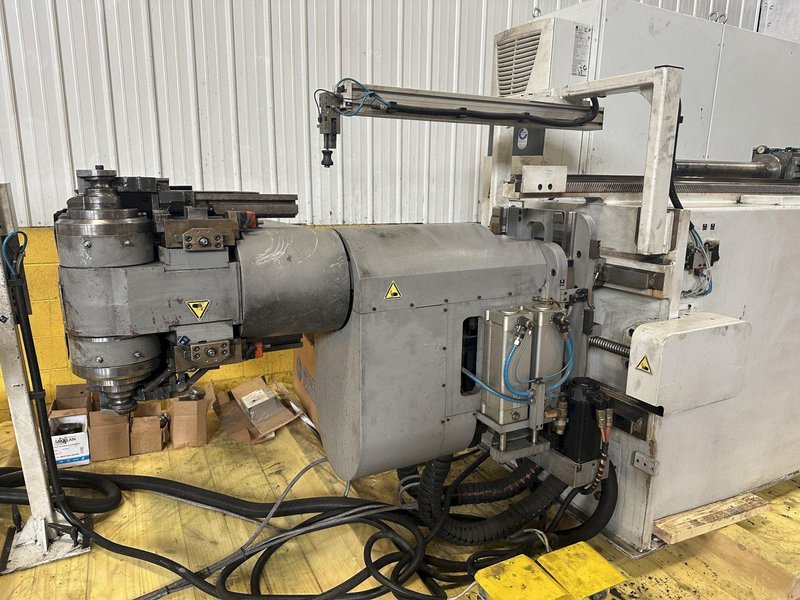

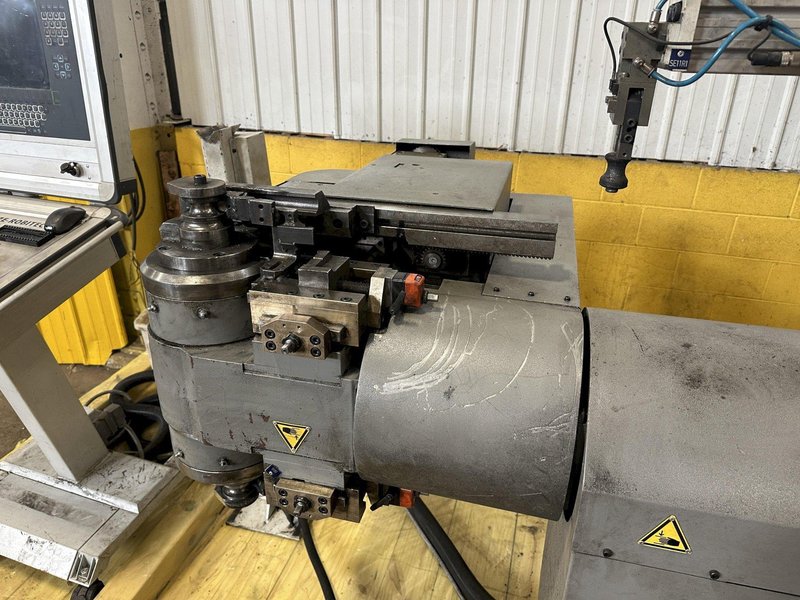

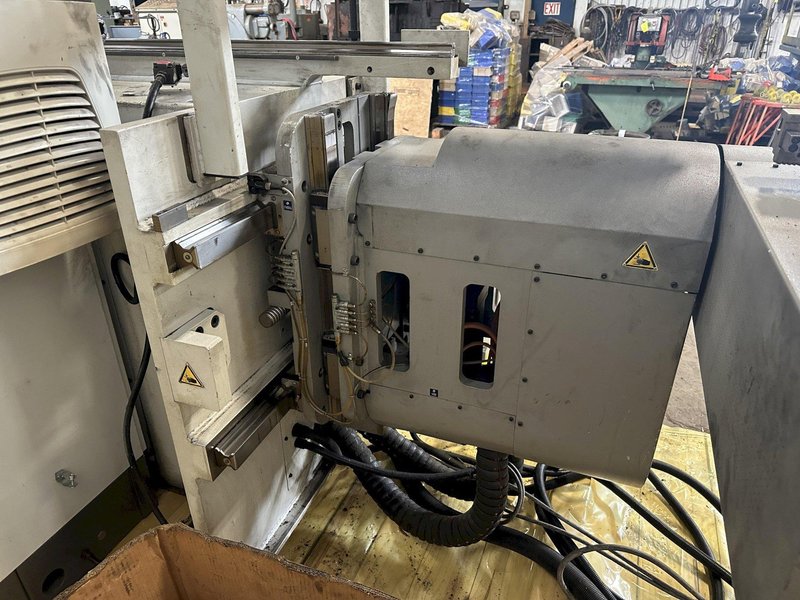

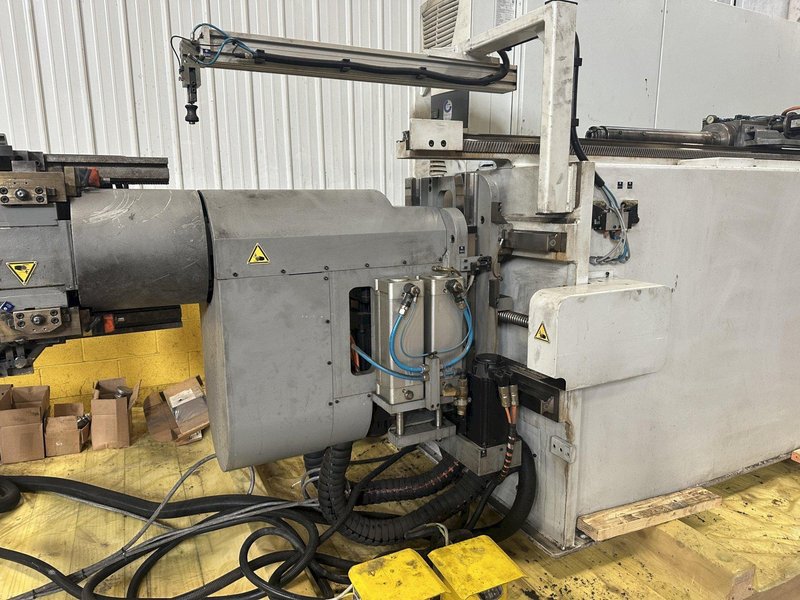

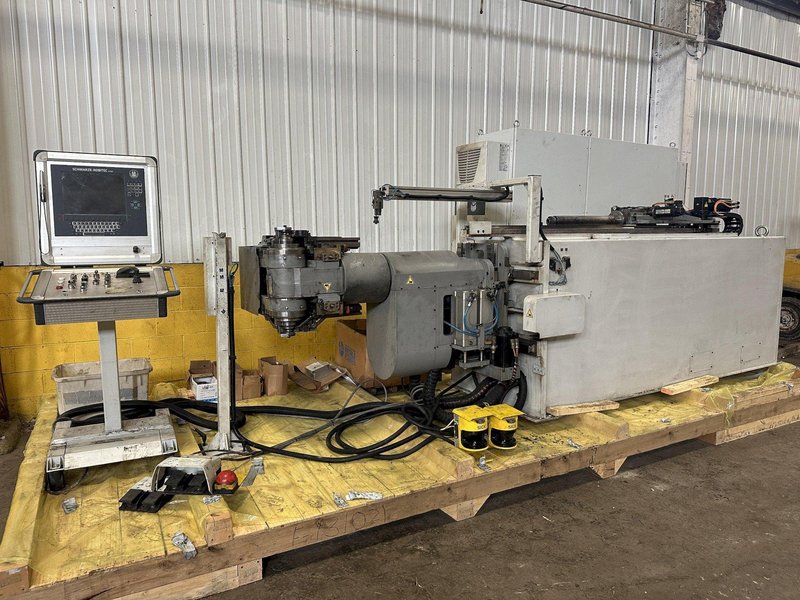

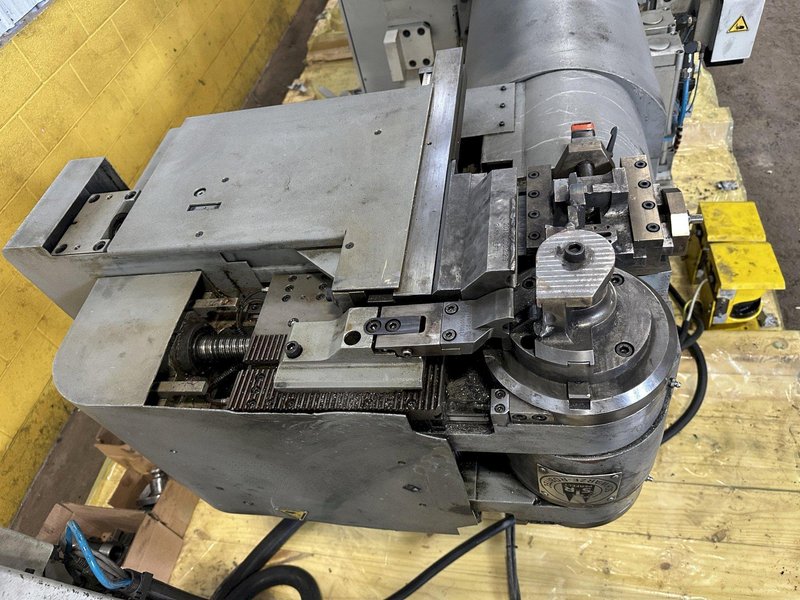

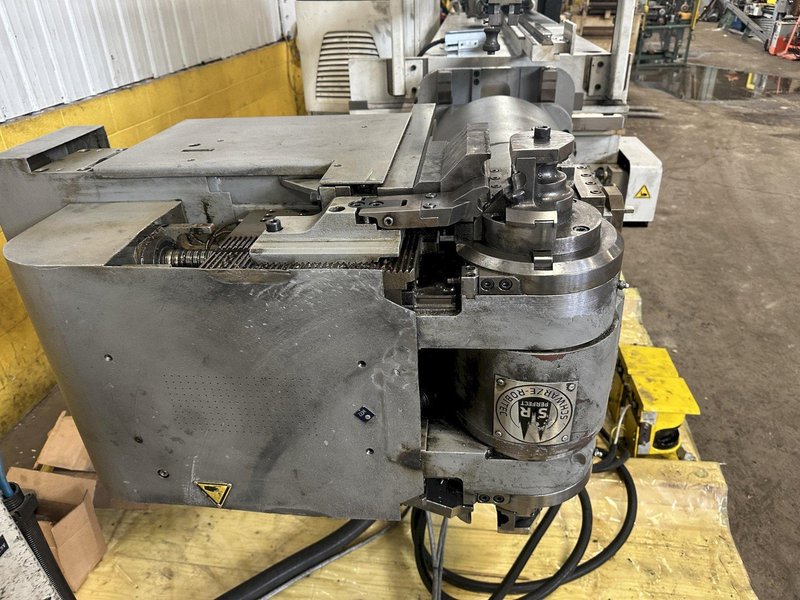

Schwarze Robitec CNC 40 Rotary 6 Axis Tube Bender

Model: Schwarze Robitec

Year: 2017

Type: CNC 40 Rotary

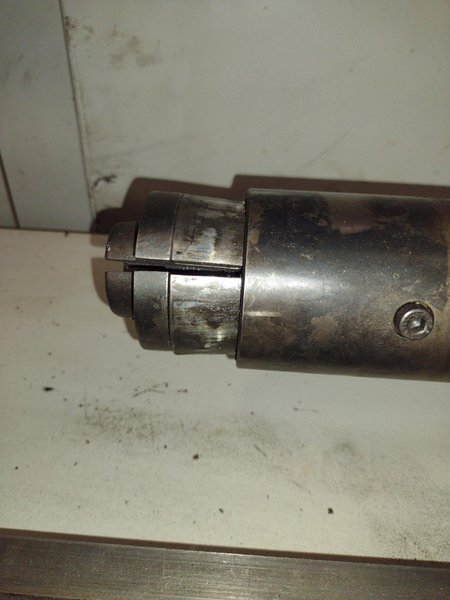

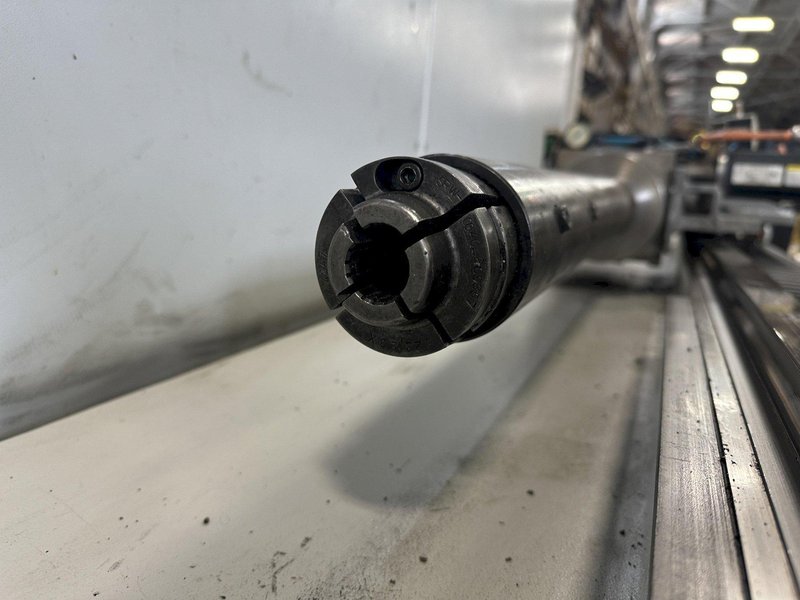

Tube Capacity: 1.25 collet

Max centerline radius: 5.9''

Max bending rotation: 185 degrees

Bending rotation: left to right

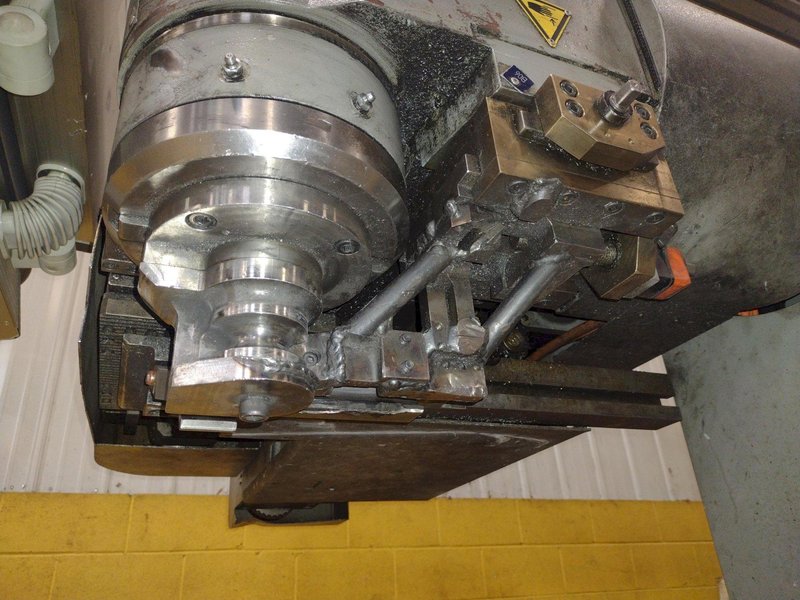

New tooling in 2021

New PC Board 2024


Technical Data

Max. bending capacity of the machine: tube OD x wall thickness

standard steel: 40 x 2 mm 1.57 x 0.08 In

stainless steel: 32 x 1,5 mm 1.26 x 0.06 In



Max. modulus of section: approx. 2,2 cm³ 0.9 In³



Max. tensile strength of material to be bent:

Standard steel: 450 N/mm²

Stainless steel: 750 N/mm²



Min. tube OD: 8 mm 0.31 In



Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In

Min. bending radius (CLR): 10 mm 0.39 In



Max. tube length: 2000 mm 6.56 feet



Max. bending angle: 185°

Max. bending angle accuracy: ± 0,1°



Max. bending speed:

forward, steplessly adjustable and

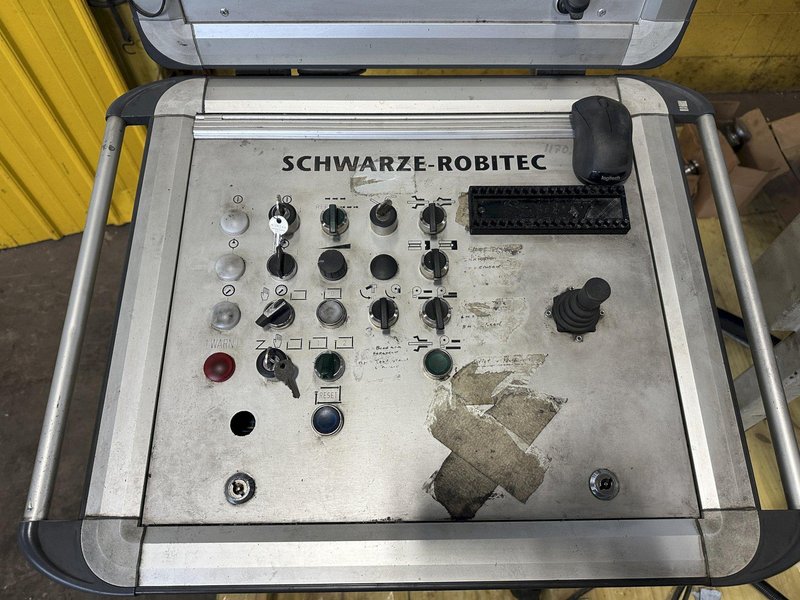

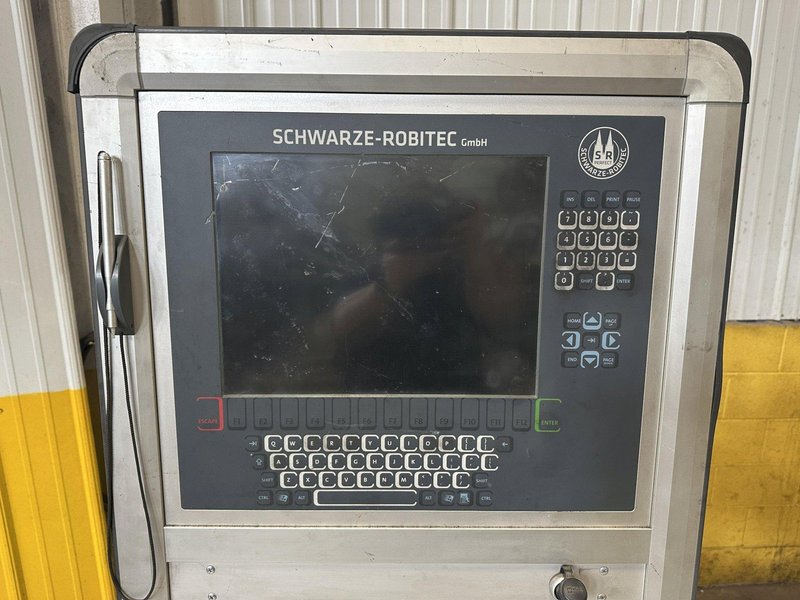

programmable from CNC panel: 45,0 1/ min.

return, constant: 45,0 1/ min.



Bending direction: Right – Left

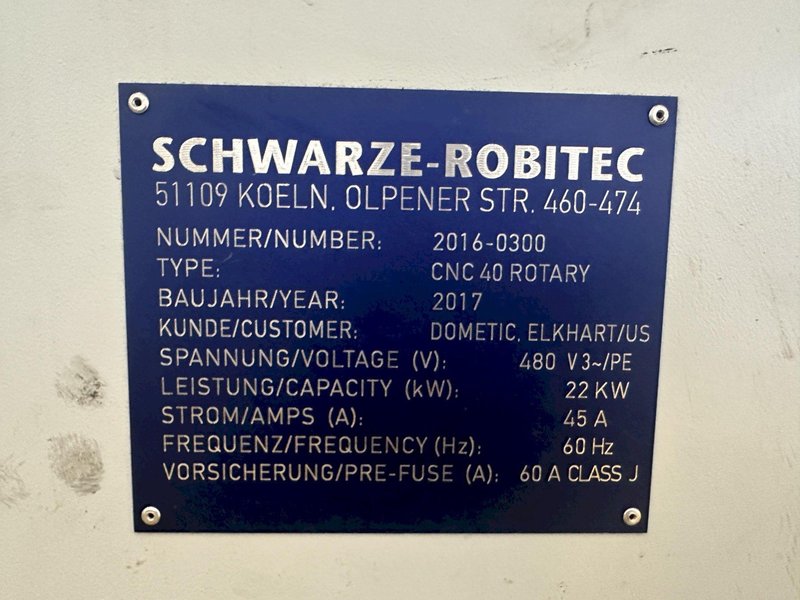

Total power requirement: 25 kW

Operating voltage: 400 V, 50 Hz, 3 Phases, PE, N

Control voltage: 24 V=

Solenoid valve voltage: 24 V=

Colour:

Machine: RAL 7035 light grey

Moveable parts: RAL 7037 dust grey

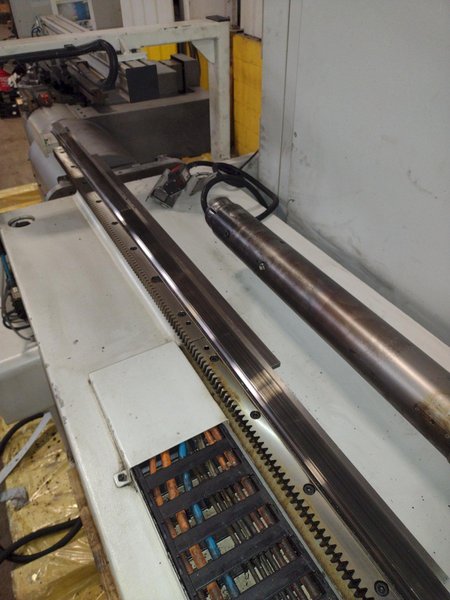

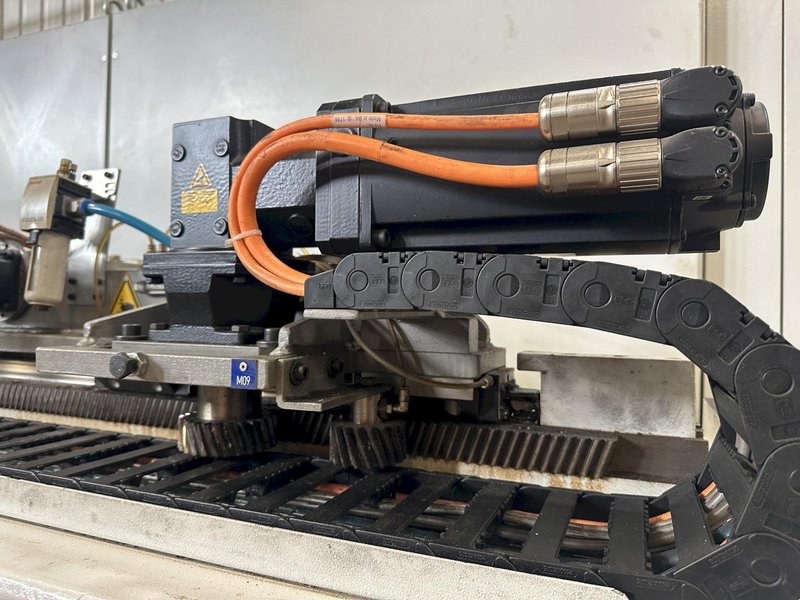

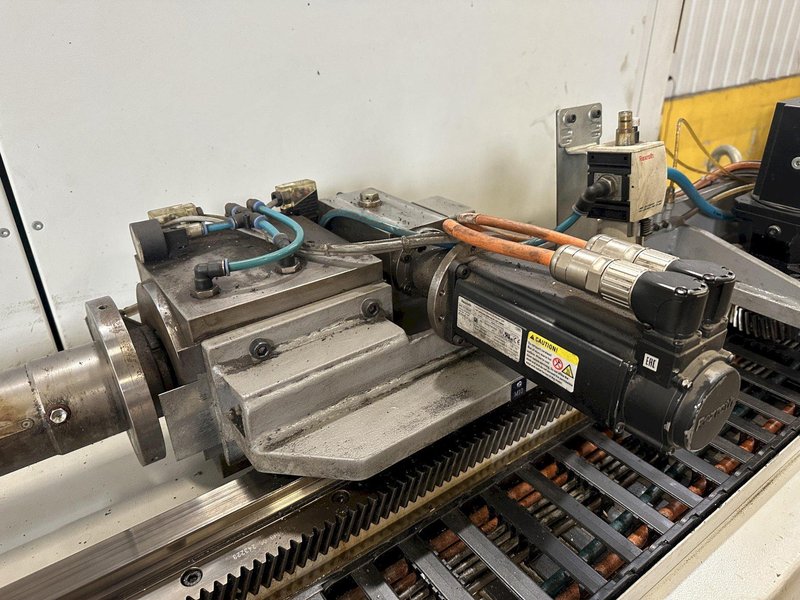

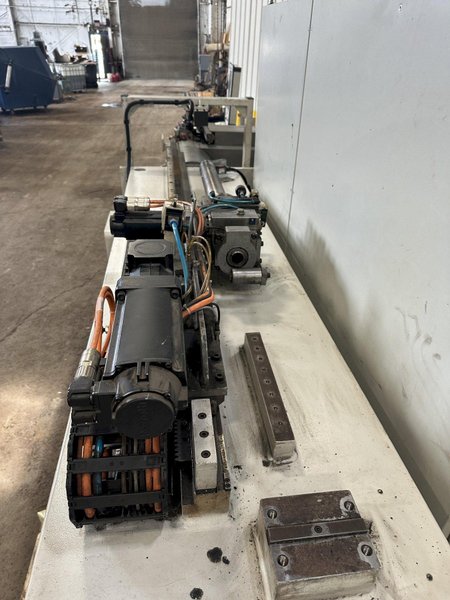

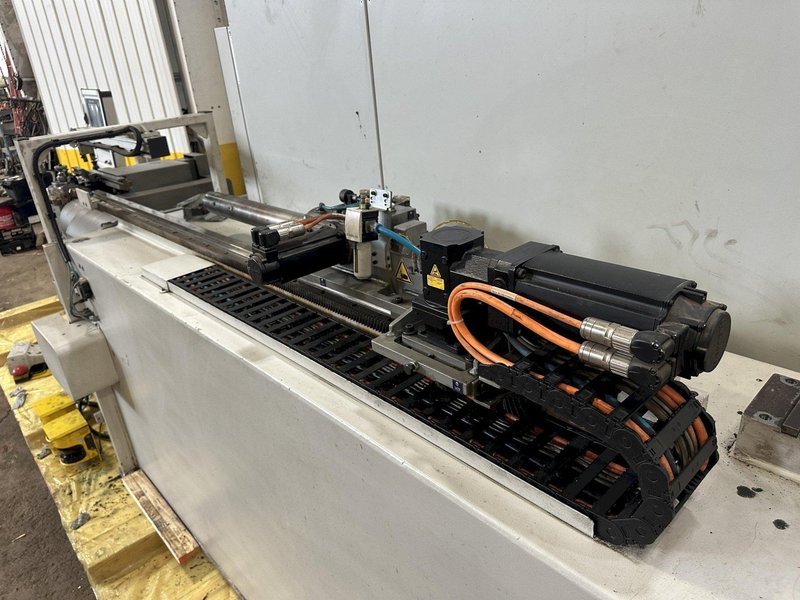

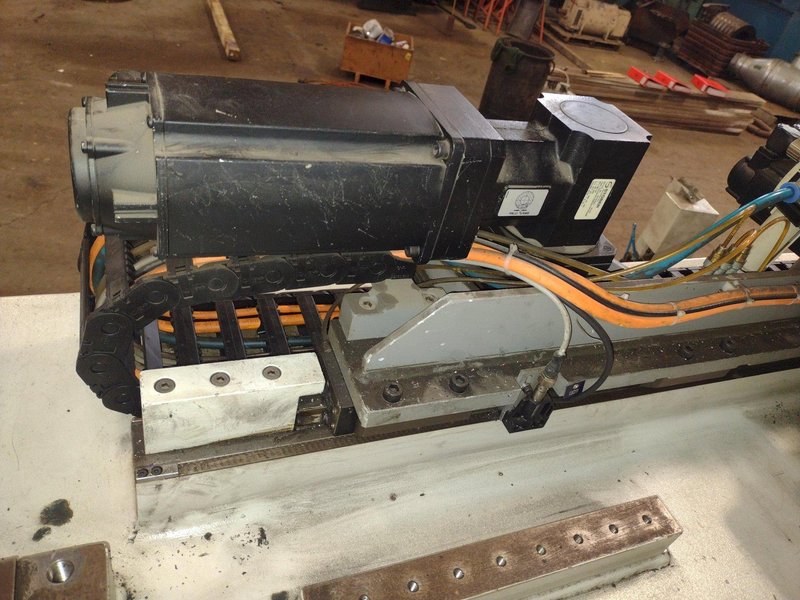

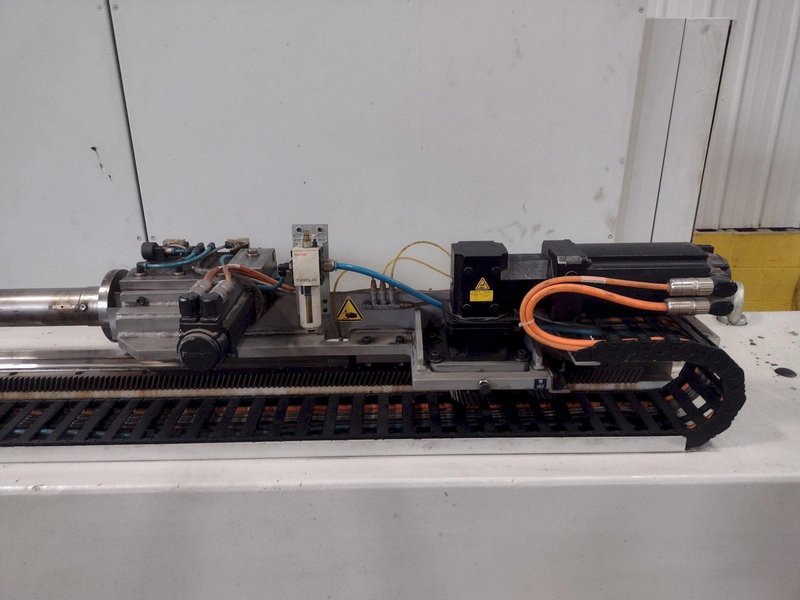

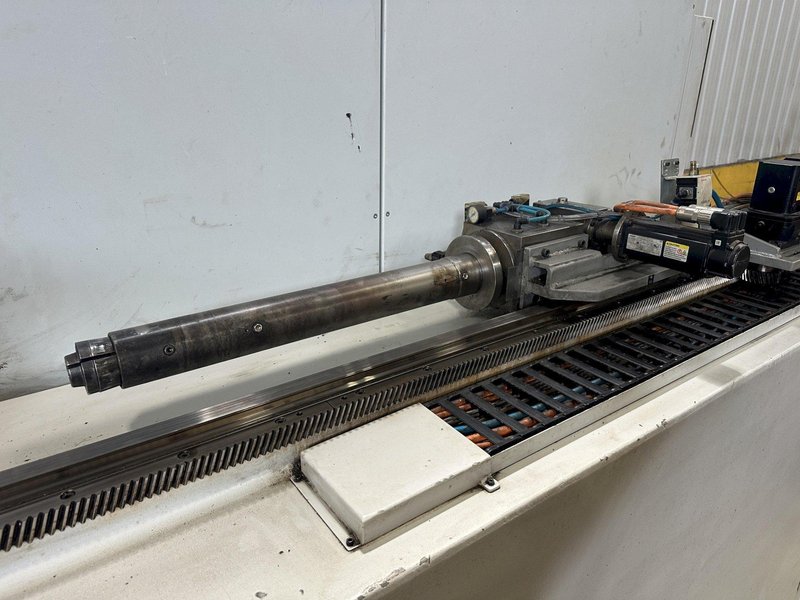

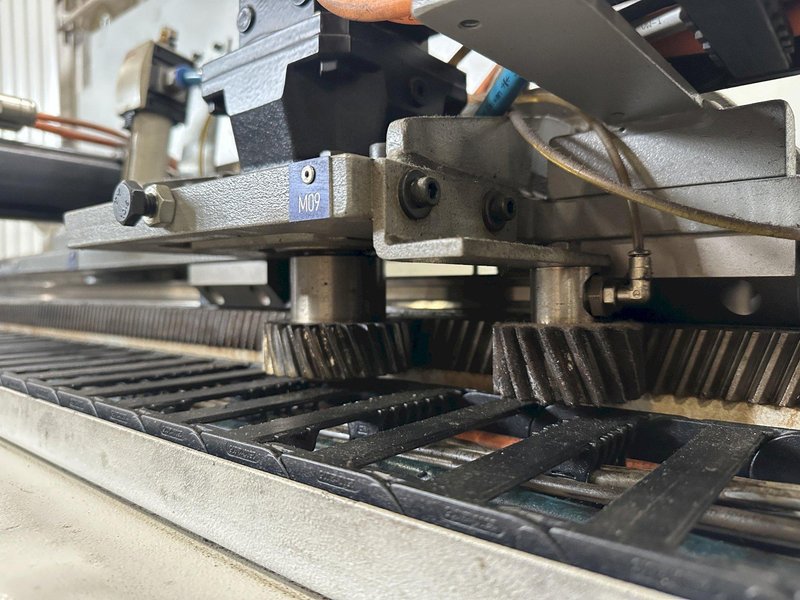

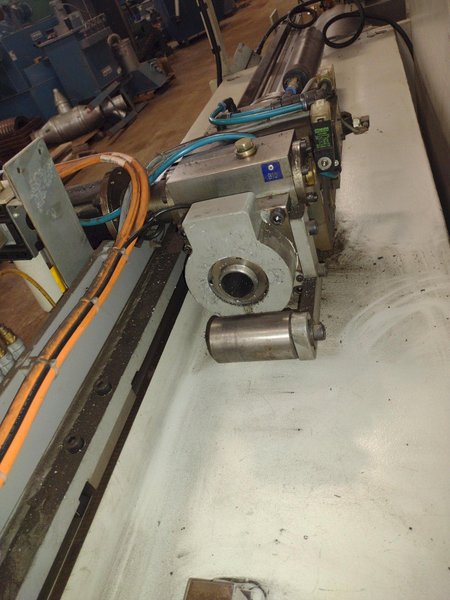

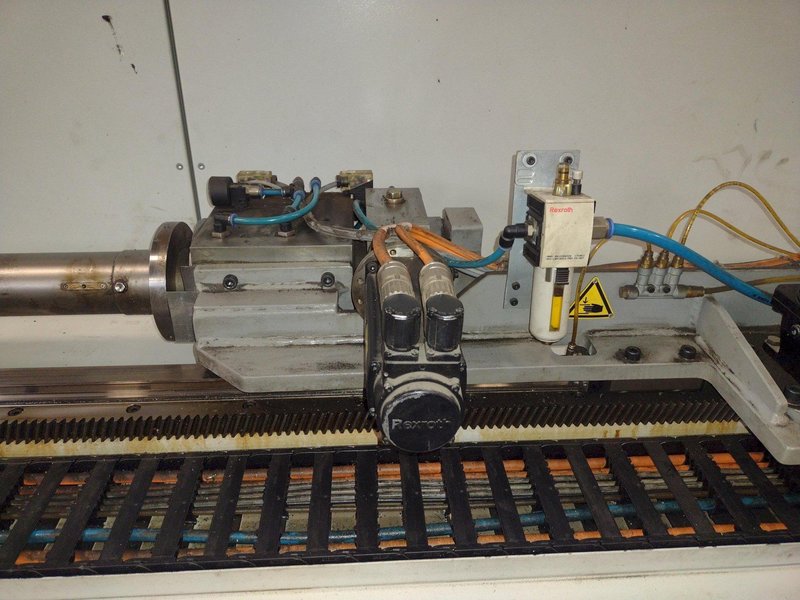

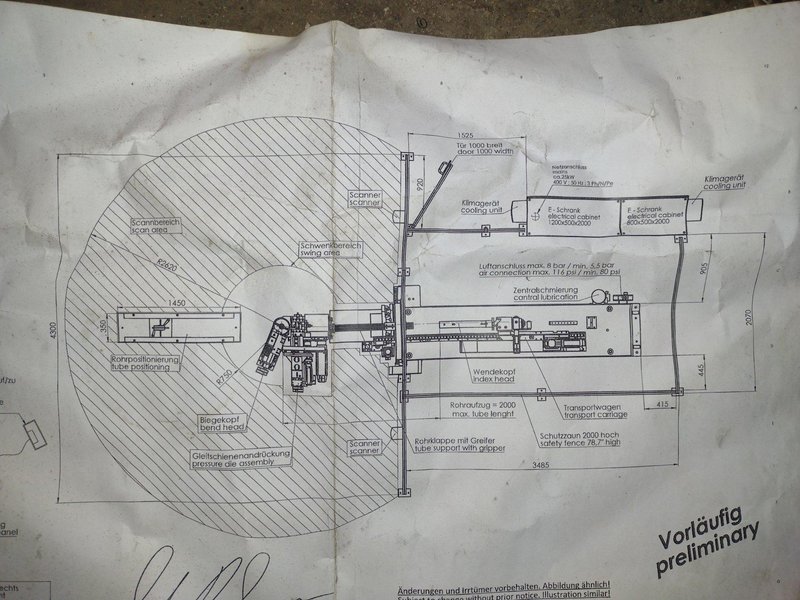

Tube positioning device (Transport and Orientation)

Max. orientation angle: 360°

Max. orientation accuracy: ± 0,1°

Max. orientation speed: 120 1/ min.

Max. transport speed: 65 m/ min. 213 ft/ min.

Transport accuracy: ± 0,1 mm



(Speeds are steplessly adjustable and programmable from control panel.)

Weight of machine: approx. 4.000 kg 8,800 Lbs.

ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
