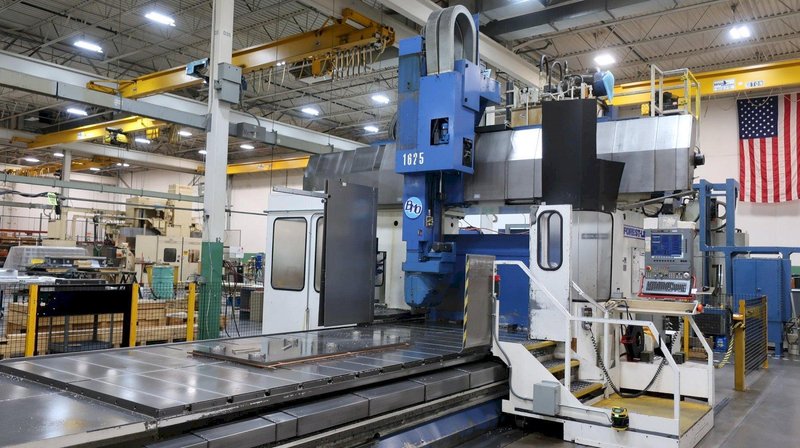

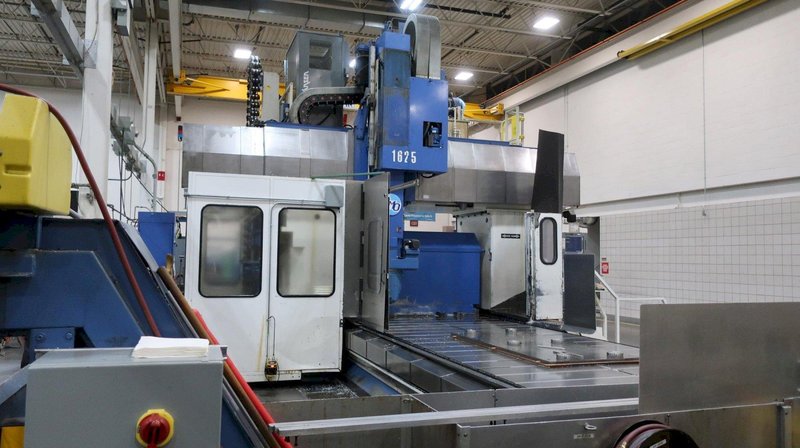

Forest-Line MajorMill 5-Axis CNC Gantry Mill,
Brand
Category
Model
MajorMill
Stock #
Not specified
Year
2008
Condition
Very Good
Location
Not specified
| X | 236 inches |
| Y | 110 inches |
| Z | 49 inches |
| Power | 43 horsepower |
| RPM | 8000 |
| # ATC | 72 |
| Taper | ISO 50 |
| Table-W | 84 inches |
| Table-L | 236 inches |
| CNC Control | yes |
| Type Of CNC Control | FIDIA C20 |
| Dimensions | 382" x 251" x 267" TALL |
|
Number of Axes: 5 Axes

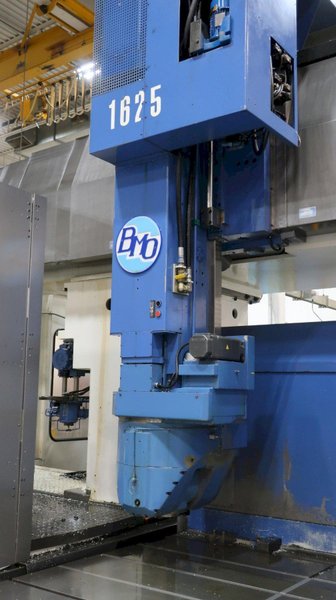

Type of CNC Control: Fidia C20 CNC Control Retrofit in 2008 CNC Control: yes Table Size: 83.27" x 236" X: 236 inches Y: 110.23 inches Z: 49.21 inches Max. Cutting Height: 62.99" Effective Width Between Colums: 94.5" Spindle Speeds, 3-Range: 10-3200 RPM Main Milling Head on Ram: Hard Steel Cartridge - 3 Speed Ranges - Equipped with an accessory holder plate with auto clamping: Indexing 2.5 degrees Spindle Taper: #50 ISO A-Axis Spindle Head Tilt: +/-95 Degrees B-Axis Spindle Head Swivel: 360 Degrees A-Station AAC: yes Automatic Head Changer: yes Automatic Attachment Changer (ACC):: Yes - 3 Heads Right Angle Head: 10 - 3200 RPM, 2.5 degree indexing DRC12 Head Attachment (double stepless rotation): 10 - 5000 RPM, (Double stepless rotation) Multiplying spindle extension Head: 10 - 8,000 RPM, Ratio: 2/1, 2.5 degrees indexing # ATC: 72 Machine Height: 267" Machine Foot Print, L x W: 382" x 251" Spindle Drive Motor: 42.9 HP (32 KW) FIDIA C20 CNC Control Retrofit in 2008 72-Station Automatic Tool Changer Steel Spindle Unit, FA 310 AC 3-Station Spindle head Changer - automatic DRC 12 Double Rotation Stepless Rotation - Right Angle Head Straight Head with Speed Increaser (8,000 RPM) Manuals / Documentation NOTE: Machine had complete Re-Control in 2008 with FIDIA C20 CNC CONTROLS. |
|
