CAPACITY:

Pallet Size, (2) 98" x 138"
X-Axis 236"
Y-Axis 141"
Z-Axis, Cross Rail 74.8"
W-Axis, Ram Stroke 39.4"
Distance Between Columns 122"
Height Under Vertical Spindle 98"
Ram Cross Section 18" x 18"
Spindle Speeds, 4-Ranges 10-2000 RPM
Spindle Drive Motor 84 HP
Spindle Taper #50 ANSI
Rapid Traverse 400 IPM
Table Weight Capacity 50,000 LB

Equipped With:

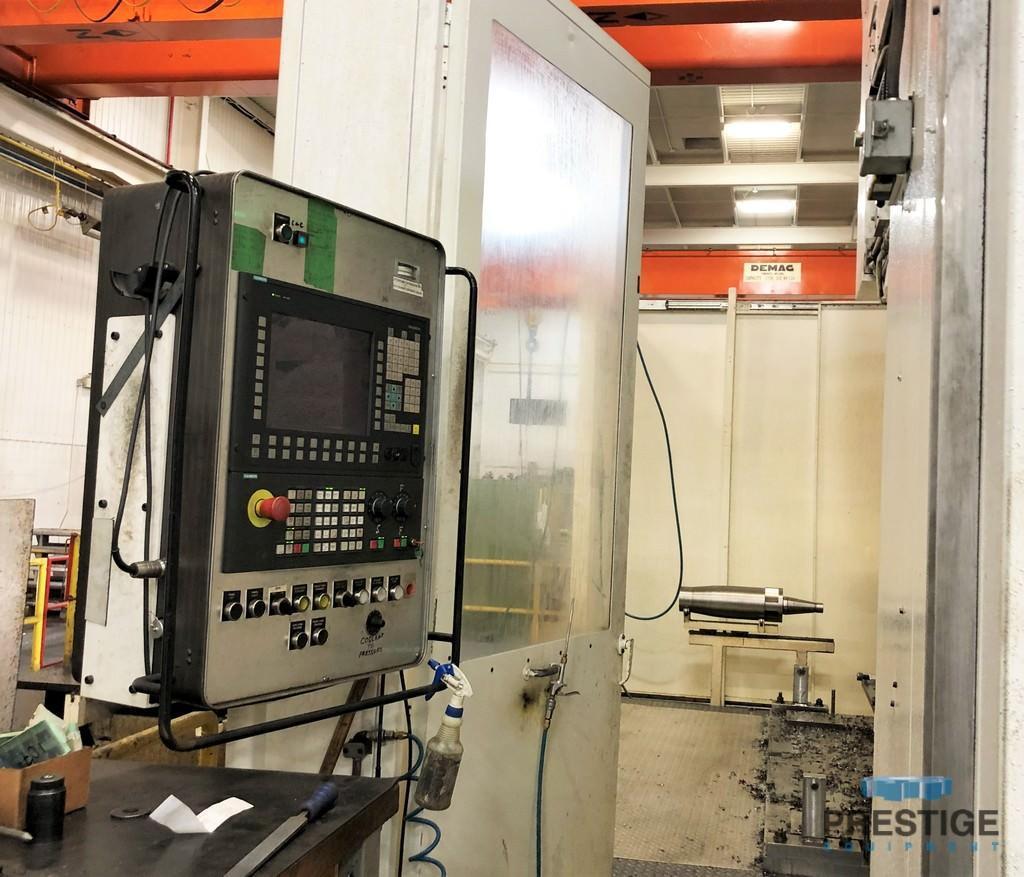

Siemens Sinumerik 840SL CNC Controls (Retrofit 2014)
Simoreg DC Master Spindle Drive
Sinamics 120 Servos
100 Station Automatic Toolchanger
Automatic Attachment Changer
Right Angle Attachment
Two Spindle Extentions
Thru Spindle Coolant
Renishaw Probe
Broken Tool Detection

Note:


Complete Factory Retrofit including Electrical, Hydrostatic and Bridge Controls
Including New Siemens Controls, Motors, Drives, Cabinet and Chiller
