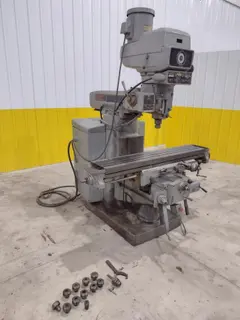

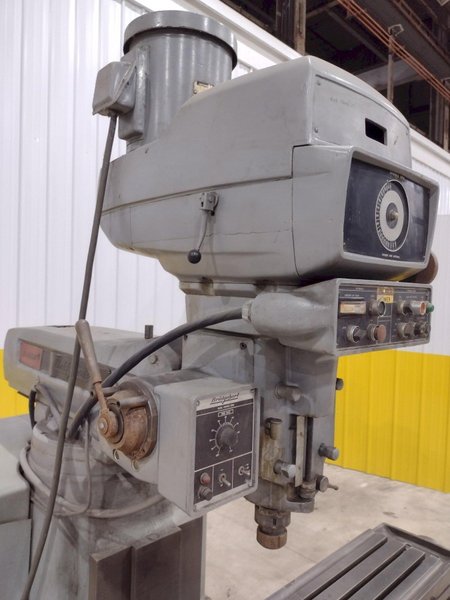

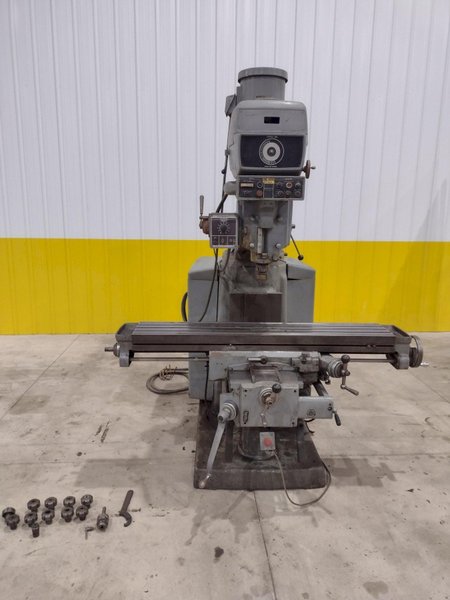

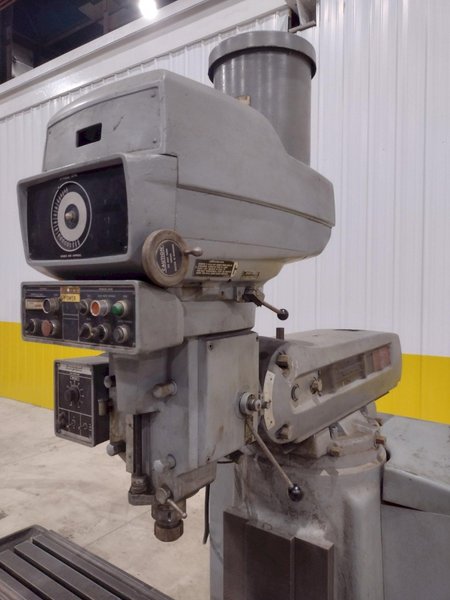

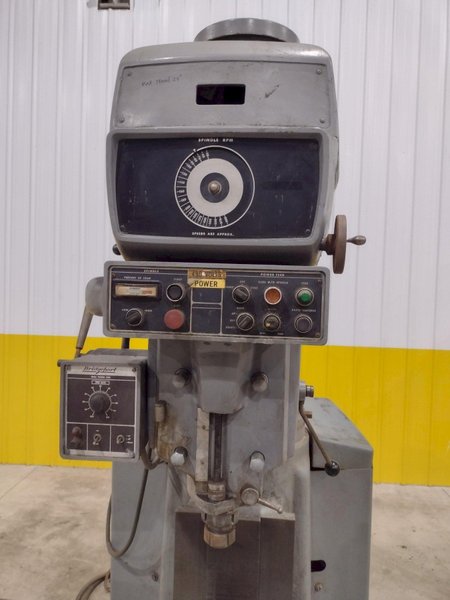

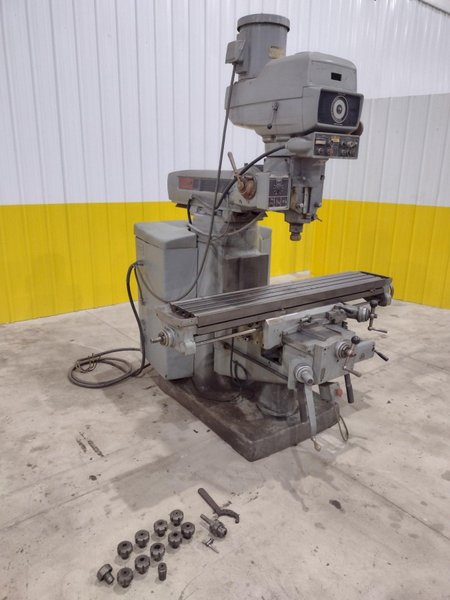

4 HP BRIDGEPORT SERIES II VERTICAL MILLING MACHINE: STOCK #20606
Brand
Category
Type
Model
SERIES II
Stock #
20606
Year
Not specified
Condition
Good
Location
Ohio
Price
$8,950.00
|
SERIAL ............................. 2694
SERIES ............................. II
AREA OF TABLE ...................... 58" X 11"
SPINDLE SPEEDS ..................... 50 TO 3500 RPM (VARIABLE)
POWER LONGITUDINAL FEED ............ 3/4 TO 24 IPM
POWER CROSS FEED ................... 3/4 TO 24 IPM
LONGITUDINAL TRAVEL ................ 30"
CROSS TRAVEL ....................... 15"
VERTICAL TRAVEL OF KNEE ............ 16"
QUILL TRAVEL ....................... 5"
POWER QUILL TRAVEL ................. YES
HORIZONTAL TRAVEL OF RAM ON BASE ... 16"
DEPTH OF THROAT .................... 2" MINIMUM / 25" MAXIMUM
SPINDLE TO TOP OF TABLE ............ 10" MINIMUM / 24" MAXIMUM
TAPER IN SPINDLE ................... #40 QUICK CHANGE
SPINDLE MOTOR ...................... 4 HORSEPOWER |
