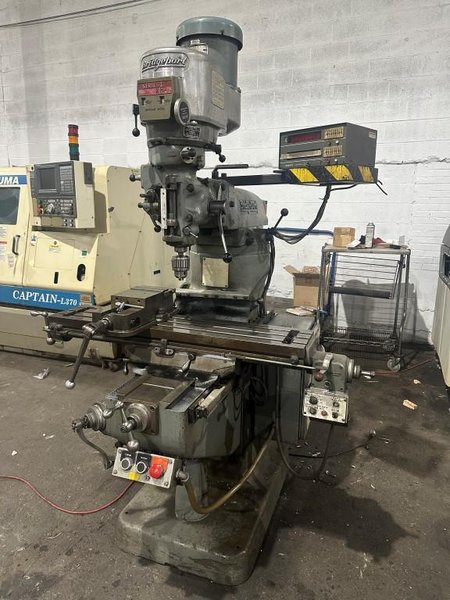

2 HP Bridgeport Series I Vertical Mill
Brand
Category
Type
Model
Series I
Stock #
TM5155
Year
Not specified
Condition
Good
Location
Not specified
| Working Surface Of Table | 9" x 42" |
| No. Of T-Slots | 3 |
| Longitudinal Travel (X-Axis) | 30 inches |
| Cross-Slide Travel (Y-Axis) | 12 inches |
| Quill Travel (Z-Axis) | 5 inches |
| Vertical, Knee | 16 inches |
| Max/Min Distance, Spindle Nose To Table | 18.5" / 2.5" |
| Max/Min Distance, Centerline - Spindle To Face Of Column | 18.75" / 6.75" |
| Ram Travel | 12 inches |
| Head Tilt, Left / Right | 90° |
| Head Tilt, Front To Rear, Each Way | 45° |
| Power Quill Feeds (3) | .0015, .003, .006 IPR |
| Spindle Drive | 2 HP 3/60/230-460 V |
| Inf.Variable Spindle Speeds (Low) | 60 – 500 RPM |
| Inf.Variable Spindle Speeds (High) | 500 – 4200 RPM |
| Spindle Motor | 2 HP |
| Spindle Taper | R8 |
| Maximum Collet Capacity | 0.75 inches |
| Currently Wired For | 3/60/230 Volt Operation |
| Approximate Overall Dimensions | 62”W x 63”D x 83”H |
| Approximate Weight | 2000 pounds |
| F.O.B. | Our Plant |
|
Equipped with: |
|
