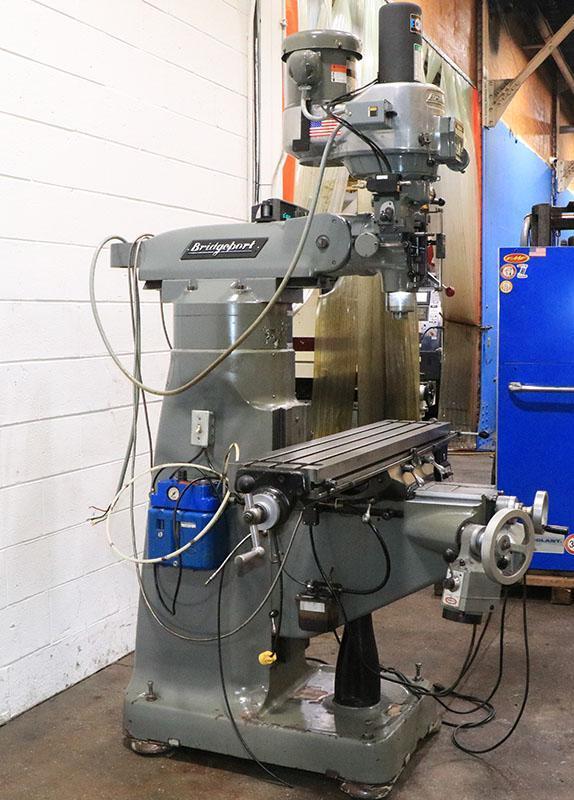

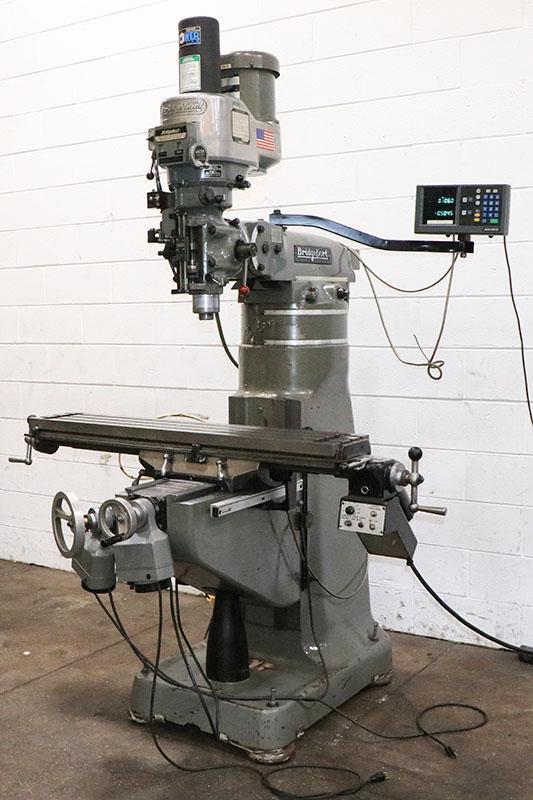

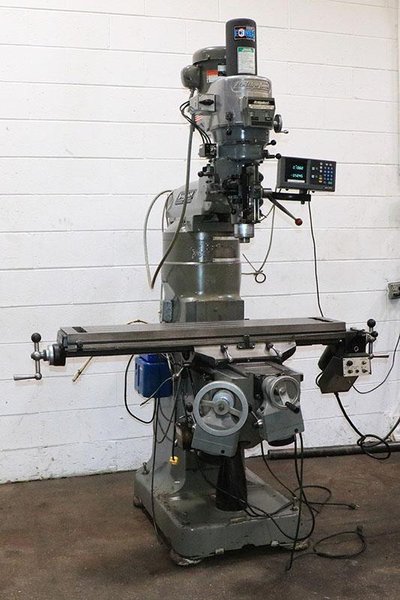

BRIDGEPORT VERTICAL MILLING MACHINE, MODEL SERIES I
Brand
Category
Type
Model
Series 1
Stock #
5023
Year
1993
Condition
Used
Location
New Jersey
|

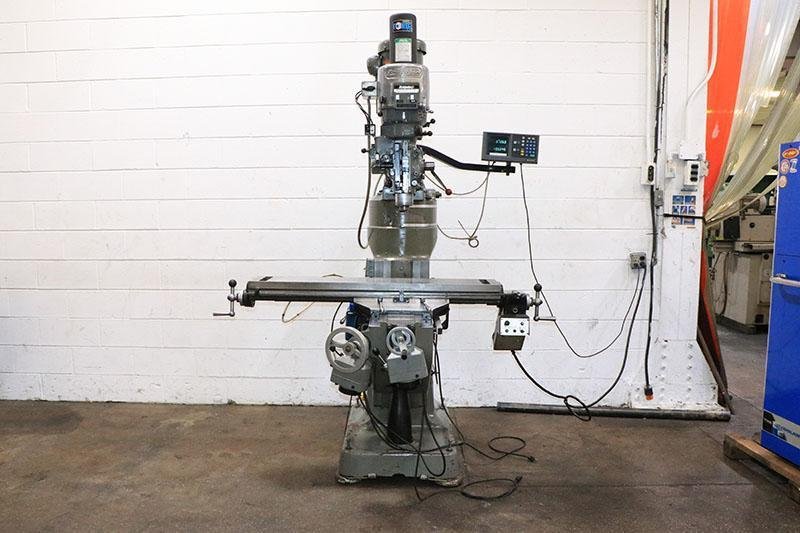

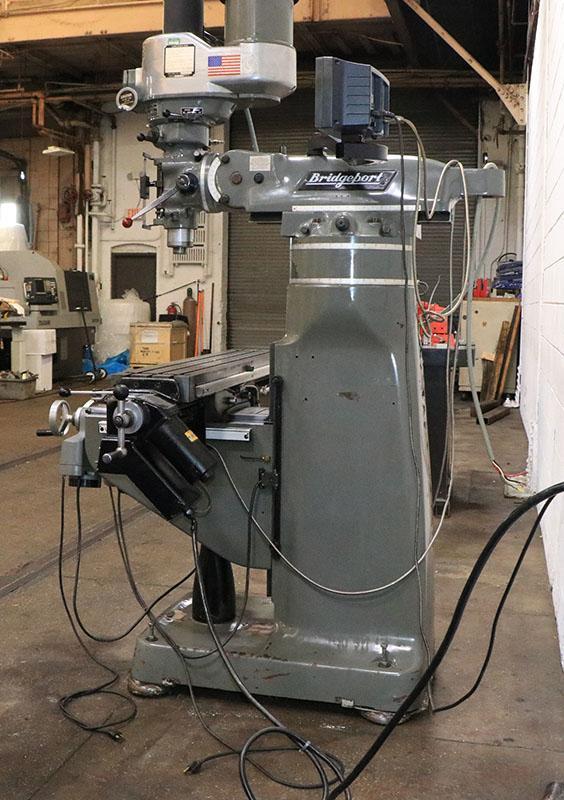

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES 1
NEW: 1993 SPECIFICATIONS:

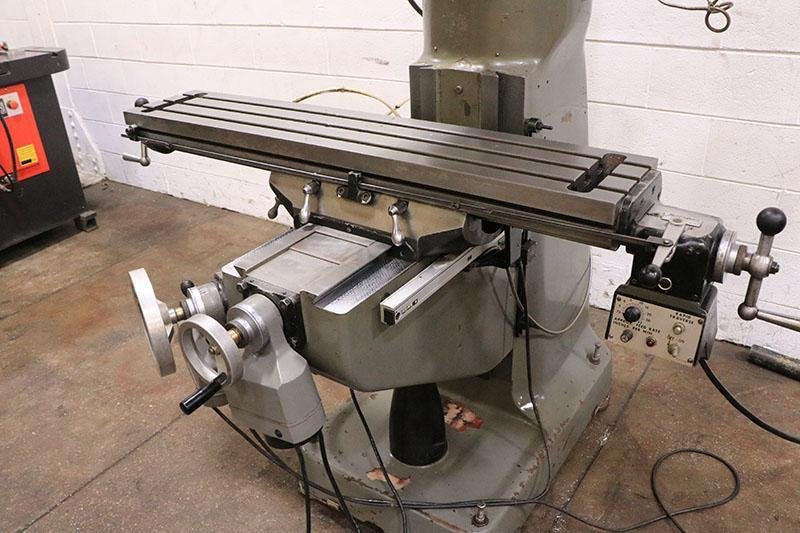

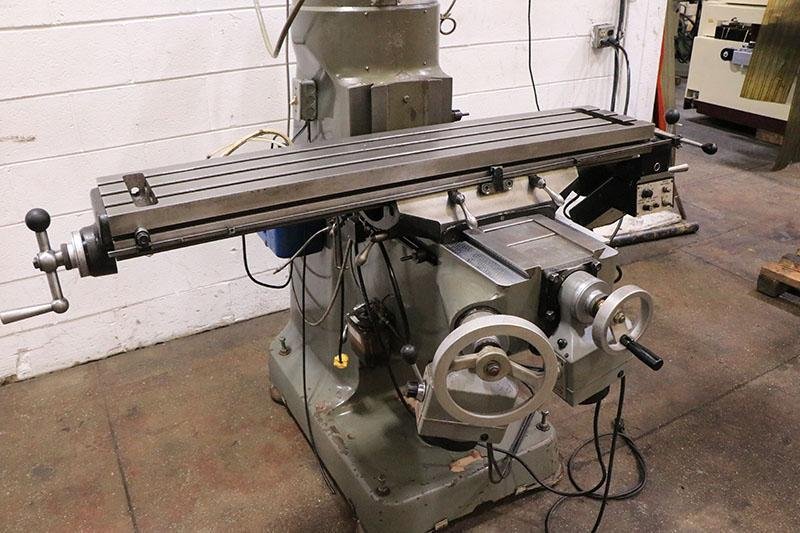

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS
EQUIPPED WITH:

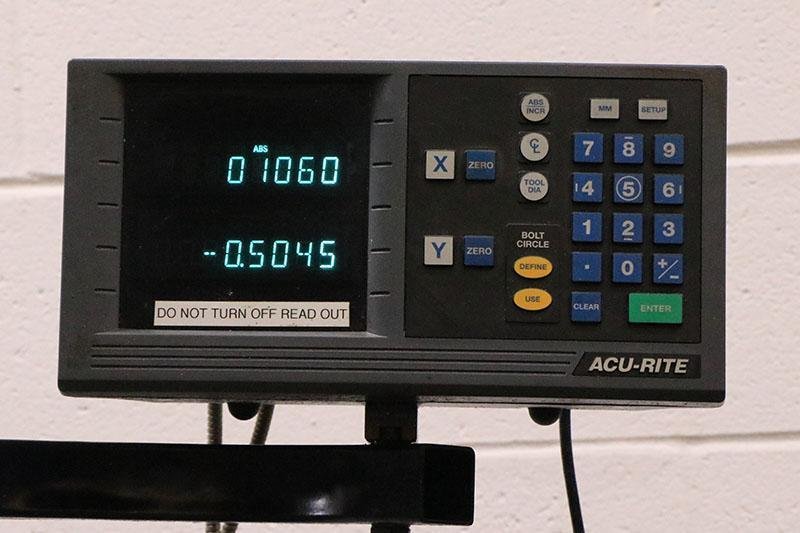

ACURITE TWO AXIS DIGITAL READOUT

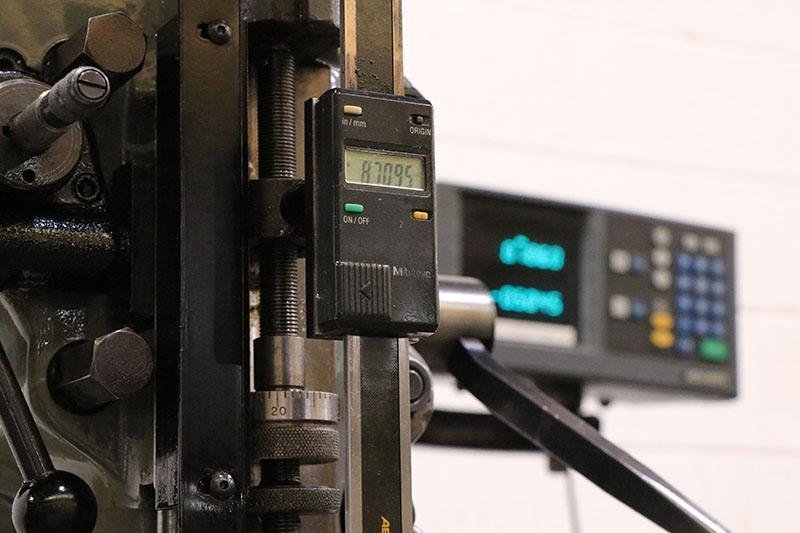

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL

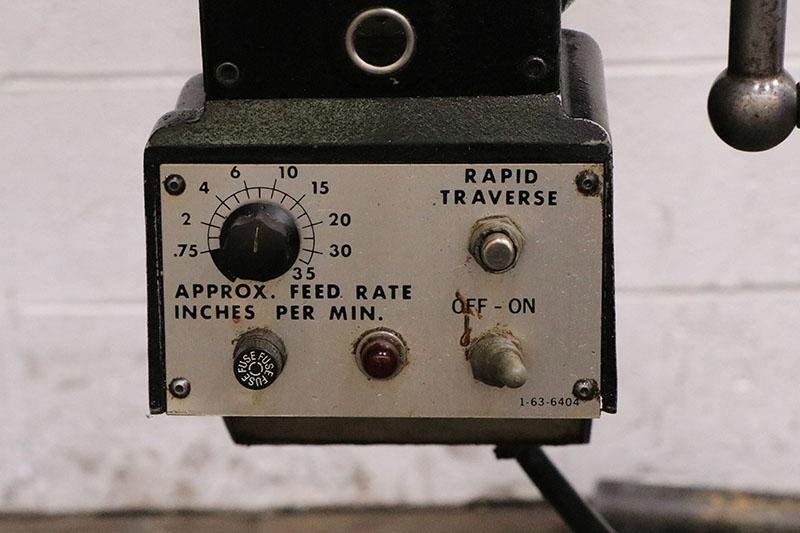

BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL
SERVO POWER FEED FOR CROSS TRAVEL
SERVO POWER FEED FOR VERTICAL KNEE TRAVEL

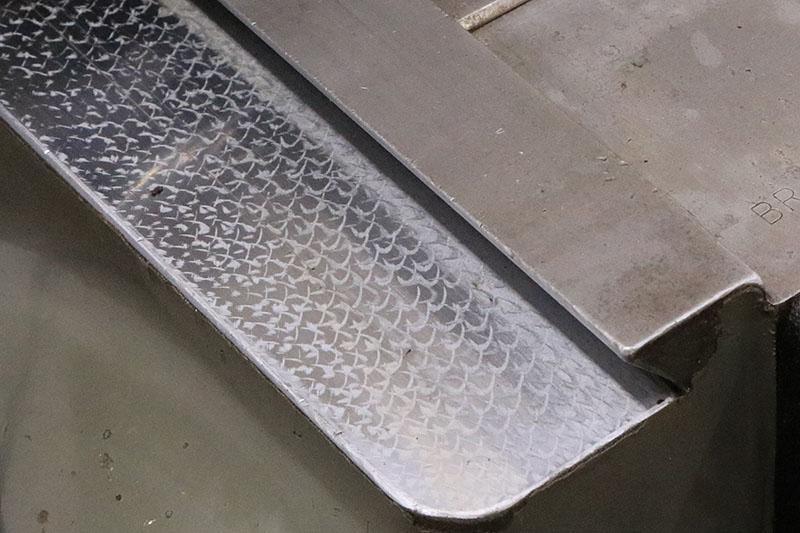

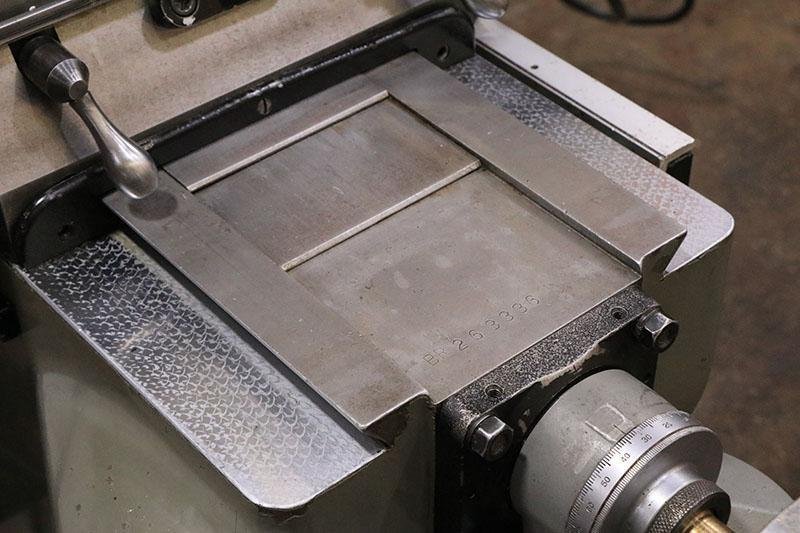

CHROME WAYS
KURT AIR ACTUATED POWER DRAW BAR
4" RISER BLOCK
BIJUR SPRAY MIST COOLANT SYSTEM

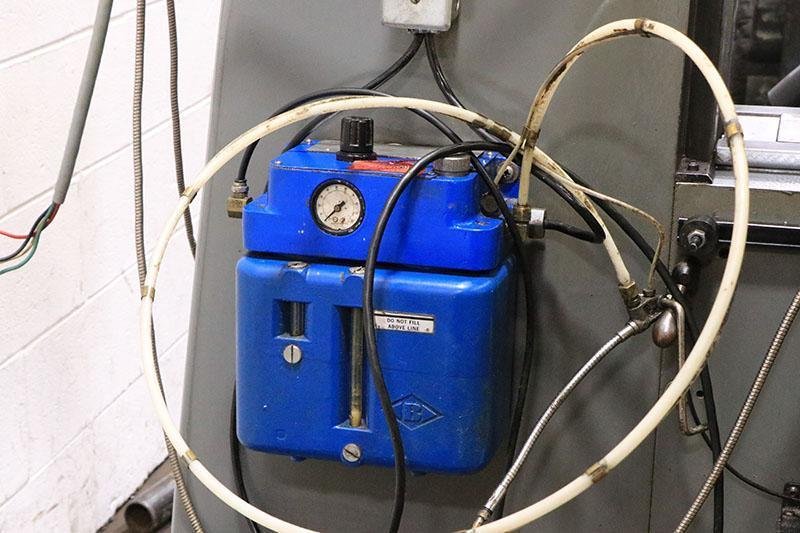

BIJUR ONE SHOT LUBRICATION SYSTEM

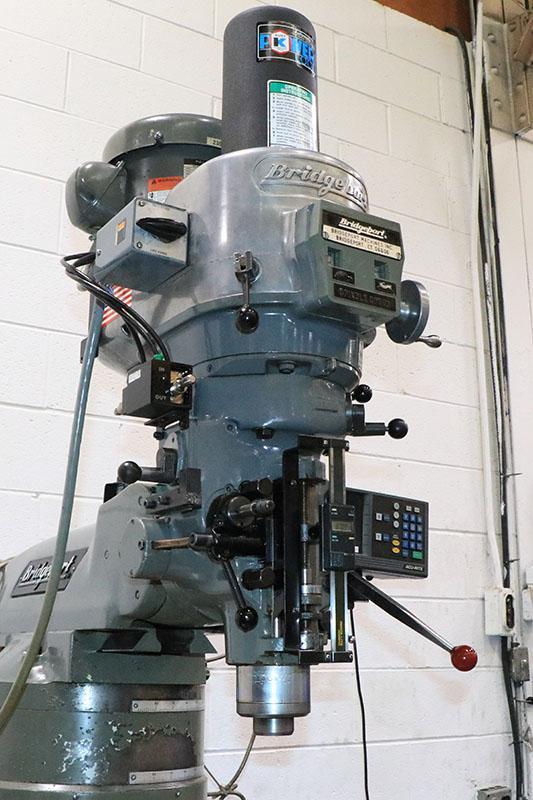

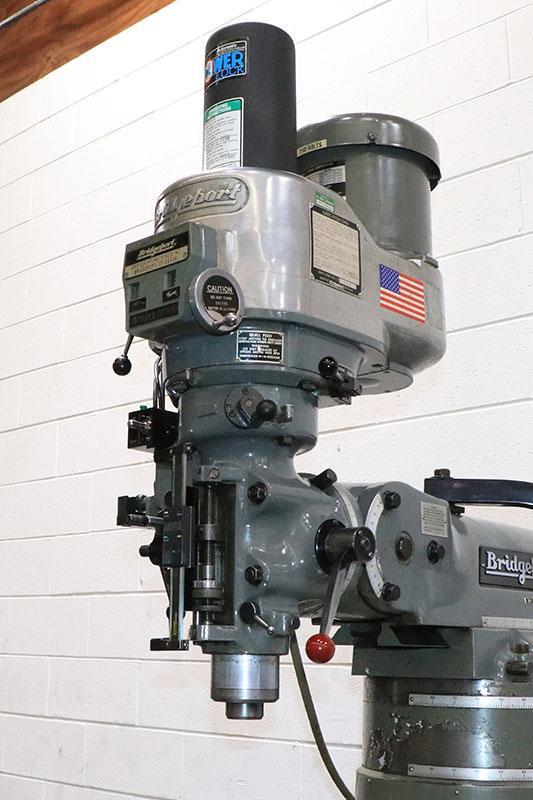

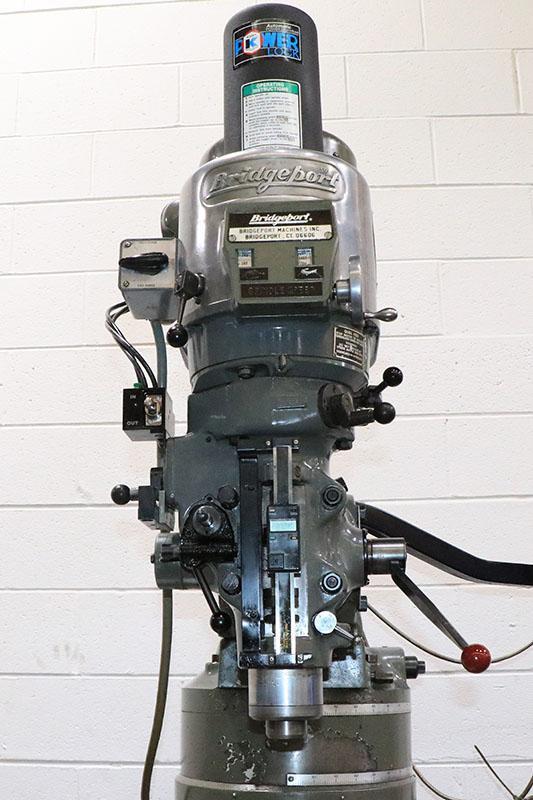

BRIDGEPORT SERIES I MILLING HEAD S/N: 289791
2 HORSE-POWER SPINDLE MOTOR FOB: ORIGIN |
