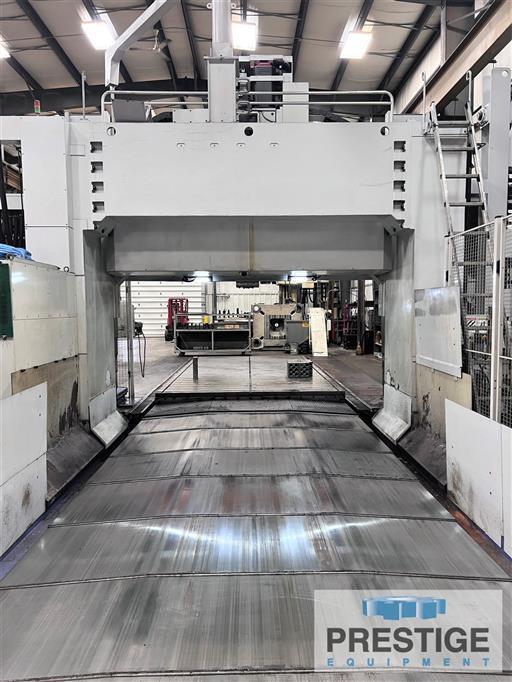

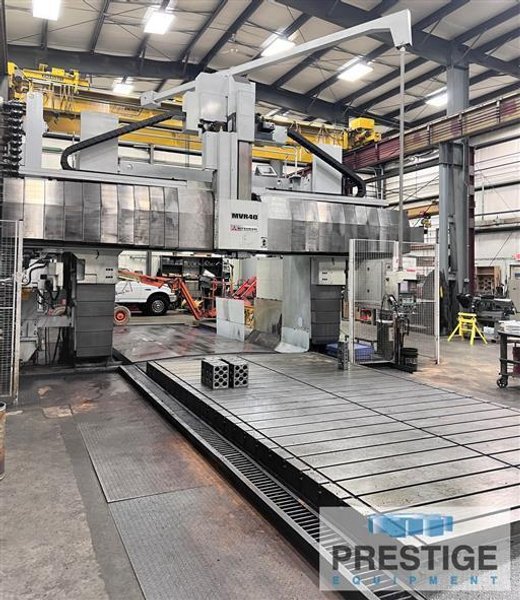

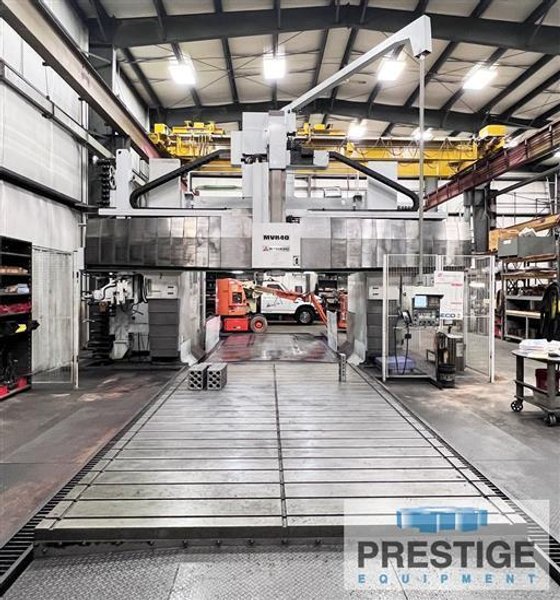

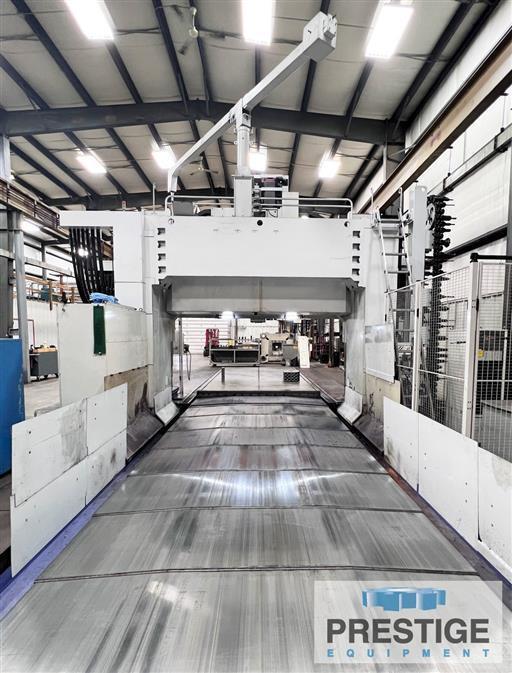

CAPACITY:
Table Size 236.22" x 118.11"
Distance Between Columns 147.60"
Maximum Height Under Spindle Nose 84.6"
X-Axis Travel, Table Longitudinal 244.10"
Y-Axis Travel, Head 165.35"
Z-Axis Travel, Spindle 27.55"
W-Axis Travel, Crossrail 31.49"

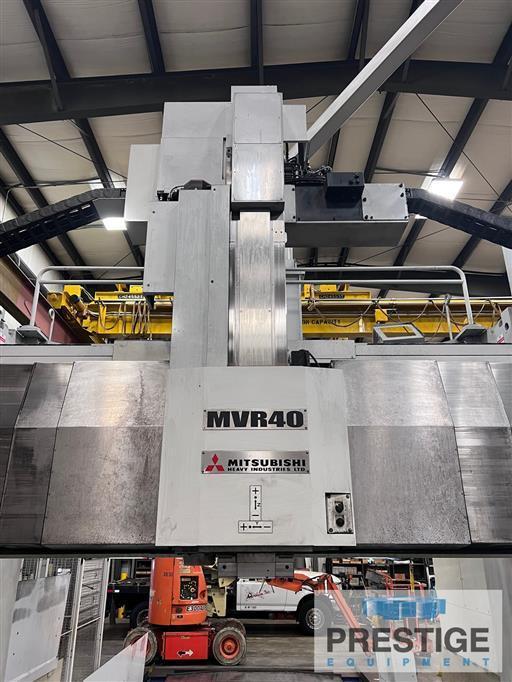

Ram Size 13.7" x 13.7"

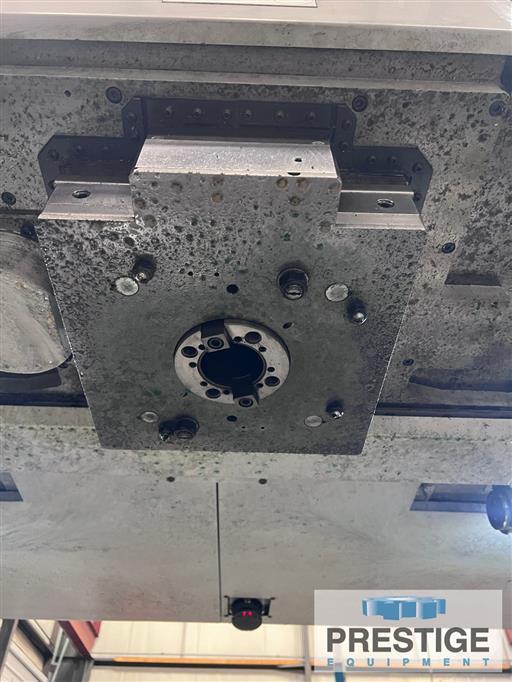

Spindle Diameter 4.33"
Spindle Speeds 17-4000 RPM
Spindle Taper No. 50
Spindle Drive Motor 40 HP
Cutting Feeds .039-393.7 IPM
X-Axis Positioning Accuracy +/- 0.0010/244.1"
Y-Axis Positioning Accuracy +/- 0.0008/157.5"
Z-Axis Positioning Accuracy +/- 0.0002/31.5"
W-Axis Positioning Accuracy +/- 0.0003/43.3"
Rapid Traverse, X-Axis 590.55 IPM
Rapid Traverse, Y-Axis 866.14 IPM
Rapid Traverse, Z-Axis 393.70 IPM
Rapid Traverse, W-Axis 118.11 IPM
Approximate Machine Weight 130,000 Lbs



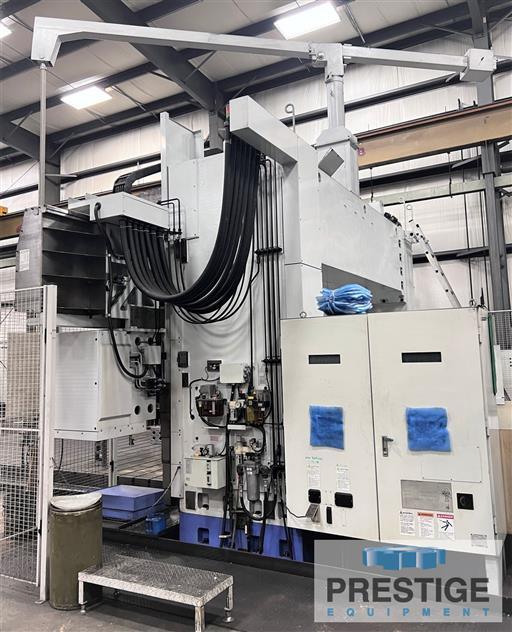

Equipped With:

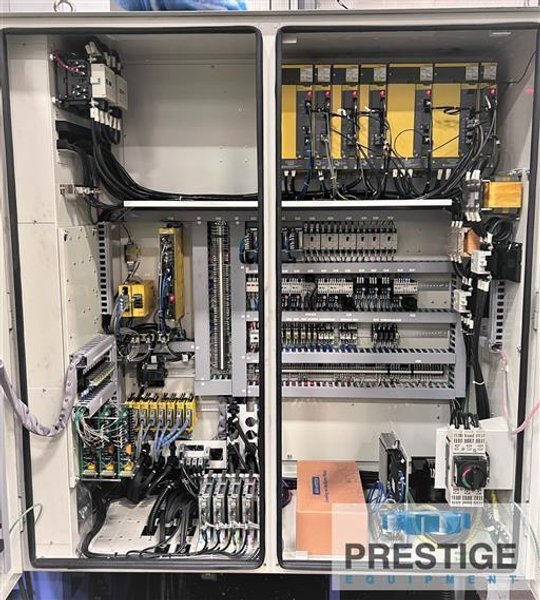

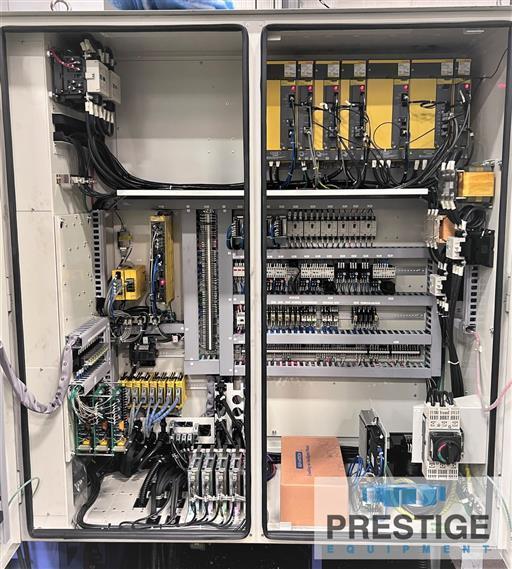

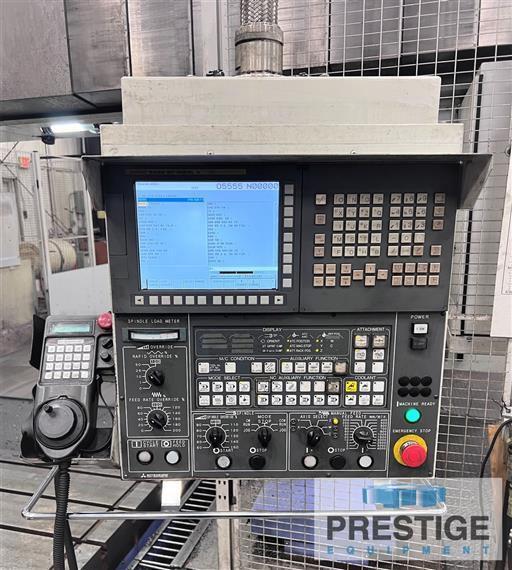

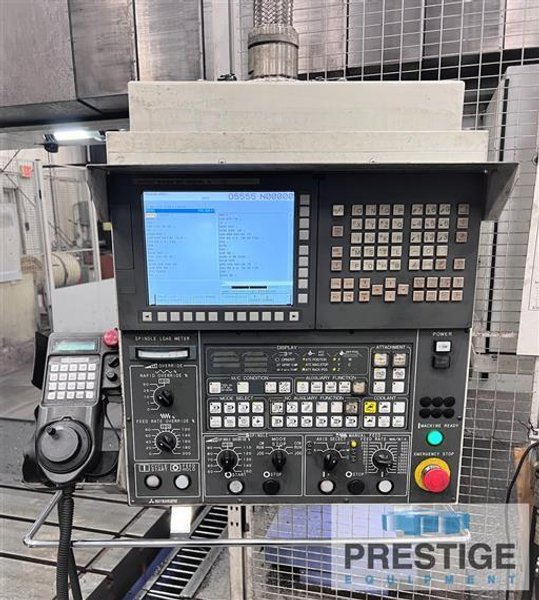

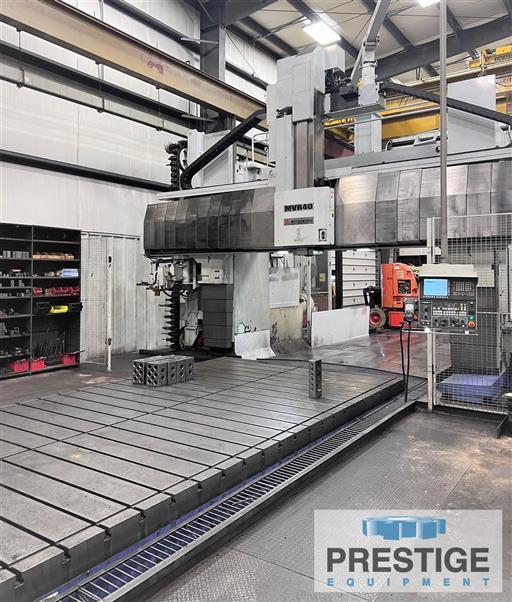

Fanuc 31i-A CNC Controls

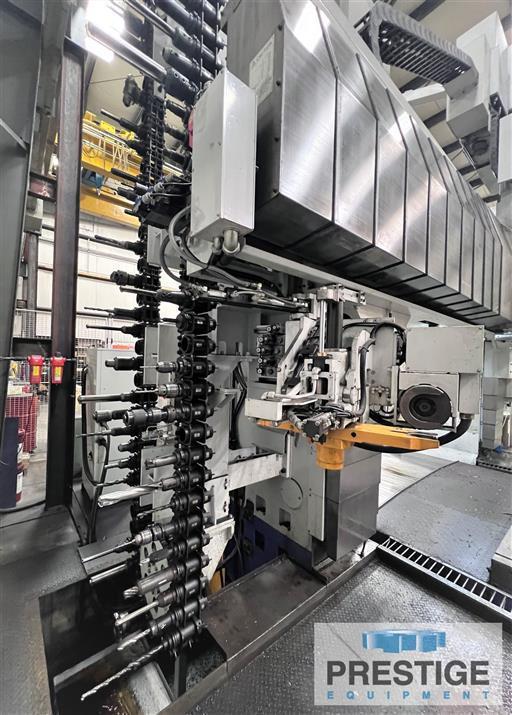

80 Position Automatic Tool Changer

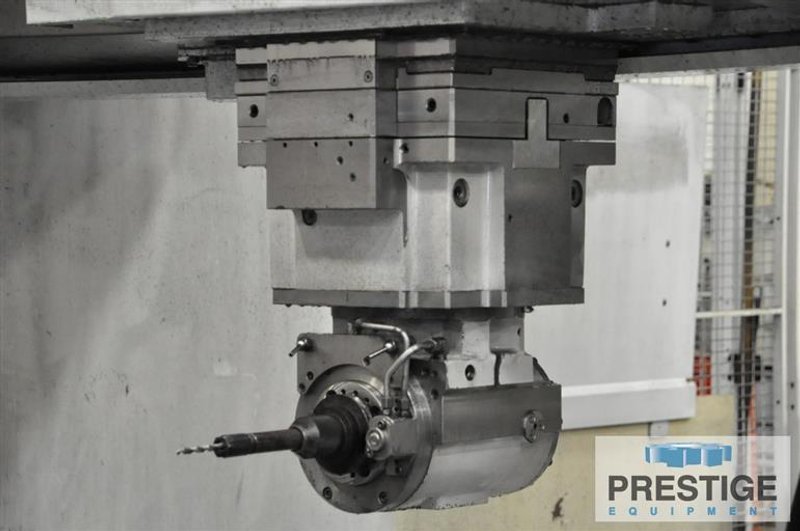

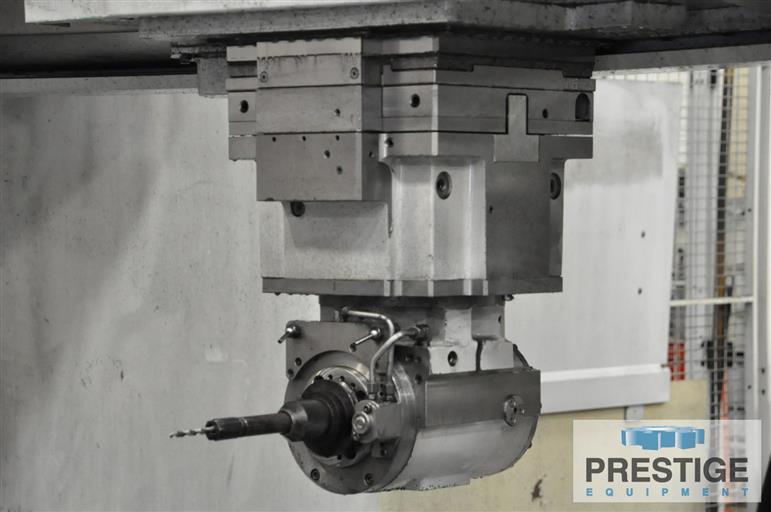

Mitsubishi VHRH-30-35-35P-AC CNC Right Angle Head with 1-Degree Indexing
5-Face Machining Software
Geared Head
Attachment Storage for Right Angle Head
Factory Column Riser for 84.6" Clearance Spindle Nose to Table
Rigid Tapping
MP Scales on X,Y,Z,W Axes
Coolant/Air Thru Spindle, 141 PSI
Telescoping Way Covers
Chip Conveyor


NOTE: Inspect Under Power in Midwest Plant!
