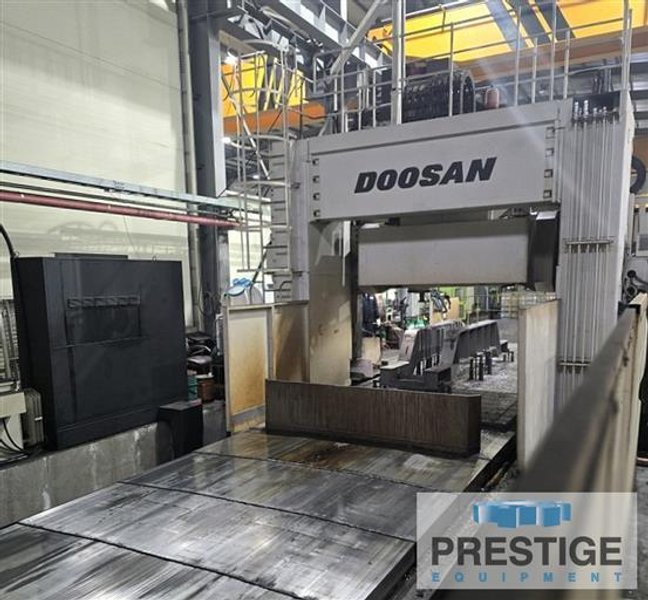

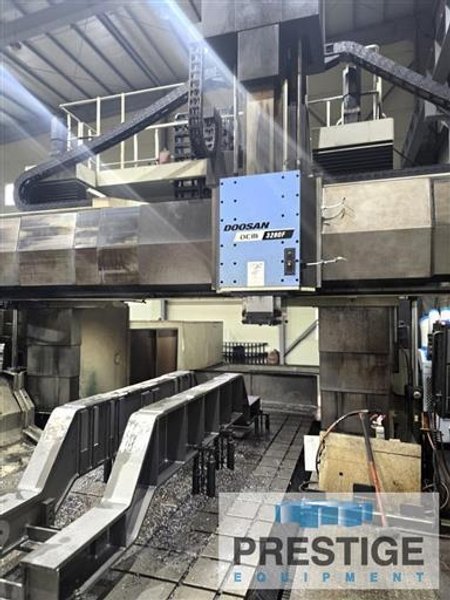

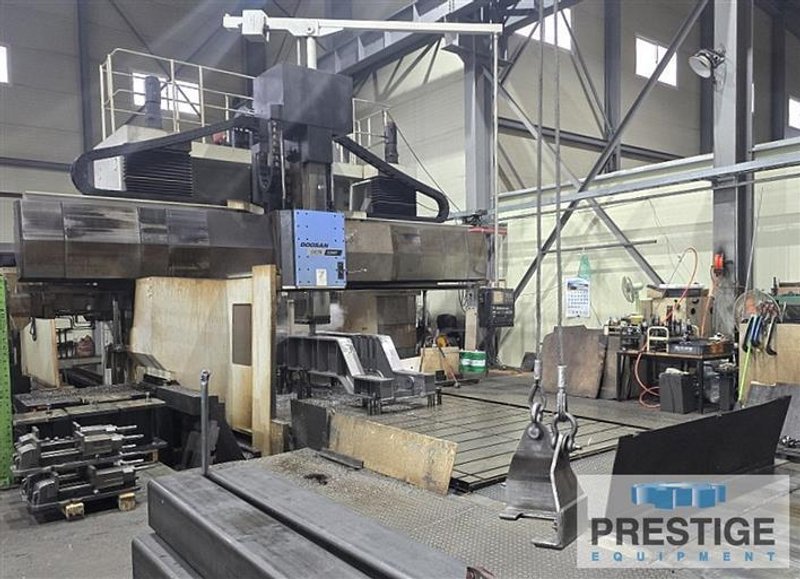

Doosan DCM-3280 CNC Double Column Vertical Machining Center

Brand
DOOSAN
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
DCM-3280
Stock #
44586
Year
2016
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
Table Dimensions 106.29" x 314.96"
X-Axis Travel 324.80"
Y-Axis Travel 145.66"
Z-Axis Travel 39.37"
Distance Between Columns 125.98"
Table Weight Capacity 88,000 Lbs
Distance Spindle Nose - Table 78.74"
Ram Dimensions 14.96" x 14.96"
Spindle Speed 4,000 RPM
Spindle Taper BT-50
Spindle Motor 49 HP



Equipped With:

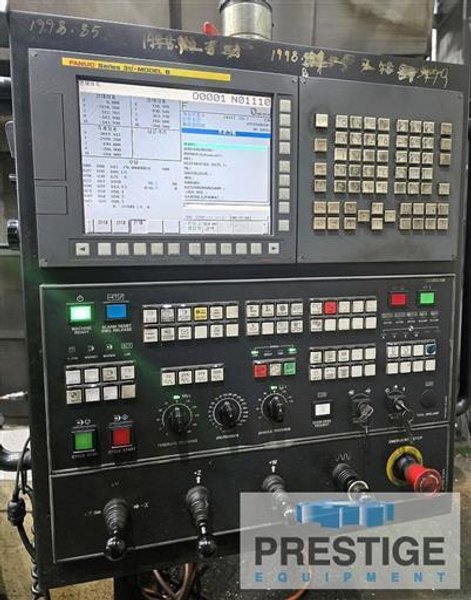

Fanuc 31iB CNC Control
90° Milling Head Attachment

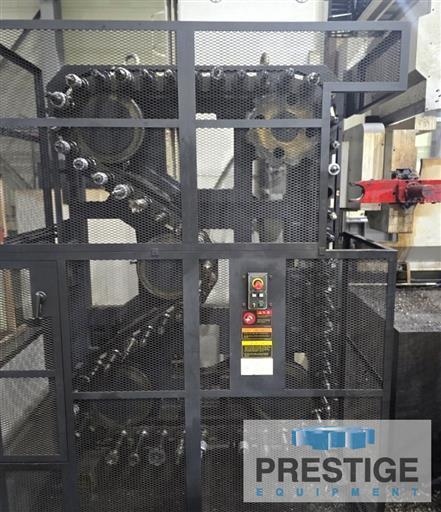

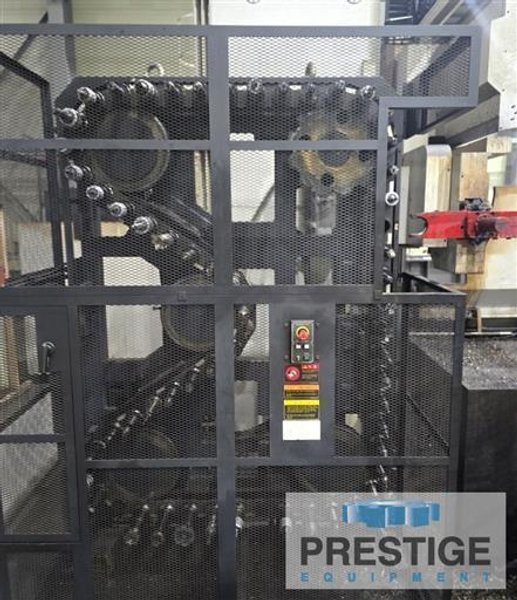

60-Station Automatic Tool Changer
Automatic Attachment Changer
Linear Scales on All Axes
13.77" Extended Height
Chip Conveyor
