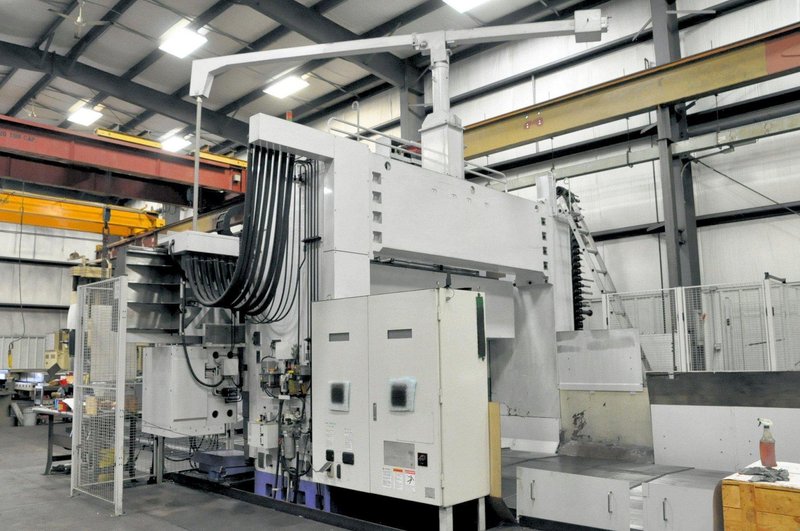

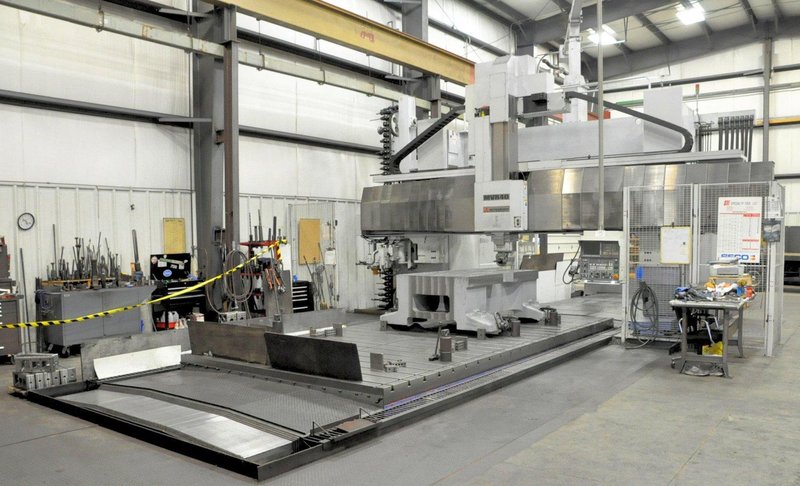

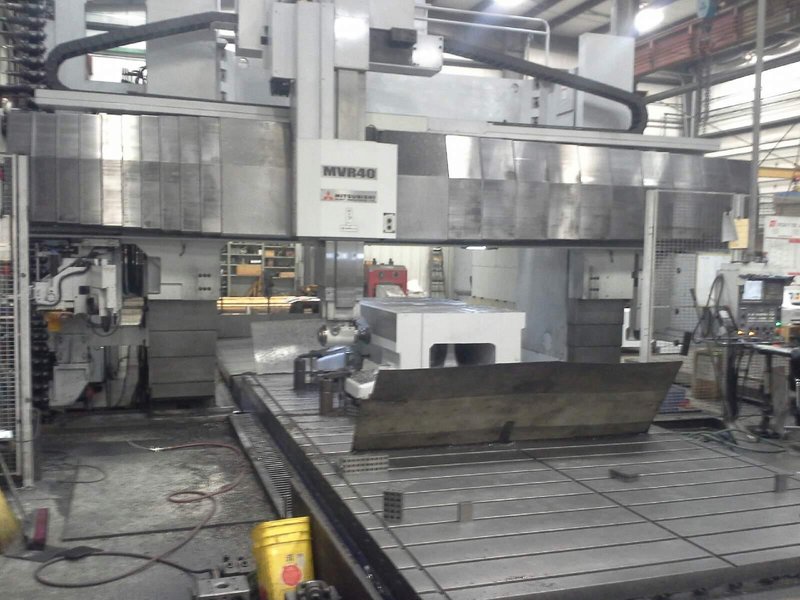

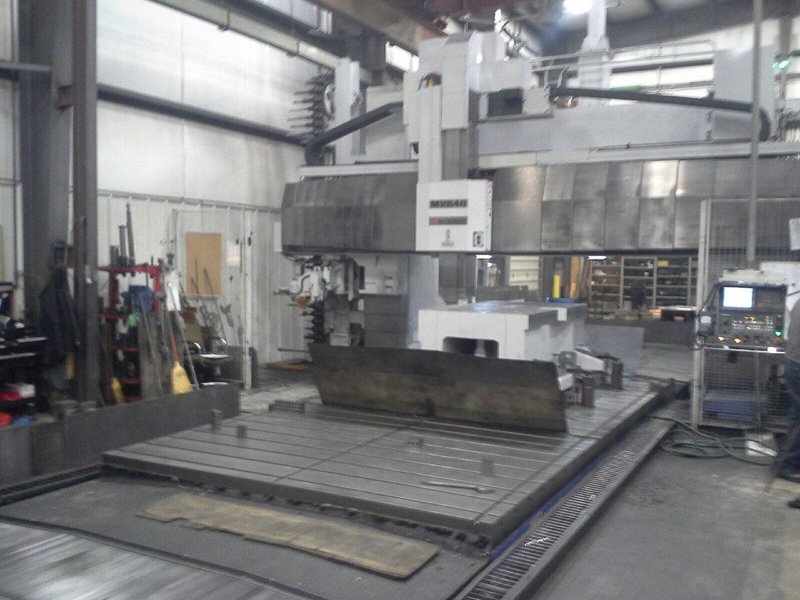

Mitsubishi MVR-40 Vertical Bridge Mill

Brand

MITSUBISHI

Category

Machining Centers

Type

Machining Centers, Gantry (incld. Bridge & Double Column)

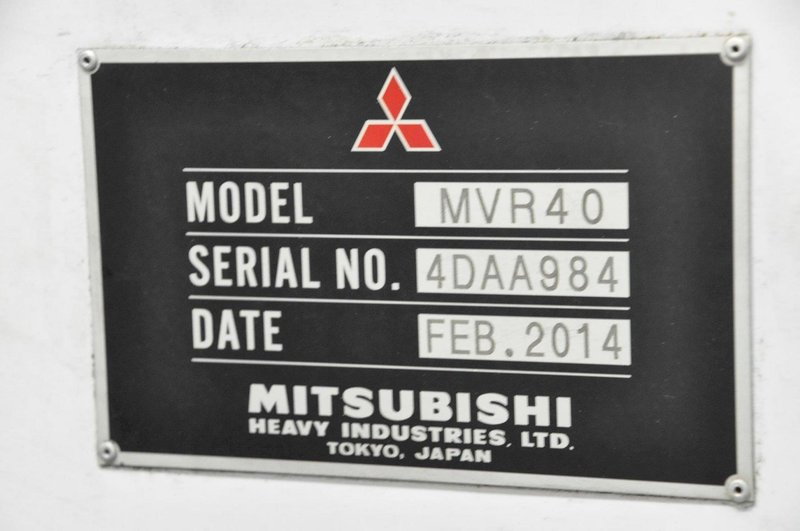

Model

MVR40

Stock #

63746

Year

2014

Condition

Used

Location

Not specified

Specifications
Files & Videos

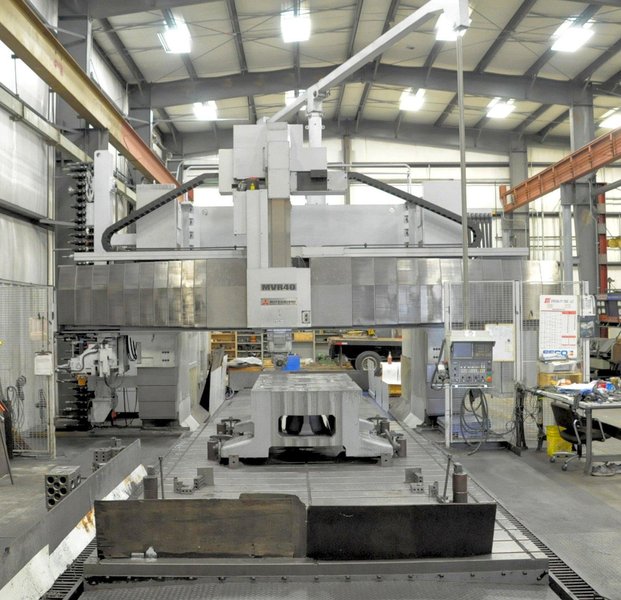

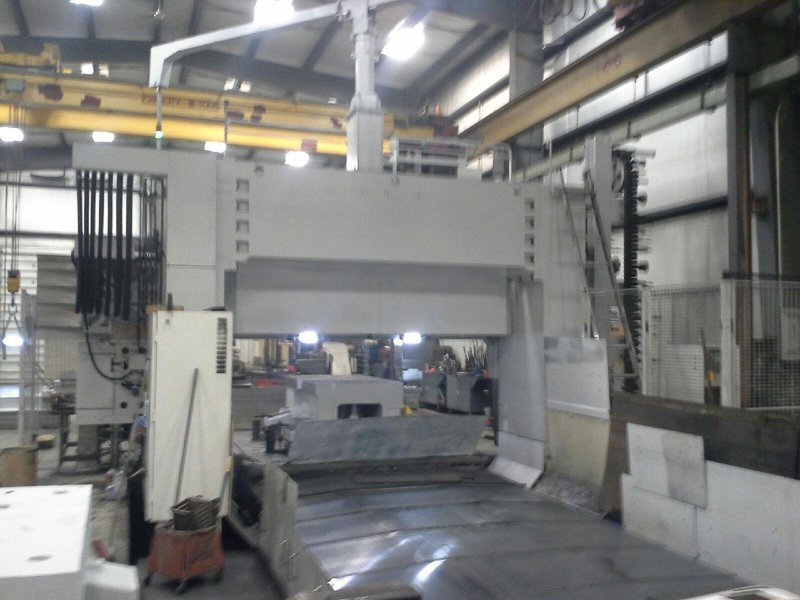

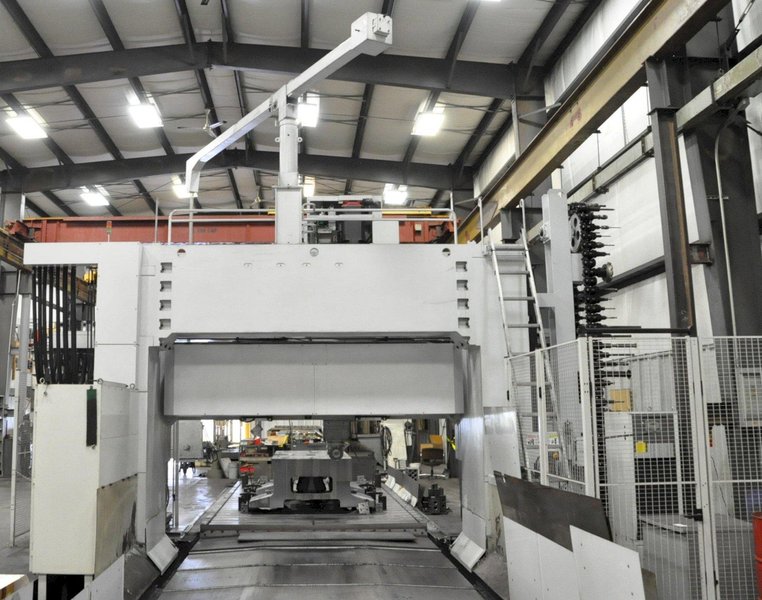

2014 Mitsubishi MVR-40 CNC Vertical Bridge Mill
Table: 118.1" x 236.2"
Load Capacity: 77,000 Lbs
Travels: W-43.8"
X-244"
Y-157.5"
Z-31.5"
Ram Size: 13.8" Square

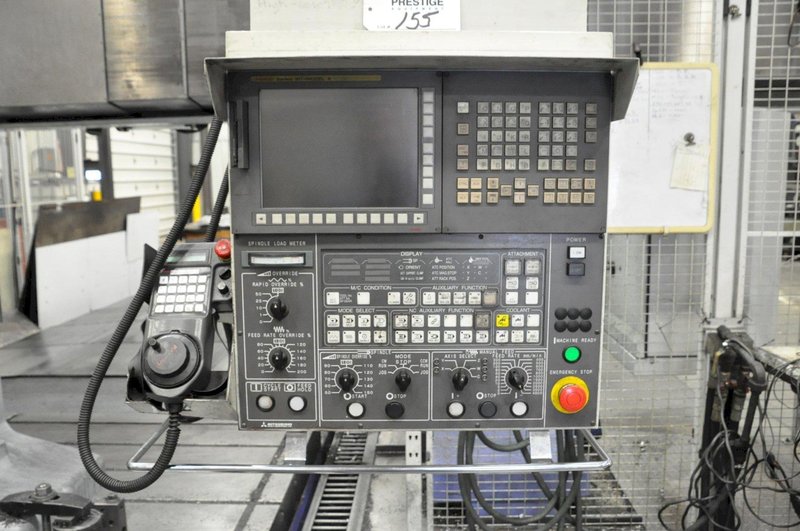

Fanuc 31i CNC Control
Spindle Nose to Table: 84.6" (Column Riser Blocks)
Width Between Columns: 147.6"
Geared Head Spindle
40 H.P. @ 17-4,000 RPM

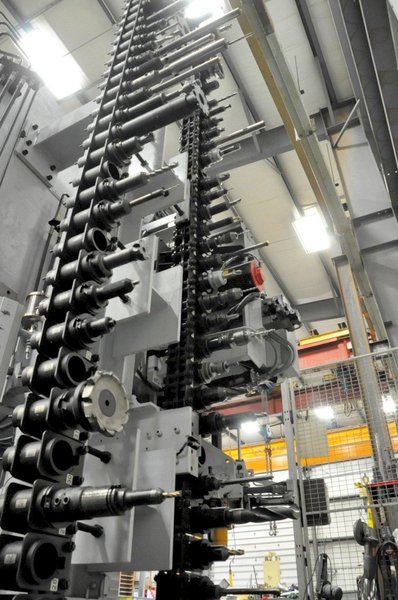

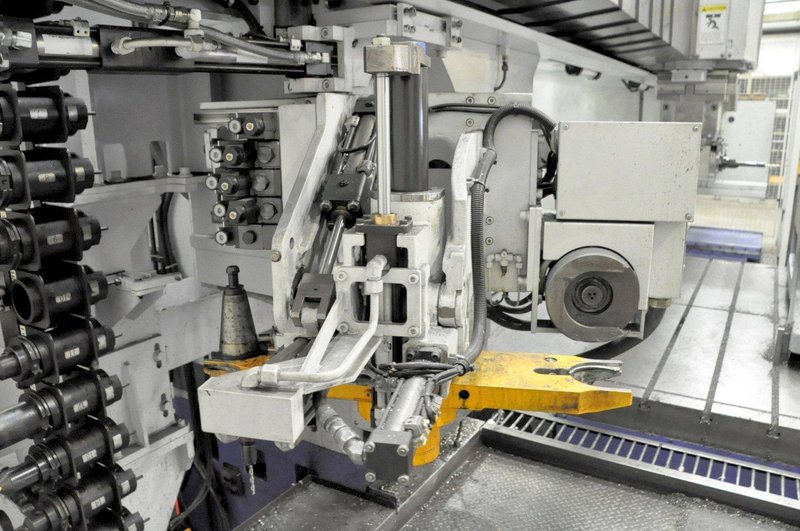

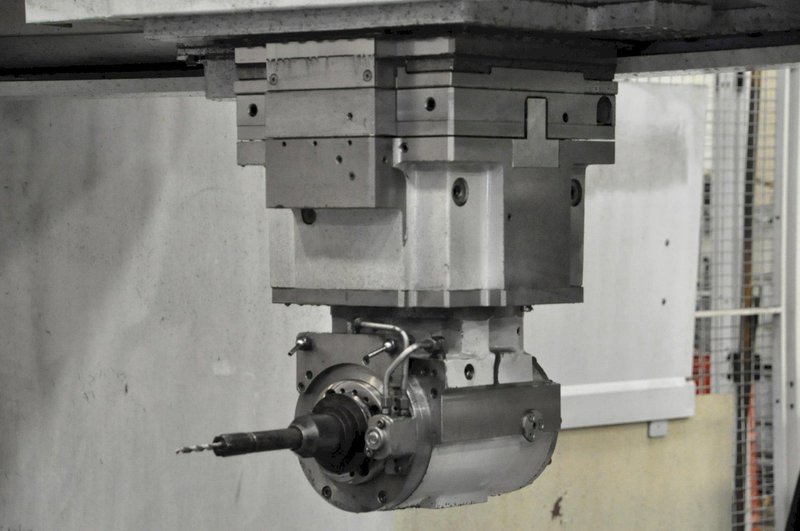

80 Tool Capacity with Right Angle Head, 1 Degree Indexing
CV 50 Tooling
5-Face Machining Software included
Inch/Metric Conversion, Helical Interpolation
Rigid Tapping including 3 Dimensional Tapping
Coolant/Air through Spindle @ 141 PSI
Chip Conveyors
Prepped for Workpiece Probing

Watch https://youtu.be/pbhJdEkeeHs
