CAPACITY:

Maximum Swing Over Bedways 39.37"
Maximum Swing Over Carriage 27.55"
Distance Between Centers 118.11"
Maximum Machining Length 110.23"
Spindle Hole Diameter 11.02"
Spindle Speeds (18) 5-315 RPM
Weight Between Centers 8,800 lbs
Crosslide Travel 23.62"
Topslide Travel 9.84"
Metric Thread Range (44) 1-120 MM
Whitworth Thread Range (37) 30-1+1/8 TI
Module Threads (46) .5-60 MM
Tailstock Diameter 4.72"
Tailstock Taper #6 MT
Tailstock Travel 11.81"
Spindle Motor 29 HP (22KW)
Bed Width 29.72"
Machine Dimensions 216" x 67" x 59"
Machine Weight 14,960 lbs

Equipped With:

Pendant Control

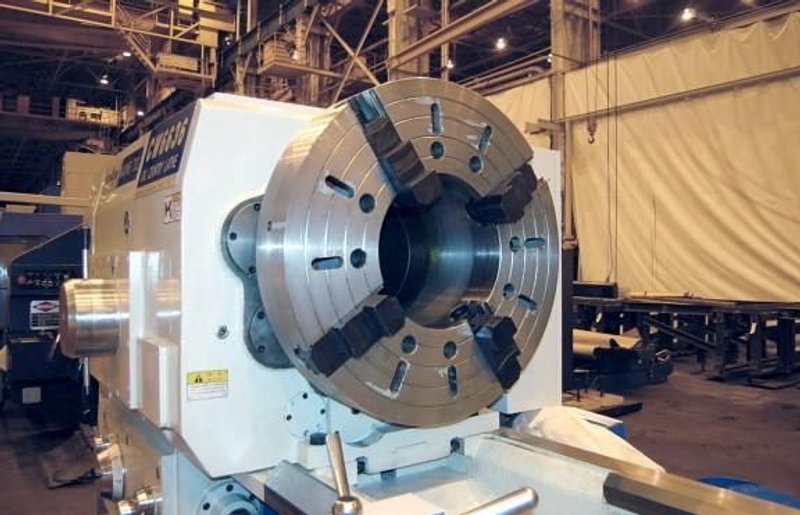

(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted

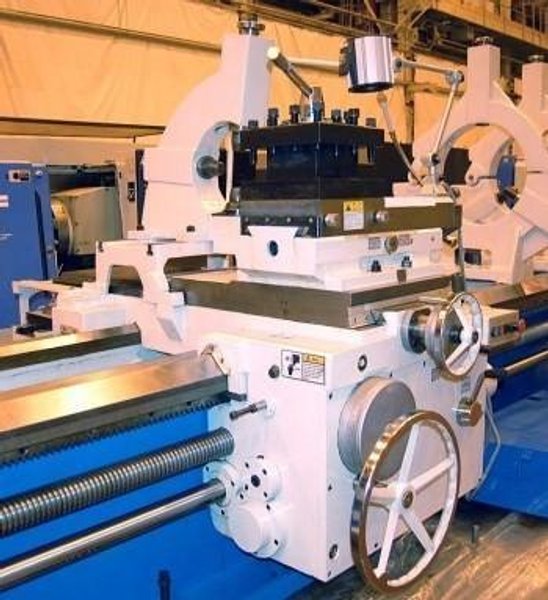

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
(2) Large Roller Type Steady Rests:

1.96"-18.50"
Follow Rest:

1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse

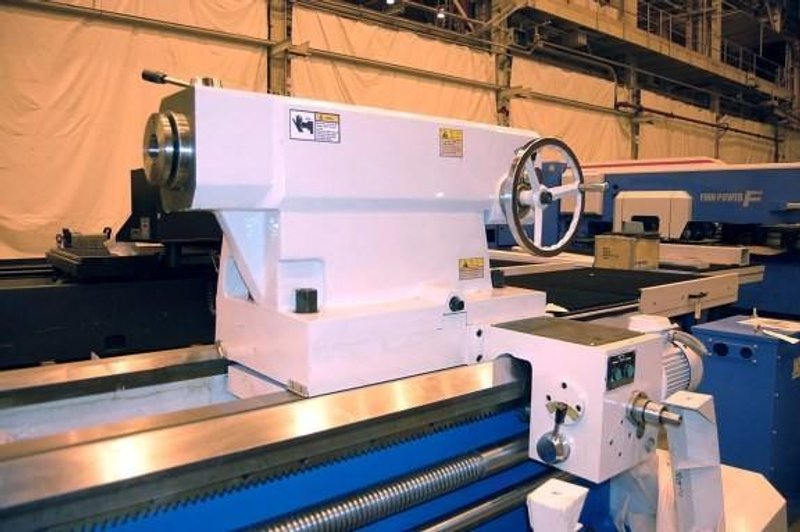

Motorized Tailstock
Special Tools
24 HP Spindle Motor 440V/3Ph/60Hz

Note:


Machine Sold with 1 Year Parts Warranty
Delivery 5-Months From Order
