CAPACITY:

Maximum Swing Over Bedways 39.37"
Maximum Swing Over Carriage 25.1"
Distance Between Centers 118.11"
Spindle Hole Diameter 14.17"
Spindle Speeds (18) 6.3-315 RPM
Weight Between Centers 13,200 lbs
Crosslide Travel 20.47"
Topslide Travel 11.81"
Metric Thread Range (44) 1-120 MM
Whitworth Thread Range (37) 30-1+1/8 TI
Module Threads (46) .5-60 MM
Tailstock Diameter 6.3"
Tailstock Taper #80 Metric
Tailstock Travel 11.81"
Spindle Motor 29 HP (22KW)
Bed Width 29.72"
Machine Dimensions 358" x 79" x 71"
Machine Weight 39,656 lbs

Equipped With:

Pendant Control

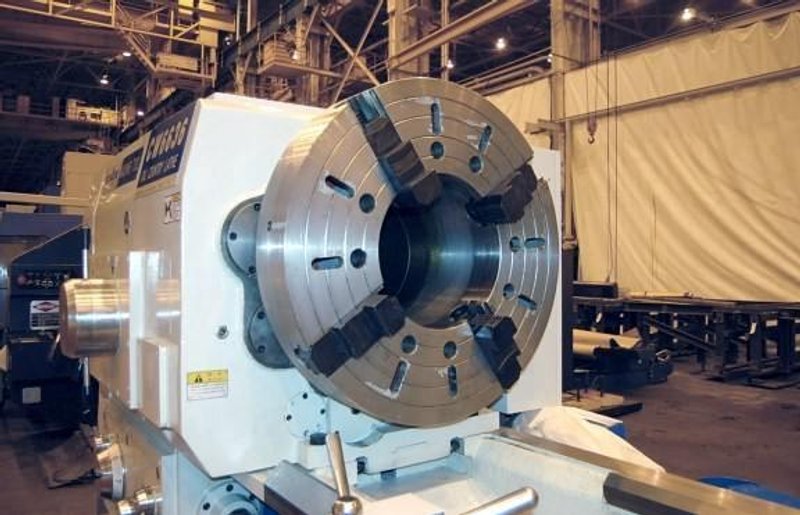

(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted

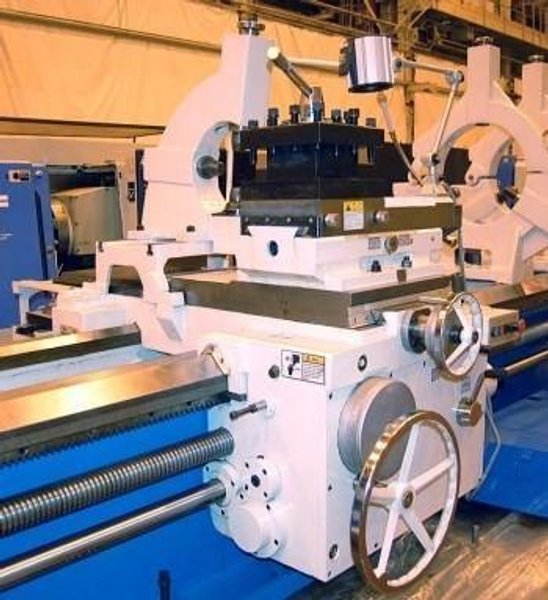

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
(2) Large Roller Type Steady Rests:

1.96"-18.50"
Follow Rest:

1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse

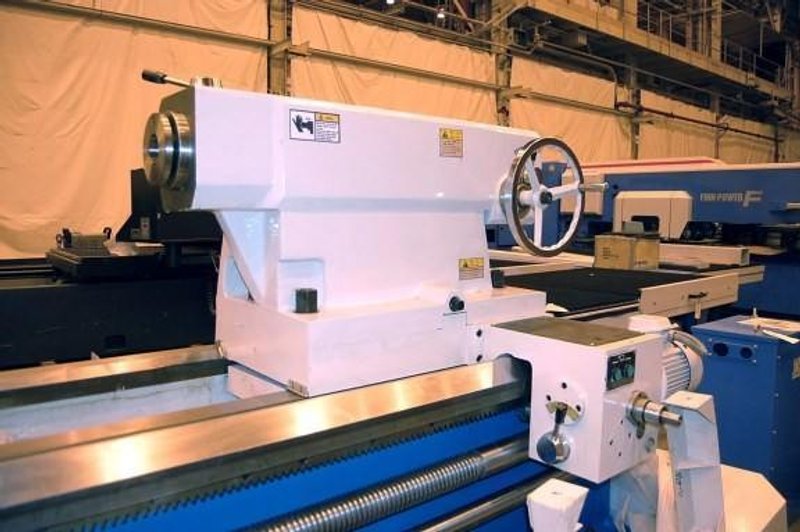

Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz

Note:


Machine Sold with 1 Year Parts Warranty
5-Month Delivery From Order
