SPECIFICATIONS:
Spindle Bore 18.11"
Min. Clamping Diameter Of Chucks 12.38"
Swing Over Bed 62.99"
Swing Over Carriage 47.24"
Distance Between Centers 157.48"
Max. Weight Capacity Between Centers 13,200 Lbs
Width Of Bed 38.18"
Spindle Speed, 4-ranges 3.15 To 315 RPM
Metric Threads. (44) 1 To 120 MM
Inch Threads, (37) 30 To 1 / 4 T.p.i.
Module Threads, (46) 0.5 To 60
Diametric Pitchs, (46) 60 To 0.5
Max. Travel Of Cross Slide 31.88"
Max. Travel Of Compound 11.81"
Taper Turning: Max. Cutting Length 31.49"
Diameter Of Tailstock Sleeve 6.29"
Taper Of Tailstock Sleeve Metric No. 80
Max. Movement Of Tailstock Sleeve 11.81"
Power Of Main Motor 30 Kw 40 HP
Electrical Power 380V/3PH/50HZ
Net Overall Dimension Of The Machine 334.6" × 98.42" × 72.93"
Machine Weight 33,000 Lbs



Equipped With:
18.11" Spindle Bore Diameter

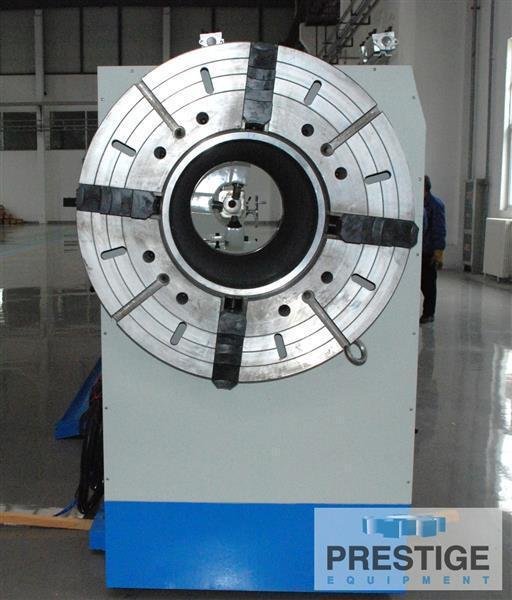

39.37" 4-Jaw Chucks Mounted Front & Rear Mounted
4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
28.4" Roller Type Steady Rests
8.66" Follow Rest
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz


NOTE: Machine Sold with 1 Year Parts Warranty
5-Month Delivery From Order
