10,000 lbs. x 26" Minster "Conventional" Servo Coil Feed Line, Year 1995
Brand
Category
Type
Model
MEF-526 / MS-20-26-7 / MR10-26S
Stock #
2877
Year
1995
Condition
Used
Location
Michigan
| Coil Weight | 10000 pounds |
| Coil Width | 26 inches |
| Coil Thickness | .090 inches |
|
Standard Specifications

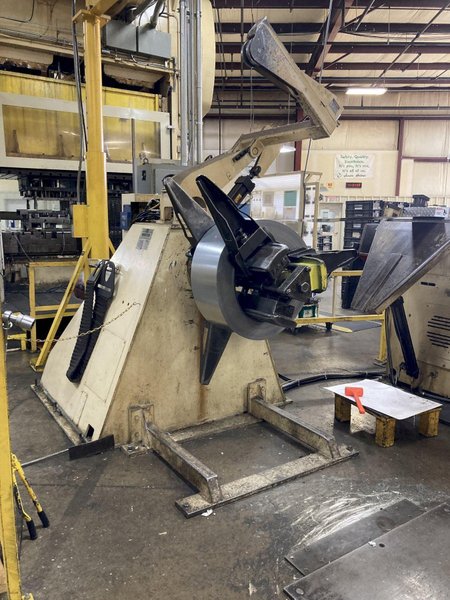

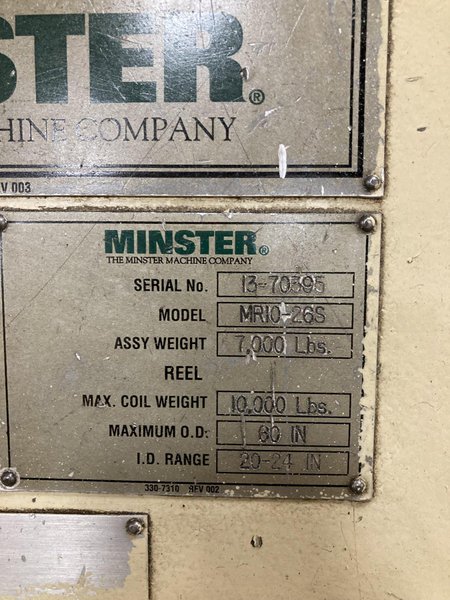

Minster "Conventional" Servo Coil Feed Line 10,000 lbs. Maximum Coil Capacity 26" Maximum Coil Width Stock Thickness Capacities: .090" @ 26" Maximum Thickness at Full Width .180" @ 5" Maximum Coil Thickness MINSTER Coil Reel Model No. MR10-26S
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off / loss
Jog drive for threading

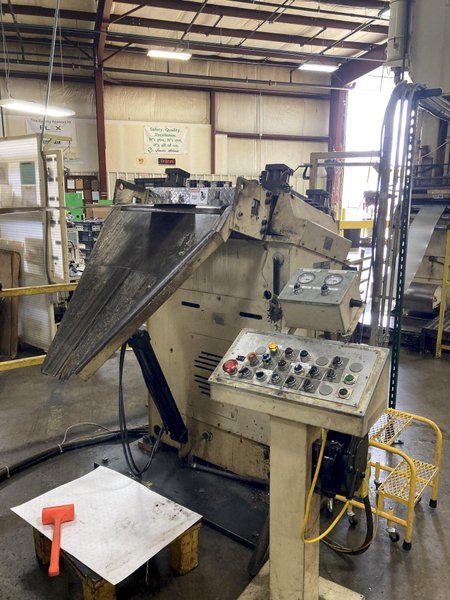

Coil hold down arm with driven end wheel MINSTER Powered Coil Straightener Model No. MS-20-26-7
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air operated adjustments
Stock peeler table
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Jog forward and reverse

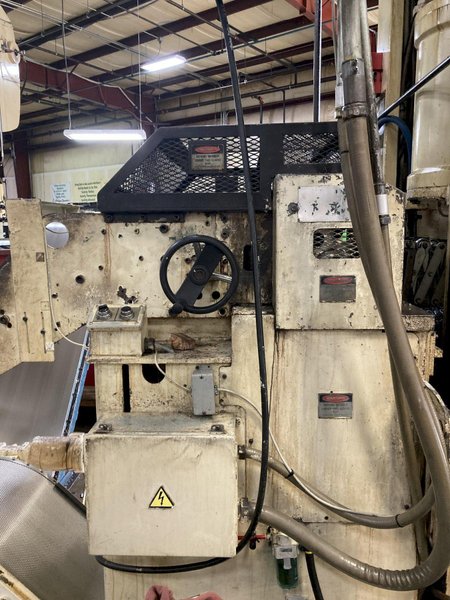

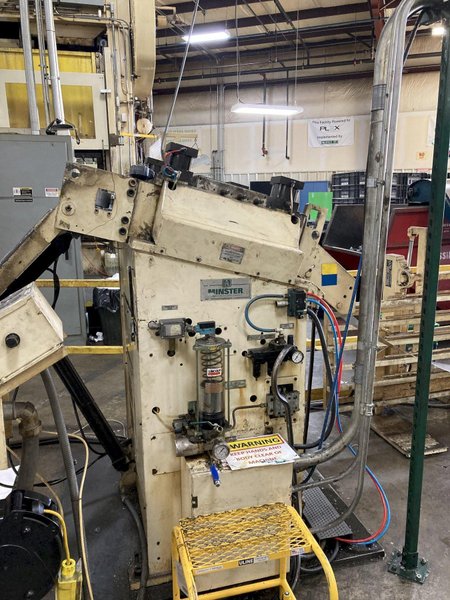

MINSTER Servo Roll Feed Model MEF-526
Five inch diameter upper and lower feed rolls
Piloting upper feed roll (pneumatically actuated)
Hand crank adjustable stock width edge guides
Entry cascade loop support rollers
Cabinet base mounted with adjustable pass line
Motorized pass line adjustment
Servo drive and controls

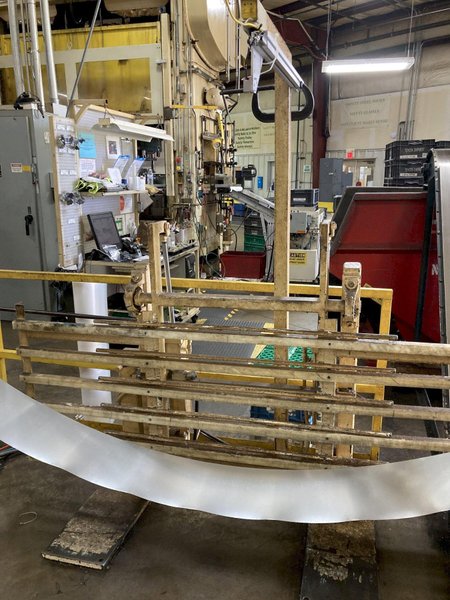

Attached: See a Minster Line Layout Drawing This 10,000 lbs. x 26" Minster Coil Feed Line Can Be Seen Under Power in the S&G Press Livonia Michigan Warehouse. Used Minster Servo Coil Feed Line For Sale |
|
