| Coil Weight Capacity: | 40000 pounds |
| Stock Width Capacity | 74 inches |
| Max Stock Thickness Capacity At Full Width | .125 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Specifications:

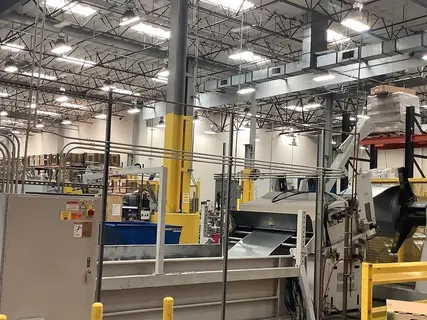

Stock thickness capacities: 74" Wide x .125 44" Wide x .187" **ENTIRE CONTROL SYSTEM FOR LINE WAS UPDATED IN 2021*** MINSTER Servo Roll Feed Model No. MEF7-74S Seven inch diameter upper and lower feed rolls Piloting upper feed roll Adjustable stock width edge guides Entry cascade loop support rollers Cabinet base mounted with adjustable pass line Motorized pass line adjustment AC Servo drive and controls MINSTER Threading Table Model No. MTT-18-74D Dual side bomb bay door design MINSTER Powered Coil Straightener Model No. MSH-40-74-7 Seven straightening rolls x four inch diameter Entry pinch roll with air operated adjustment Powered upper and lower rolls (pinch and straightening) Adjustable stock width edge guides Coil hold down arm with motorized end wheel Stock peeler table with spade extension Exit cascade loop support rollers Class A automatic machine lubrication system Variable speed drive Operator's control station Jog forward and reverse w/ remote pendant End of stock sensor Auto / Run cycle Variable speed loop control MINSTER Coil Reel Model No. MR40-74S Three leaf mandrel with coil keeper arms Hydraulic mandrel expansion Air brake - adjustable tensioning Holding fail-safe brake Threading drive for jog forward and reverse Traveling coil load car Powered lift and travel Adjustable narrow coil support bars |
|
