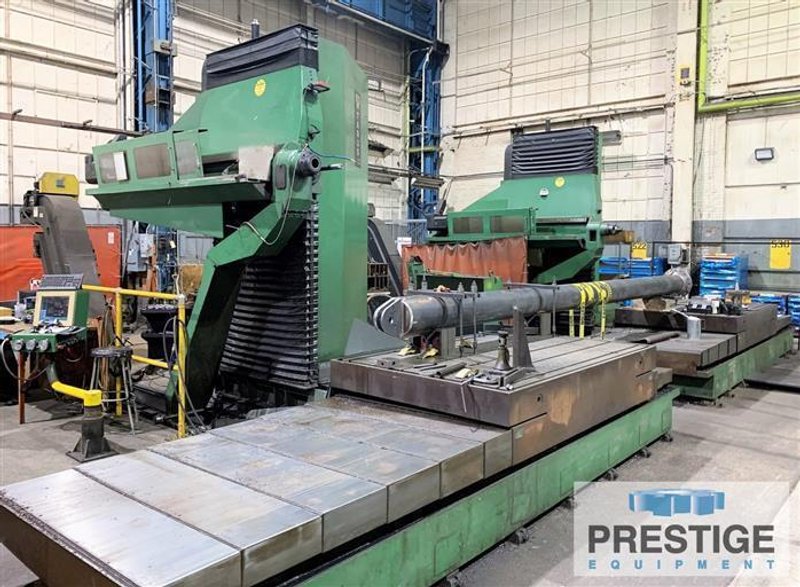

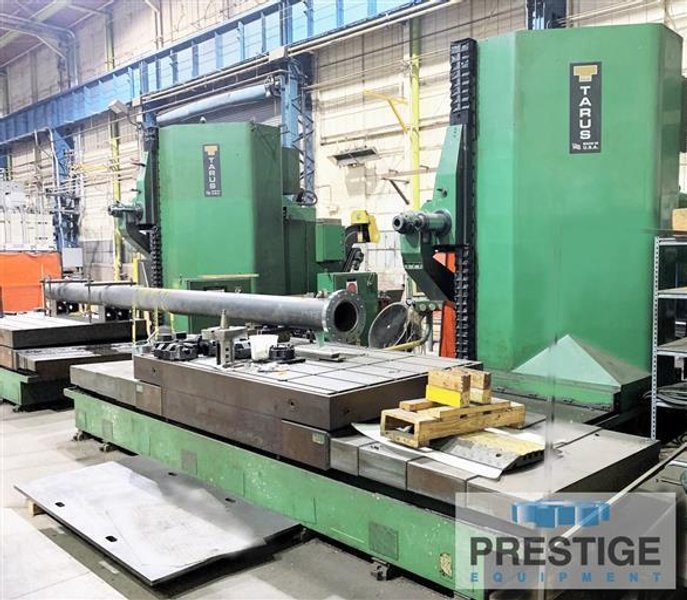

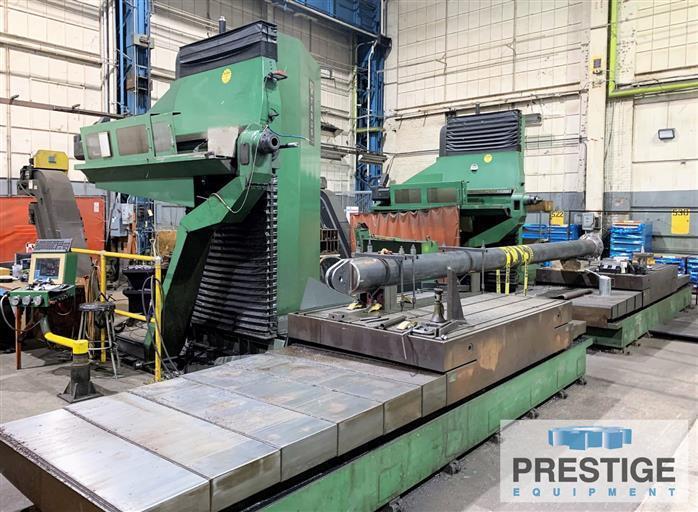

Tarus CNC Traveling Table Type Gun Drilling Machine

Brand
TARUS
Category
Drilling Machines
Type
Drills, Gun
Model
TPTCGD-508
Stock #
24586
Year
2001
Condition
Not specified

Location

Not specified
REQUEST FINANCING
CAPACITY:
Maximum Drilling Diameter 2"
Maximum Length 84"
Minimum Drilling Diameter .125"
Table Travel, X-Axis 96"
Vertical Head Travel, Y-Axis 60"
Drilling Stroke, Z Axis 84"
Column Travel, W-Axis 29.5"
Table Size, T-Slotted 60" x 96"
Table Weight Capacity 80,000 Lbs
Spindle Speeds, Main 50 - 3,400 RPM
Spindle Speeds, Auxiliary 50 - 2,000 RPM
Rapid Traverse 300 IPM



Equipped With:
TARUS TPI-2000 CNC Control

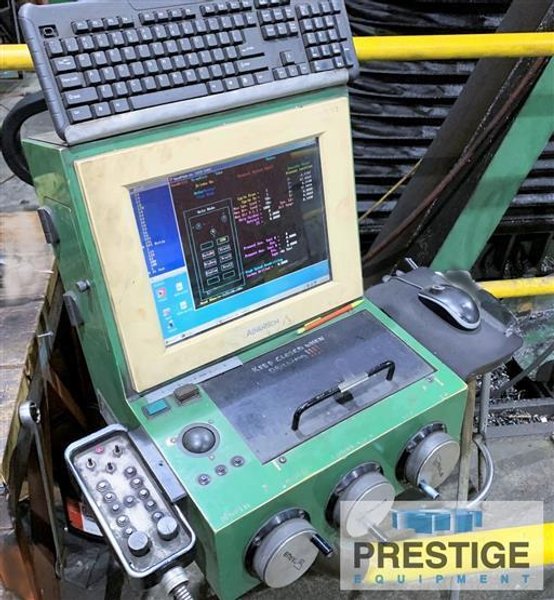

Pendant Mounted CRT
Auxiliary Spindle for Tapping & Spot Facing
Coolant & Filtration System
High Pressure Pump Assembly

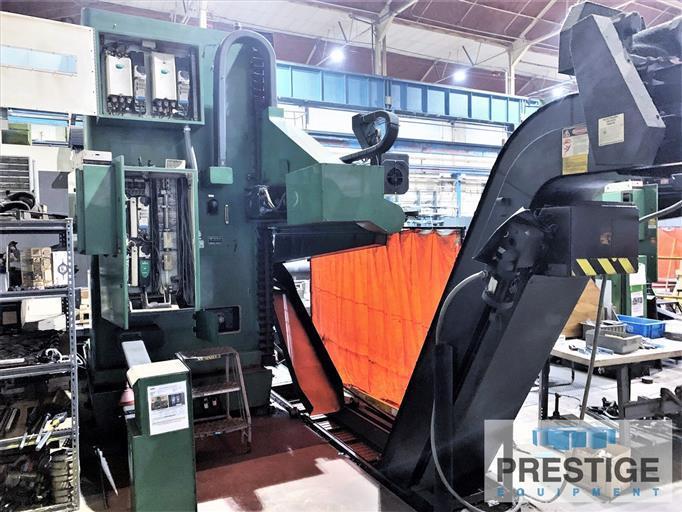

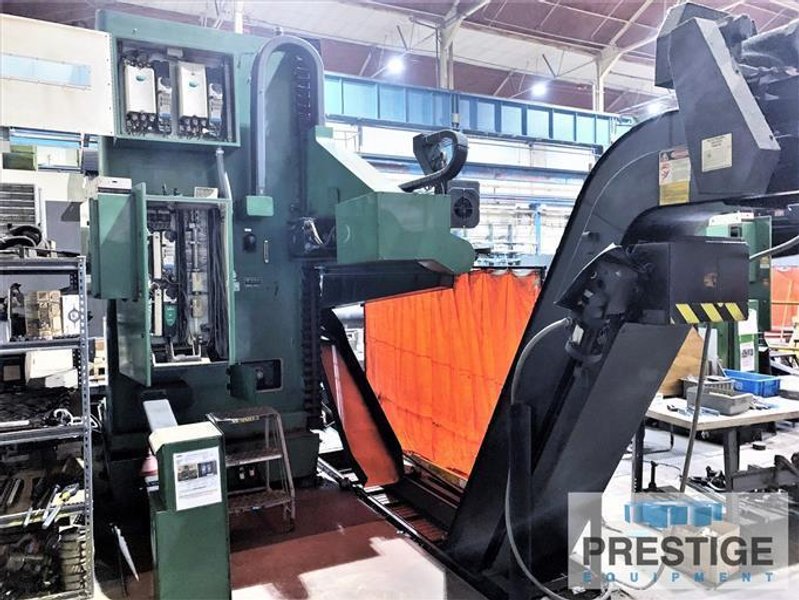

Chip Conveyor
15 HP Spindle Motor


NOTE: Two Machines available, Cost Is Per Each Machine
