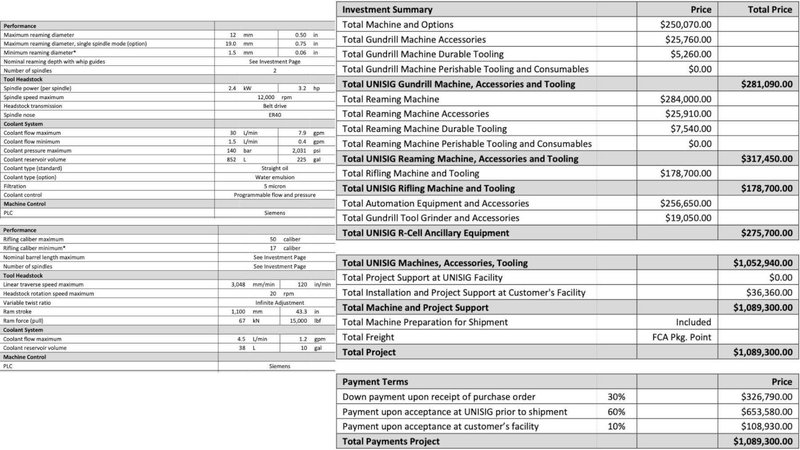

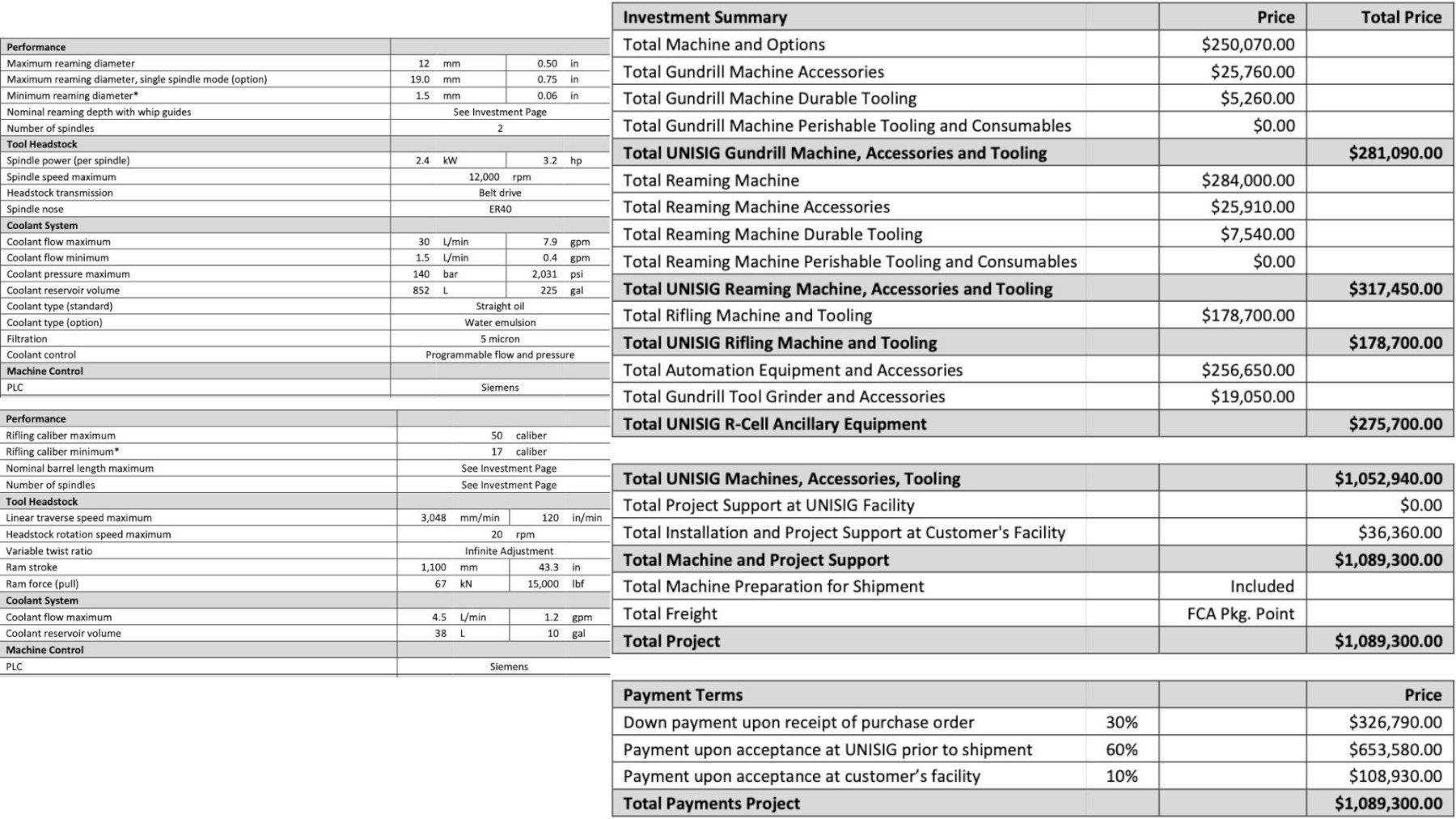

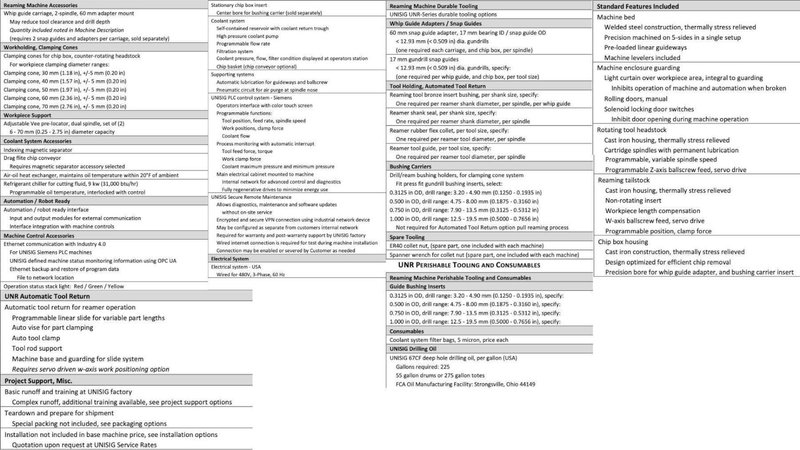

2021 Unisig Model R-Series 3 Machine Barrel Processing Cell

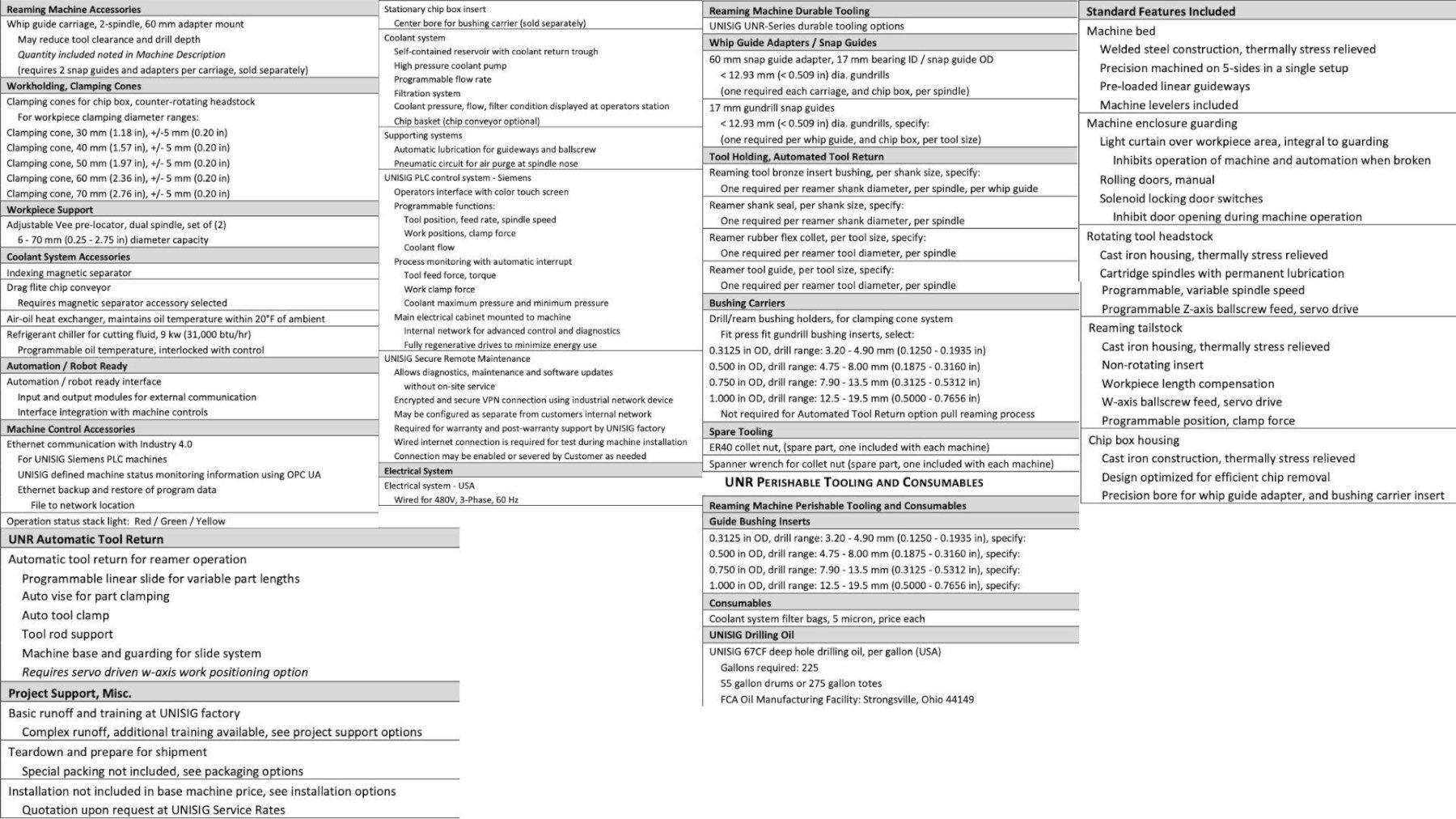

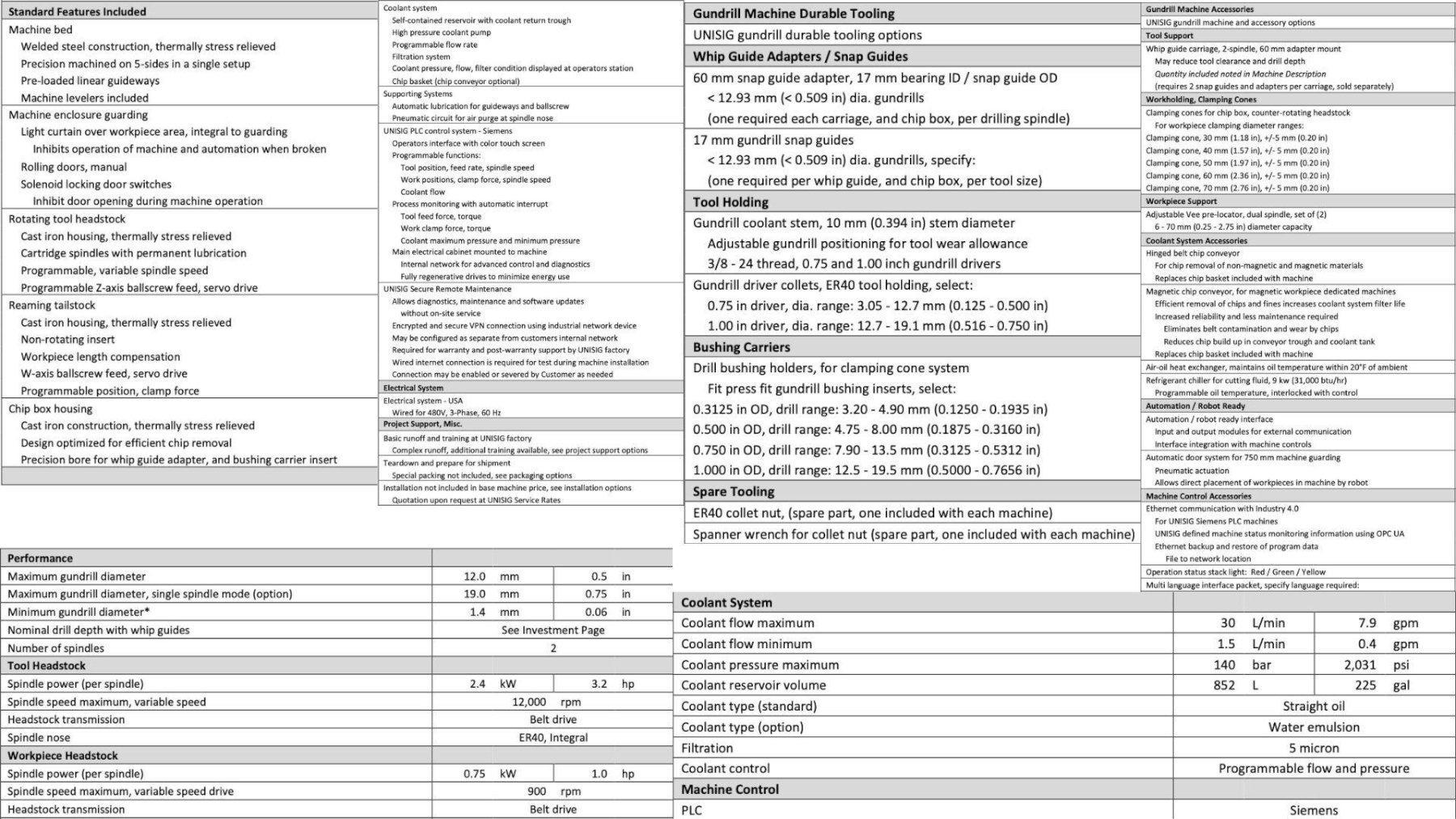

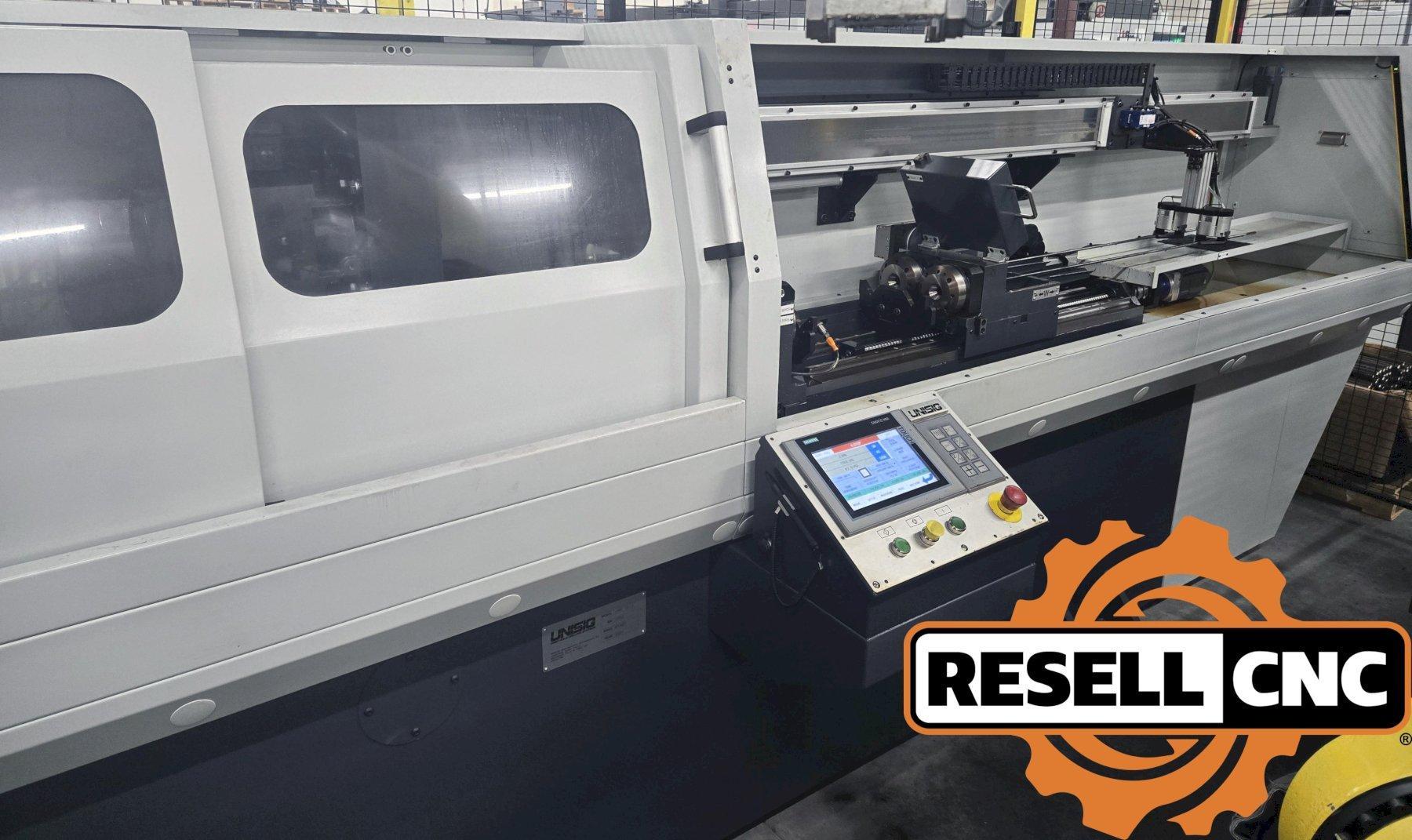

Machine 1: UNISIG Model UNE-12-2-750-CR Gundrilling Machine
Dual Spindle
0.055 - 0.50in Drilling Diameter Range
30.0 in Drill Depth w/ (2x) Whip Guides Included*
30.0 in Maximum Workpiece Length*

Equipped With:
Counter-Rotating Work Headstock
Chip Box Housing
Coolant System
Self-contained Reservoir w/ Coolant Return Trough
High Pressure Coolant Pump
Programmable Flow Rate
Filtration System
UNISIG PLC Control System - Siemens

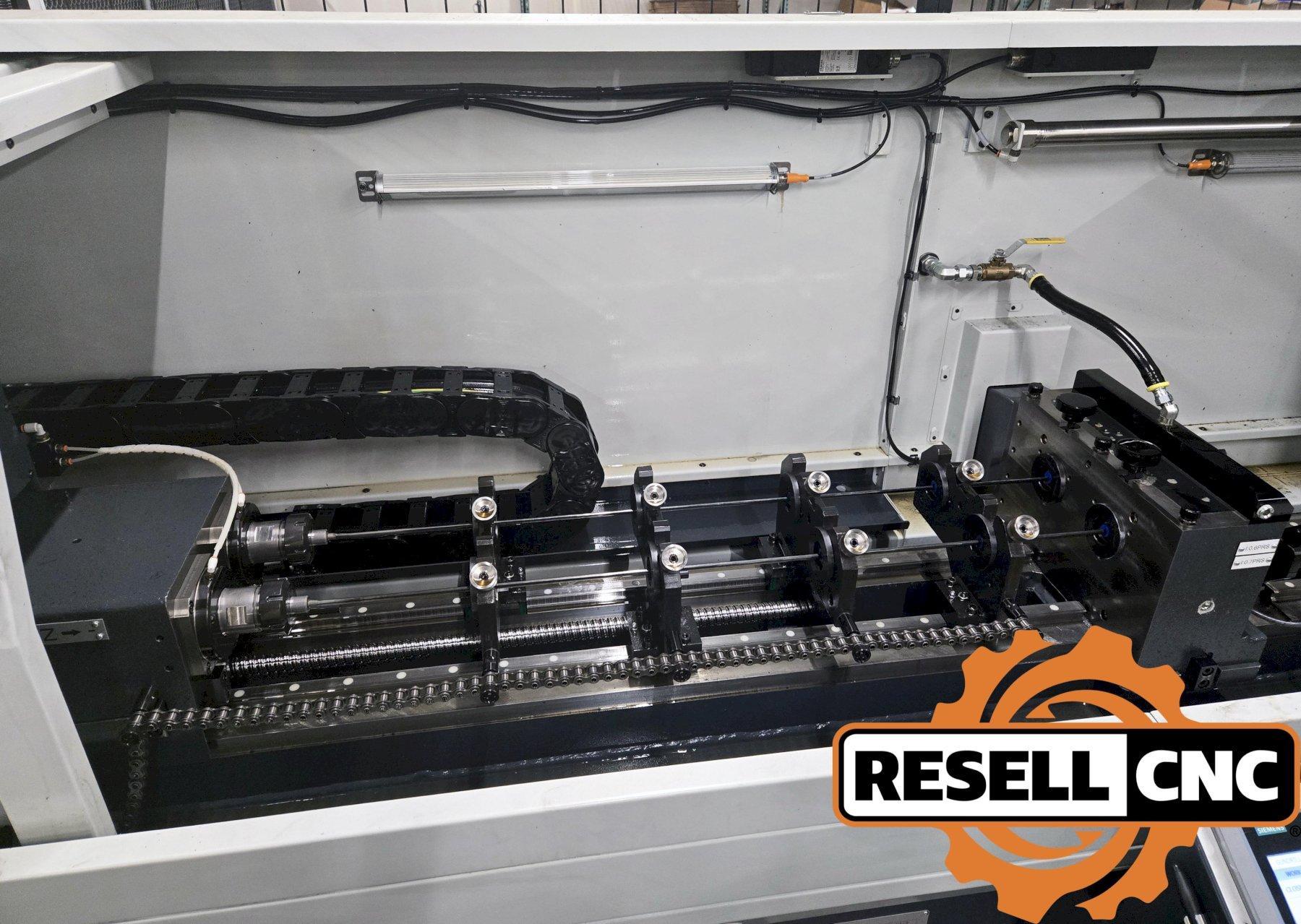

Whip Guide Carriage, 2-Spindle, 60mm Adapter Mount
Hinged Belt Chip Conveyor
Magnetic Chip Conveyor, for Magnetic Workpiece Dedicated Machines
Refrigerant Chiller for Cutting Fluid
Automation / Robot Ready Interface
Automatic Door System for 750mm Machine Guarding

Machine 2: UNISIG Model UNR-12-2-750 Reaming Machine
0.06 - 0.50 in Reaming Diameter Range
30.0-in Ream Depth w/ (2x) Whip Guides Included
30.0-in Maximum Workpiece Length
Allows 0.75-in Ream Diameter On Front Spindle
PLC Control System - Siemens

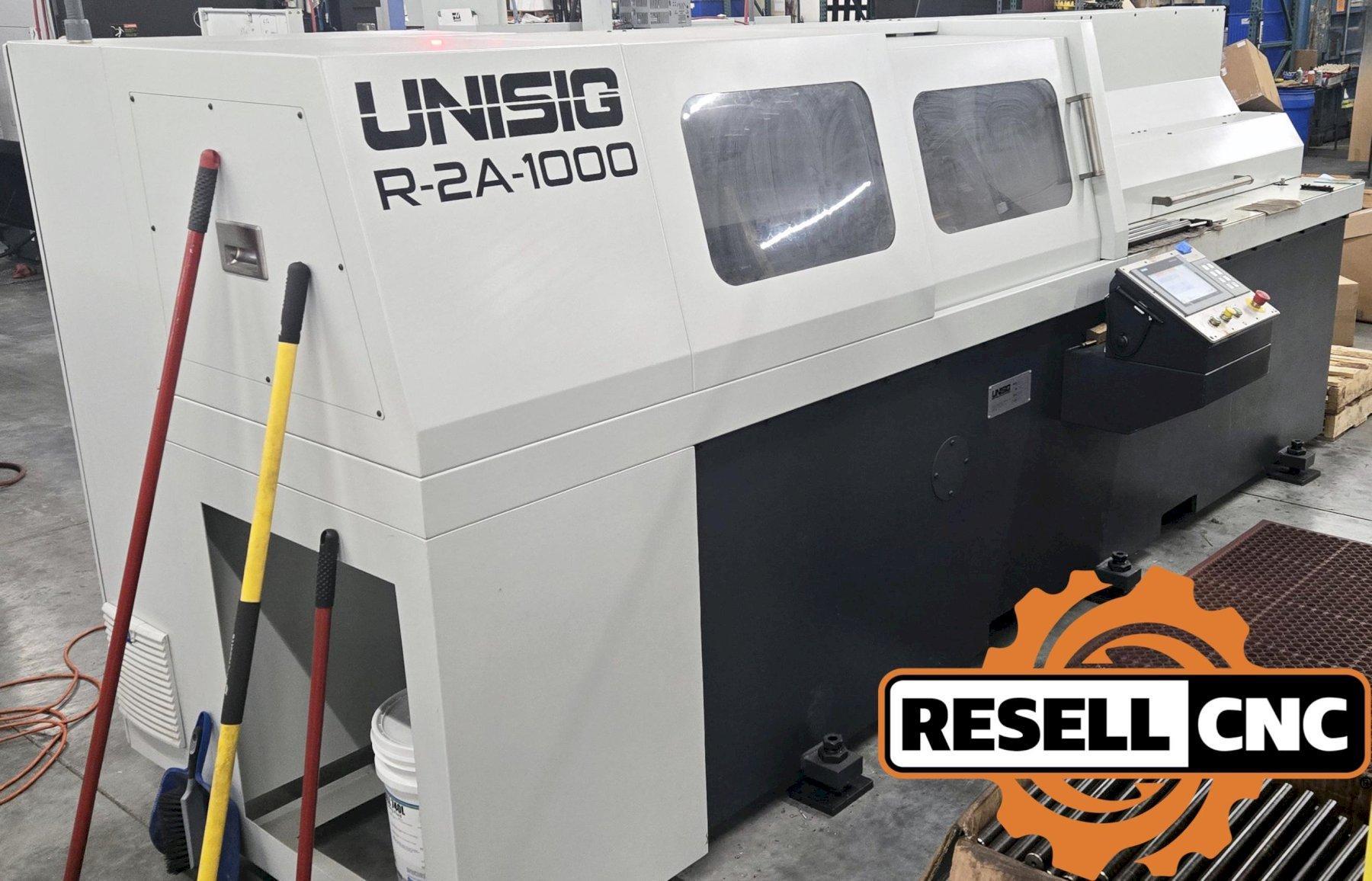

Machine 3: UNISIG Model R-2A Rifling Machine, Single Spindle
0.50 Caliber Maximum Rifling Diameter
40.0 in Nominal Maximum Rifling Depth
Manual Tool Loading
Machine Guarding, Fully Enclosed
Viewing Windows, Tool Side
Lightweight Workpiece Access Door
Electrics, Lubrication System
PLC Control System

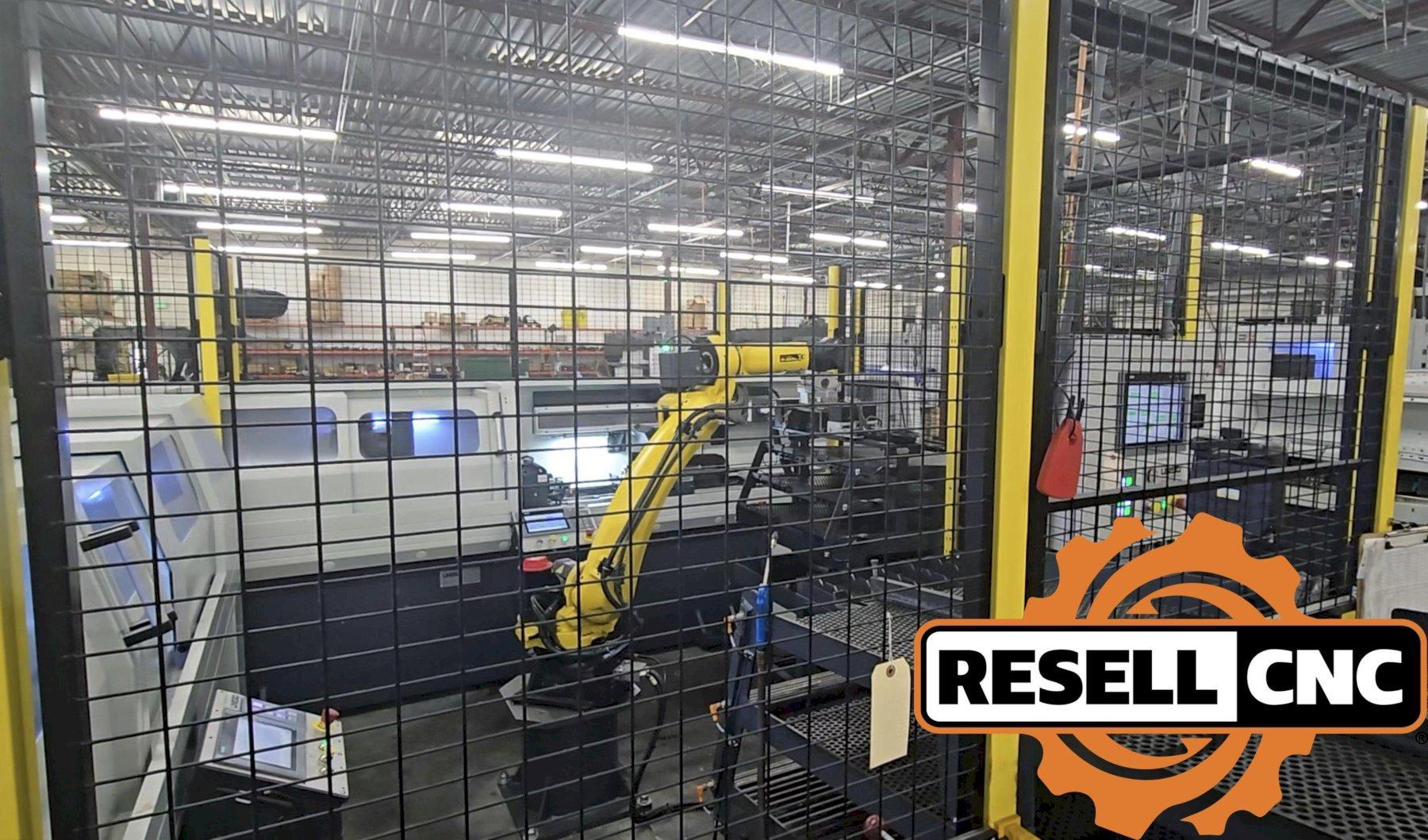

Machine 4: Robotic Cell Automation - Semi-Automated Barrel Cell, 30 in Max Workpiece, 3-Machine Cell
Controller for Robot
Hand Held Tech Pendant
Fanuc Extended I/O
Handling Tool, Collision Guard and Interface Software Options
Robot Pedestal
Local Electrical and Pneumatic Services
Integrated w/ Part Present Sensors
Integration w/ Machine Control

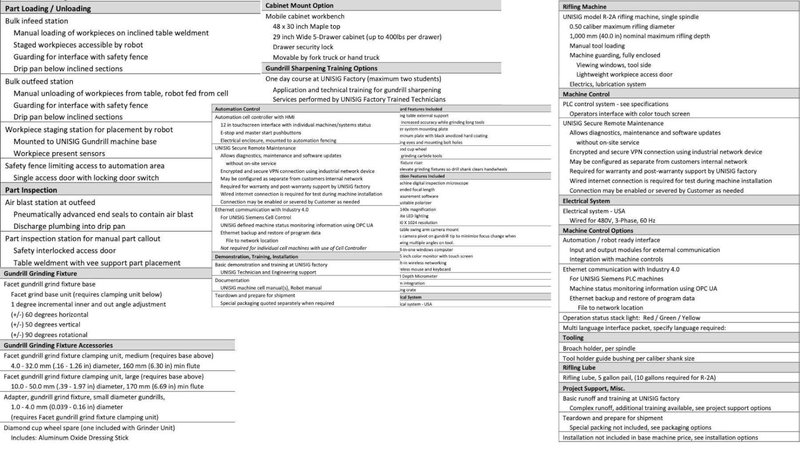

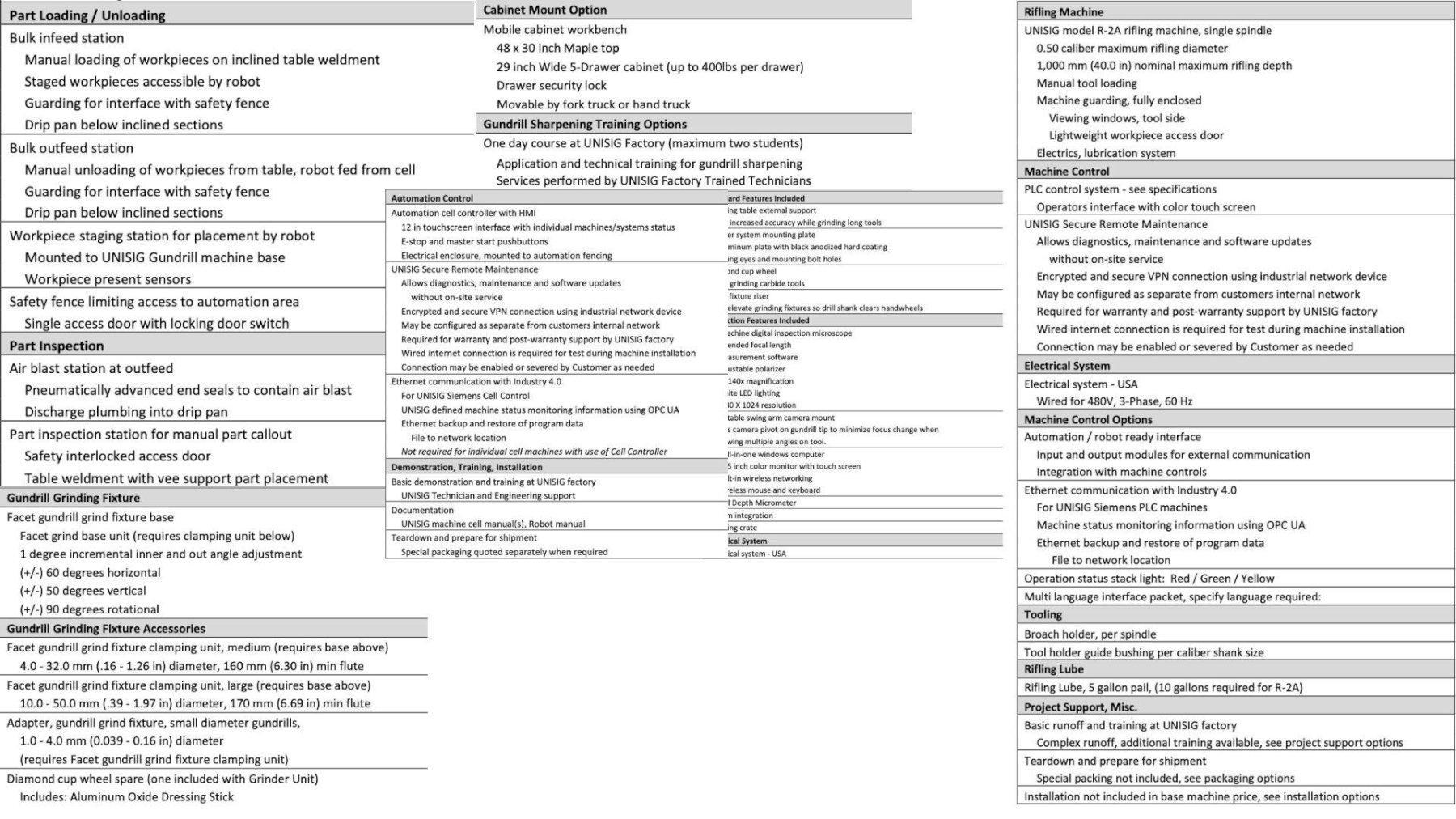

Part Loading/Unloading

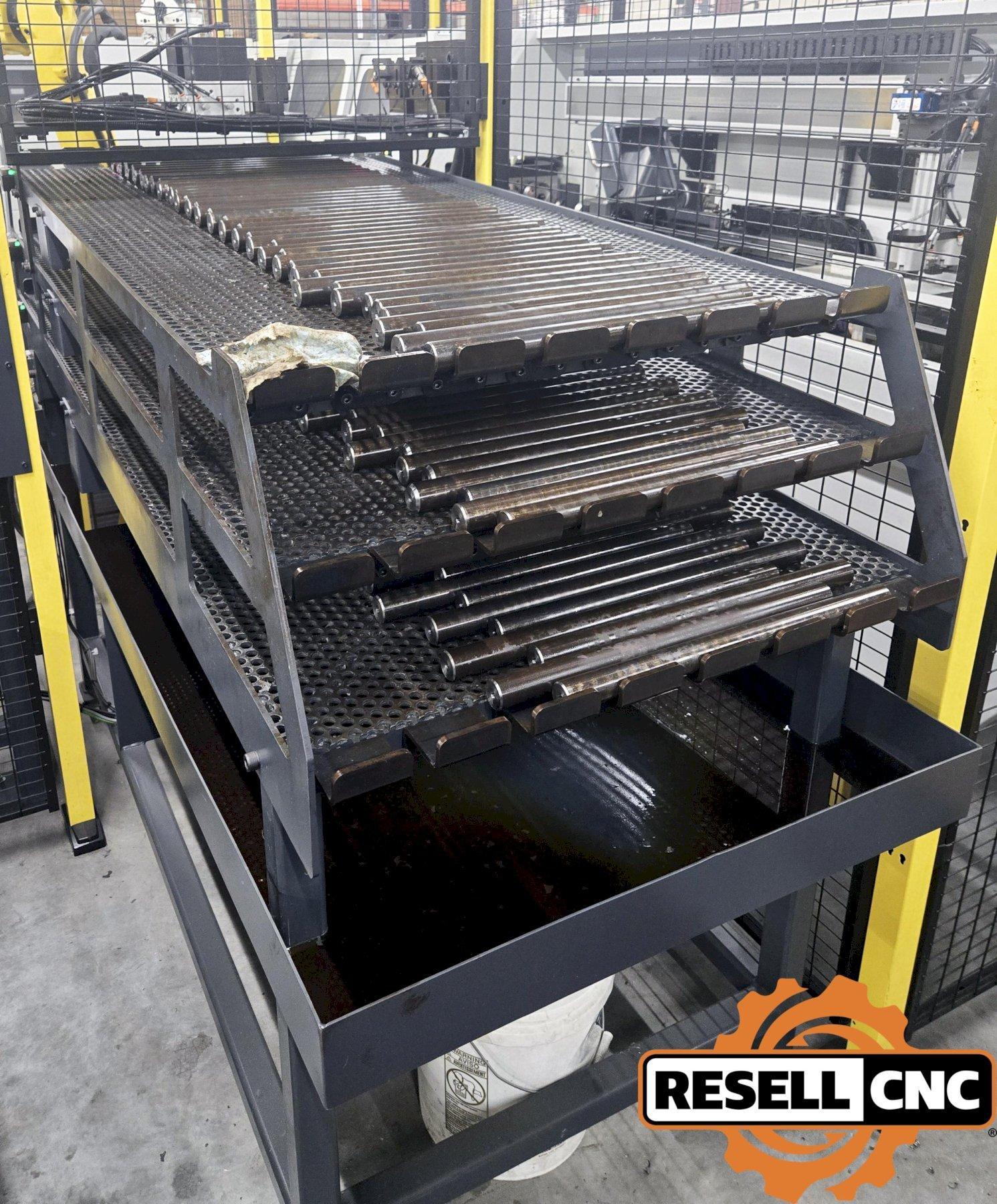

Bulk Infeed Station
Manual Loading of Workpieces on Inclined Table Weldment
Staged Workpieces Accessible by Robot
Guarding for Interface w/ Safety Fence
Drip Pan Below Inclined Sections
Bulk Outfeed Station
Manual Unloading of Workpieces from Table, Robot Fed from Cell
Guarding for Interface w/ Safety Fence
Drip Pan Below Inclined Sections
Part Inspection
Air Blast Station at Outfeed
Pneumatically Advanced End Seals to Contain Air Blast
Discharge Plumbing Into Drip Pan
Part Inspection Station for Manual Part Callout
Safety Interlocked Access Door
Table Weldment with Support Part Placement
Gundrill Tool Sharpener and Accessories
Universal Tool and Cutter Grinder for Gundrill Sharpening
Table Travel 6.0 in Cross Travel, 10.0 in Longitudinal
Vertical Grinding Wheel Adjustment 7.5 in

Parts Loading and Unloading
Up to 50 Caliber
*Additional Specs Available Upon Request*
