Features:

Siemens 840D CNC Control
2-Vertical Ram Heads
Rebuilt & CNC Retrofit In 1999

SPECIFICATIONS:

Table Diameter 393.37"


Turning Diameter with Vertical Rams 590.55"


Maximum Turning Height 196.85"


Ram Vertical Travel 78.74"


Ram Swivel +/- 30/15 Deg


Maximum Cutting Force Right Rail Hd 27,558 Lbs.


Table Load Capacity 440,925 Lbs.


Table Speed Ranges, Inf.Variable 4


Table Speeds 0.13 to 13 RPM


Rapid Traverse, X & Z Axis 64.17" IPM


Creep Feed Motion, X & Z Axes 0.118 IPM


Cross Rail Elevation Motor 40.23 HP


Number of Feeds, Vertical & Horiz. 30


Vertical Ram Feeds .00196-1.574 IPR


Horizontal Ram Feeds .00196-1.574 IPR


Cross Rail Adjustment Motor 86 HP


Rapid Traverse Motors 15.5 HP


Main Motor 250 HP

Equipped With:

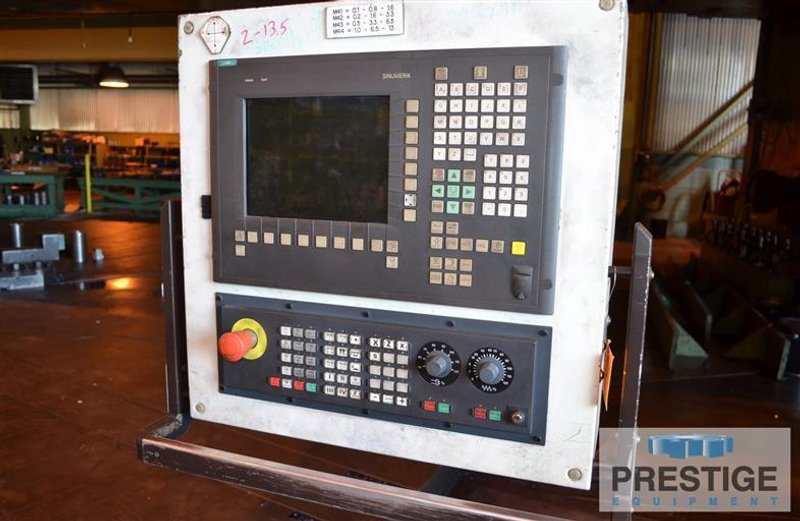

Siemens 840D CNC Control New 1999

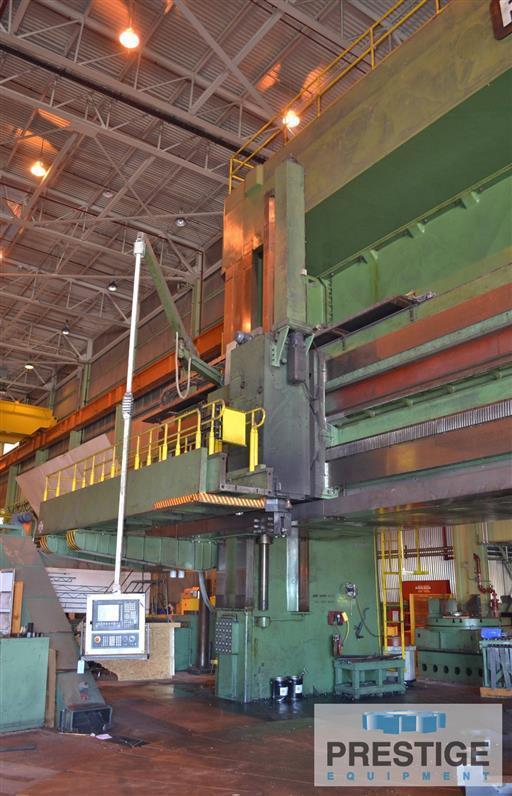

Dual Pendant Operated Controls

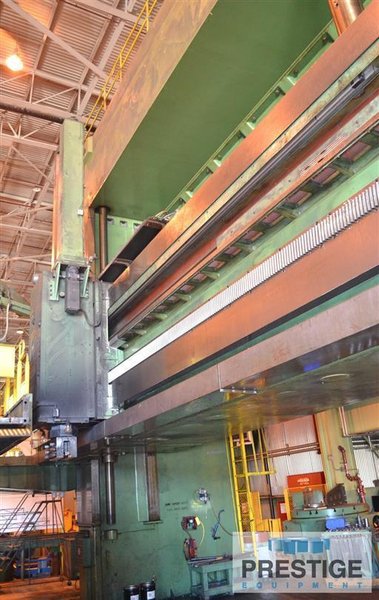

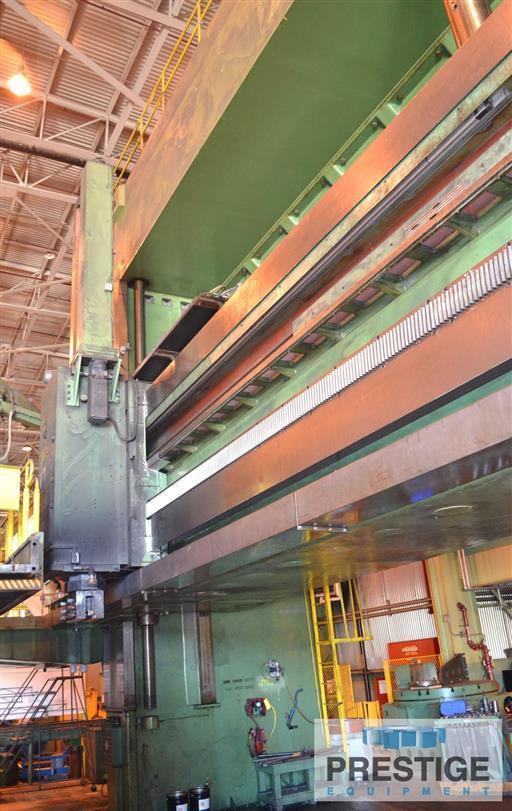

2-Vertical CNC Controlled Rams

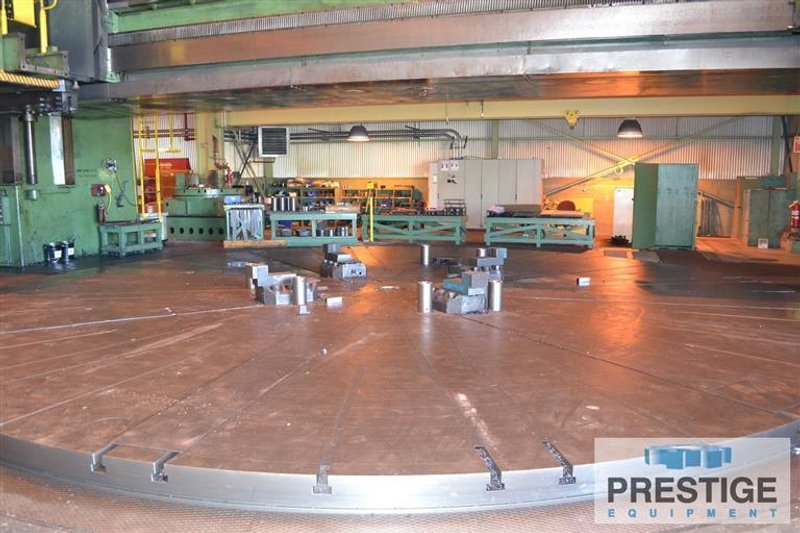

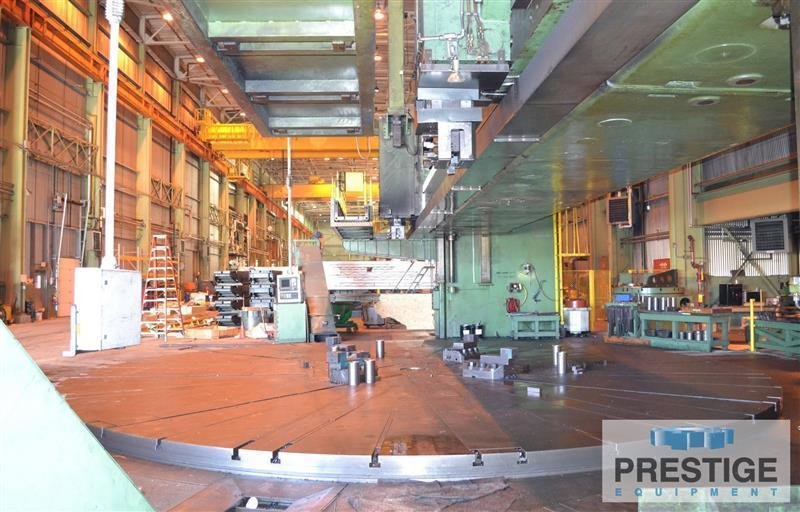

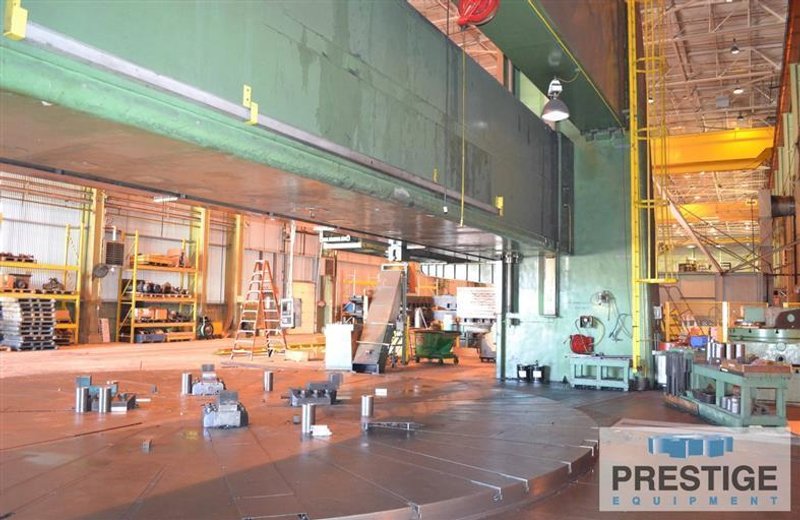

393.37" Diameter T-Slotted Table

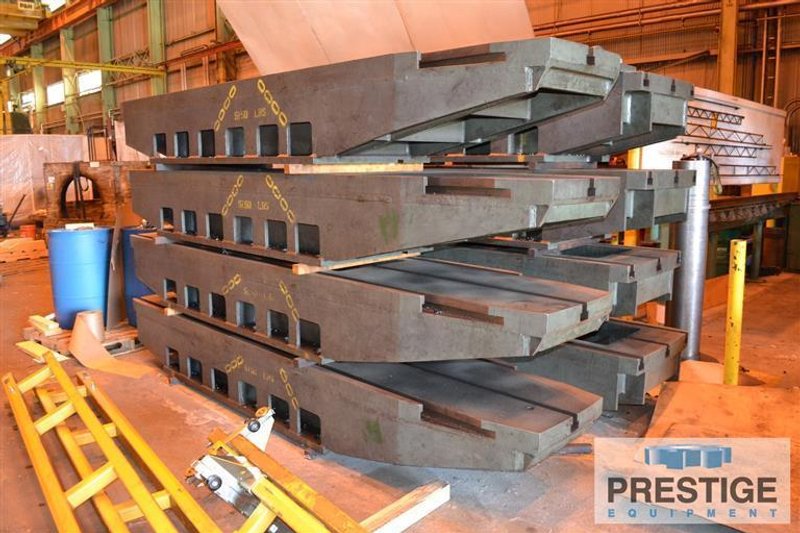

4-Heavy Duty Face Plate Type Jaws
Hydrostatic Bearing System For Table
Dual Operators Platforms

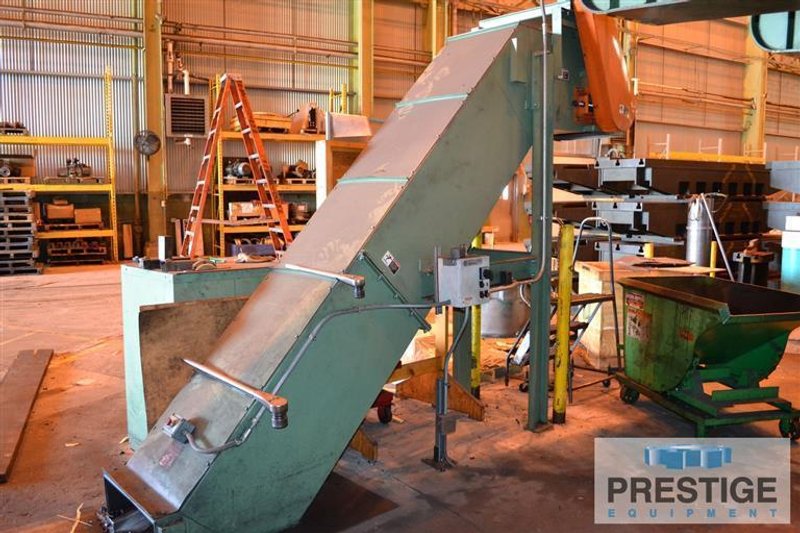

Dual Jorgansen Chip Conveyors
250 HP Table Motor


Rebuilt and Retrofit:
Rebuilt & CNC Retrofit in 1999. New Ball Screws, Refitted Column, Saddle and

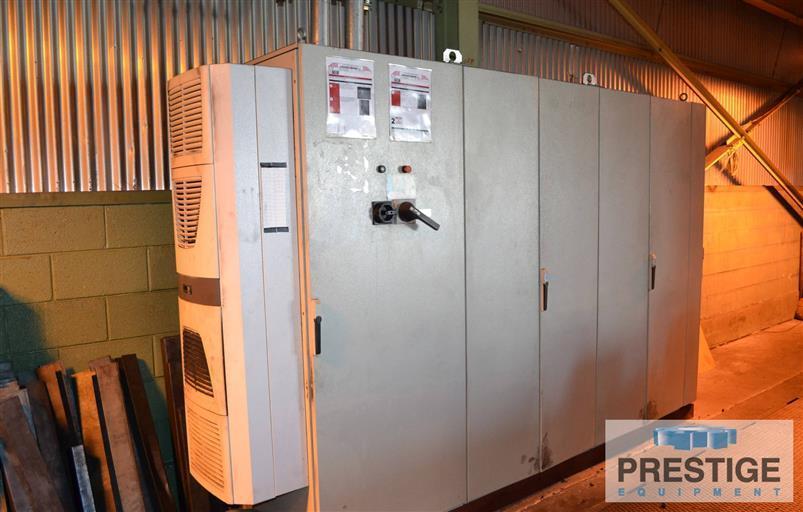

Rams, New Drives, New Clutch System, Electrics
