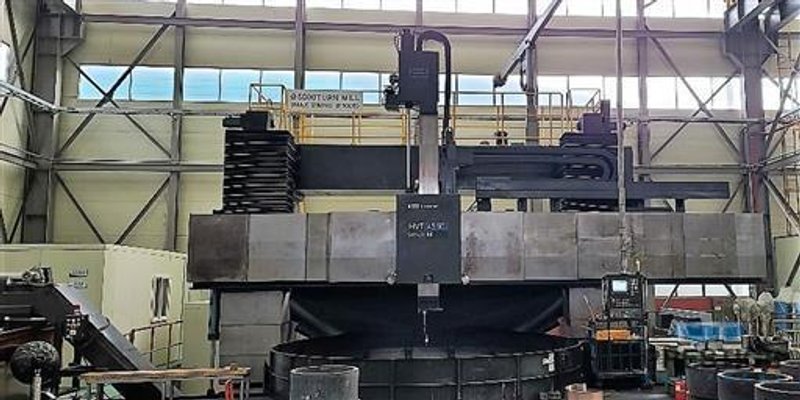

177"/196" Hwacheon HVT-4550M CNC Vertical Boring Mill W/ Milling

CAPACITY:
Table Diameter 177.16"
Ram Dimensions 13.77" x 13.77"
Maximum Cutting Diameter 196.85"
Maximum Cutting Height 98.42"
Table Speeds, 2-Step 1 - 50 RPM
Table Weight Capacity 88,000 Lbs
X-Axis Travel 161.41"
Z-Axis Travel 59.05"
W-Axis Travel 78.74"
C-Axis .001 Deg.
Taper in Ram BT-50
Rapid Traverse, X/Z-Axes 236.22 IPM
Rapid Traverse, W-Axis 19.68 IPM
Cutting Feed Rate, X/Z-Axes .039 - 78.74 IPM
Cutting Feed Rate, C-Axis 0 - 180 Deg/Min
Milling Spindle Speed 1500 RPM
Milling Spindle Motor 40 HP
Table Motor 194 HP
Approximate Machine Footprint 453" x 296"
Approximate Machine Height 386"
Approximate Machine Weight 308,000 Lbs



Equipped With:

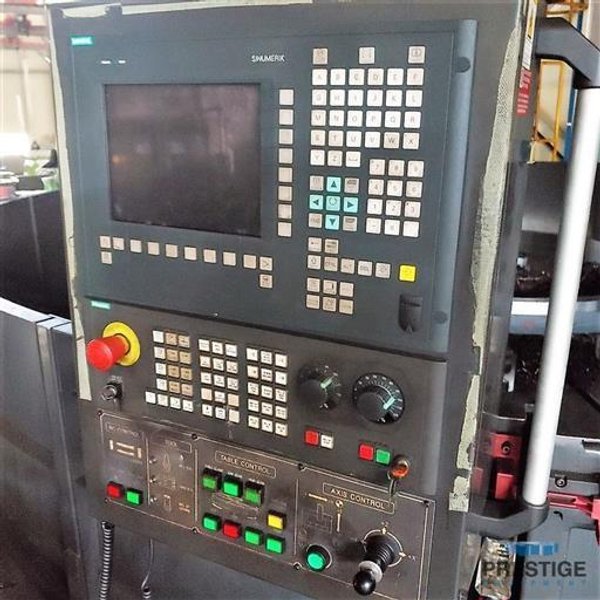

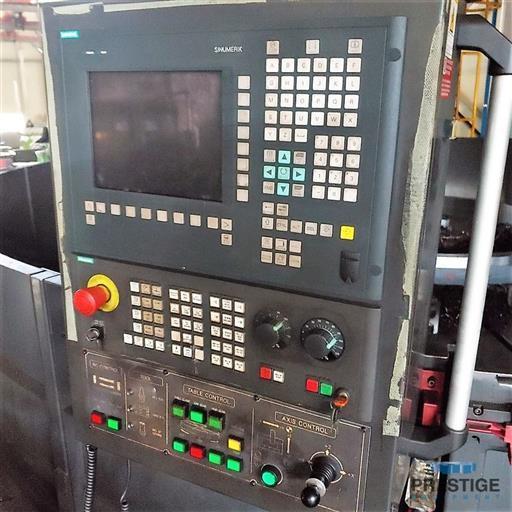

Siemens 840D CNC Control

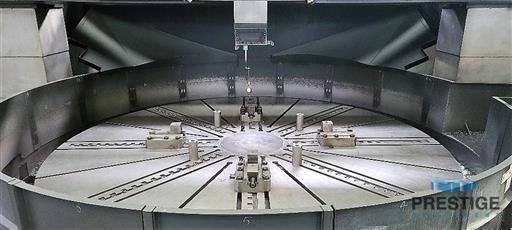

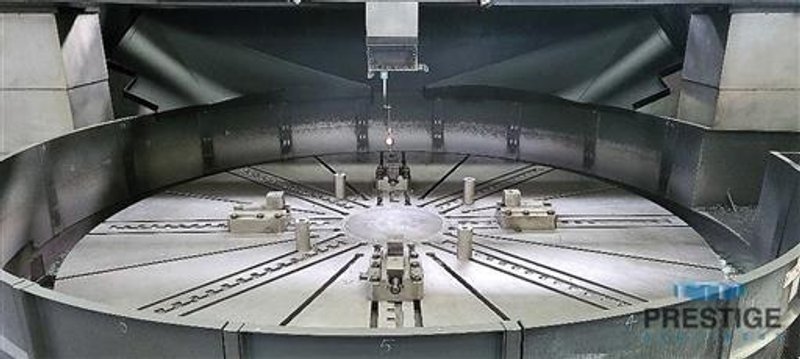

C-Axis Table
Milling Spindle
12-Station Automatic Tool Changer
177.16" 4-Jaw Face Plate Type Chuck
