CAPACITY:

Table Diameter 144"
Maximum Swing 160"
Height Under Rail 42"
X-Axis Travel of Ram Past Centerline 24"
Z-Axis Vertical Ram Travel 36"
Ram Cross Section 12" x 12"
Table Speeds 0-100 RPM
Table Speed Gear Ranges 2
Table Weight Capacity 35 Ton
Z-Axis Thrust 12,000 Lbs
X-Axis Thrust 12,000 Lbs
Feed Rates 150 IPM
Rapid Rates 300 IPM
Table Power 130 HP

Equipped With:

Fanuc 18i-T 4-Axis CNC Control

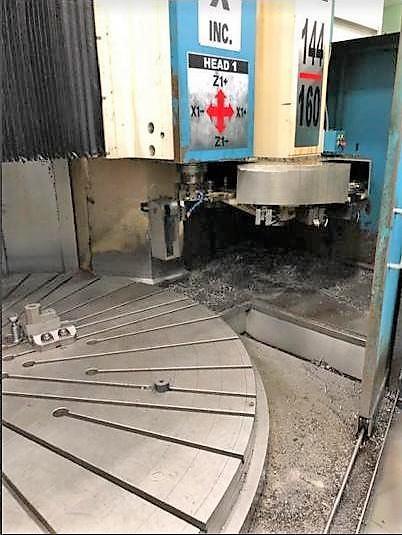

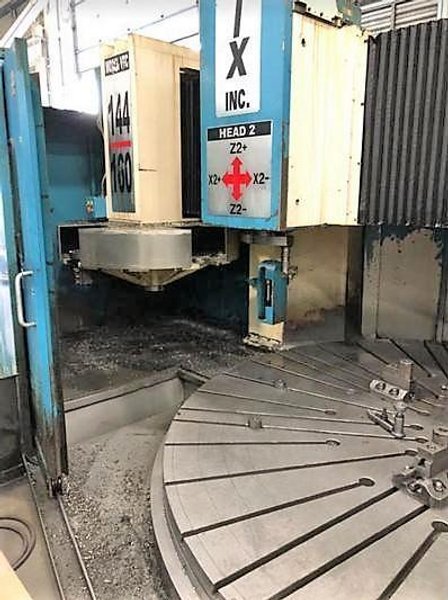

(2) Vertical Ram Heads

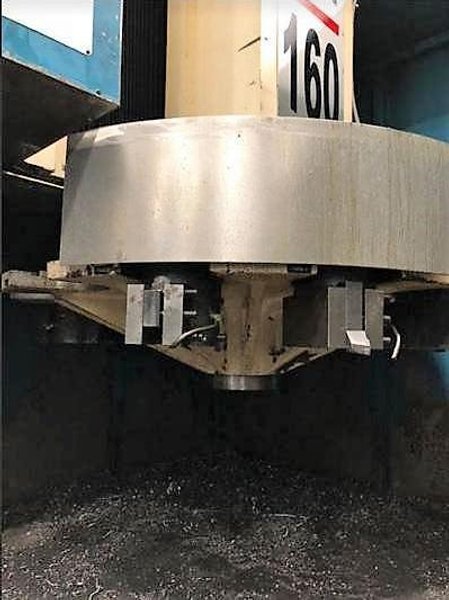

(2) 12 Station Automatic Tool Changers
Part and Tool Probe
Hardened & Ground Box Ways on Cross Rail
Fixed Rail Design
Forged Rams
Heavy Duty Casted Base, Columns & Cross Rail
Timken Cross Roller Bearing
Hardened & Ground Table Gear 103" Diameter
3" Diameter Hardened & Ground Ball Screws
GE/Fanuc AC Servo Drives
Heidenhain Linear Feedback
Dual Chip Conveyors
