Features:

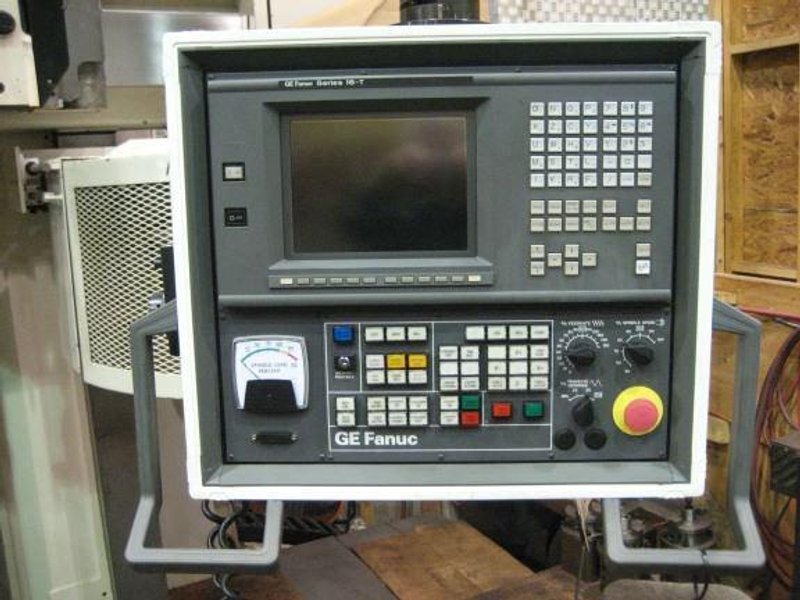

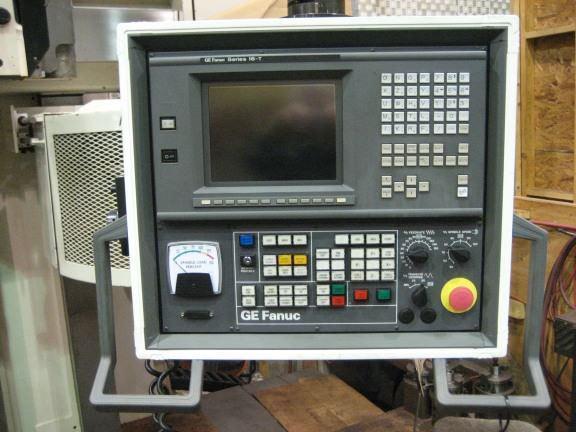

Fanuc 16i CNC Controls, Retrofit 2022

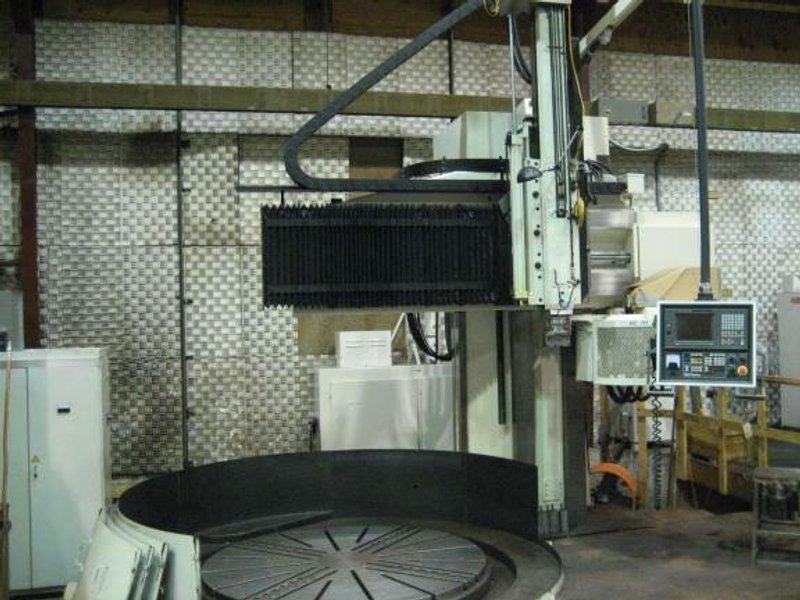

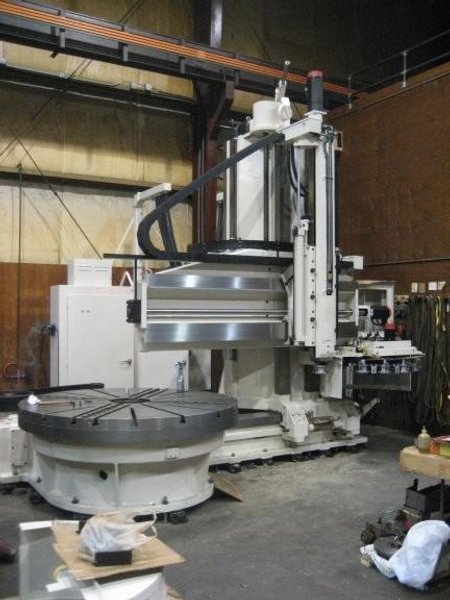

Infeeding Column Design for 157" Diameter Swing

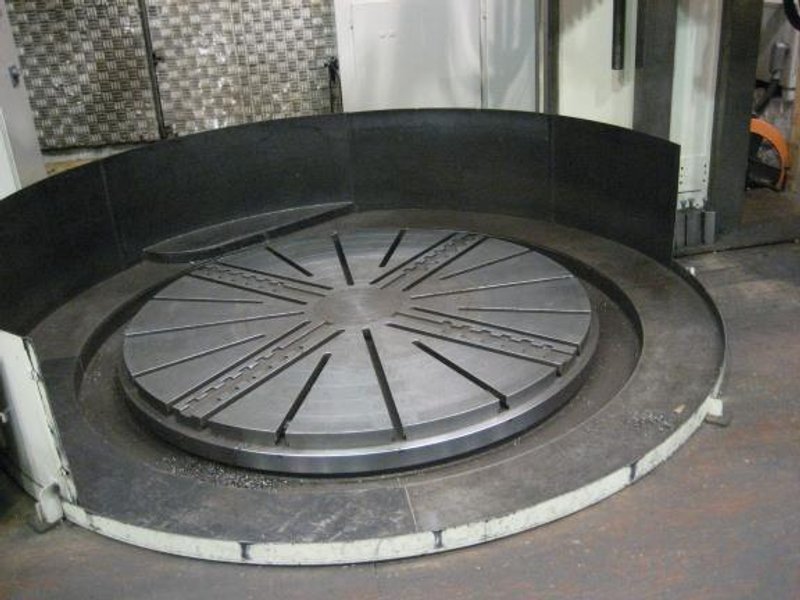

78.7" T-Slotted Table

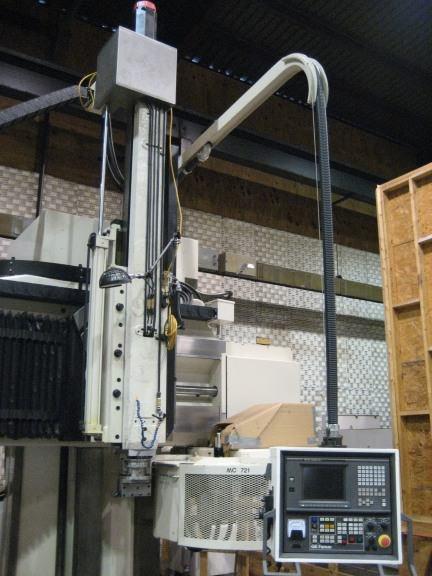

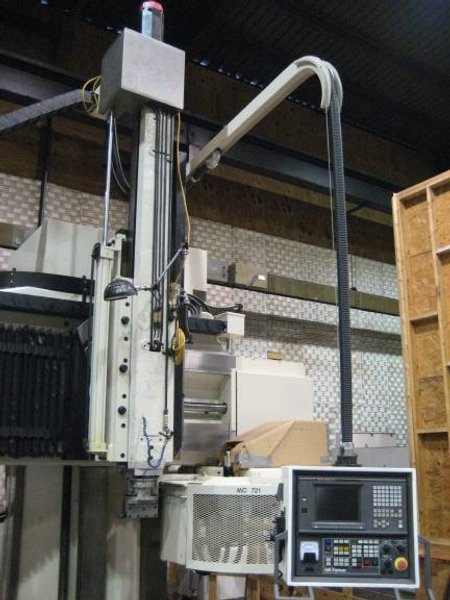

Vertical Ram

CAPACITY:

Table Diameter 78.70"


Maximum Swing 157.50"


Maximum Height Under Tool 63"


Vertical Travel Of Rail 41.3"


Vertical Travel of Ram Head 36"


Table Speeds (Inf. Variable) 1-120 RPM


Feeds .001 to 40 IPM


Rapid Traverse 0-250 IPM


Table Load Capacity 46,000 LBS


Approx Machine Dimensions 264"W x 205"D x 240"H


Approx Machine Weight 65,000 lbs.

Equipped With:
Fanuc 16i CNC Controls, Retrofit 2022
Infeeding Column Design for 157" Diameter Swing
78.7" T-Slotted Table
Vertical Ram
50 HP Table Drive 220/3/60 Cycle


NOTES:
5-6 Month Delivery


Available Options:
Coolant System with Full Splash Enclosure
Automatic Tool Changer
Capto Quick Change Block
