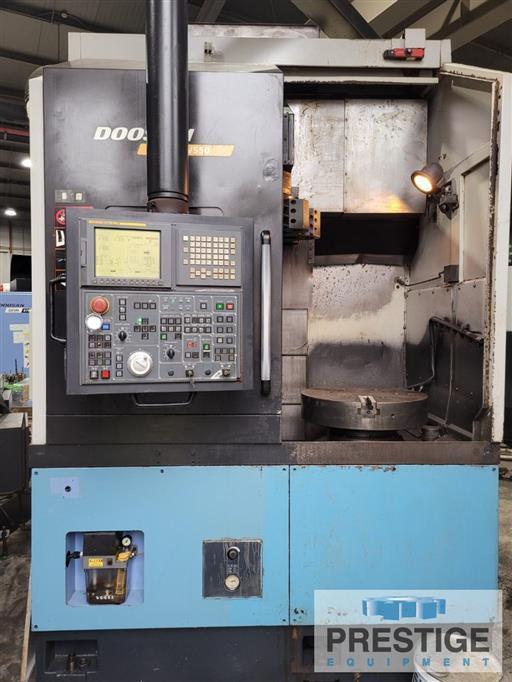

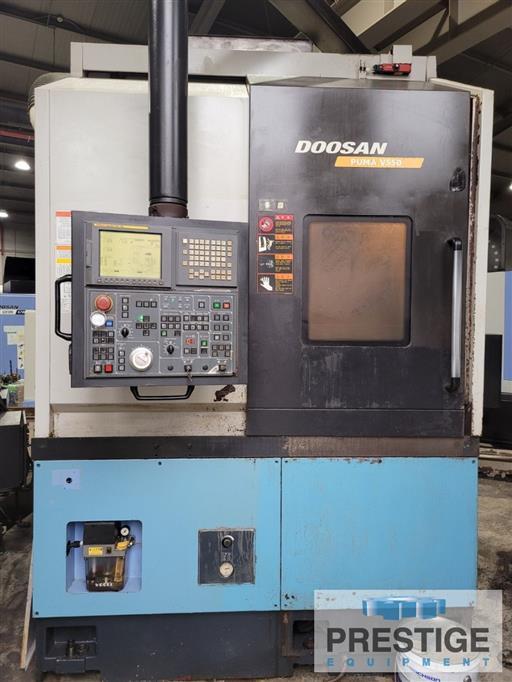

Doosan V550 28" CNC Vertical Turning Lathe
Brand
Category
Model
V550
Stock #
43158
Year
2007
Condition
Not specified
Location
Not specified
|
CAPACITY:

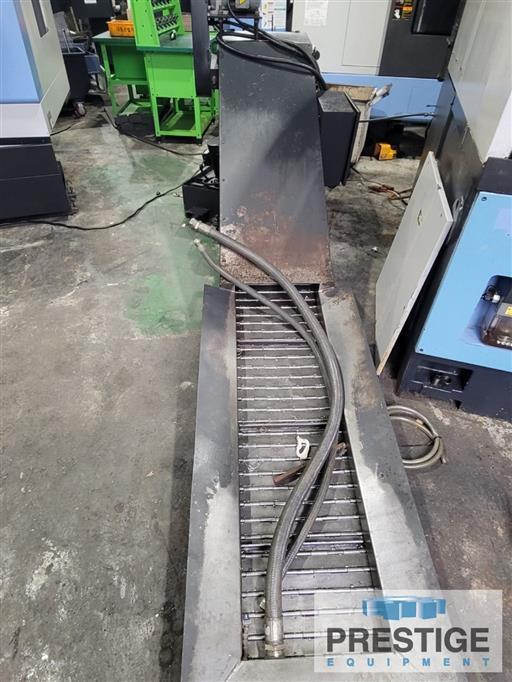

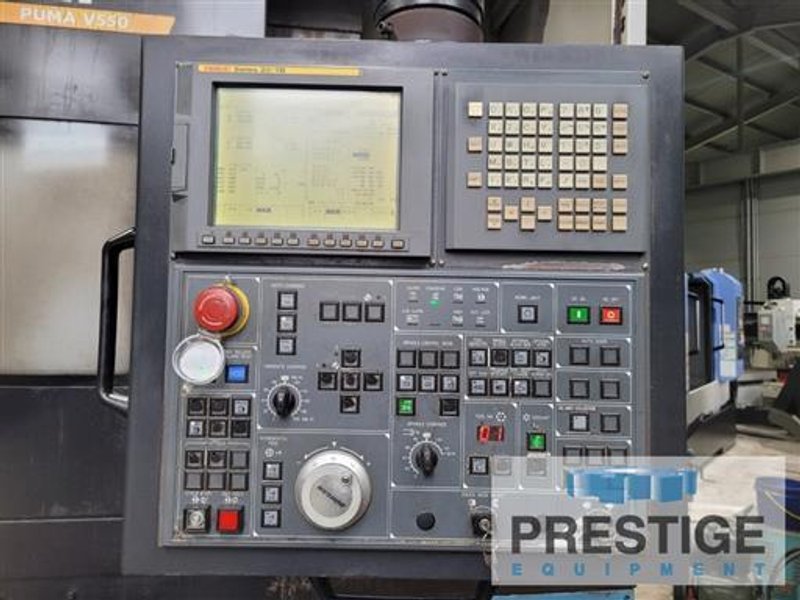

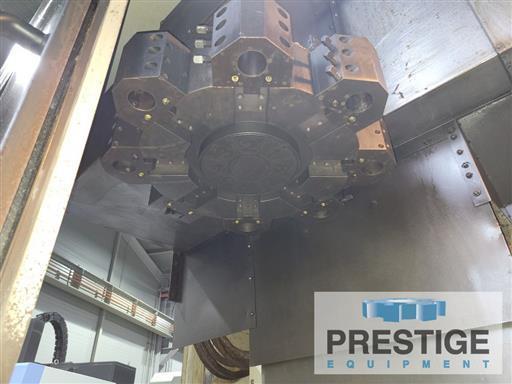

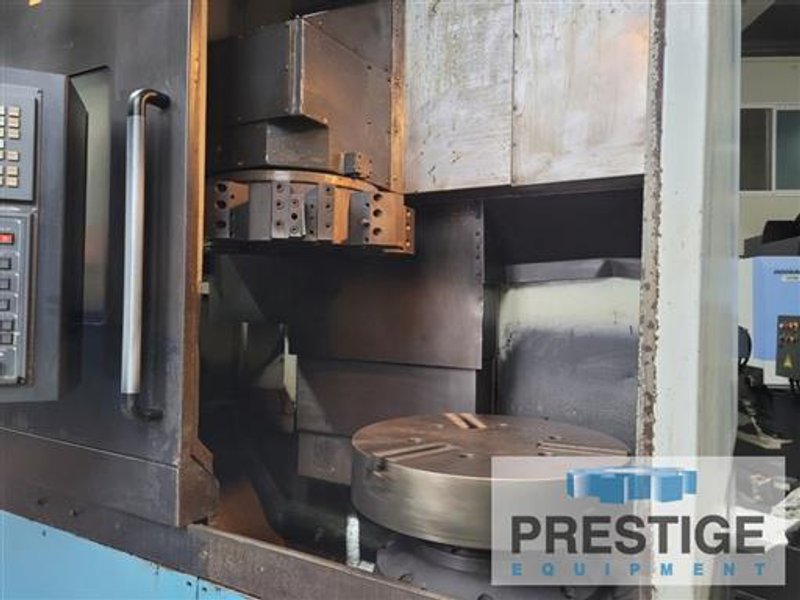

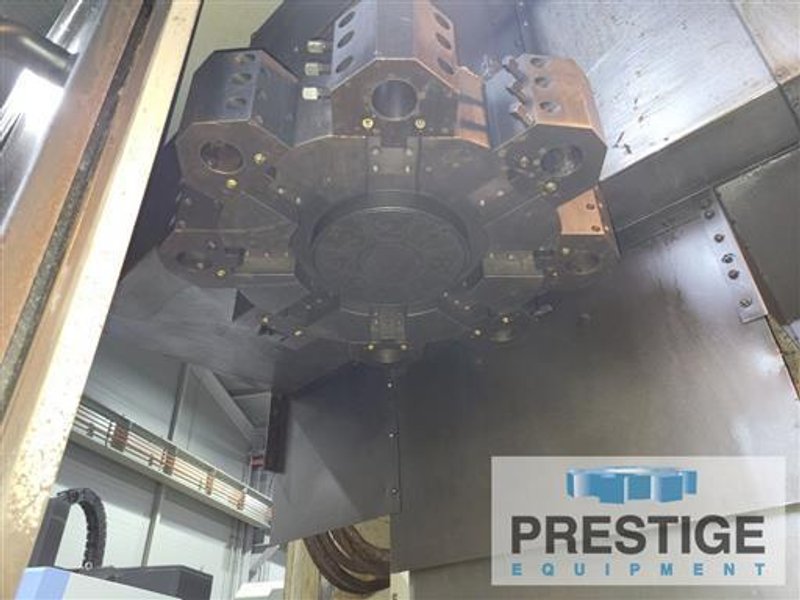

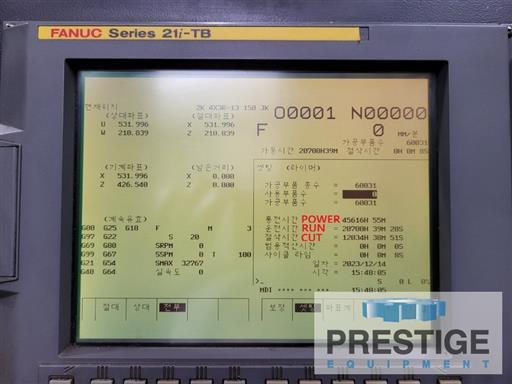

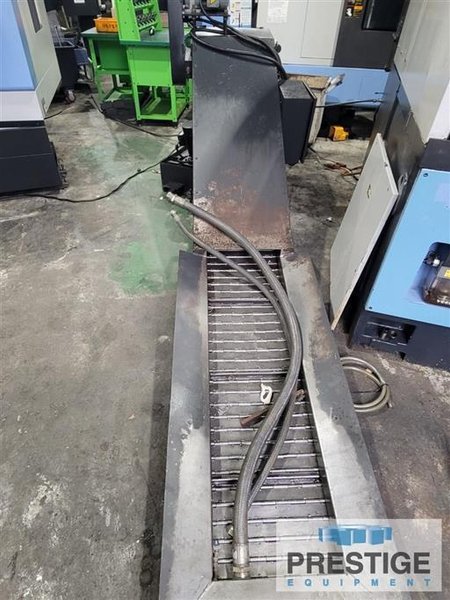

Max. Turning Diameter 28.7" Max. Turning Height 29.5" Spindle Speed Ranges (1) 20-2,000 RPM Spindle Motor 50 HP X-Axis Travel (Ram) 15.4" Z-Axis Travel (Rail) 31" X-Axis Guideway Span 15.2" Z-Axis Guideway Span 24.8" Rapid Traverse (X-Axis) 472 IPM Rapid Traverse (Z-Axis) 630 IPM Max. Feed Rate 236 IPM Number Of Tools 10 Turning Tool Shank Size 1.25" Square Boring Bar Dia. 2.5" Tool Selection Bi-Directional Coolant Pump Pressure 65 PSI Machine Weight 19,850 Lbs Machine Dimensions (L x W x H) 75" x 107" x 128" Equipped With: Fanuc 21iTB CNC Control 8 Position Turret 24" Hydraulic Chuck Chip Conveyor HOURS: Power on Hours: 45,6161 Cutting Hours: 12,034 |
