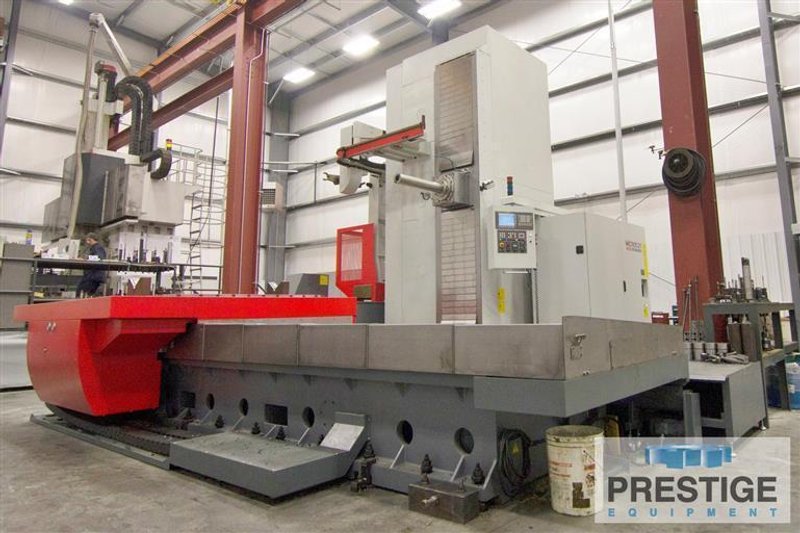

CAPACITY:

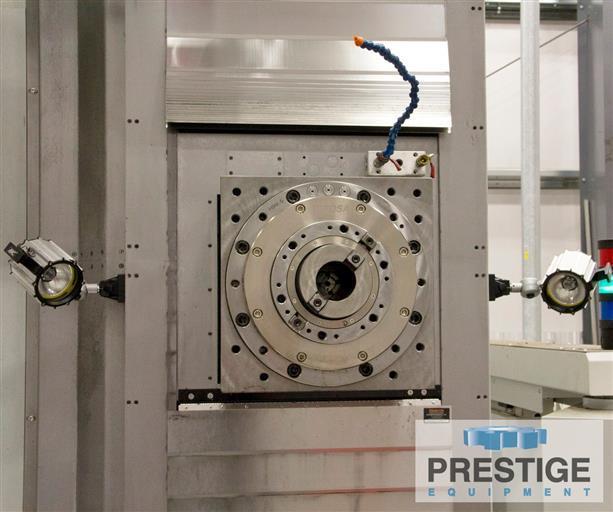

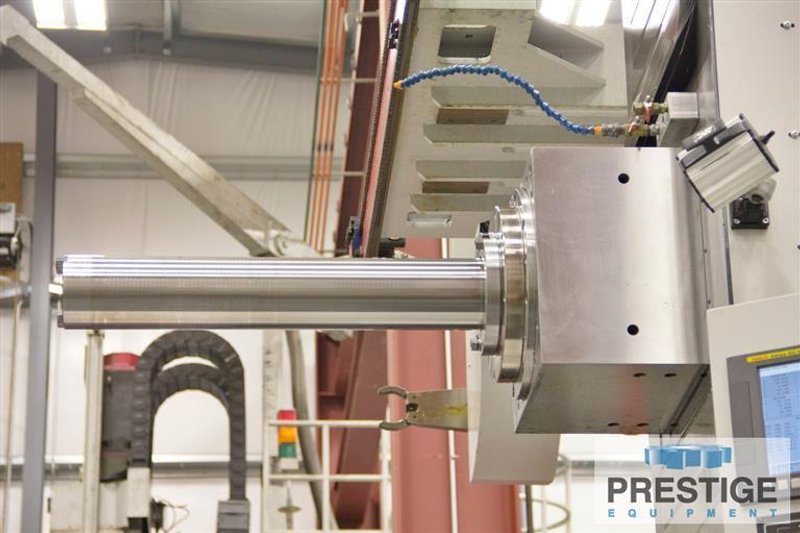

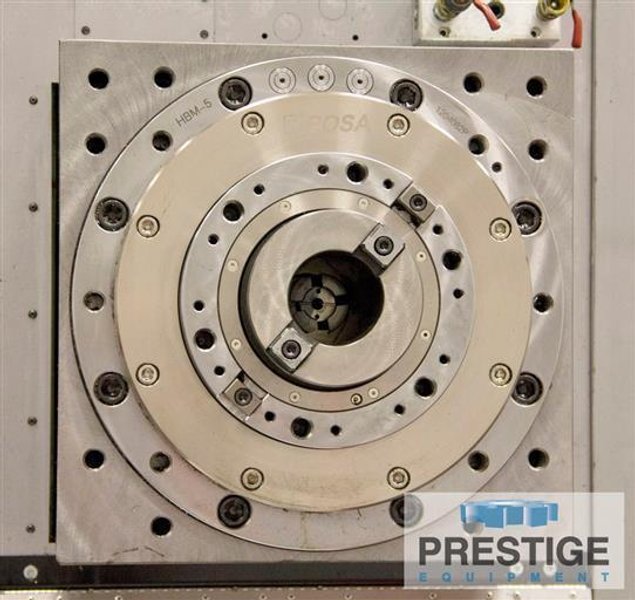

Spindle Diameter 5.12"
Spindle Taper ISO #50
Cross Travel, X-Axis 137.79"
Vertical Head Travel, Y-Axis 125.98"
Column Longitudinal Travel, W-Axis 78.74"
Spindle Travel, Z-Axis 27.55"
Spindle Speeds, 2-Speed 35-3000 RPM

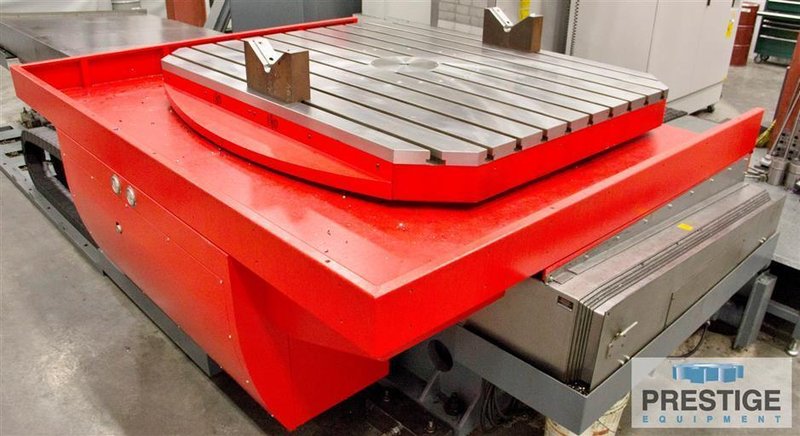

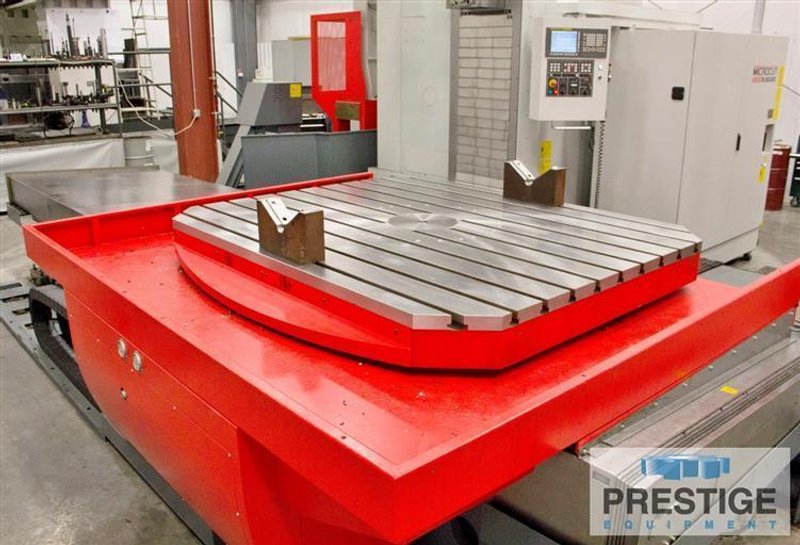

Built-In Rotary Table, B-Axis 98.42" x 98.42"
Table Weight Capacity 44,000 Lbs.
Rotary Table, Full B-Axis, 0.001 Deg.



Equipped With:

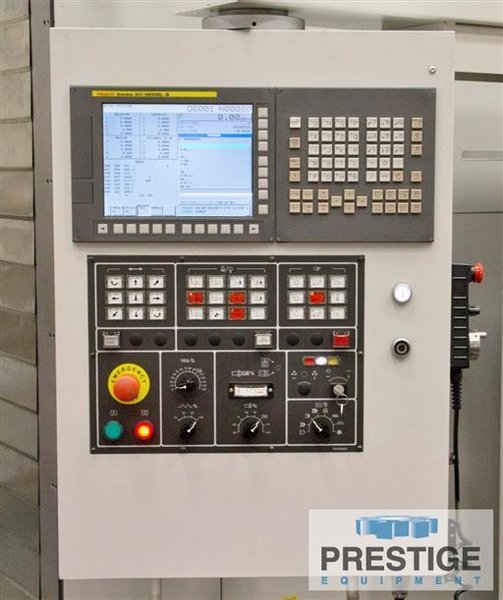

FANUC 31i MB CNC Control and 10.4" LCD Display
RS-232 Interface
Fanuc Spindle & Fanuc Axes Servo Motor Package
Helical Interpolation
T-Type Construction, Infeeding Column
Thru Spindle Coolant
98.42" x 98.42 Built-In Rotary Table (360,000 Deg.)

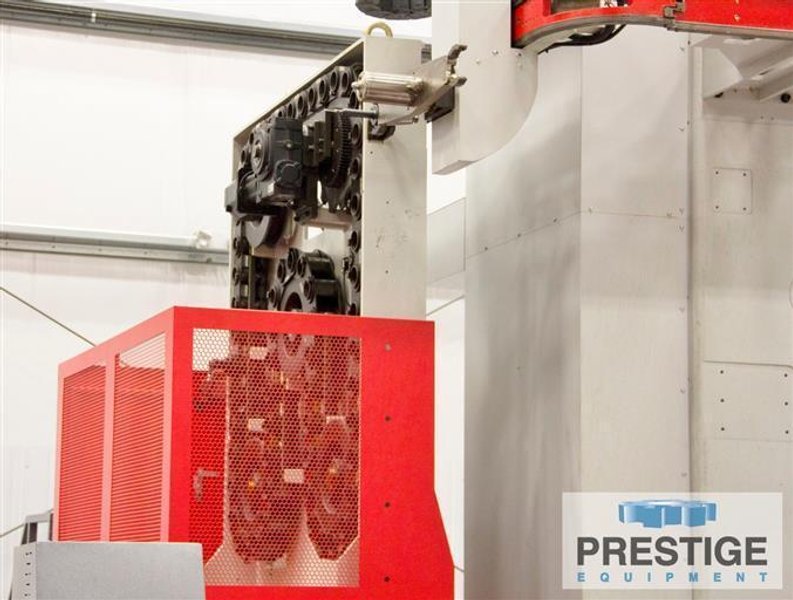

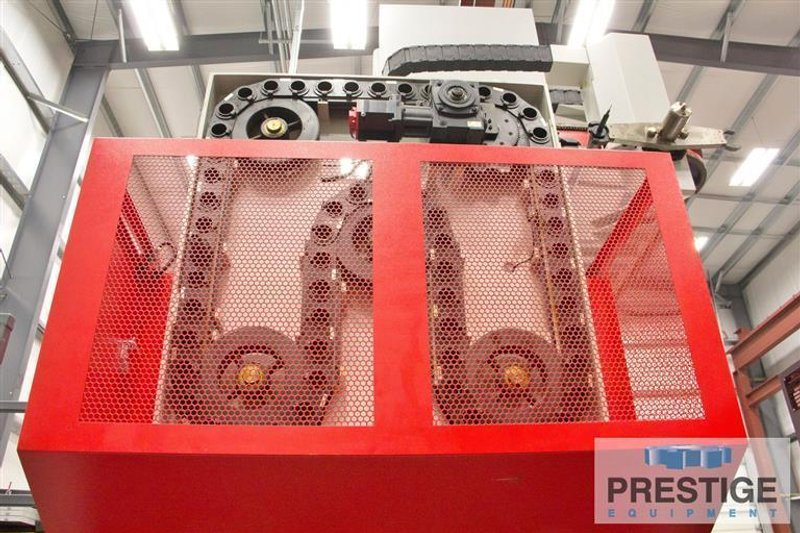

60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes

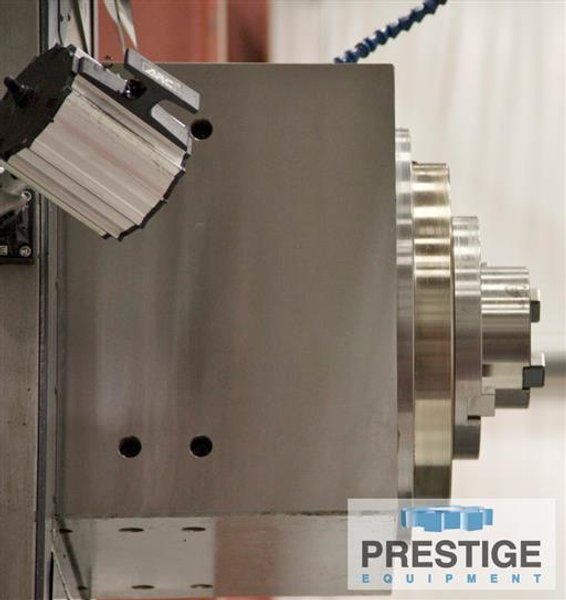

Spindle Extension Sleeve
Coolant Thru Spindle Preparation
Coolant System
Auto Lubrication System
49 HP/60 HP Spindle Drive Motor
Chip Conveyor
1-Year Parts Warranty on Machine
2-Year Parts Warranty on CNC Control


NOTE: Delivery 5-6 Months From Order
