CAPACITY:
Spindle Diameter...................... 4.33" 4.33"
Spindle Taper......................... ISO #50 ISO #50
Vertical Head Travel, Y-Axis 62.99"
Table Travel, X-Axis 86.61"
Saddle Travel, W-Axis 62.99"
Spindle Travel, Z-Axis 21.65"
Distance Spindle To Table Center...... 4.72" - 67.71" 4.72" - 67.71"
Built in Rotary Table................. 49.21" x 59.05" 49.21" x 59.05"
Table Index........................... 0.001 Degree 0.001 Degree
Rapid Traverse: x,y,z Axis............ 472.44 IPM 472.44 IPM
Feed Rates: x,y,z Axis............... .04-196.85 IPM .04-196.85 IPM
Table Load Capacity................... 11,000 LBS 11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM 35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds 9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS 55 LBS



Equipped With:

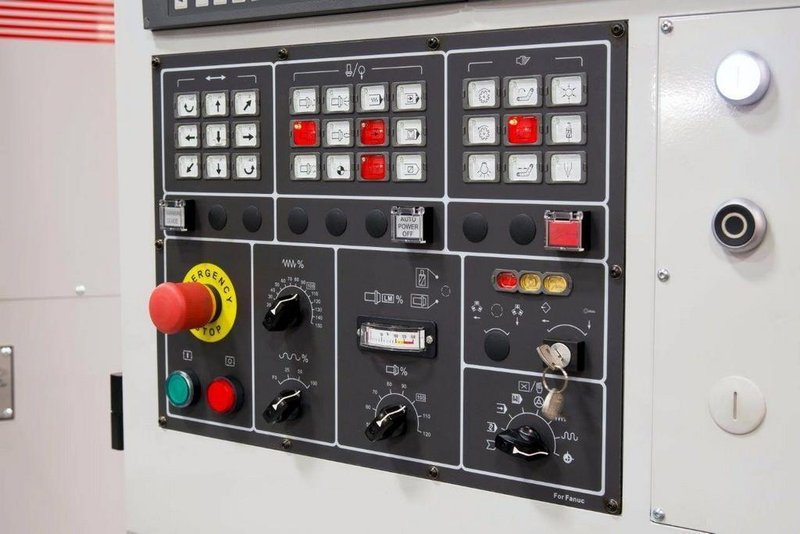

FANUC 31i MB CNC Control w/ 10.4" LCD Full Key Panel

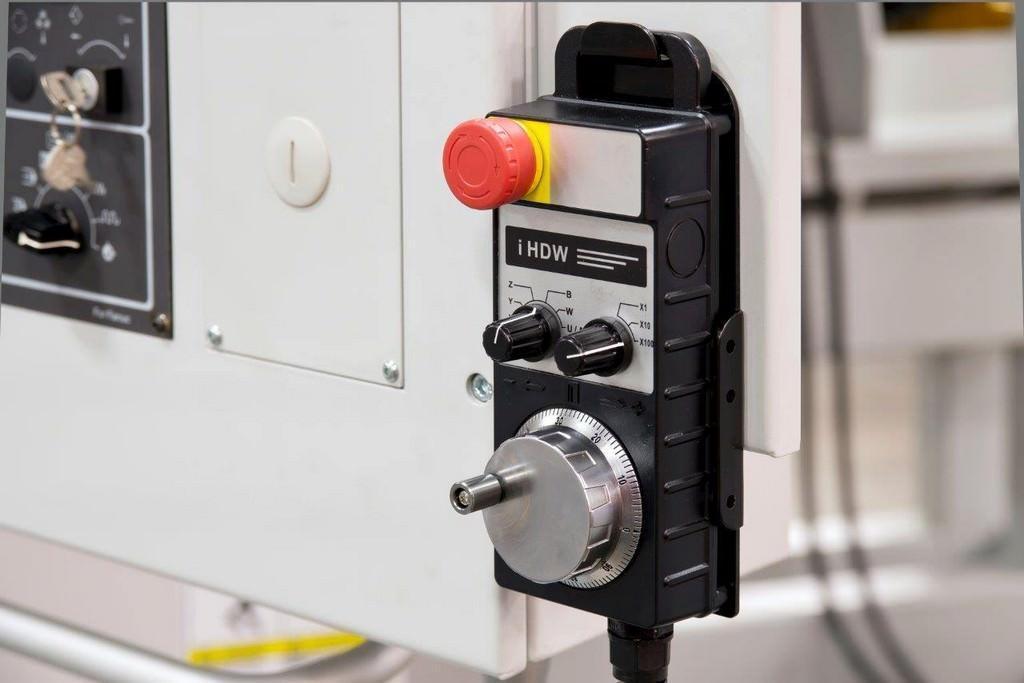

MPG
Helical Interpolation
Built In B-Axis Rotary Table (Positioning)
Hardened & Ground Ways
60 Station Automatic Tool Changer (CAT #50)
Rigid Tapping
Coolant Thru Spindle (70 Bar)
Spindle Oil Chiller
Spindle Vibration Supervision Function

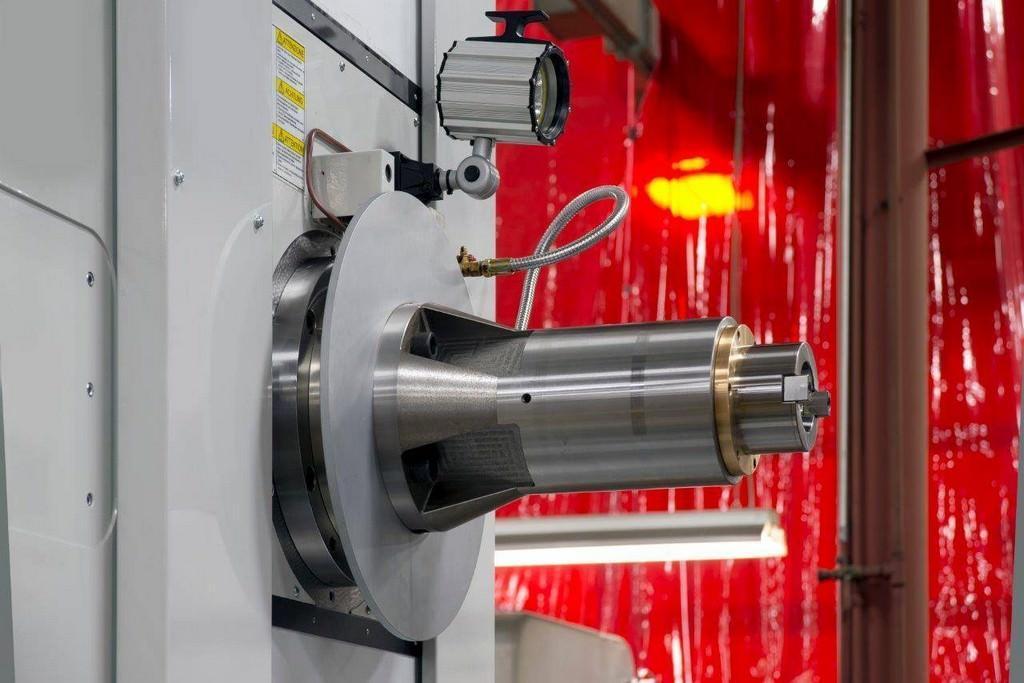

Spindle Extension Sleeve
Meehanite Cast Iron Struction

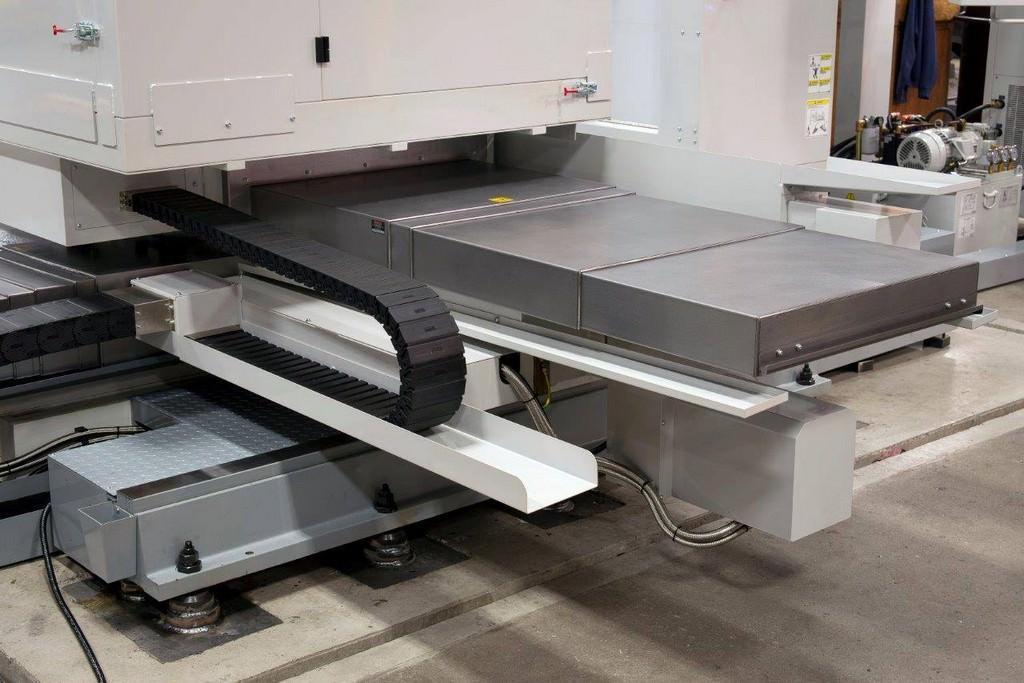

Telescoping Way Covers
Auto Power Off
Auto Lubrication System

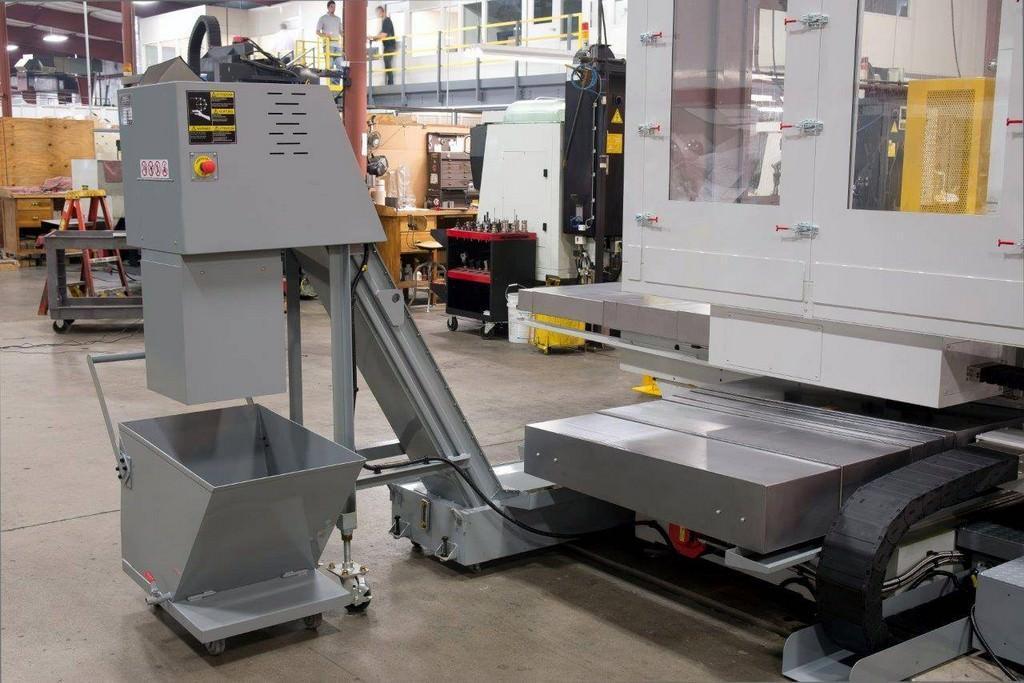

Chip Auger For Table & Chip Conveyor
29 HP/ 24 HP Spindle Drive Motor 220/3/60


MACHINE WEIGHT AND FLOOR SPACE: Floor Space: 305" L x 186" W x 146" H
Machine Weight: 50,000 LBS


NOTE: Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Lead Time 6-8 Months From Date Of Order
