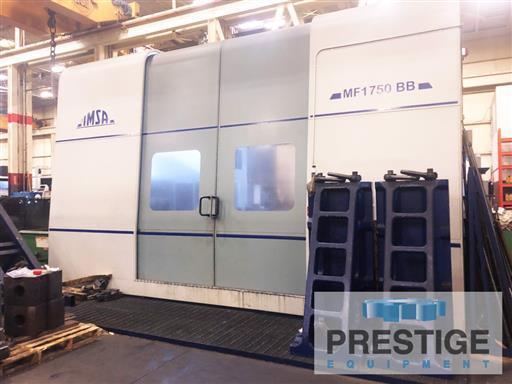

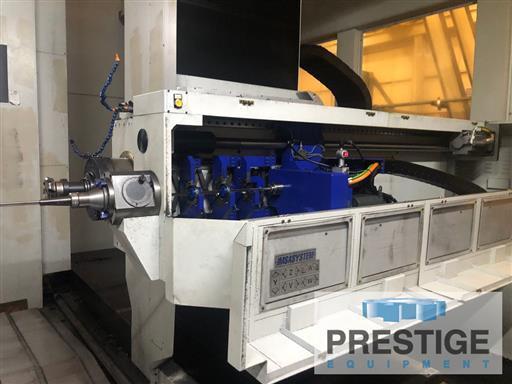

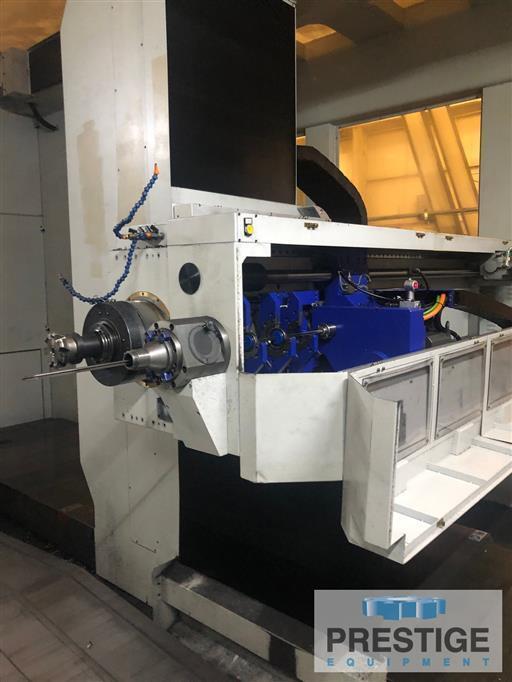

IMSA MF1750BB 5-Axis CNC Gun Drilling & Milling System

DRILLING:
Maximum Drilling Depth 68.89"
Maximum Drilling Speed 1 to 4,200 RPM
Optimal Drilling Diameter, Solid 0.1968" to 1.968"
Drilling Spindle Motor 20 HP
MILLING:
Spindle Taper ISO 50
Milling Spindle Speed 0 to 4,500 RPM
Maximum Horizontal Stroke Z+W Axes 43.30"
Milling Spindle Motor 60 HP
TRAVELS:
V-Axis Drilling Depth 68.89"
X-Axis Column Longitudinal Travel 127.95"
X-Axis Offset Between Spindles......... 11.81" 11.81"
X-Axis Usable Longitudinal Travel 116.14"
Y-Axis Headstock Vertical Travel 59.05"
W-Axis Approach Stroke Drill Slide 23.62"
A-Axis Head Tilt, Infinite Position +/- 20 Degrees
U-Axis Translation Movement of Table 0.03937"
B-Axis Table Rotation 360,000 Position
ROTARY TABLE:
Table Dimensions 78.74" x 98.4"
B-Axis Feed Rate, Maximum 0.31496" IPM
Table Weight Capacity 66,000 Lbs.
Maximum Part Size Inside Enclosure 118.11" x 118.11"
U-Axis Table Translation 0.03937"
Locking Mechanism Hydraulic
CNC Measuring Rotary Scale
MACHINE WEIGHT:
Total Machine Weight 185,000 Lbs.



Equipped With:

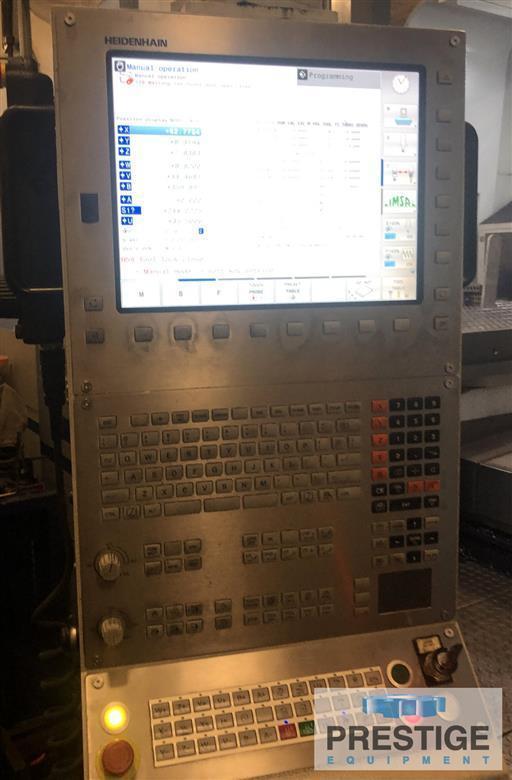

Heidenhain iTNC 640 CNC Control
Full Enclosure
Built In B-Axis Rotary Table
A-Axis Tilting Head
40-Position Automatic Tool Changer For Milling Spindle
Drill Guide with 3-Steady Rests
Angle Plates
Assorted Drills
Thru Spindle Oil Coolant System, 120 Bar
Paper Filtration With Magnetic Separator
Chiller
Chip Conveyor
Full Enclosure


NOTE: Installed 2018
Inspect in Plant Under Power
