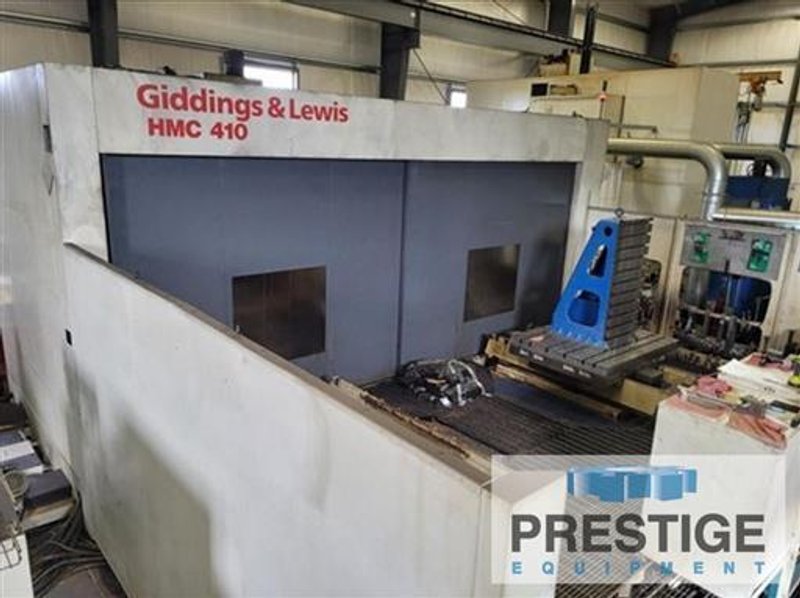

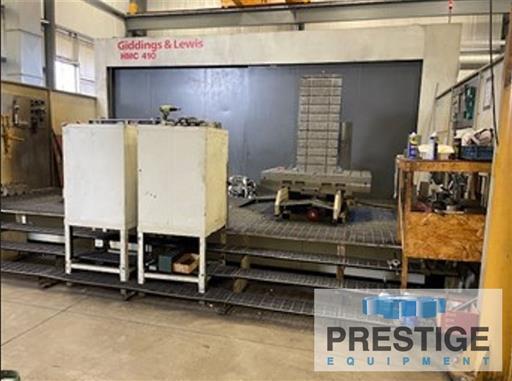

Giddings & Lewis 410 CNC Horizontal Machining Center w/63" x 49" Pallets

SPECIFICATIONS:
X-Axis, Cross Travel of Pallet 129.92"
Y-Axis, Vertical Head Travel 82.67"
Z-Axis, Column Infeed 78.74"
B-Axis, Pallet Rotation 360,000
Spindle Taper ANSI B5.50
Pallet Size 62.99" x 49.21"
Number of Pallets 2
Maximum Swing of In Load Area 118.11"
Pallet Weight Capacity 15,430 Lbs
Feed Rates All Axes .001-630 IPM
Rapid Traverse All Axes 1260 IPM
Spindle Speeds, Infinitely Variable 30-6000 RPM
Maximum Rotatable Part Size 118.11"



Equipped With:
Fanuc 16iM 4-Axis CNC Control

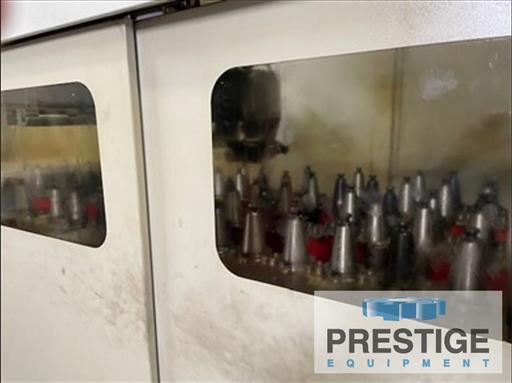

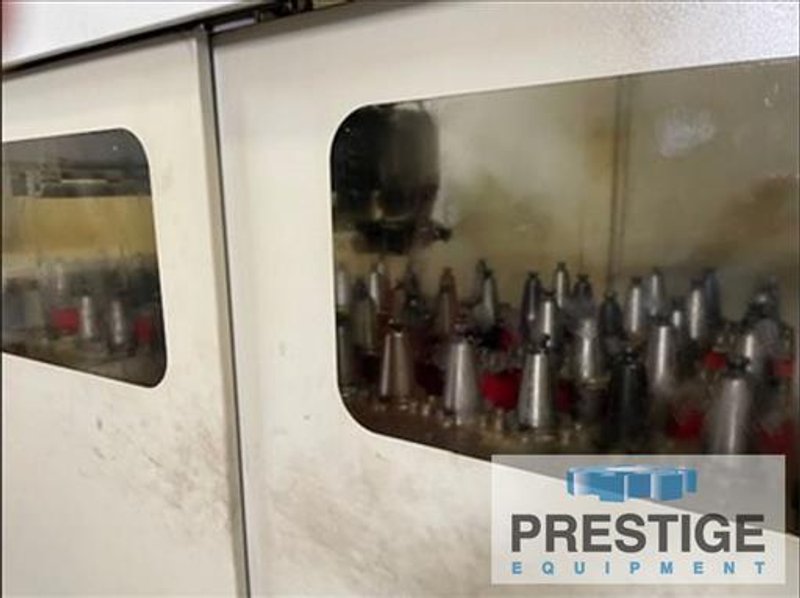

120 Station Automatic Tool Changer
Pallet Shuttle Changer
Thru-Spindle Coolant, 70 Bar,(1015 PSI)
Paper Filtration
Linear Scales All Axis
Renishaw Part Probe
Chip Conveyer
50 HP/60 HP AC Spindle Motor
