CAPACITY:

Longitudinal Table Travel (X-Axis) 118.1"
Vertical Travel Of Headstock (Y-Axis).. 62.99" 62.99"
Cross Travel Of Head (Z-Axis) 59.05"

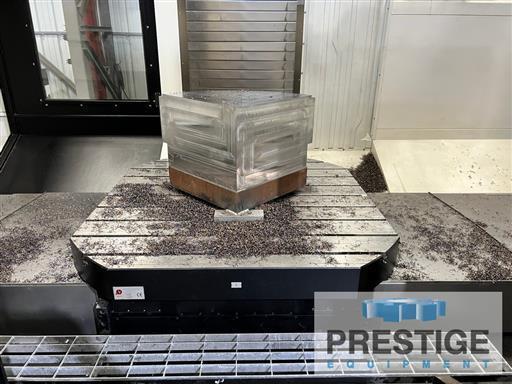

Table Size (T-Slotted) 59.05" X 59.05"
Number of Axis 6
Table Indexing, Continuous .001 degrees
Spindle Taper #50 Big Plus
Spindle Speeds (Inf. Variable) 6,000 RPM
Head Indexing, A-Axis Continuous .001 degrees
Head Indexing, B-Axis Continuous .001 degrees
Feeds, Up To 1,181 IPM
Rapids 1,377 IPM
Spindle Motor 42 HP (32KW)

Equipped With:

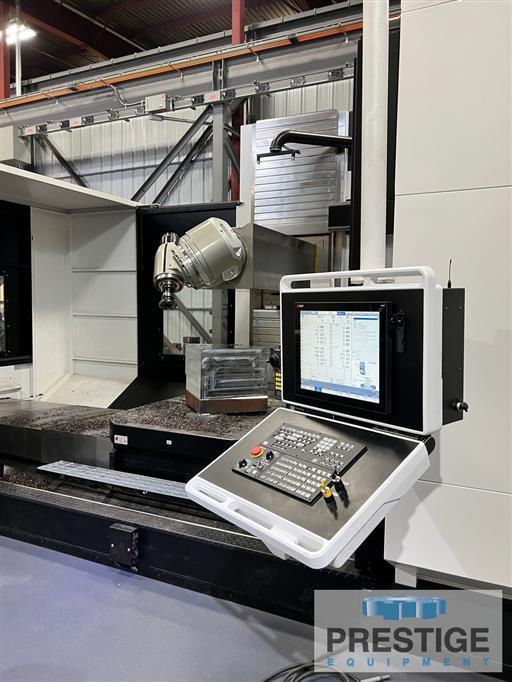

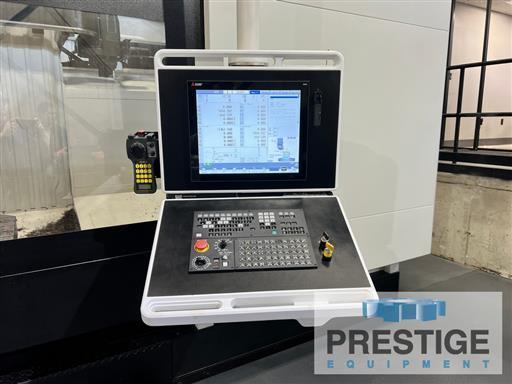

Mitsubishi M850W 6-Axis CNC Control
Wireless Handwheel

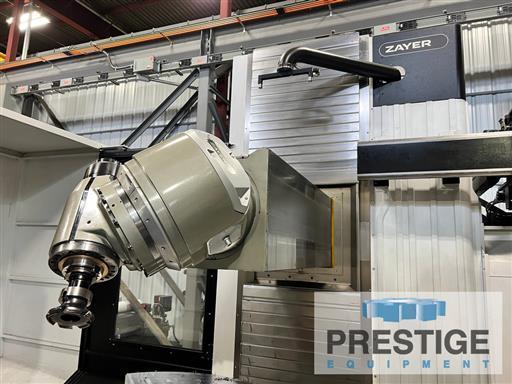

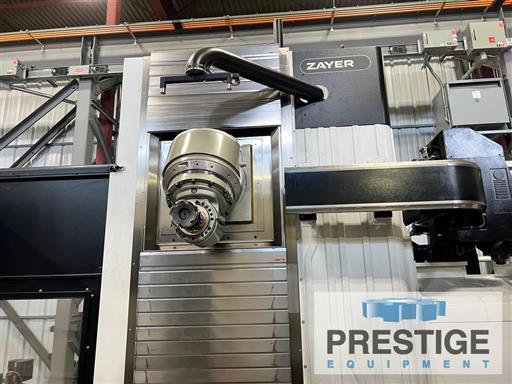

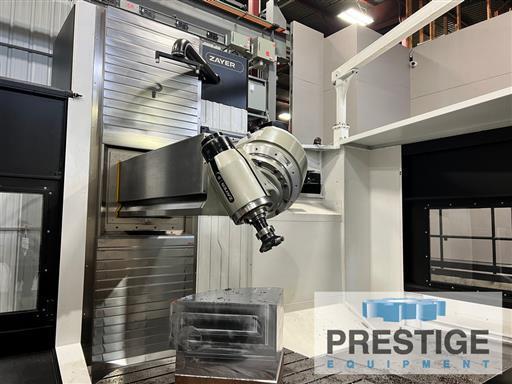

(No. 45) Full Continuous 2-Axis Universal Head
40-Station Automatic Tool Changer
Through Spindle Coolant, 6-37 Bar, 1000 PSI
Tool Pre-Setter & Part Probe

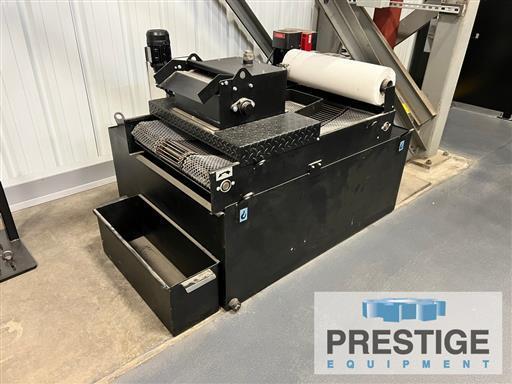

Dual Chip Conveyors

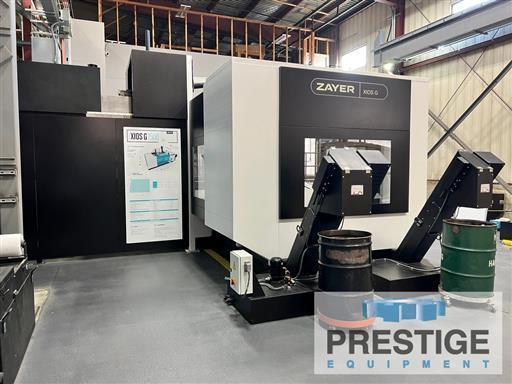

Chip & Splash Enclosure

Note:


Brand New, In-Stock In North America, Available Immediately!
Under Power for For Comprehensive Demonstration
Included:

Installation, Training & 1-Year Warrantee
Available at Additional Cost:

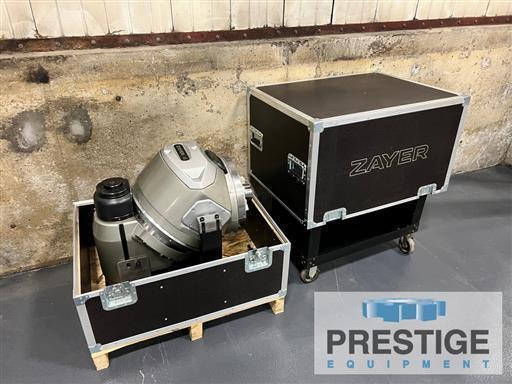

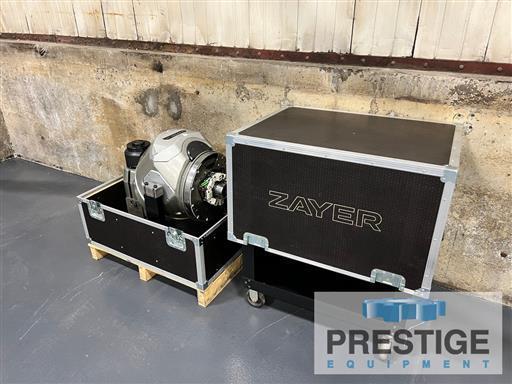

(No. 30) Full Continuous 2-Axis Universal Head
Call to Learn the Difference between the No. 30 & No. 45 Heads!
Both Heads Are In stock and Available Immediately!
