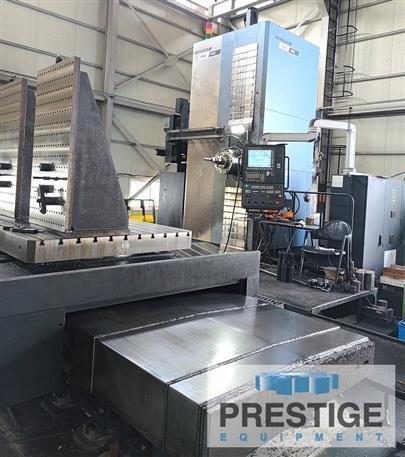

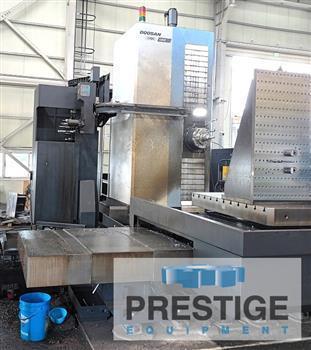

Doosan DBC-130II CNC Table Type Boring Mill

FFEATURES:

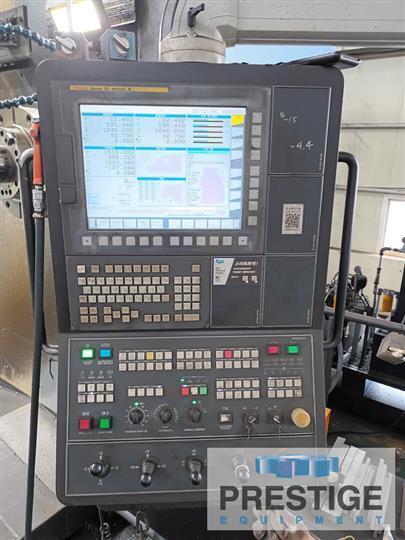

Fanuc 31iB 4-Axis CNC Control

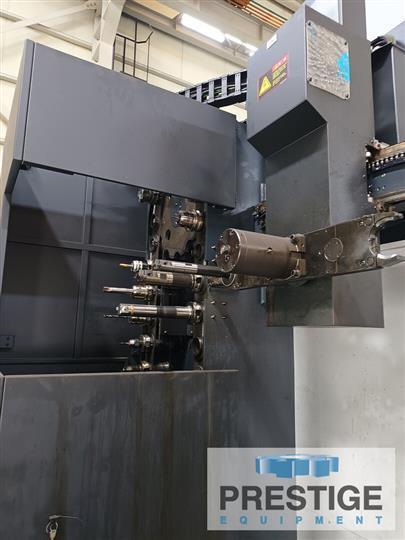

40 Station Automatic Tool Changer
B-Axis Contouring Rotary Table
Spindle Thru Coolant
CAPACITY:
Spindle Diameter 5.12"
Taper In Spindle #50
Vertical Headstock Travel,Y-Axis 78.74"
Table Cross Travel, X-Axis 118.11"
Spindle Travel, W-Axis 27.55"
Column Infeed Travel, Z-Axis 78.74"

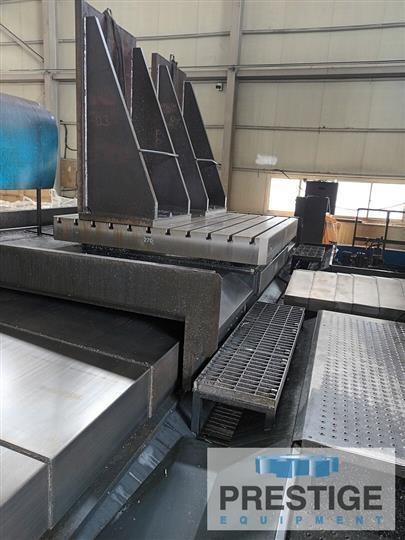

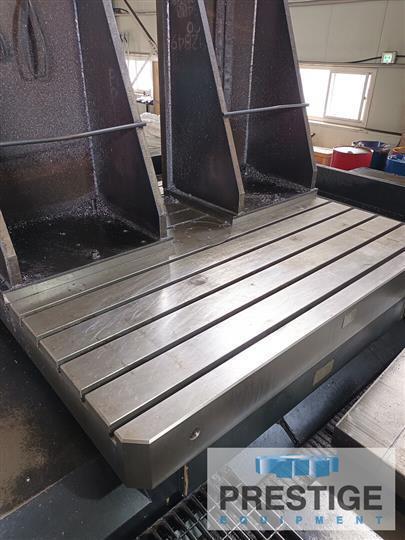

Table Size, B-Axis 78.74" x 70.86"
Rotary Table Weight Capacity 28,659 Lbs.
B-Axis Table Rotation 0.001 Degree
Spindle Speeds, MAx 3,000 RPM
Spindle Motor 30 HP / 35 HP
Rapid Traverse Rate 393.70 IPM
Cutting Feedrate 1-157.48 IPM
Overall Height 212.6"
Floor Space 307.1" x 370.1"
Estimated Machine Weight 110,231 Lbs



Equipped With:
Fanuc 31iB 4-Axis CNC Control
40 Station Automatic Tool Changer
B-Axis Contouring Rotary Table

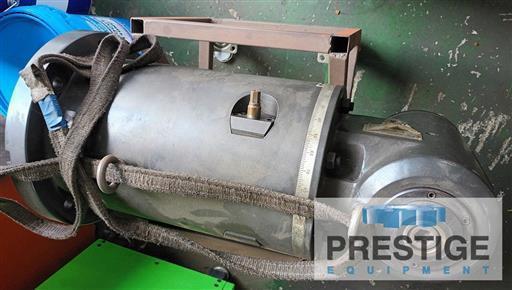

Right Angle Head Attachment
Way Covers
Spindle Thru Coolant
Chip Conveyor

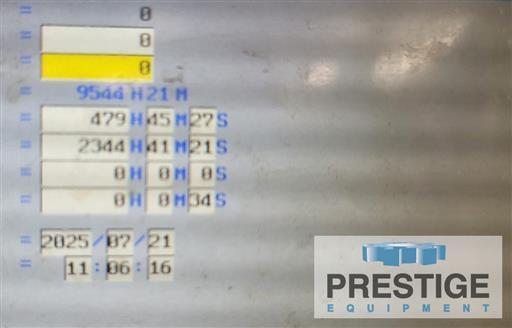

HOURS: Power On: 9,544
Cutting: 2,344


NOTE: Inspect Under Power
