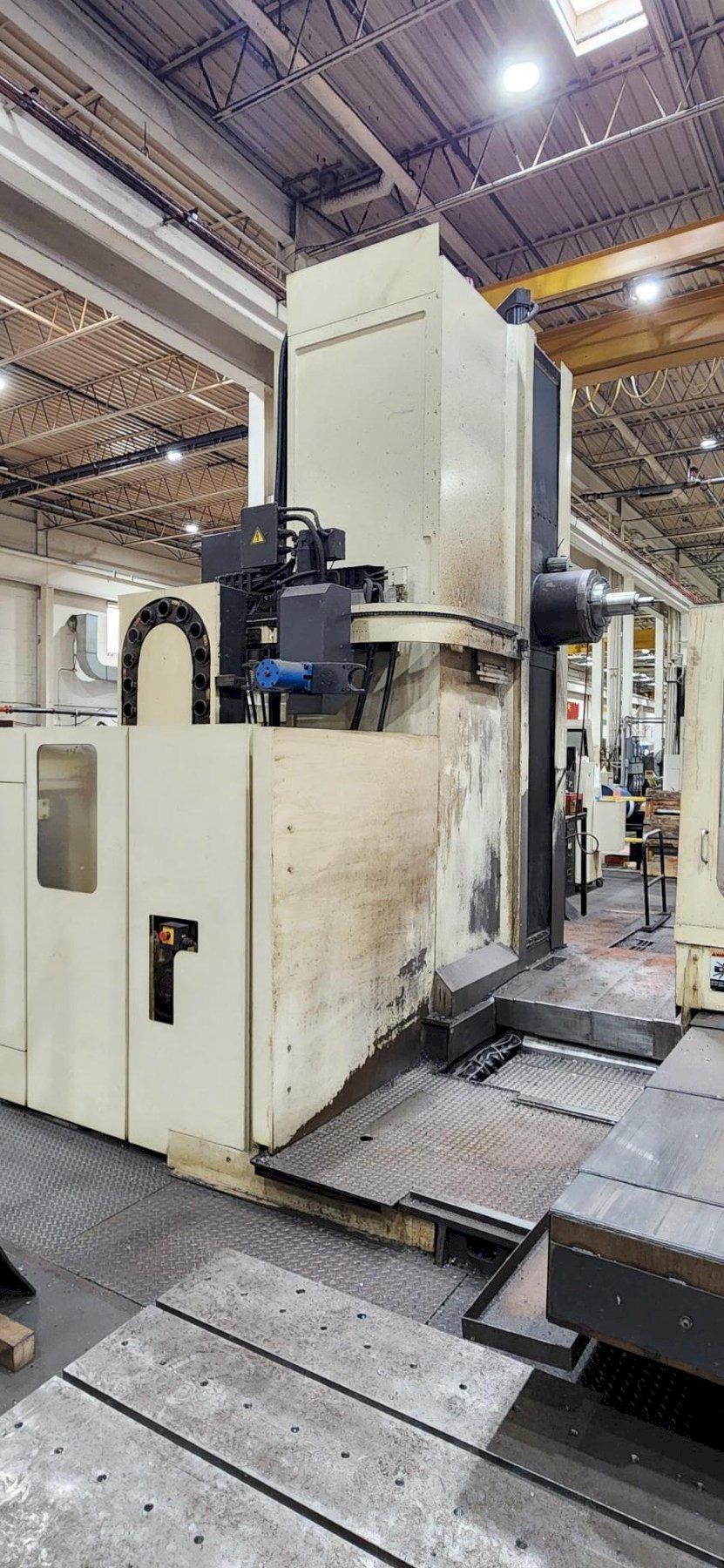

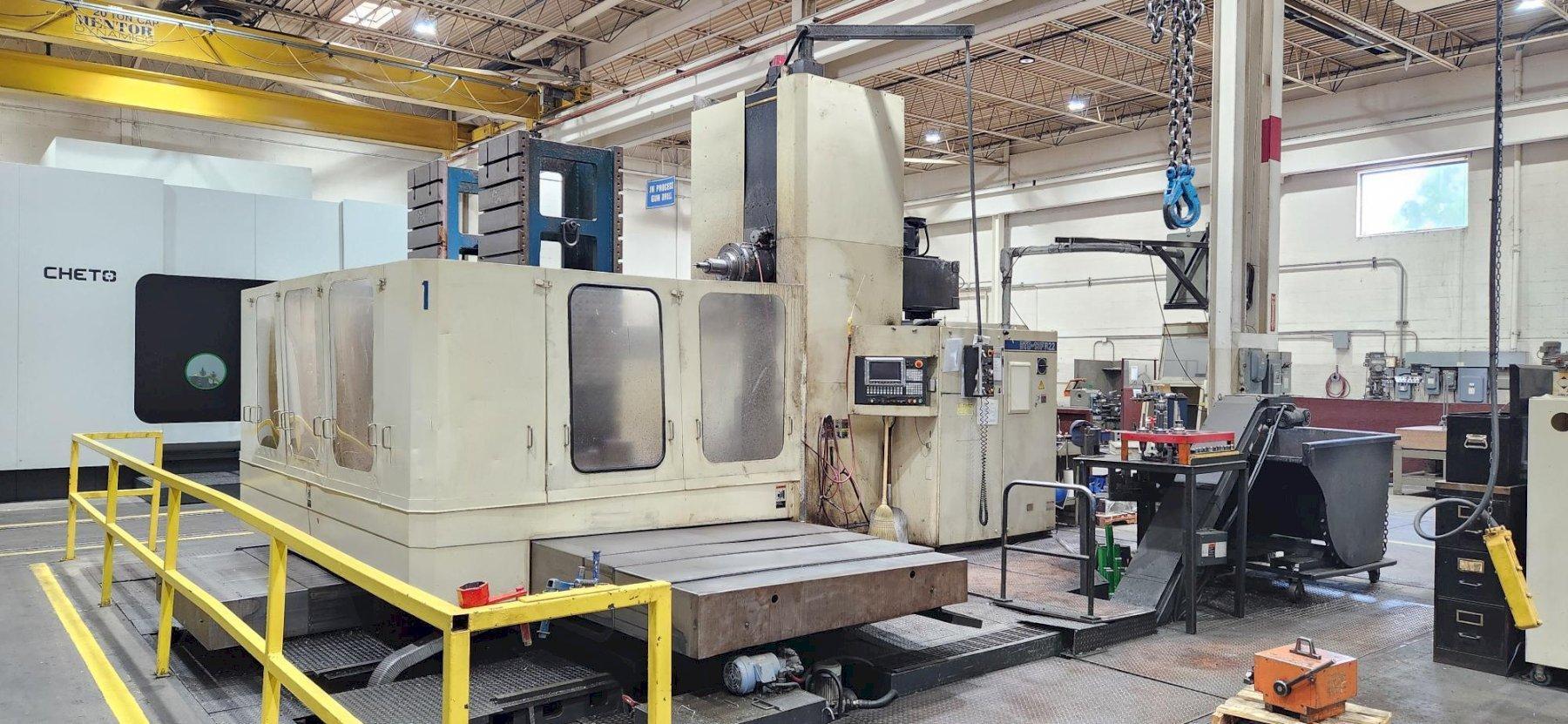

TOSHIBA BTD-13 FR22 CNC TABLE TYPE HORIZONTAL BORING MILL
Brand
Category
Model
BTD-13-FR22
Stock #
Not specified
Year
2007
Condition
Used
Location
Michigan
|
NEW-1997
SPINDLE DIAMETER....................................... 5.12" TRAVELS (X).................................................. 118.1"
(Y)................................................. 90.6" (VERTICAL)
(Z)................................................. 63"
(W)............................................... 27.56"
TABLE SIZE...................................................... 70.9" X 86.6"
TABLE LOAD CAPACITY............................. 40,000 LBS
TABLE INDEXING......................................... 0.001 DEGREE
SPINDLE TAPER........................................... CAT 50
SPINDLE SPEEDS........................................... 5-2500 RPM
SPINDLE MOTOR.......................................... 40/30 HP
CUTTING FEED............................................ 157 IPM
RAPID FEED.................................................. 394 IPM
EQUIPPED WITH:
TOSHIBA TOSNUC 888 CNC CONTROLLER
FULL 4TH AXIS ROTARY TABLE
COOLANT THRU SPINDLE
CHIP CONVEYOR
COOLANT SYSTEM

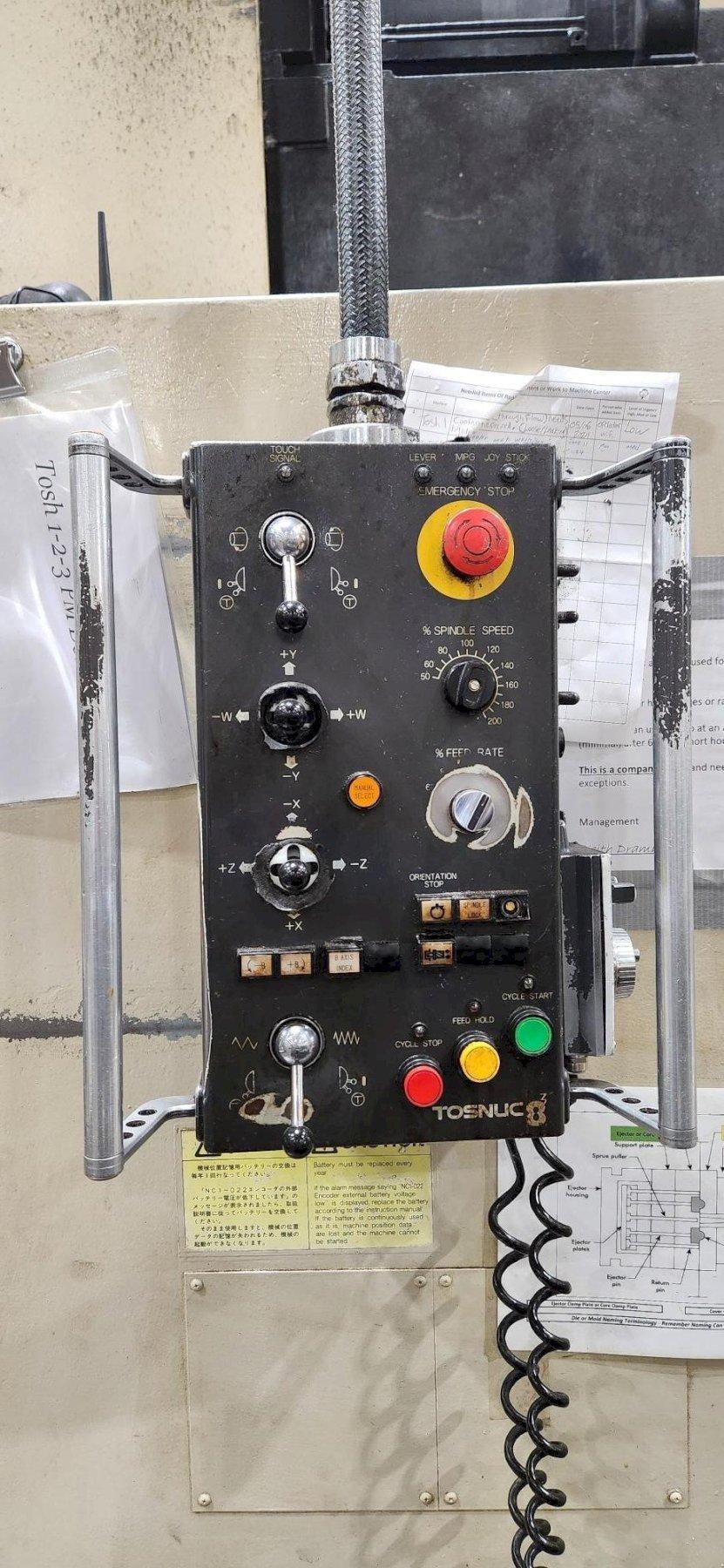

HAND PENDANT
TELESCOPING STEEL WAY COVERS
HARDENED WAYS |
