FPT Spirit CNC Floor Type Horizontal Boring & Milling Machine

SPECIFICATIONS:

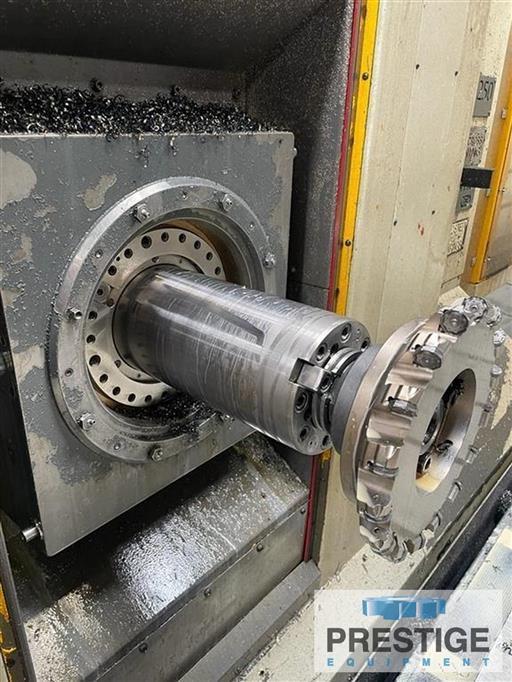

Spindle Diameter 6.3"
Spindle Taper #50 ISO
X-Axis Vertical Head Travel 236.22"
Y-Axis Vertical Head Travel 196.85"
Z-Axis Spindle Travel 59.05"

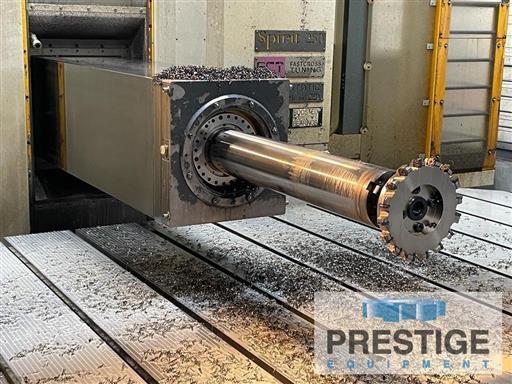

W-Axis Ram Travel 35.43"
Total Axial Travel, Ram & Spindle 94.48"
Spindle Speeds:
Spindle Motor 95.21 HP (71 KW)
Spindle Feeds 0.03937 to 196.85 IPM
Rapid Traverse , X, Y,& Z Axis

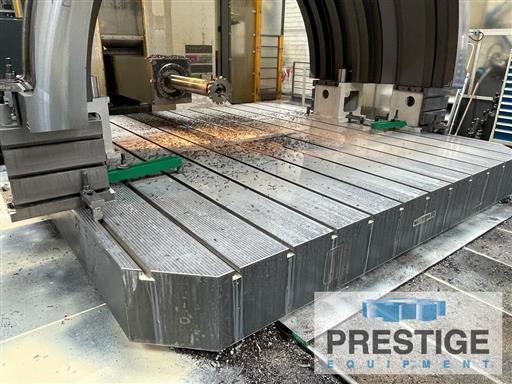

FPT B-AXIS CNC INFEEDING ROTARY TABLE:
Table Size 157.48" x 157.48"
V-Axis Table Infeed 59.05"
B-Axis Table Rotation 360,000 Positions
Table Weight Capacity 75 Tons



Equipped With:
Heidenhain TNC 530 CNC Controls

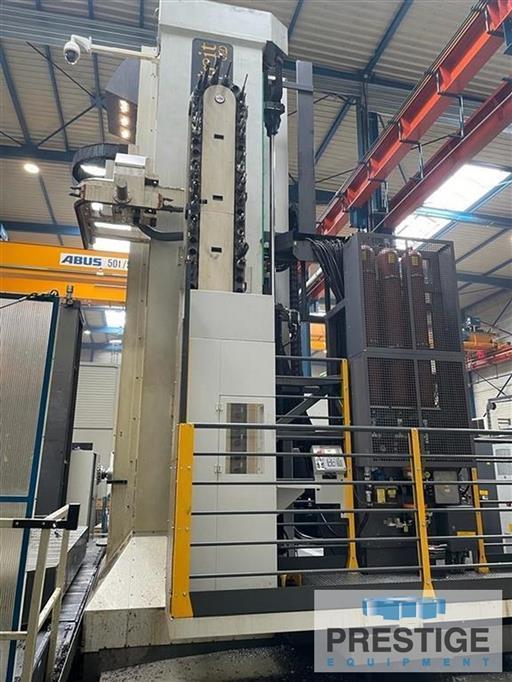

80 Station Automatic Tool Changer
157.48" x 157.48" B-Axis Infeeding Rotary Table
Automatic Head Changer

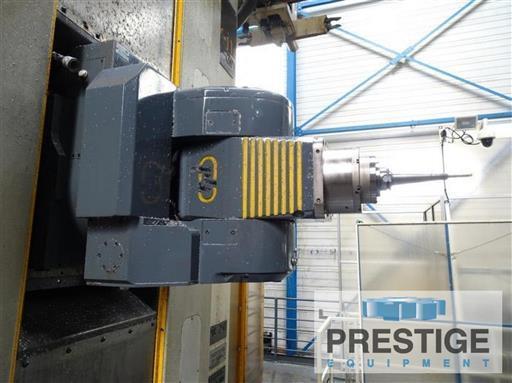

Universal Milling Head
Universal 5-Axis High Speed Milling Head
Renishaw Probe
Chip Conveyor
