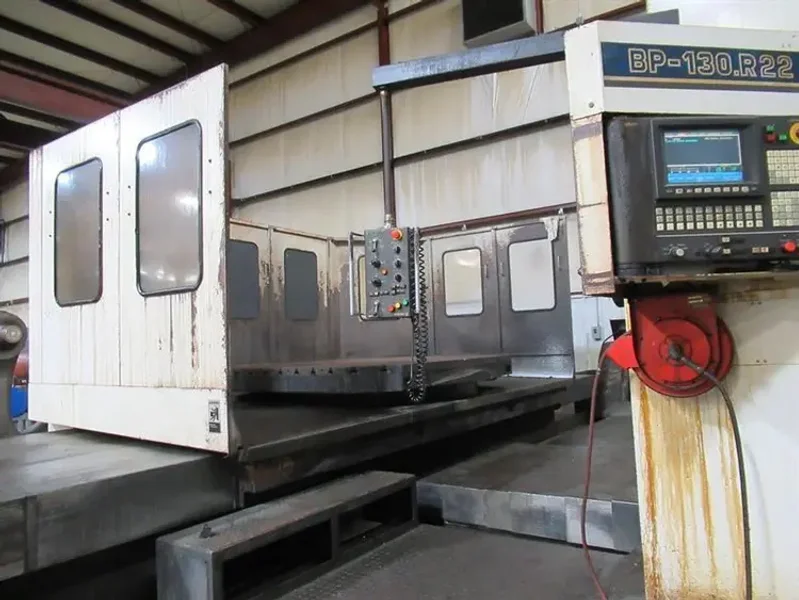

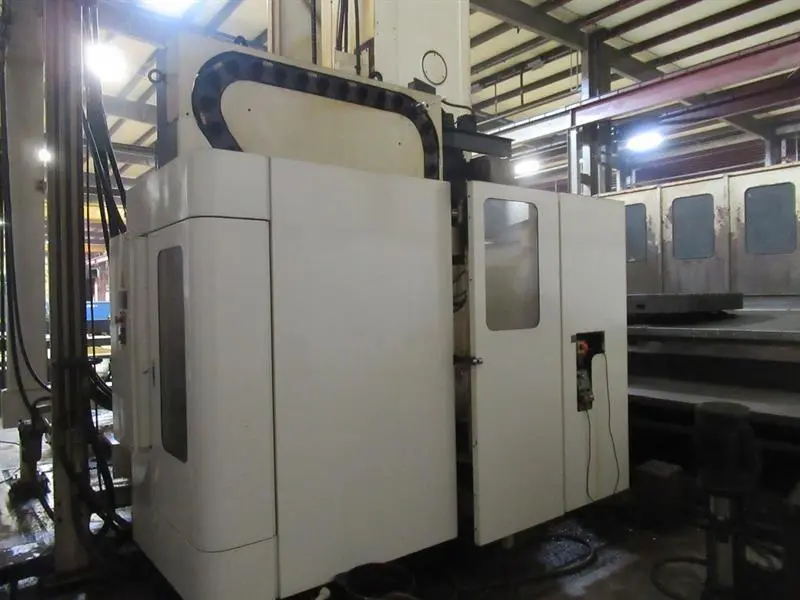

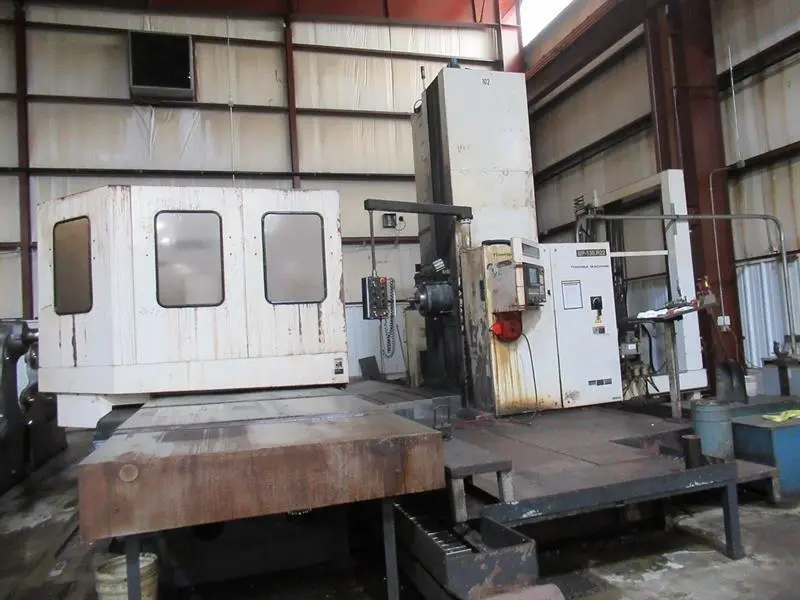

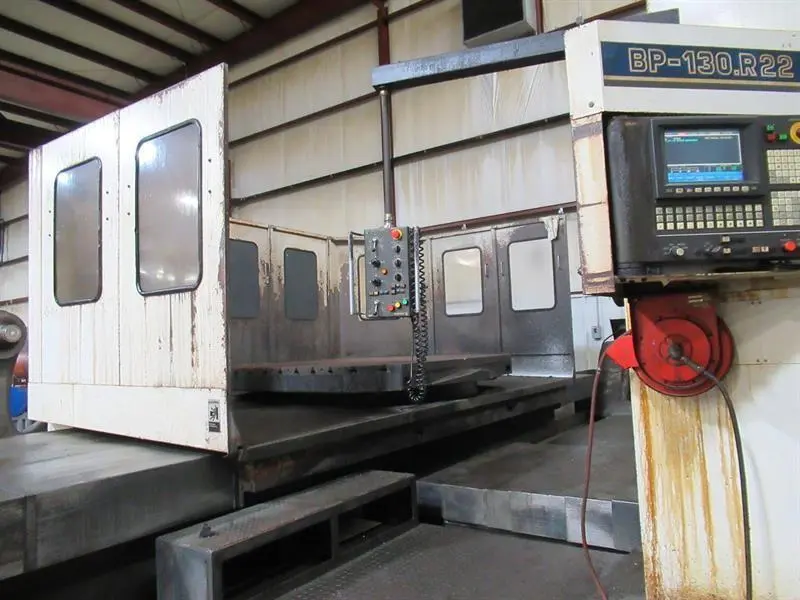

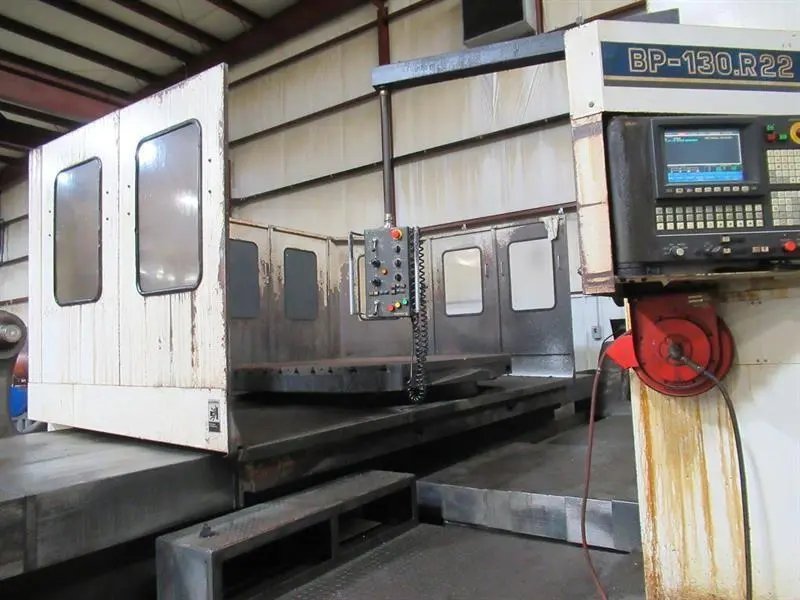

2005 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Floor Type

2005 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Floor Type

Name: 2005 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Floor Type
Brand: Toshiba
SKU: 33492
Availability: PreOrder

Brand

Toshiba

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Floor Type

Manufacturer:

TOSHIBA

Model:

BP-130.R22

Year:

2005

Stock #:

33492

Status:

For Sale

Description

Toshiba BP130.R22 5.1" CNC Horizontal Boring Mill - 2005

ImperialMetric

Spindle Size	5.1"	129.54 mm
X-Horiz Tvl of Col	160"	4,064 mm
Y-Vert Tvl of Head	100"	2,540 mm
Power	40 hp	29.8 kW
RPM	2,500 RPM	2,500 RPM
Table-W	70.9"	1,800.9 mm
Table-L	86.6"	2,199.6 mm
Z-Spdl Tvl	60"	1,524 mm
Weight	92000	92000

Toshiba BP130.R22 5.1” CNC 4-Axis Horizontal Boring Mill
New: 2005

Specifications:
Table Size 70.9" X 86.6"
Table Load Capacity 44,000
Spindle Diameter 5.1"
X - Axis Travel 160"
Y - Axis Travel 100"
Z - Axis Travel 60"
W - Axis Travel 27.5"
B - Axis Indexing .001 DEGREE
Spindle Speed 2500 RPM
Spindle Taper 50
Main Motor 40
Automatic Tool Changer 60 ATC
Tool Diameter 4.9", 9.4"
Tool Length 15.7"
Tool Weight 55 LBS.
Rapid Traverse X, Y, Z, W 394 IPM
Machine Weight 92,000 LBS

Equipped with

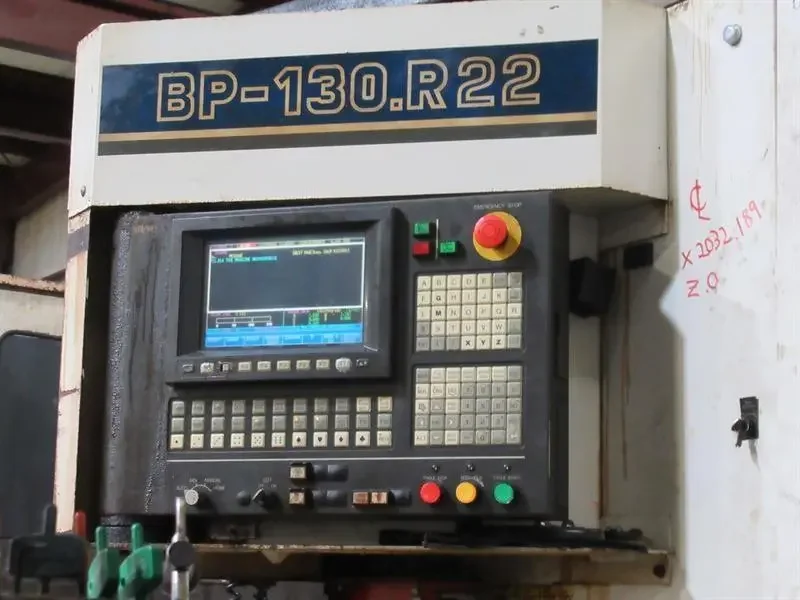

TOSNUC 888 CNC CONTROL
CHIP CONVEYOR
COOLANT THRU SPINDLE
FULL COOLANT GAURDING
FULL TABLE GUARDING
MANUAL RIGHT ANGLE HEAD ATTACHMENT
RENISHAW PROBE
SCALE FEEDBACK
X, Y, Z SPINDLE ORIENTATION
