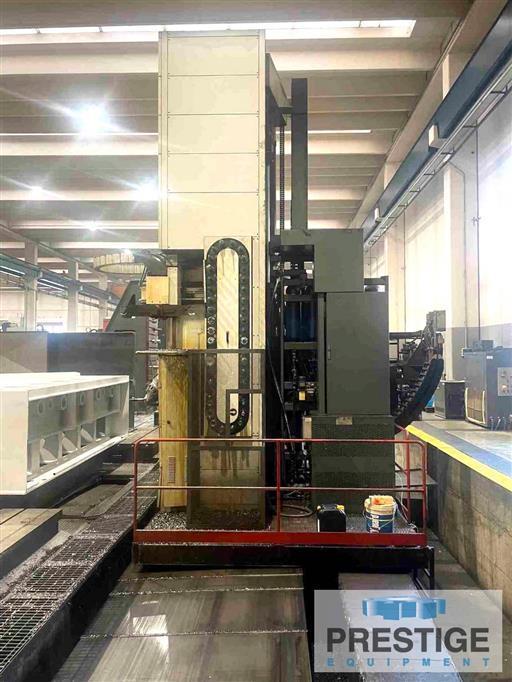

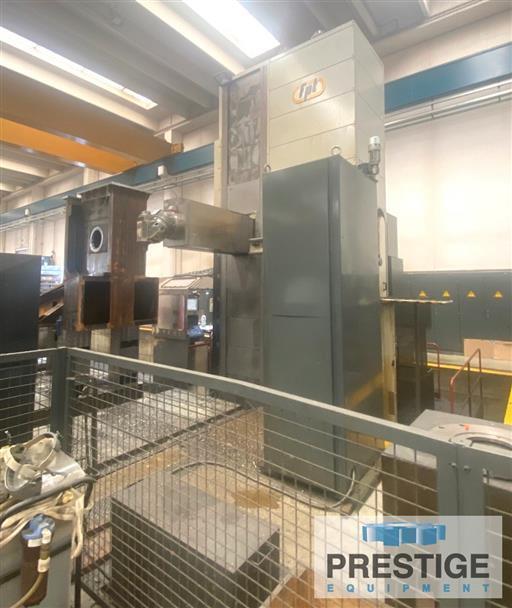

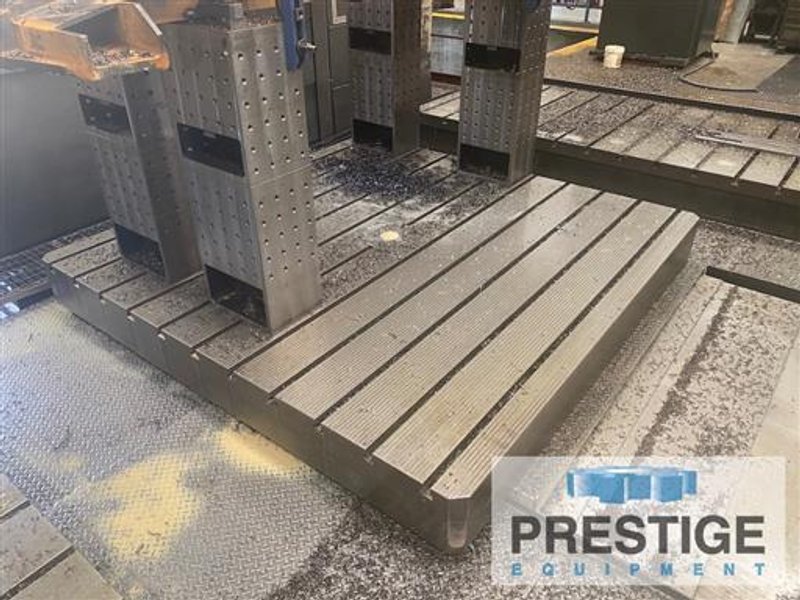

FPT M-ARX CNC Floor Type Horizontal Boring Mill with Ram & Quill

SPECIFICATIONS:
Y-Axis Vertical Head Travel............ 157.48" 157.48"
X-Axis Horizontal Column Travels 551.18"
W-Axis Ram Travel 59.05"
Z-Axis Quill Travel 35.43"
Combined Travel Ram & Quill 94.48"
Quill Diameter 6"
Spindle Taper #50 ISO
Spindle Motor 64.3 HP (48 KW)
Spindle Speeds 0-2500 RPM
FPT MODEL TRT25 B-AXIS INFEEDING ROTARY TABLE:
B-Axis Table Rotation 360,000 Positions
Table Size 98.42" x 98.42"
W-Axis Table Infeed 78.74"
Table Load Capacity 55,000 lbs



Equipped With:

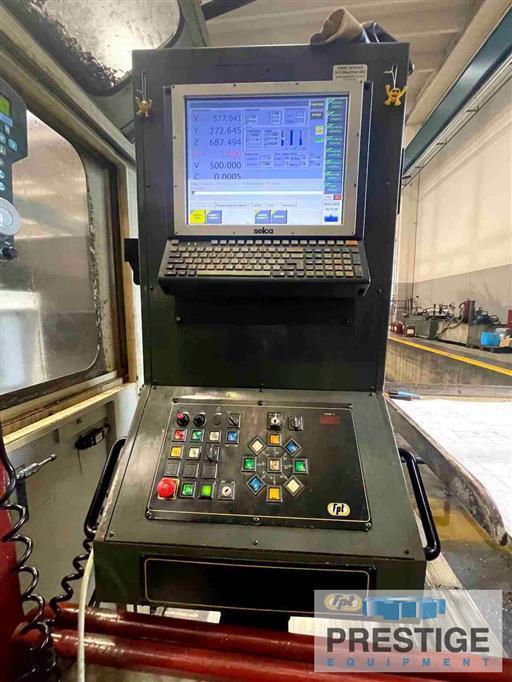

Heidenhain TNC 640 CNC Control, Prior to Shipment
40 Station Automatic Tool Changer
Operator's Platform
Attachment Pickup Station

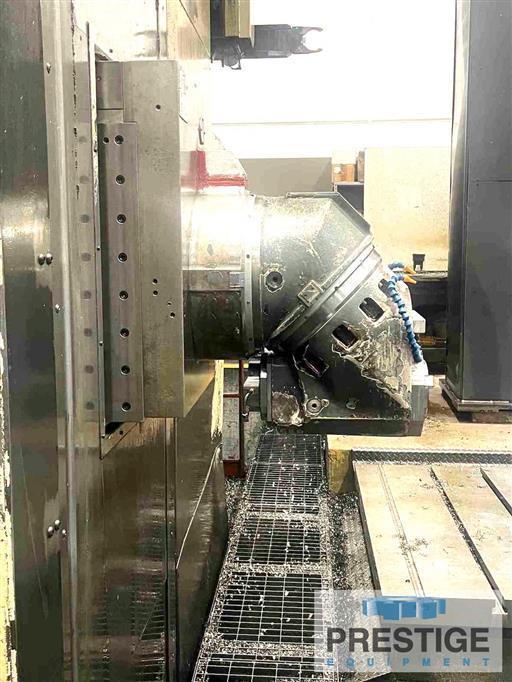

Bi-Rotary Universal Head
High Pressure Coolant

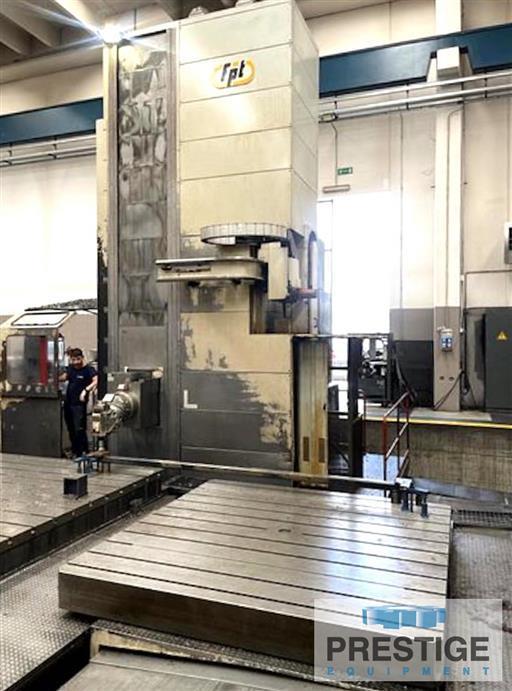

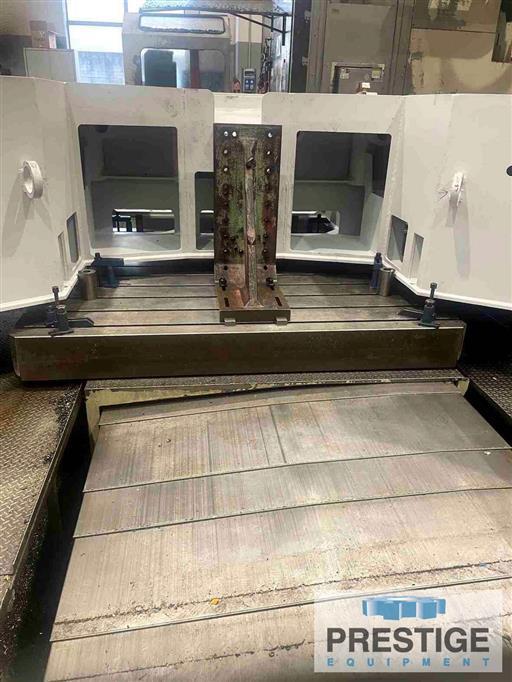

98.42" x 98.42" Infeeding 50 Ton Rotary Table
New Steel Way Covers on X-Axis
64 HP Spindle Drive Motor


Notes: Inspect In Plant Under Power, New Machine on the Way In.
