SPECIFICATIONS:

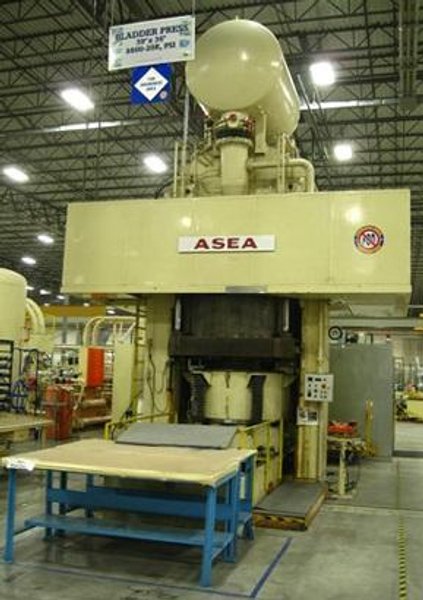

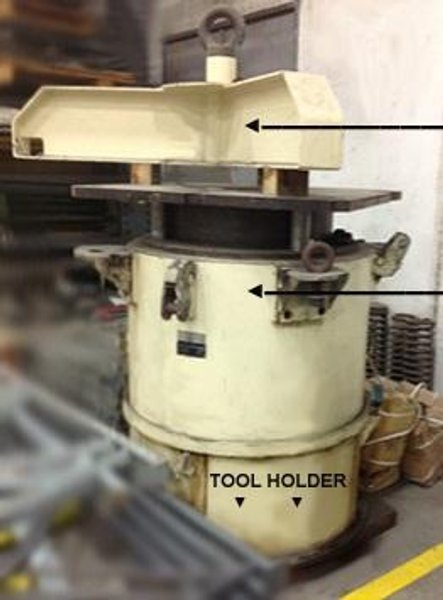

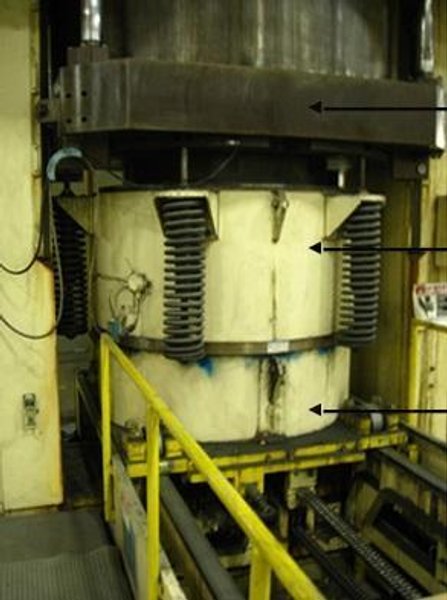

TWO FLUID FORM UNITS AVAIABLE WITH THIS PRESS
1st Fluid Form Unit =1120 mm
BLANK DIAMETER, Maximum 42.9" (1100 mm)
DRAW DEPTH, Maximum 12.3" (315 mm)
FORMING PRESSURE, Maximum 9,100 psi (63 MPa)
Tonnage 6,610
Nominal diameter...43.7" (1120 mm)
Outer diameter, cylinder 57.3" (1469 mm) Outer diameter, piston fastener. 68.6" (1760 mm) Height (unloaded) 39" (1000 mm)
Total weight 18,743 lbs. (8500 kg) Oil volume 108 US gal.
2nd Fluid Form Unit =1120 mm
BLANK DIAMETER, Maximum 26.9" (710 mm)
DRAW DEPTH, Maximum 12.3" (315 mm)
FORMING PRESSURE, Maximum 23,200 psi (160 MPa)
Tonnage 6,930
Nominal diameter 27.7" (710 mm)
Outer diameter, cylinder 43.5" (1115 mm) Outer diameter, piston fastener 42.9" sq (1100 mm) square
Height (unloaded 39" (1000 mm)
Total weight 10,584 lbs. (4800 kg) Oil volume 39.6 US gal. Type of
Oil Castor oil 1172-1011-106
SPEED of OPERATION SEQUENCE (Hydroforming)
AUTO MODE: Mobile Table in to press (Fast & Slow). Press (Advance, Press Speed, Inching
Speed, Hold Time, Decompression, Return) Mobile Table to Charging Stat. (Table Out Fast & Slow).
FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14 mm/s. Return 144 mm/s.
MEDIUM SPEED: Advance 44 mm/s. Press Speed 1,05 mm/s. Inching Speed 0,14mm/s. Return 92 mm/s.
SLOW SPEED: Advance 5,6 mm/s. Press Speed 0,14 mm/s. Return 11,77mm/s.
INCH MODE: Mobile Table in to press (Fast & Slow).
Press (Advance, & Return) Mobile Table to Charging Stat (Table Out Fast / Slow). Ejector Cylinder Up / Down. FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14 mm/s. Return 144 mm/s.
MEDIUM SPEED: Advance 44 mm/s. Press Speed 1,05 mm/s. Inching Speed 0,14mm/s. Return 92 mm/s.
SLOW SPEED: Advance 5,6 mm/s. Press Speed 0,14 mm/s. Return 11,77mm/s.
SERVICE MODE: Mobile Table in to press (Slow). Press (Advance, & Return).
Mobile Table to Charging
State (Table Out Slow). Ejector Cylinder Up / Down.
FAST SPEED: Advance 144 mm/s. Press Speed 2,7 mm/s. Inching Speed 0,14mm/s. Return 144 mm/s.

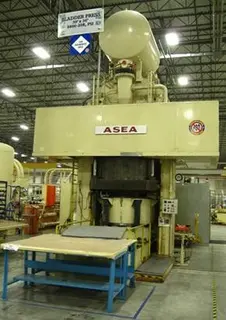

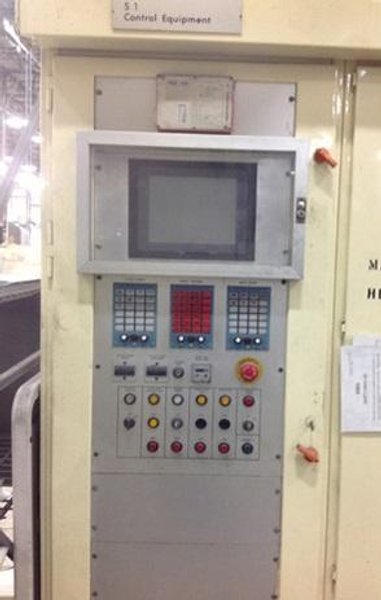

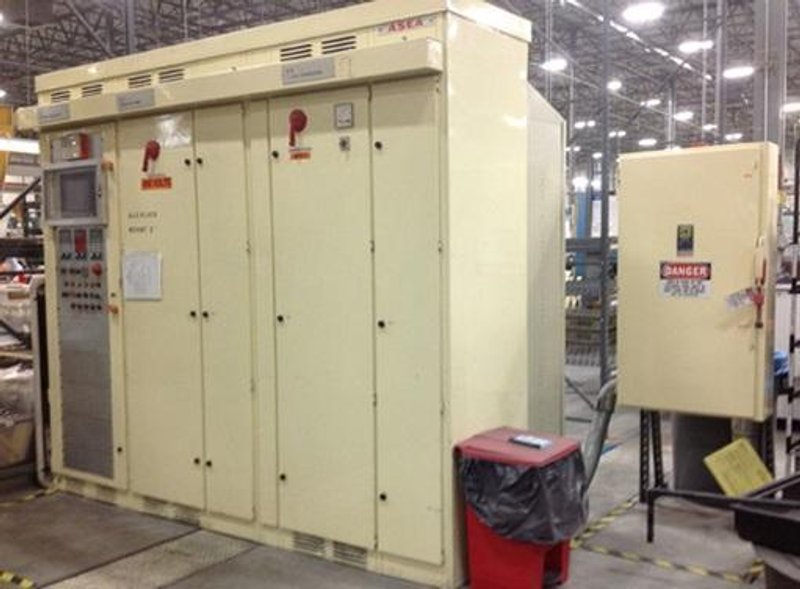

CONTROLS: Located on and with-in MAIN ELECTRICAL CONTROL CABINET: CRT. Circuit Breaker, Relays,
Contactors. Fault Signal System, Indication Signal Indicators, Annunciator Panels, Cycle
Counter and Timers, Press Command - Function Push Buttons, Pump Motors Start - Stop
Buttons, Press Operation Selector Switches, Emergency Stop Button.
OPERATOR MOBIL PUSH BUTTON CONTROL STATION with: Dual Hand Cycle Start
Push Buttons,
Start - Stop Buttons and Emergency Stop Button.

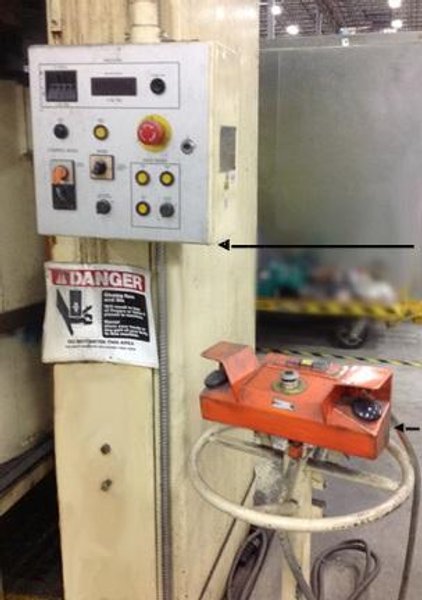

Located on PRESS: CONTROL PANEL FOR PRESSURE: Pressure Gauge. Pressure Set Dial, Pressure
Display, Calibration Button. Ready Auto Button. Ready Inch Button.
CONTROL MODE SWITCH: Inch/Auto. SPEED SWITCH: Slow / Medium / Fast.
AUTO MODE Table not out and On switch. INCH MODE BUTTONS for: Table In/Out, Press Up, Ejection Up/Down Switch.
EMERGENCY STOP BUTTON. PRESSURE SET DIAL.
EQUIPPED WITH:
1-Mobil Tool Table.
1-Operator Mobil Control Station. Operation and Part
Manuals, PC Program.
1-Disconnect Switch.
MOTOR DRIVE: Wired 460volts, 3 phase
Main Hydraulic Pump 146 hp (108 kw) 460 volts
Mobil Table Pump 17 hp. (13 kw) 460 volts
Filter & Coolant Pump 4.7 hp (3.5 kw) 460 volts

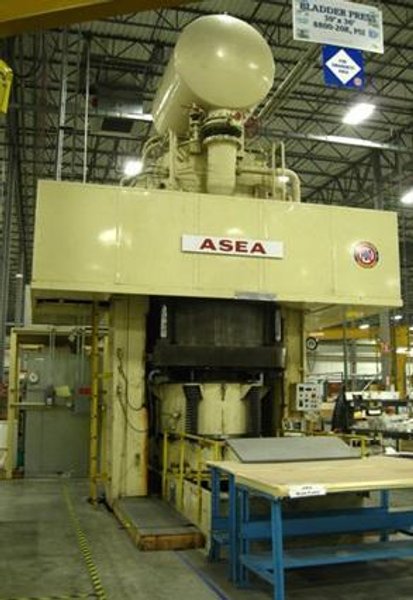

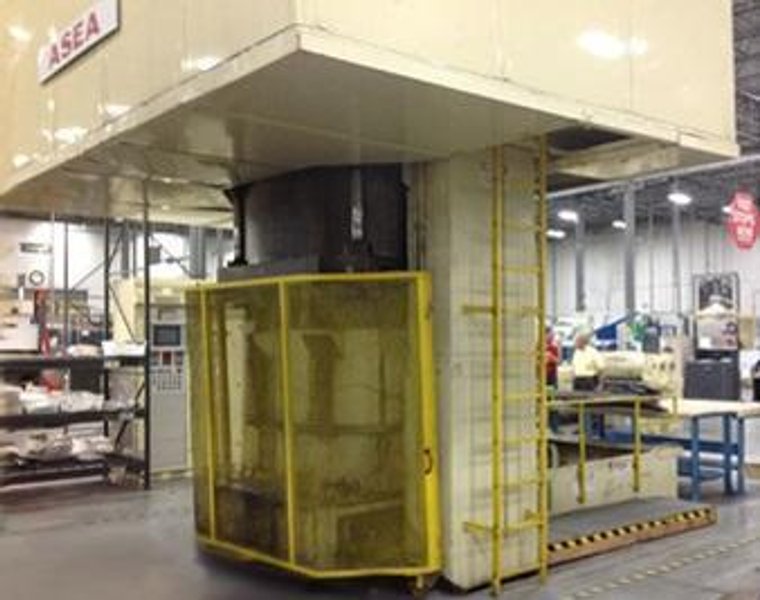

COMPLETE FACTORY SAFETY GUARDS
Dimensions Height above ground 281.6" (7150.1mm) Below ground 37" (939.8mm)
Total over-all 331" (8407.4mm)Ht. x 205" (5207mm) F-B x 103.3"
(2623.82mm)
Frame (192" (4876.8mm) L-R with Catwalk)
Weight Press 242,500 lbs. Weight Tool Table 22,100 lbs..
|
