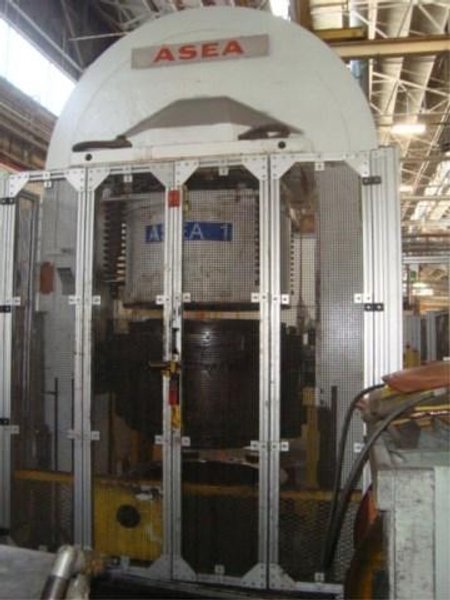

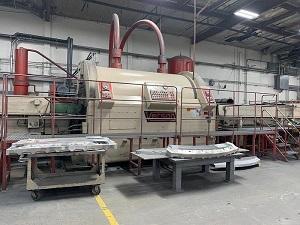

AVURE (ASEA) QUINTUS FLUID CELL FORMING PRESS

AVURE (ASEA) QUINTUS FLUID CELL FORMING PRESS

Brand

AVURE

Category

Presses (Stamping)

Type

Presses, Fluid Forming

Model

QRF-40

Stock #

114475

Year

Not specified

Condition

Used

Location

Not specified

Specifications
Files & Videos

Link to our website listing

http://uen.hsix.com/q/webinv/005700=x,114475

AVURE (ASEA) QUINTUS FLUID CELL FORMING PRESS

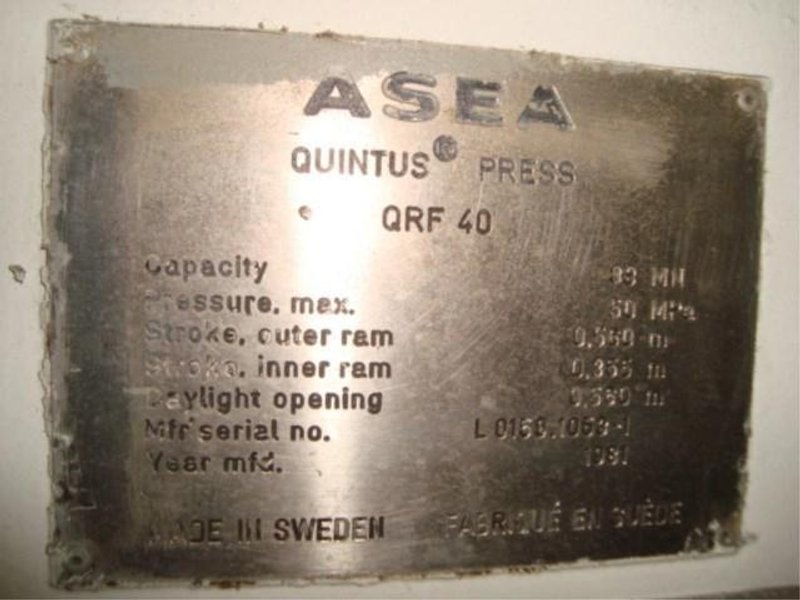

Model QRF-40, Deep Draw Cavity Die Forming Press Serial Number L0159.1053-1

SPECIFICATIONS:
CAPACITY .......... 38 MN FLUID FORM UNIT: O = 800 mm
NOMINAL DIAMETER ....... 30.63" (778 mm)
OUTER DIAMETER .......... 44.09448" (1120 mm)
HEIGHT (UNLOADED) ....... 34.80" (884 mm)
MAXIMUM RECOMMENDED BLANK DIA. ......29.92" (760 mm)
MAXIMUM DRAW DEPTH ............ 13.976 (355 mm)
MAXIMUM FORMING PRESSURE AT 38mn ......10,877.83 psi (75MPa)
POUNDS / SQUARE FOOT ............ 7,252 TONS

Total weight 11,905 lbs. (5400 kg)
Oil volume 160 1

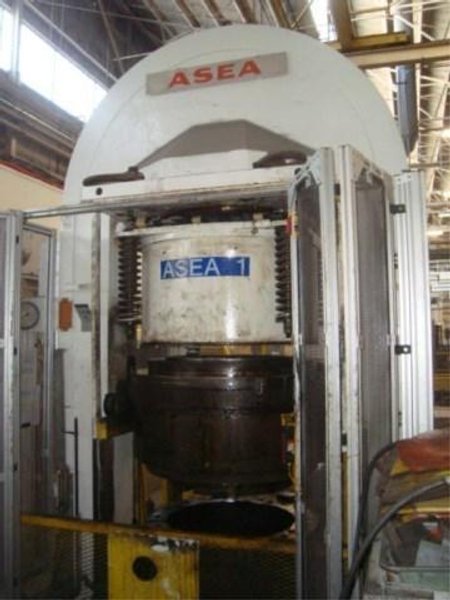

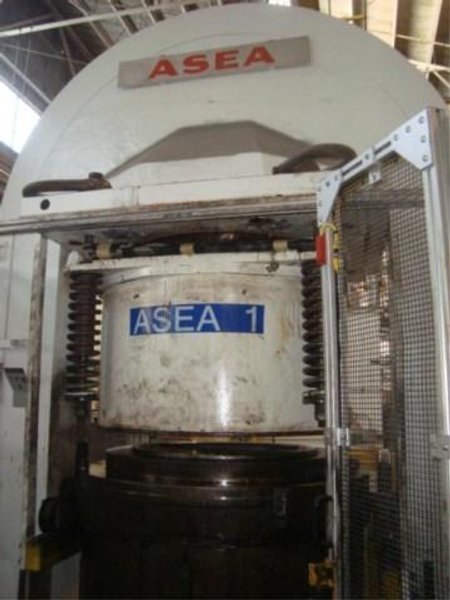

CYLINDER and RAM
Height (Retracted) ........ 41.73" (1060 mm)
Width ..................... 38.98" (990mm)
Maximum hydraulic pressure ...... 7,251.886 psi (50 MPa)
Maximum Force, Outer Ram ........ 38MN
Outer Ram ....................... 22.05" (560mm)
Inner Ram ....................... 13.976" (355MM)

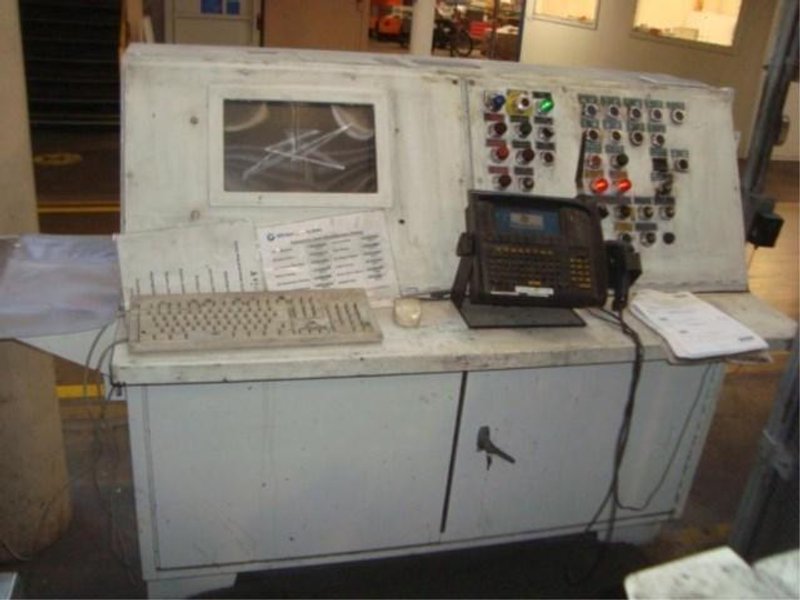

CONTROLS: Located on and with-in

ELECTRICAL OPERATOR CONTROL CABINET: CRT. Circuit Breaker, Relays, Contactors,
Fault Signal System, Indication Signal Indicators, Annunciator Panels, Cycle
Counter and Timers, Press Command - Function Push Buttons, Pump Motors Start -
Stop Buttons, Press Operation Selector Switches, Emergency Stop Button.

OPERATOR MOBIL PUSH BUTTON CONTROL STATION with: Dual Hand Cycle Start Push

Buttons, Start - Stop Buttons and Emergency Stop Button.

EQUIPPED WITH:
1- Operator Mobil Control Station with Dual hand cycle start push buttons,
Start & Emergency Stop Button 1- Control Station with Program Keyboard, CRT &
Push Button Controls PC. 1- Kaza Barcode Scanner System. SAFTEY ENCLOSURE:
Point of Operation, Right & Left Side and Rear Enclosure, with Light Curtain.
MOTOR DRIVE: Wired 460 volts, 3 phase
Main Hydraulic Pump... 197.15 hp (145 kw) 460 volts.
Circulating Pump... 7.5 hp (5.5 kw) 460 volts
Pilot Pump .... 10.2 hp (7.5 kw) 460 volts

COMPLETE FACTORY SAFETY GUARDS

TYPE OF FORMING: with cylinder and ram system.
Cavity die forming.
Male die forming

Expansion drawing or bulging.
Punch drawing.
Negative punch drawing.

Dimensions: Over-all Height 21'-7" (6,429mm) Total Width 7'-06" (2,150mm)
Total Depth 11'-6" (3,545) Weight Press 127,868.12 lbs. (58,000 kg) Press
Frame: Height retracted 41" (6429 mm). Width 84.7" (2150 mm). Depth & Daylight
width 37.402" (950 mm). Daylight Column height (length) 22.05" (560 mm), Net
weight 54,572.33 lbs. (24,300 kg.) Cylinder & Ram Weight 48,281.24 lbs.
(21,900 kg.) Outer Ram weight 6,172.94 lbs. (2,800 kg.) Inner Ram weight
8,818.49 lbs. (4000 kg.), Guiding Wheel Holder weight ) 6,613.9 lbs. (3000kg.)
