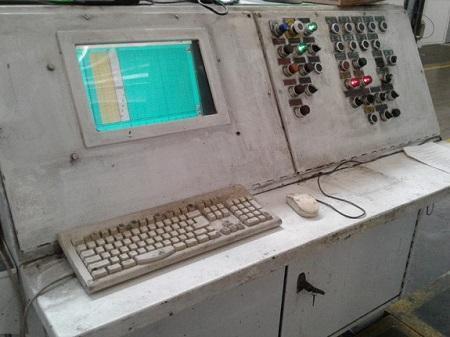

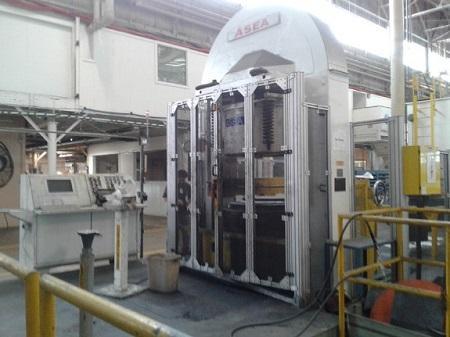

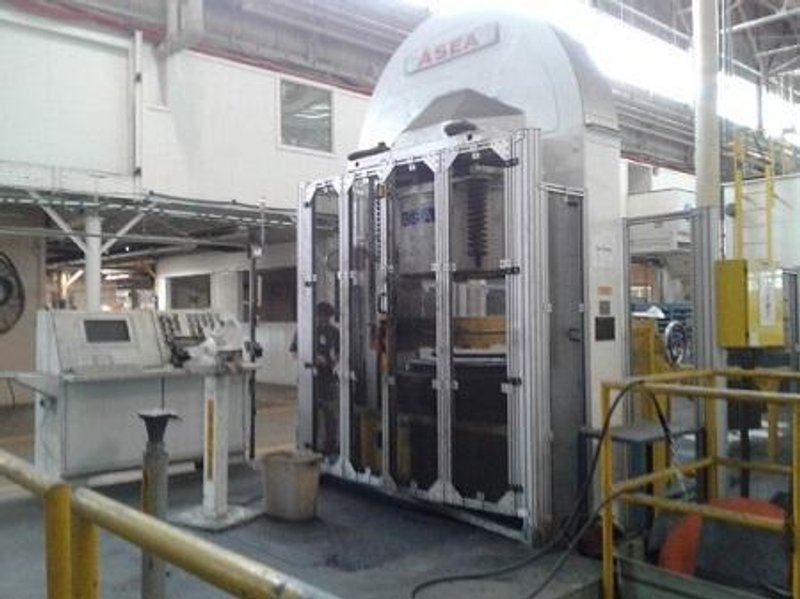

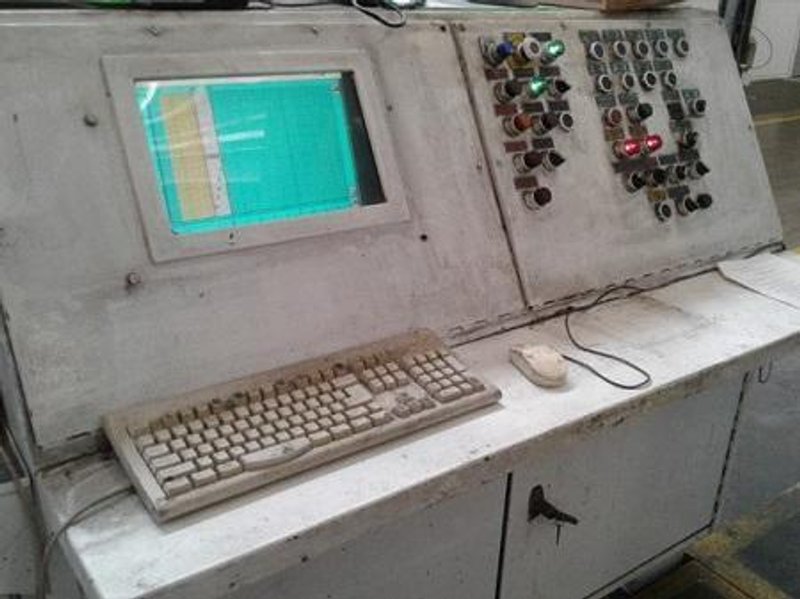

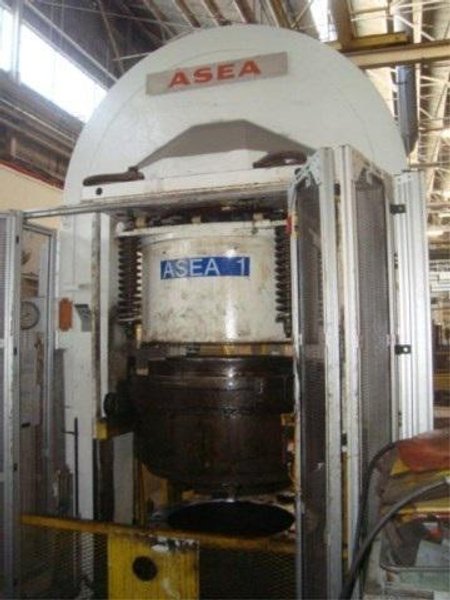

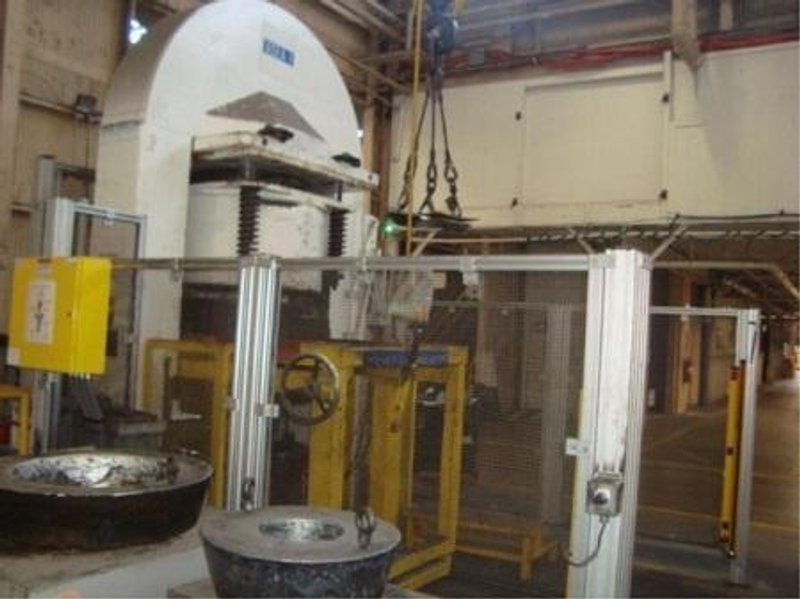

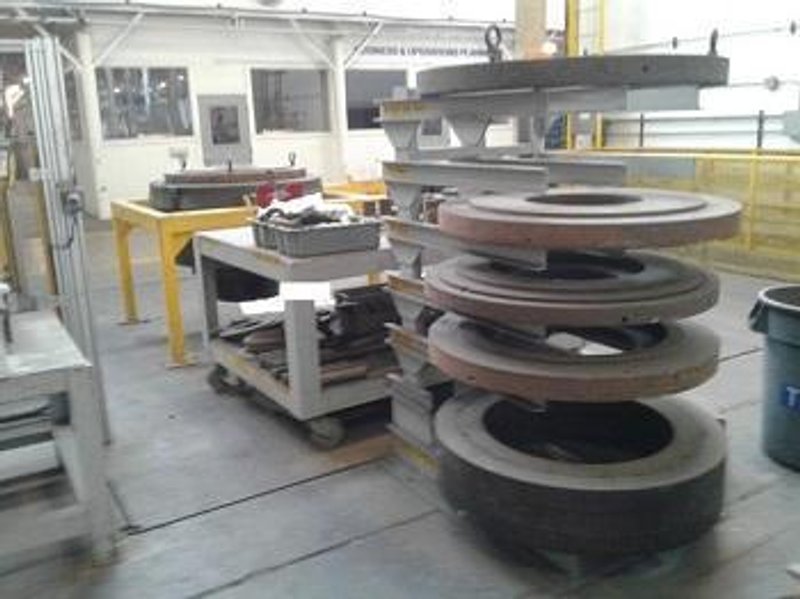

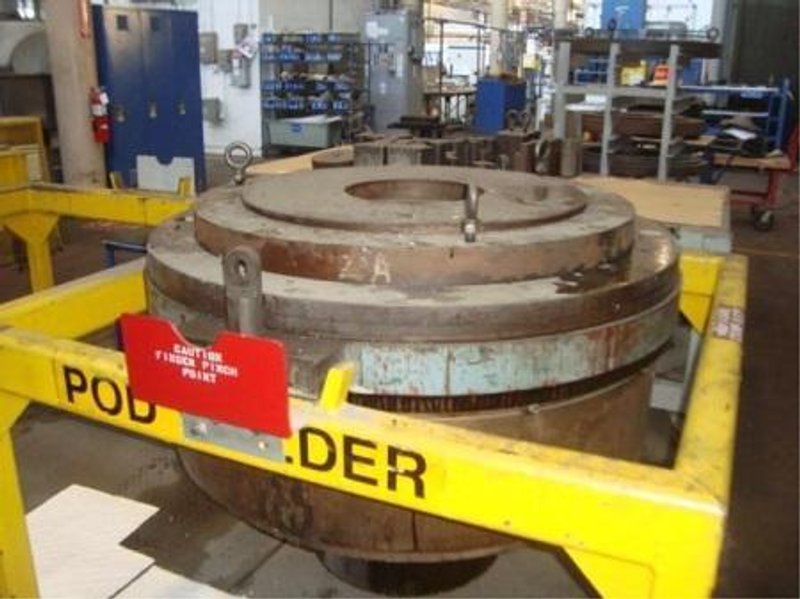

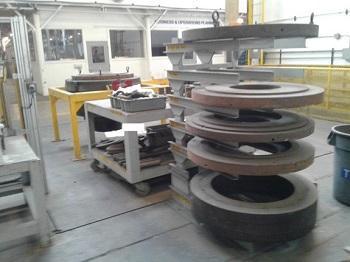

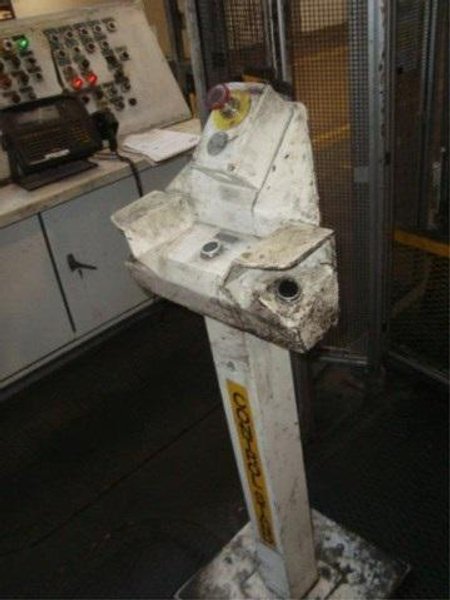

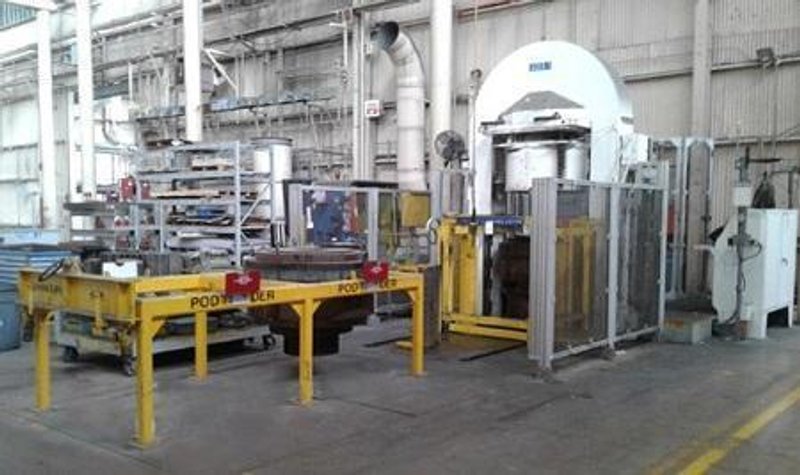

AVURE (ASEA) QUINTUS FLUID CELL FORMING PRESS Model QRF-40, Deep Draw Cavity Die Forming Press Serial Number L0159.1053-1 SPECIFICATIONS: CAPACITY........ 38 MN FLUID FORM UNIT: O = 800 mm BLANK DIAMETER, (DIE) Nominal diameter ....... 30.63" (778 mm) Outer diameter ........... 44.09448" (1120 mm) Height (unloaded) ...... 34.80" (884 mm) Maximum recommended Blank Diameter ... 29.92" (760 mm)| Maximum Draw Depth ..... 13.976 (355 mm) Maximum Forming Pressure at 38 MN .... 10,877.83 psi. (75MPa) 50 MPa = 1,566,407.567 Pounds /Square Foot = Tonnage.................................... 7,252 Tons Total weight 11,905 lbs. (5400 kg) Oil volume 160 1 CYLINDER and RAM: Height (Retracted) ..................... 41.73" (1060 mm) Width ............... 38.98" (990 mm) Maximum Hydraulic Pressure .......... 7,251.8867 psi (50 MPa) Maximum Force, Outer Ram . .......... 38MN Stroke Outer Ram ...................................... 22.05" (560 mm) Stroke, Inner Ram ................. 13.976" (355 mm) CONTROLS: Located on and with-in MAIN ELECTRICAL OPERATOR CONTROL CABINET: CRT. Circuit Breaker, Relays, Contactors, Fault Signal System, Indication Signal Indicators, Annunciator Panels, Cycle Counter and Timers, Press Command - Function Push Buttons, Pump Motors Start - Stop Buttons, Press Operation Selector Switches, Emergency Stop Button. OPERATOR MOBIL PUSH BUTTON CONTROL STATION with: Dual Hand Cycle Start Push Buttons, Start - Stop Buttons and Emergency Stop Button. EQUIPPED WITH: 1- Operator Mobil Control Station with Dual hand cycle start push buttons, Start & Emergency Stop Button 1- Control Station with Program Keyboard, CRT & Push Button Controls PC. (2nd) Tool Holder Pod. 1- Pod Manipulator Loader, Pod Storage Misc. 12" thru 30" Tool Rings w/ Storage Rack & Special Rings, 1- Cabinet filled with repair parts and supplies. 1-Lot Misc. Set up Table with set up parts. SAFETY ENCLOSURE: Point of Operation, Right & Left Side and Rear Enclosure, with Light Curtain. OPERATION MANUAL, MECHANICAL MAINTENANCE MANUALS, ELECTRICAL HYDRAULIC & PART MANUALS & FOUNDATION DRAWINGS MOTOR DRIVE: Wired 460 volts, 3 phase Main Hydraulic Pump... 197.15 hp (145 kw) 460 volts. Circulating pump ........7.5 hp. (5.5 kw) 460 volts. Pilot Pump ............. 10.2 hp (7.5 kw) 460 volts. COMPLETE FACTORY SAFETY GUARDS TYPE OF FORMING: With Cylinder and Ram system. Cavity die forming. Male die forming Expansion drawing or bulging. Punch drawing. Negative punch drawing. Dimensions: Over-all Height 21'-7" (6,429mm) Total Width 7'-06" (2,150mm) Total Depth 11'-6" (3,545) Total size & weight does not include Safety Enclosure Weight Press 127,868lbs. (58,000 kg) Press Frame: Height retracted 41" (6429 mm) Width 84.7" (2150 mm). Depth & Daylight width 37.402" (950 mm) Daylight Column height (length) 22.05" (560 mm) Net weight 54,572.33 lbs. (24,300 kg.) Cylinder & Ram Weight 48,281.24 lbs. (21,900 kg.) Outer Ram weight 6,172.94 lbs. (2,800 kg.) Inner Ram weight 8,818.49 lbs. (4000 Kg.) Guiding Wheel Holder weight 6,613.9 lbs. (3000 kg.) |
