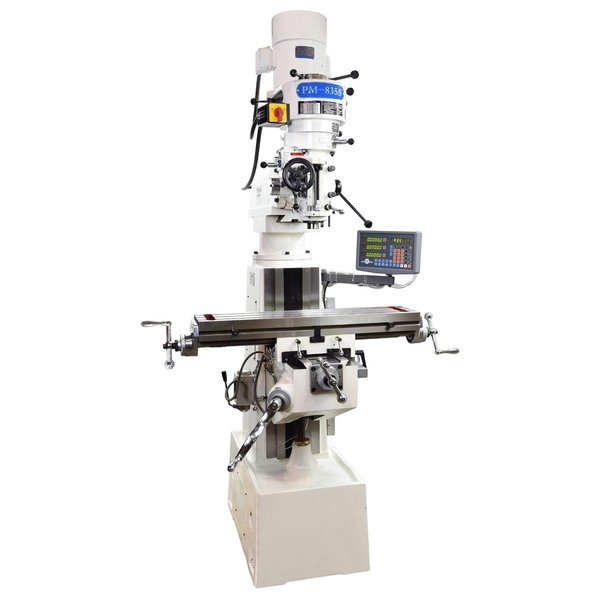

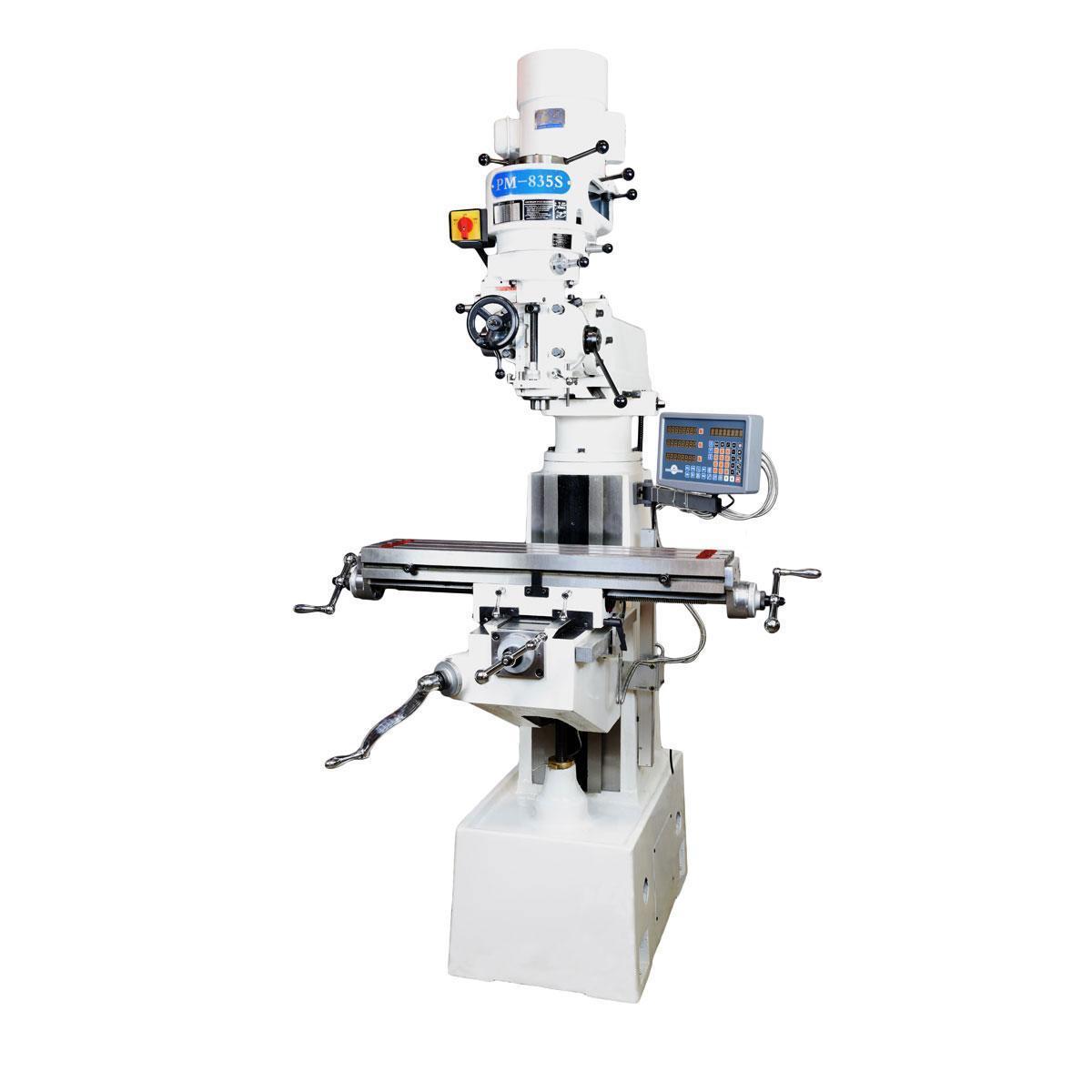

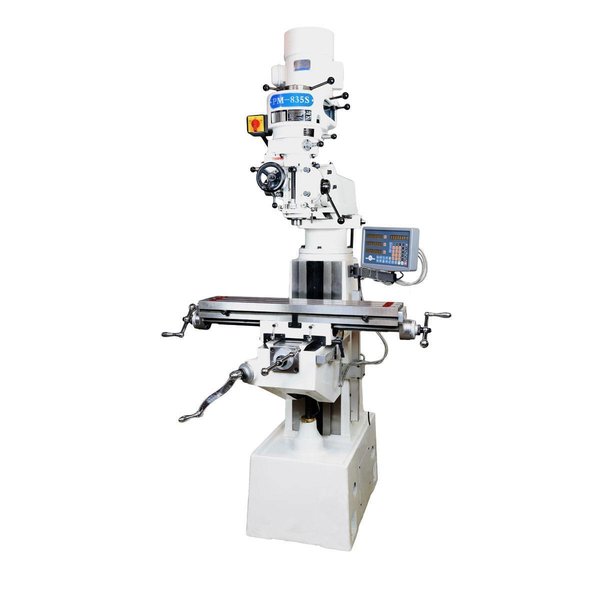

PM-835S PRECISION KNEE MILL HIGHLIGHTS:
- High Grade HT250 Castings
- Head is made in Taiwan, with the body made in China, allowing for a higher quality machine, at a VERY reasonable price
- Design is exclusive to us. You will not find another machine that stacks up in features anywhere near this price range.

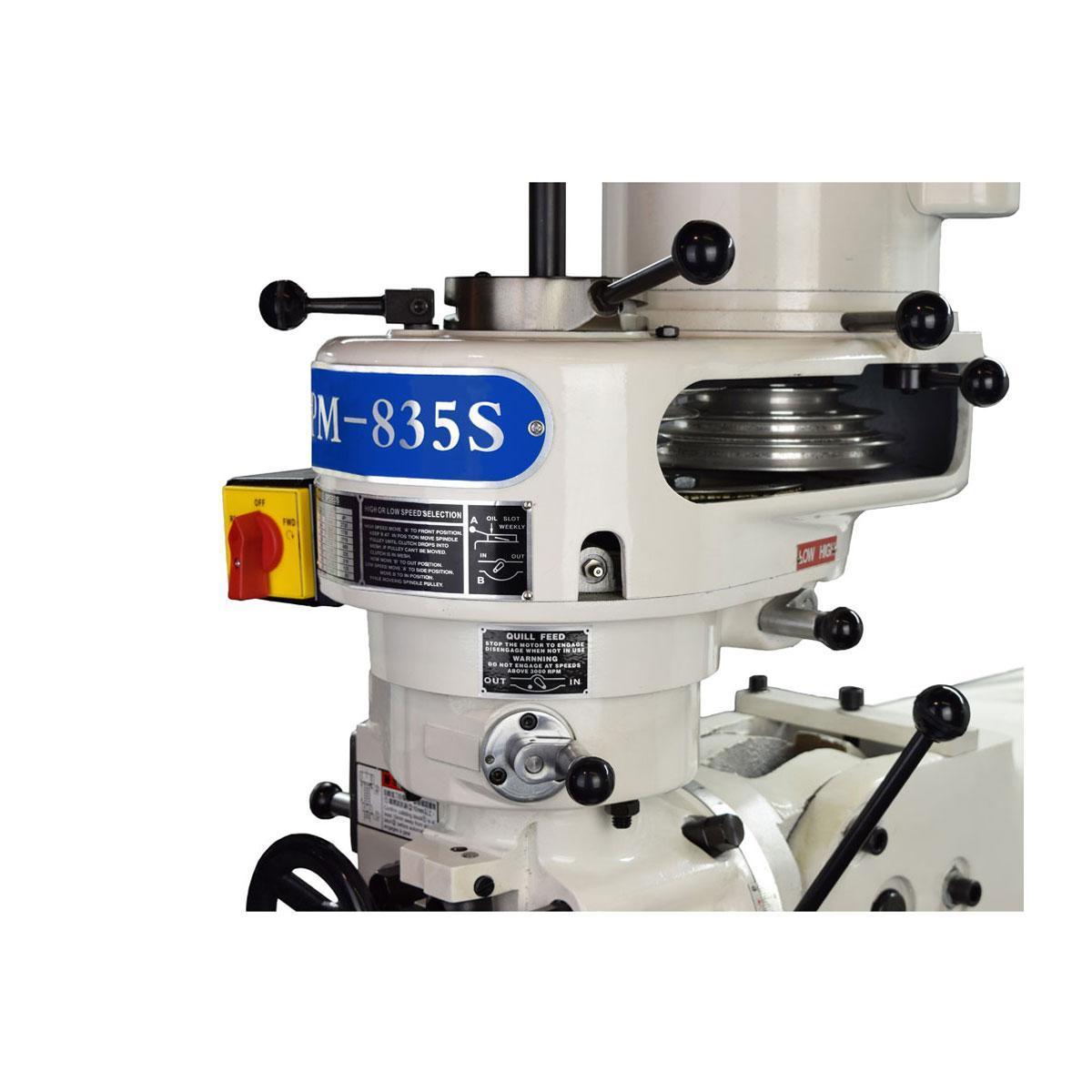

- FULL FEATURED milling head. Spindle down feed in 3 steps, (.0015, .003, .008 IPR), 3-3/8″ diameter quill.
- Same head as used on our larger knee mills, with the cost and space savings of a smaller machine
- 5″ Quill Travel

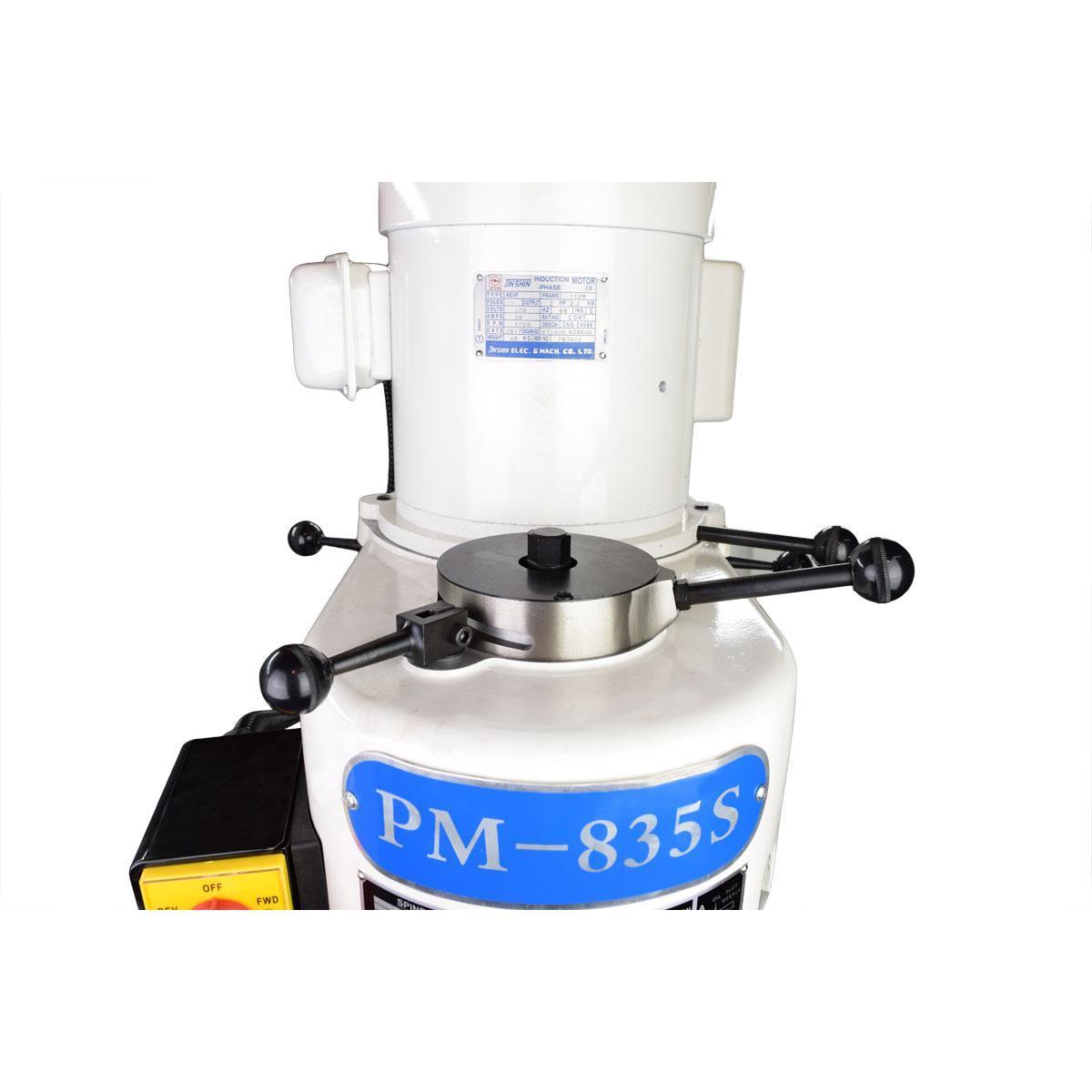

- Head Swivels Left and Right, AND Tilts Front To Back 10 degrees, only machine in this size class with this feature – Allows tramming in all directions for perfect workpiece tolerances – Excellent feature for extremely high precision work!
- COMPARE EVERYTHING WITH SIMILARLY PRICED MILLS ON THE MARKET – THEY WON’T EVEN COME CLOSE
TYPICAL USERS:
- Industrial users looking for a good quality, full featured, smaller vertical knee type milling machine, built for industrial use, with a smaller size to save space, and a lower price in mind
- High end gunsmiths looking for a smaller knee type milling machine, who wish to maintain the quality and features of a full sized knee mill, but also want to save on space
- Users who appreciate a full featured knee type milling machine with the space and cost saving
characteristics this offers
- Any other users who can appreciate a good quality machine with full features and no shortcuts, in a
smaller space-saving size, at a very reasonable price for the level of quality that you are purchasing
MAIN HIGH QUALITY FEATURES:
- High Grade HT250 Castings
- Head is made in Taiwan, with the body made in China, allowing for a higher quality machine, at a VERY reasonable price
- Design is exclusive to us. You will not find another machine that stacks up in features, and price
- FULL FEATURED milling head. Spindle down feed in 3 steps, (.0015, .003, .008 IPR), 3-3/8″ diameter quill.
- Same head as used on our larger knee mills, with the cost and space savings of a smaller machine
- 5″ Quill Travel

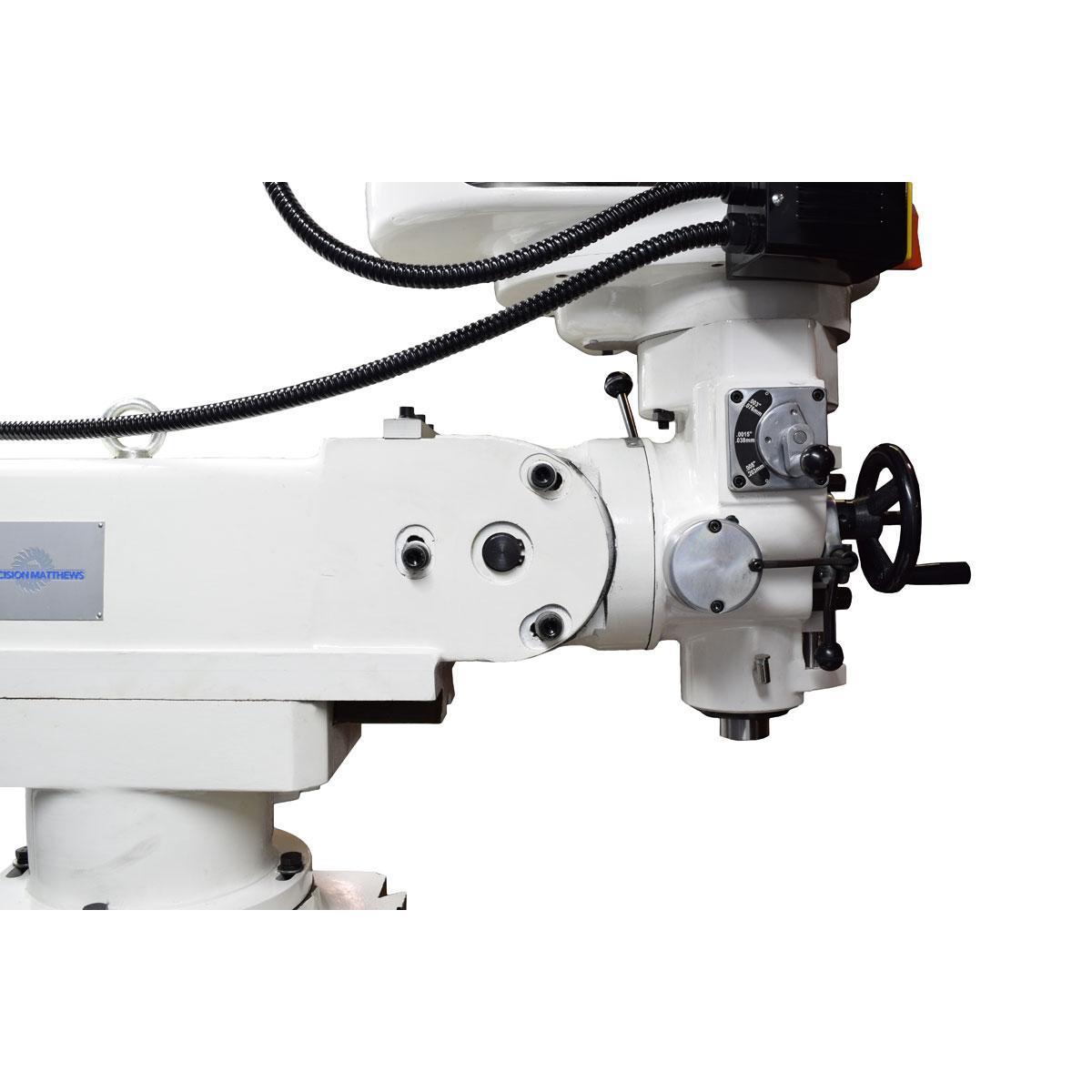

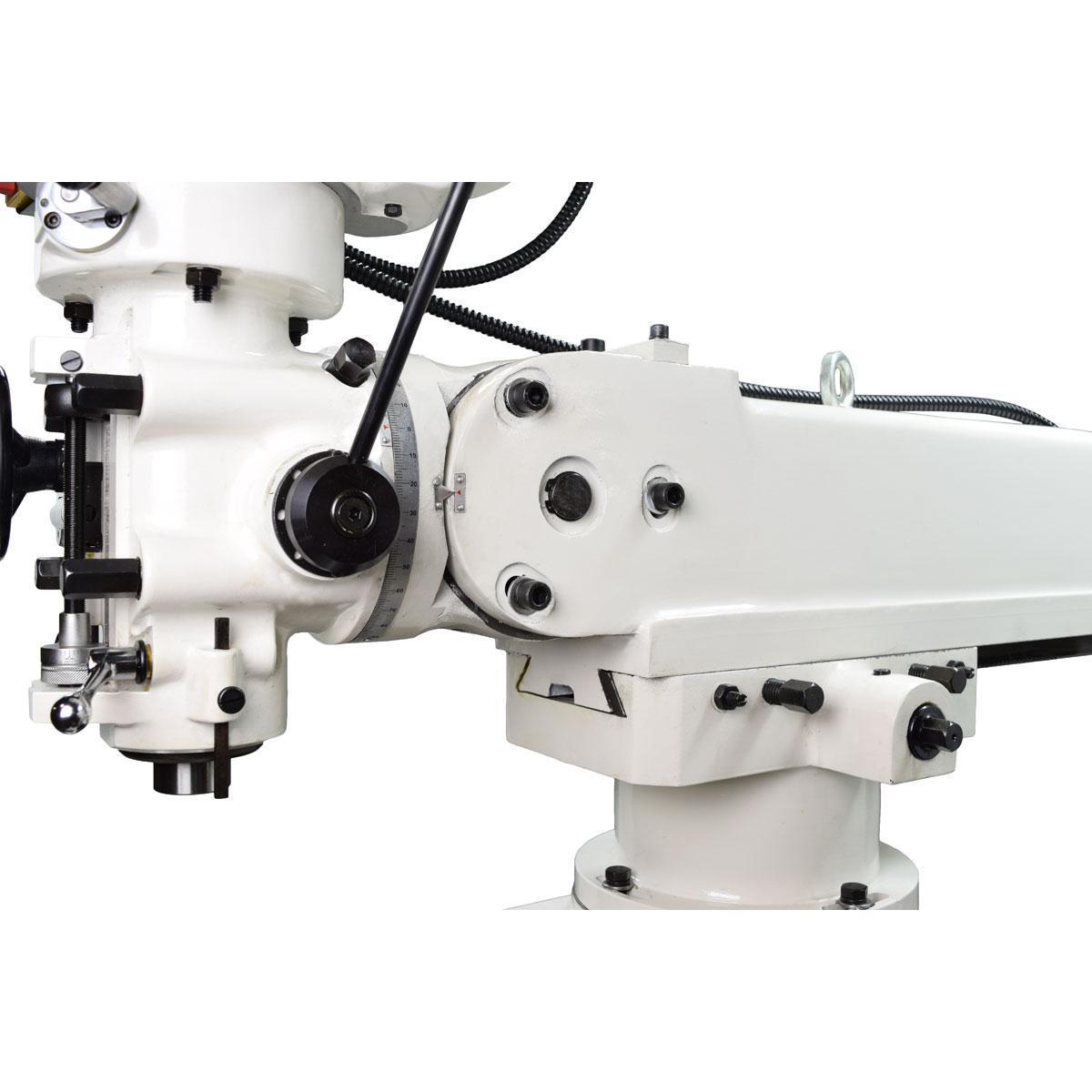

- Head Swivels Left and Right, AND Tilts Front To Back 10 (approx +/-5) degrees to set spindle to table tram, only machine in this size class with this feature – Allows tramming in all directions – Perfect alignment for the high precision jobs – Very critical, great feature for extremely high precision work!
- Huge 18″ spindle to table distance
- Hardened and Ground table and way surfaces greatly reduces wear, which maintains accuracy, and greatly extends machine life
- High precision Inch Pitch lead screws, for ease of use and greater accuracy (5TPI Screws, .200″ per turn, with large dials)
- High Precision Spindle with +/- .0002” or less runout for greater tool life and accuracy
- Balanced pulleys in head for smooth and quiet operation
- Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring
- Quill is Precision Ground, then Hard Chrome Plated for longer life
- Tolerance Test Certificate included, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations
- Longest in class 3 YEAR WARRANTY against defective parts, including electrical (excludes normal wear items such as belts, bushings, etc)
Main Specifications: (All subject to final verification)
Model: PM-835STable Size: 8”x35 Table T Slot Size / Spacing Between: 9/16″ / 2-1/4″X Axis Travel: 23” (Shortened approx.. 2” with X Power Feed Installed)Y Axis Travel: 10”Z Axis Travel: (Knee) 16”Min/Max. Distance, Spindle to Table: 2”/18”Spindle Height: Floor to Bottom of Spindle: 56”Table Height: Fully Raised 54”, Lowered 38”Quill Travel: 5”Leadscrew Type: Precision Ground ACME Leadscrew W/ Backlash Adjustments on X and Y AxisLeadscrew Pitch: .200” (5 Threads Per Inch)Table Dial Graduations: .001”Spindle Taper: R8Spindle Speed Range: 80-2720 RPM, 8 stepsSpindle Bearing Type: High Precision Angular Contact Bearings, Fully AdjustableSpindle Bearing Class: C5Main Motor H.P.: 3 HPOverall Height, Head Up: 89-1/2″Height with head down (For moving and shipping): 72”Depth Front to back, rear of machine to front of knee casting: 34”Rear of machine to tip of Y axis handle: 40”Width X Axis Table Handles, Tip to Tip: 48”Net Weight: 1400 LBSVoltage / Phase: 220 Volt, Single Phase and Three Phase Available – Requires 220 Volt, 20 Amp Circuit for both single or 3 phaseCord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)Warranty: 3 YearsShipping Dimensions: LxWxH 48”W x 48”L x 80”H (Head ships Flipped Upside Down in the crate To Lower Overall Height)
|
