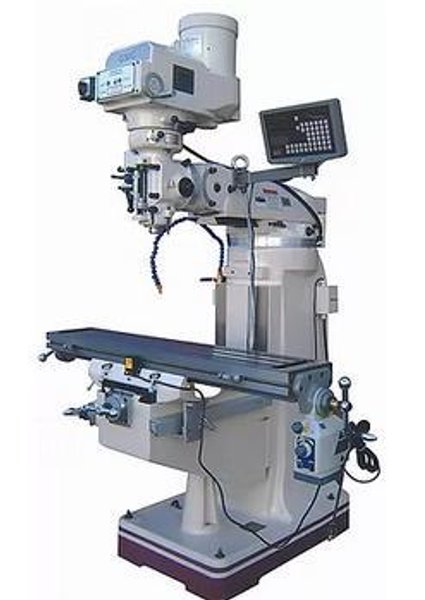

9" x 49" Vertical Mill | Metal Milling Machine with 2-Axis DRO

Brand
GMC
Category
Milling Machines
Type
Knee Mills
Model
GMM-949
Stock #
GMM-949
Year
Not specified
Condition
New

Location

Not specified
REQUEST FINANCING
  • Taiwan Mill
  • “Meehanite” Casting
  • “Turcite B” Coating on X/Y ways
  • ISO 9001 certified
  • GMM-949V has variable spindle speeds from 70-4,300 rpm
  • Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion )
  • Heavy Duty “Meehanite” casting
  • Hardened & ground dovetail guideways
  • Hand scraped precision ways
  • Hardened & ground table and ground table T-slots
  • Precision ground ACME Leadscrews
  • Chromed ground quill ( spindle )
  • Chromed dials
  • Adjustable ways
  • Hand brake on mill head
  • Tilting & rotating head
  • Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
  • One shot lube system
  • front and rear rubber chip guards
  • (1) manual draw bar
  • Tool box with tools
  • Power source 220V , 3 phase
  • One year industrial warranty for parts

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.Once the machine is received and the phase converter is installed by us, it will be ready for use.

Table Size

Table Load Capacity

9" x 49"

650 lbs.

X Axis Travel

X Travel with Power Feed

Y Axis Travel

Z Axis Travel

35 1/2"

31 1/2"

12"

17"

Spindle Taper Type

AC Spindle Motor

Spindle Speeds



Quill (spindle) diameter

R8

3 HP, 220V/10A - 440V/5A

70-4,300 RPM (variable speeds)



3 3/8"
Quill (spindle) travel 5"
Ram Travel 12"
Table T-Slot Size 5/8" x 3 slots

Head Swivel, R/H, L/H

Net weight

90 degree

2,650 lbs.

 For more complete information: https://www.gmcmachinetools.com/catalog
