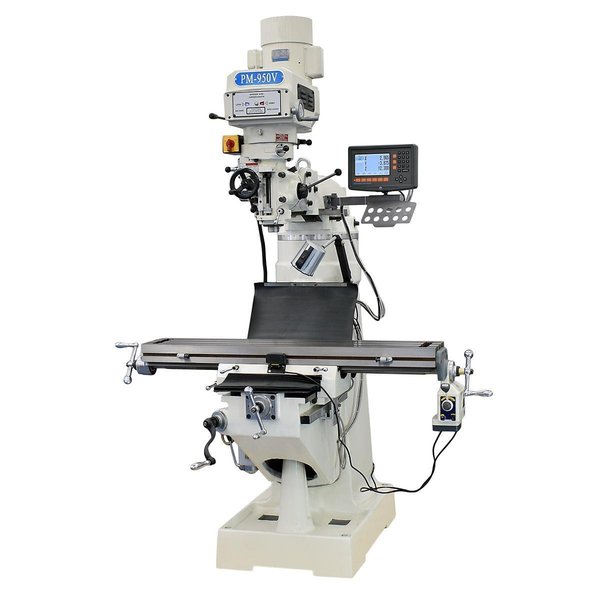

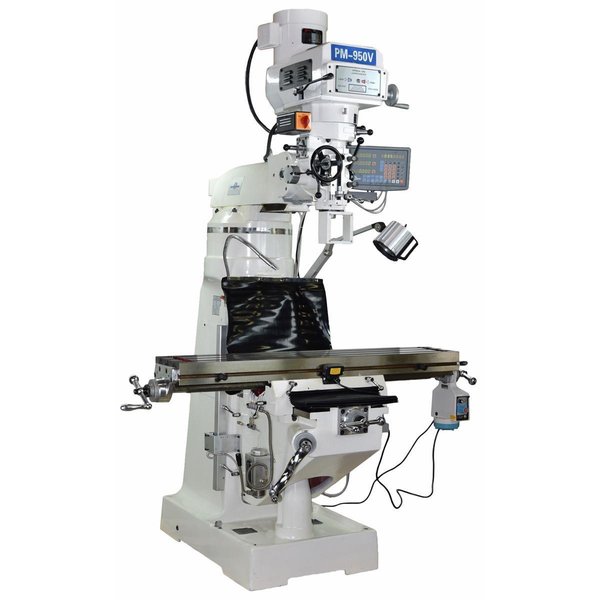

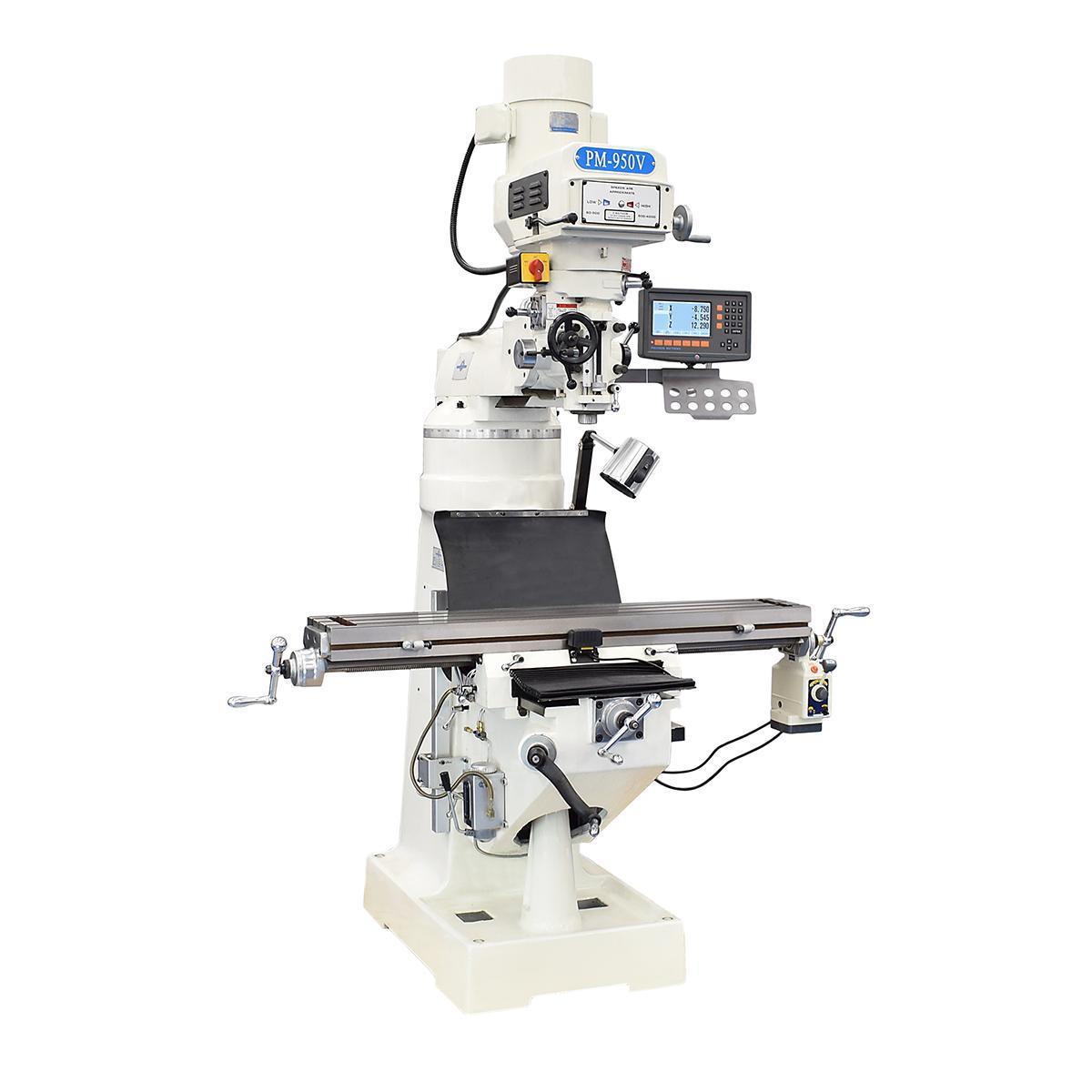

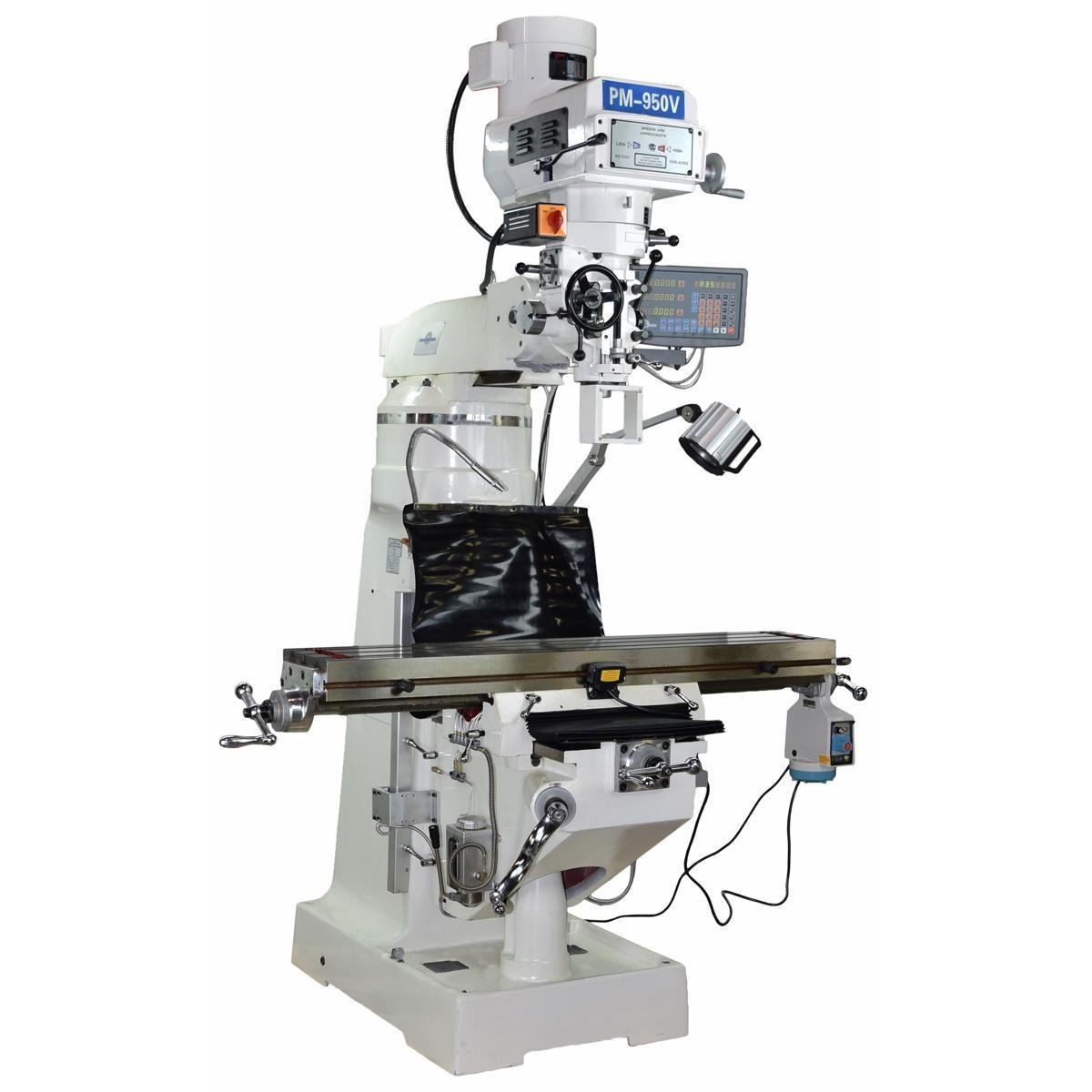

PRECISION MATTHEWS PM-950V w/3-AXIS DRO VARIABLE SPEED PRECISION KNEE MILL

PRECISION MATTHEWS PM-950V w/3-AXIS DRO VARIABLE SPEED PRECISION KNEE MILL

Brand

Not specified

Category

Milling Machines

Type

Knee Mills

Model

PM-950v

Stock #

Not specified

Year

2024

Condition

New

Location

Pennsylvania

Specifications
Files & Videos

Weight

2550 pounds

PM-950V PRECISION KNEE MILL HIGHLIGHTS:

Available in 220V Single Phase, Or 3 Phase Power To Suit Buyer’s Needs
3 Axis Full Featured DRO Included (.0002″ Accuracy)
X Axis Power Feed Included
LED Work Light Included
One Shot Lube System Included
Way Covers Included
High Quality, Full Featured, Yet Economically Priced Milling Machine
3 Year Warranty

STANDARD ACCESSORIES:

PM-950 Milling Machine

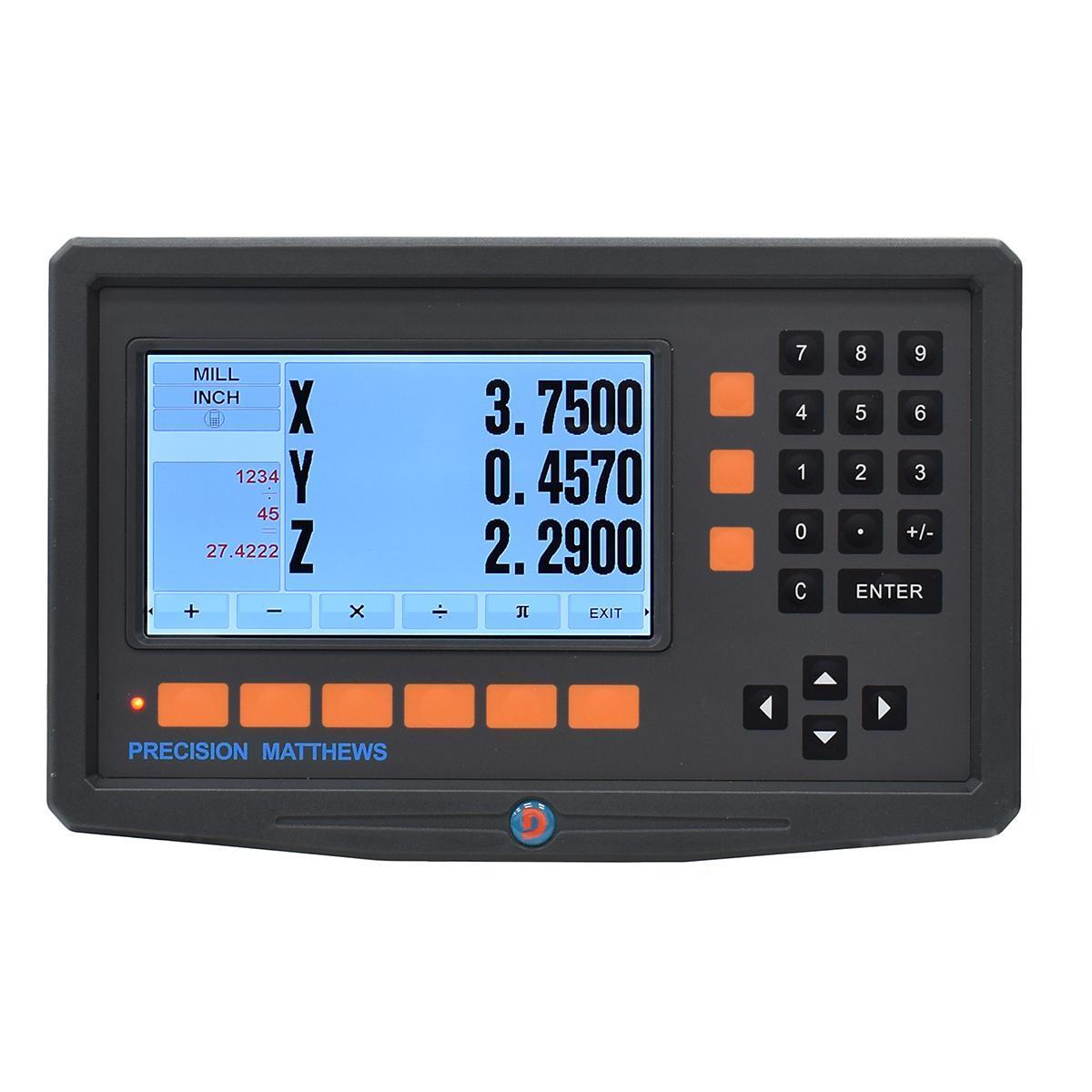

3 axis Precision Matthews LCD DRO, Installed (3rd axis on knee travel)
X Axis Power Feed
LED Work Light
Way Covers
One Shot Lube Pump for ways
Power Down/Up Feed On Quill for boring
Hard Chromed Quill for longer life
R8 Spindle Taper

MAIN HIGH QUALITY FEATURES:

High Grade Meehanite Castings, High Grade of Cast Iron, Meehanite / Grade 250 (FC250/HT250) Cast Iron, ribbed for rigidity and strength. – Be sure to ask if comparing.
Available in either Single Phase to run on standard 220V Power, or 3 Phase for industrial
use, Your Choice (Please specify when ordering)
Entire Milling Head and Main Motor are made in Taiwan – only very high quality units used on
these machines, while the body is made in China for cost savings.
Hardened and Ground table and way surfaces greatly reduces wear, which maintains accuracy,
and greatly extends machine life – Box Ways on Y axis means more surface area, and more rigidity.
Massive 20″ Wide Saddle for extra table support
Turcite B way material on X and Y Axis for smoother table movements and longer machine life –
compare with others, you will notice the feel right away in the table handles.
Head Swivels Left and Right, AND Tilts Front To Back
One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times of all way surfaces and lead screws to seconds, it is accomplished by simply pumping a lever.
High precision Inch Pitch lead screws, for ease of use and greater accuracy (5TPI Screws)
High Precision Spindle with +/- .00015” or less runout for greater tool life and accuracy
Balanced pulleys in head for smooth and quiet operation
Full featured head with automatic quill feeds in 3 steps for boring operations
Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when
drilling and precision boring
Power Down Feed on quill is standard, in 3 steps .0015, .003, and .006 Inches per revolution
Quill is Precision Ground, then Hard Chrome Plated for even longer life
Available with either step pulley speed changes, or variable speeds to suit the user’s preferences
Built in coolant sump in machine base
Tolerance Test Certificate included, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality
machine that exceeds their expectations
Longest in class 3 YEAR WARRANTY against defective parts, including electrical (excludes normal wear items such as belts, bushings, etc)

MAIN SPECIFICATIONS:

Model: PM-950S PM-950V
Table Size: 9”x50”
X Axis Travel: 30” with power Feed Installed, Full Way Support at 30″ travel
Y Axis Travel: 12”
Z Axis Travel (Knee): 18”
Max. Distance, Spindle to Table: 18”
Table Height, Lowered Position Approx.: 36”
Quill Travel: 5”
Leadscrew Type: Precision Ground ACME Leadscrew W/ Double Nut Backlash Adjustments on X and Y Axis
Leadscrew Pitch: .200” (5 Threads Per Inch)
Dial Graduations: .001”
Spindle Taper: R8
Spindle Speed Range: 70-4200 RPM (Variable)
Speed Change Type: Variable Speeds / Hi-Low Lever with Variable Knob
Spindle Bearing Type: High Precision Tapered Roller Bearings, Fully Adjustable
Spindle Bearing Class: C7
Main Motor: H.P. 3 HP
Overall Height, Head Up: 950S 83.5” 950V 87”
Overall Height, Head Down (For moving and shipping): 66”
Depth Front to back, rear of machine to front of knee casting: 46”
Depth Front to back, rear of machine to tip of Y axis handle: 51”
Width X Axis Table Handles, Tip to Tip: 68”
Machine Weight: 2550 LBS
Base Bolt Pattern Mounting Dimensions (APPROXIMATE): 20-1/2”W X 33-1/2” L
Voltage / Phase: 220 Volt Single phase, or 220/440 Volt 3 Phase
**Requires 20 Amp Circuit for both single or 3 phase models with order selection above
Warranty: 3 Years
Shipping Dimensions: 66″L x 66″W x ~72″H (Head ships Flipped Upside Down To Lower Overall Height)
Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)
