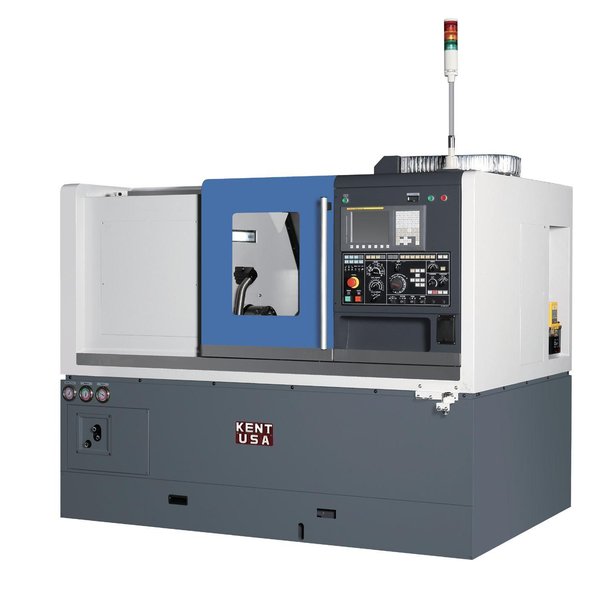

NEW KENT USA MODEL KLT-2000 CNC TURNING CENTER

8” 3-jaw chuck with 2” bar capacity

5” max turning diameter, 15.7” max turning length

45° slant bed with one piece Meehanite® casting for superior dampening and stability

High grade C3 precision ball screws and pretension for enhanced precision

Auto lubrication system metered check valves and piston distributor


STANDARD EQUIPMENT

• Fanuc 0i-T CNC control with 10.4” color LCD
• Fanuc i-Series high torque spindle and axis motor with digital drive system
• Fanuc Auto-Measure System (X and Z)
• Fanuc Macro-B and High Speed Skip Function
• Fanuc USB, PCMCIA, Ethernet and RS-232 ports
• Fanuc Manual Guide i – computer assist programming
• Fanuc 400 registered part program numbers and 640M part program memory
• Swivel-Out control panel
• Heat exchanger for electrical cabinet
• Hydraulic power supply unit
• Flood coolant system (4 bar)
• Chain (Hinge) type chip conveyor and chip cart
• Full enclosure and way covers
• Automatic lubrication system
• 3 color stack indicator light
• 8 station heavy duty high precision turret (10/12 station optional)
• Standard soft jaws 3 sets + hard jaws 1 set
• Precision Linear Guideways on X and Z axis
• 45° slant bed with one piece Meehanite® casting
• C-3 grade high precision ball screws
• Facing tool holder (R/H) 25×25 mm 1 set
• Facing tool holder (L/H) 25×25 mm 1 set
• Boring bar holder ø32 mm 4 sets
• Boring bar socket ø32 mm 1 set with 8/10/12/16/20/25 mm
• U-Drill holder ø32 mm
• U-Drill sockets ø32 mm 1 set with 16/20/25 mm
• Drilling sockets ø32 mm MT 1/2/3
• Operator and Maintenance/Parts manuals
