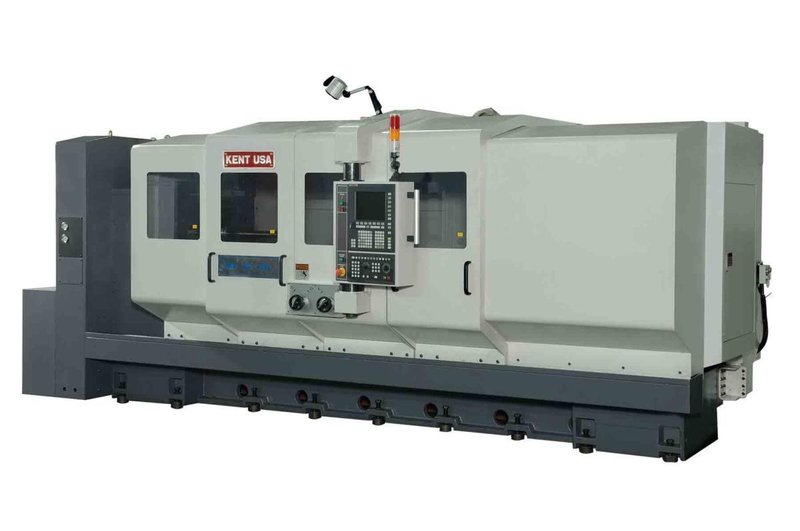

NEW KENT USA MA SERIES DOUBLE TURRET CNC LATHE

Brand
KENT USA
Category
Lathes & Turning Machines
Type
Lathes, CNC
Model
MA
Stock #
19235
Year
Not specified
Condition
New
Location
Not specified
NEW KENT USA MA SERIES DOUBLE TURRET CNC LATHE







Product Highlights

The Kent CNC Double Turret Turning Center provides 2 excellent configurations for complex double-spindle turning. The twin turret setup allows for the most efficient utilization of both upper and lower turrets in one compact design. The MA Series Double Turret Mill-Turn Turning Centers are designed for machining complex work-pieces on both ends simultaneously. This allows for enhanced efficiency for mass production runs.

Single Piece Bed Structure

The massive bed is single-piece manufactured from high quality Meehanite cast iron. The bedway is induction hardened to hardness of HRC 52~54 and precision ground for the highest accuracy. In addition, the box type way for cross slide offers more rigidity for heavy cutting. Turcite-B lining is applied on the cross slide and the carriage to reduce friction.

Hydraulic Turret

The standard equipped hydraulic turret can hole up to 8 tools. It features high indexing accuracy, random tool selection and fast tool change. An optional quick-change toolholder can also be equipped. This can accommodate for more tools and faster tool changing, which yields shorter processing times.

Rigid Spindle

All gears are manufactured from high quality nickel chrome-molybdenum alloy steel in combination with a large module design. Our precision lathes are turned for ultimate performance through dynamic balance testing. The spindle is supported by high precision taper roller bearings. Also, an auto-lubrication system is equipped for headstock gears and spindle bearings.



SPECIFICATIONS
Swing Over Bed                                                          30"
Swing Over Cross Slide                                                   15.7"
Center Height                                                                   16.7"
Control                                                                               Fanuc 0i-TF
Spindle Bore                                                                      6" (Opt 8" or 9")
Spindle Nose                                                                     A2-11 (Opt A2-15)
Spindle Speed                                                                   6-850 RPM (Opt 5-500 RPM)
Spindle Center                                                                  6 MT
Spindle Motor                                                                   25 / 30 HP (Opt 30 / 35 HP)
Turret                                                                                 Single System With Double Turret
                                                                                            V8-100 Front
                                                                                            H4-250 Back
Tailstock Center                                                               MT-6
Tailstock Quill Diameter                                                 5" + Live Center MT6
Quill Traverse                                                                   7.9"
Quill Movement                                                               Manual (Opt Hydraulic)
Rapid Traverse                                                                 6M/Min
Feed Range (X&Z)                                                            .1-3000 mm/min
X Axis Servo Motor                                                          4 HP
Z Axis Servo Motor                                                          5.4 HP
